Shenzhen Must Power Limited >> 220VAC/380VAC 3 Phase 10kw Wind System Grid Tie Power Coverter

220VAC/380VAC 3 Phase 10kw Wind System Grid Tie Power Coverter

220VAC/380VAC 3 Phase 10kw Wind System Grid Tie Power Coverter
Price: US $ 200-220/Piece
Trade Terms: FOB,CIF,CIP
Min Order: 1/Piece
Pay Type: L/C,T/T

220VAC/380VAC 3 Phase 10kw Wind System Grid TiePower Coverter

1.Whats the features?
 on grid with inverter with energy storage
 Combining solar system,AC utility, and battery power source to supply continuous power
 Multiple operations: Grid tie,Off Grid, and grid-tie with backup
 Pure sine wave output
 LCD status display


2. Specification:

MODEL
PH30-2KPH30-3KPH30-4KPH30-5KPH30-6K
Default Battery System Voltage48 VDC
SOLAR CHARGER
&
AC CHARGER
PV Open Circuit Voltage(VDC)145 VDC
Max PV Input Power(W)2600W3200W3200W6400W6400W
Max Solar Charging Current(A)45A60A120A
Max AC Charging Current(A)40A60A80A100A120A
BatteryRated input voltage(VDC)48 VDC
Allowed input DC voltage scope(VDC)40 VDC -- 62 VDC
LV alarm point(VDC)42 VDC
OV alarm point(VDC)60VDC
AC OutputRated capacity(VA)2500VA3750VA5000VA6250VA7500VA
Rated output power(W)2000W3000W4000W5000W6000W
Rated output voltage and frequency (Vac/Hz)230Vac / 50Hz
Rated output current(A)8.7A13A17.4A21.7A26A
Output voltage precision(Vac)230 Vac±1%
Output frequency precision(Hz)50 Hz±0.1%
Rate of wave distortion(THD)
(Linearity loads)
Off grid≤2%
Grid discharge ≤3%
Grid charge ≤3%
Dynamic response speed(0←→100%)20ms
Power factorGrid discharge 99.9% & Grid charge 99.9%
Overload capability110%,30 minutes
125%,1 minutes
150%,30 seconds
200%,10 seconds
Short circuit 5s
Grid / Off grid change time<10ms
Output wavesine
Inverting efficiency 80% resistive loads≥92%≥93%
Standby Power Consumption<2W
AC InputAC Input maximum of current(A)17.4A26A34.8A43.4A52A
AC Input voltage scope(Vac)184Vac ~ 253Vac
AC Input frequency scope(Hz)47.5Hz ~ 51.5Hz
Display

Protection Function
LED indicationSystematic operation, indication of charge and discharge, indication of fault
LCD displayoutput voltage, output current, grid voltage, grid current, voltage of storage battery, load power, chart of capacity
Protection FunctionInput LV protection
Input OV protection
Output overload protection
Output Short Circuit Protection
Mechanical SpecificationsMountingWall mount
W*H* D(mm)/G.W(kg)337*462*183mm/25kg337*462*183mm/29.5kg370*462*183mm/35kg370*537*183mm/47kg370*537*183mm/47kg
OtherCommunication terminalRS485 / CAN bus
Operation Temperature Range-20ºC ~ +50ºC
Environmental Protection RatingIndoor(IP20)
Ambient humidity0 ~ 90% relative humidity(non-condensing)
Altitude≤3000m

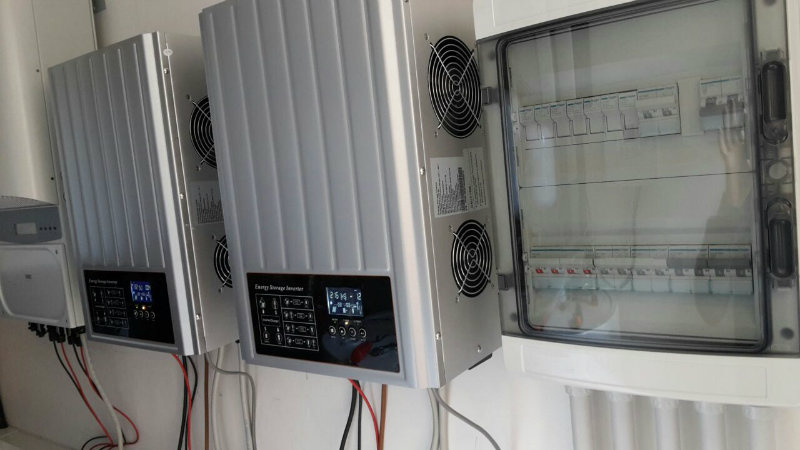

Installations Pictures


MUST Exhibitions and MUST Team


3.Samples and OEM

Samples are Available for Testing and Market Test. OEM is welcomed for us.
1-Year Warranty on MUST POWER Products
MUST POWER provides a 1-year limited warranty ("Warranty") against defects in materials and workmanship for its Uninterruptible power supply, Power inverter/chargers including inverter12v 24v 48V, Solar charge controllers ("Product").

Guides and After-service Consultancy
Must Power Team will offer these guides below.
  A. Need a Accessory
  B. Products Repair
  C. Power Problems to Solve
 D. Power Protection Solutions, etc.
24 Hours After-service consultancy just for you and to make your problems to solve easily.


4.Why Choose  Must ?
a.4 years gold credit supplier on Alibaba
b.11years UPS and Power Inverter export experiences
c.6 years UPS and Power Inverter manufacturer experiences


5. Want to know more about our Company, Products, Price, Packing, Shipping andany discount? Let's Inquiry NOW !!!!!

+86-13597810791
Nancy
Prod Model: PH3000
Markets: North America,South America,Eastern Europe,Africa,Oceania,Mid East
Input Voltage: 48VDC
Output Voltage: 220V/230VAC
Output Voltage Waveform: Pure Sine Wave
PV Open Circuit Voltage: 145
Output: Pure Sine Wave
Power Factor: Grid Discharge 99%, Grid Charge 99%
Mount: Wall Mounted
Selectable Model: 2000W, 3000W, 4000W
Sepcfication: 337*462*183
Application: Air Conditioner
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.

Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.

Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.

With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
