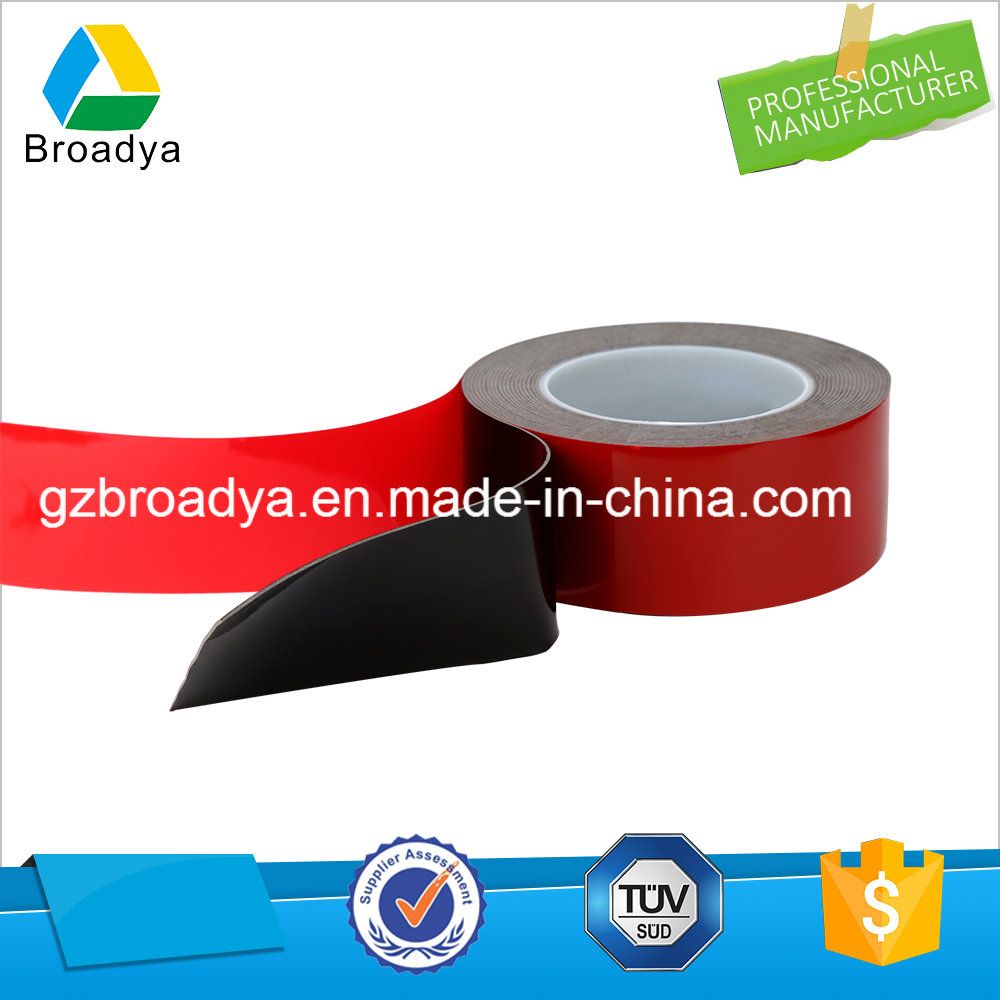

1.2mm*800mm*33m VHB Jumbo Roll Double Sided Foam Tape(BY5120B)
Introduction:
Acrylic foam tape is made of solvent acrylic adhesive and laminated with paper release liner or film release liner
Features:
1. With the features of waterproof, shock absorption, heat-resistant, sound insulation, weather-resistant, ease to die-cut.
2. Acrylic tape is designed to provide very high bond strength on a variety of substrates.
3. Used to replace mechanical fasteners in appliance, automotive, signs, graphics, glass curtain wall attachment and other manufacturing applications.
Main Usage:
In glass curtain wall application, acrylic tape offers a strong adhesion and achieves perfect sealing results.
In such construction technology, the tape is used for the purpose of heat/water/air insulating and sealing, jointing and bonding, repairing, marking ect.
In the process of assembling light industry, acrylic tape offers high bonding and fixing strength to electronic parts, LED plate ect.
In automotive industry, acrylic tape is widely used for insetting strips on vehicles, bumpers, nameplates, internal and external decorations ect. It's the best substitute of 3M products.The following is the specification of adhesive tape| (Item) | (Code) | (Thickness)(mm±10%) | (Color) | (Spec.)(mm*m) | (Adhesive) | (Temp.Res.) | Solvent Resistance | (Substitute of 3M) |
| (Width) | (Length) |
| 1 | BY5064B | 0.64 | Black | 800 | 33 | (Modified acrylic) | ≥120ºC | High | 4929/5925 |
| 2 | BY3050C | 0.5 | Transparent | 900 | 33 | ≥120ºC | High | 4905 |
| 3 | BY3100C | 1 | Transparent | 800 | 33 | ≥120ºC | High | 4910 |
| 4 | BY3150C | 1.5 | Transparent | 800 | 33 | ≥120ºC | High | 4915 |
| 5 | BY3200C | 2 | Transparent | 800 | 16.5 | ≥120ºC | High | 4918 |
| 6 | BY5025G | 0.25 | Gray | 900 | 33 | ≥120ºC | High | 4216/5355 |
| 7 | BY5040G | 0.4 | Gray | 900 | 33 | ≥120ºC | High | 4215/4926 |
| 8 | BY5080G | 0.8 | Gray | 800 | 33 | ≥120ºC | High | 4213/4229 |
| 9 | BY5120G | 1.2 | Gray | 800 | 33 | ≥120ºC | High | 4941/4611/4211/5344 |
| 10 | BY5150G | 1.5 | Gray | 800 | 33 | ≥120ºC | High | 4956/5356 |
| 11 | BY5200G | 2 | Gray | 900 | 16.5 | ≥120ºC | High | 4620/4991 |
| 12 | BY6025W | 0.25 | White | 900 | 33 | ≥120ºC | High | 4914 |
| 13 | BY6040W | 0.4 | White | 900 | 33 | ≥120ºC | High | 4920 |
| 14 | BY6064W | 0.64 | White | 800 | 33 | ≥120ºC | High | 4932/4930/4618 |
| 15 | BY6080W | 0.8 | White | 800 | 33 | ≥120ºC | High | 4647/4253 |
| 16 | BY6120W | 1.2 | White | 800 | 33 | ≥120ºC | High | 4945/4950/4951 |
| 17 | BY6150W | 1.5 | White | 800 | 33 | ≥120ºC | High | 4624 |
| 18 | BY6200W | 2 | White | 800 | 16.5 | ≥120ºC | High | 4912/4955 |
Product Show
Company Profile
Guangzhou Broadya Adhesive Products Co., Ltd. was established in 2010, and is a high-tech enterprise integrating R&D, production and sales, possessing an excellent team and high-level technology for more than ten years. Broadya is committed to the research and development of adhesive products, and has already formed a complete product range including: Ultra-thin waterproof foam tape, PE/EVA foam tape, double sided PET/PVC tape, double sided tissue/non-woven tape, Acrylic foam tape, Non-carrier transfer tape and other industrial tapes. The product has been sold well all over the country and exported to Europe, North and South America, the Middle East, Asia, and other regions and countries with a great quantity.
With high- tech manufacturing facilities and high quality control system, Broadya concentrates on providing adhesive solutions for communication, household appliances, digital products, LCD/LED panel, automobile, construction and printing etc., and becomes one of the most professional manufacturers in Mainland China.
We have obtained the approval of ISO9001-2000 international quality management system. We adhere to high quality and superior service to meet the customer requirements. As our philosophy of "Quality First, Reputation First and Customer First", we are willing to have win-win cooperation with all the customers from domestic and abroad.
Contact UsTel: 86-20-89854282/89854472
Fax: 86-20-89854196Mobile: 86-13725165879 (Mr. Huang) Website: www.broadya.com (Acrylic Foam Tape/VHB Tape)Address: Room 902, B1 Building Wanda Plaza, Kaichuang Dadao, Huangpu District, Guangzhou, China
