| Price: | US $ 60500-63300/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |

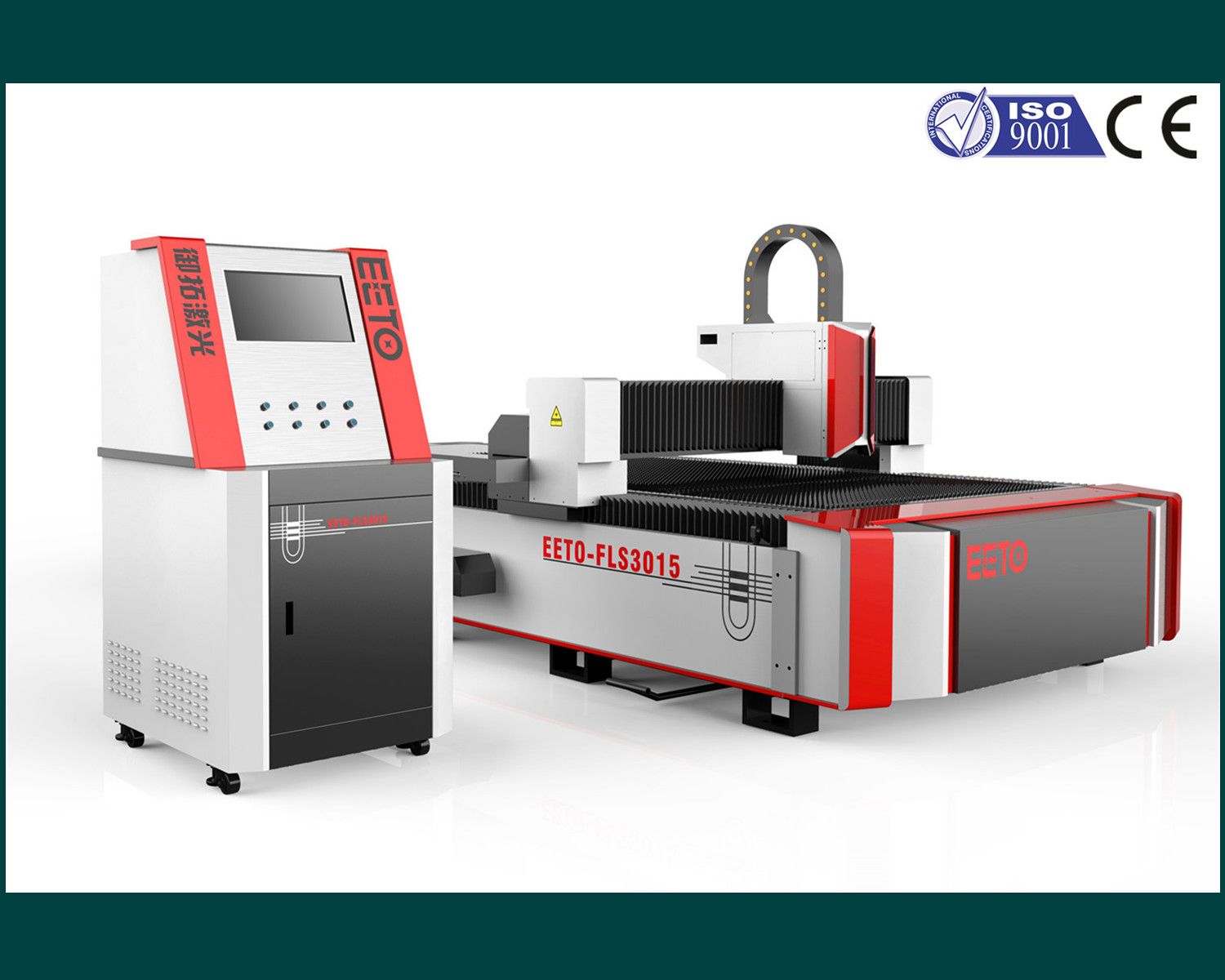

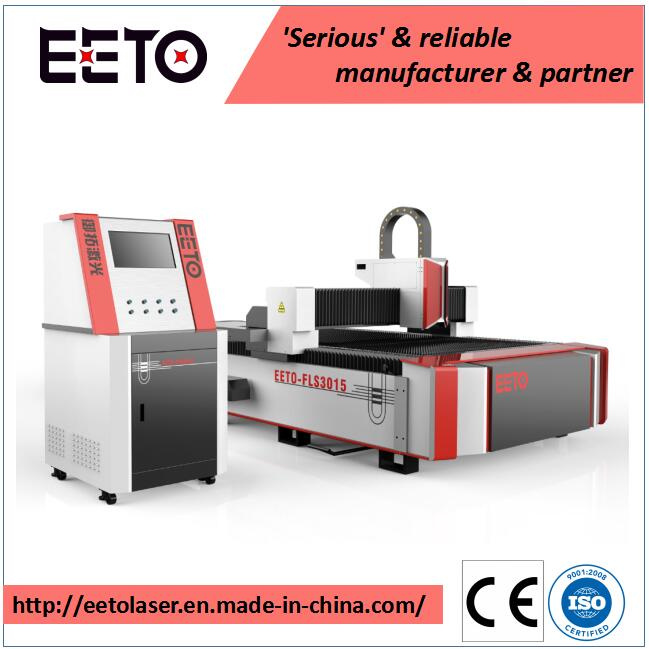

| Prod Model: | FLS3015-1000W |
|---|---|
| Paint: | Red and White |
| Lead Time: | Within 40 Days |
| Accelerated Speed: | 1.2g |
| Assistant Gas: | Oxygen, Nitrogen, Compressor Air |
| Total Electrical Power Consumption: | 10.2kw |
| Dimension: | 4300*3200*1700 |
| Load Capactiry: | 1000kg |
| Machine Body Technology: | Tube Sheet Welding |
| Annealing: | Yes |
| Abrasive Blasting: | Yes |
Processing Materials:
Able to cut a variety of sheet metals, stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass plate, aluminum, manganese steel, various alloy plates, rare Metal and other materials,

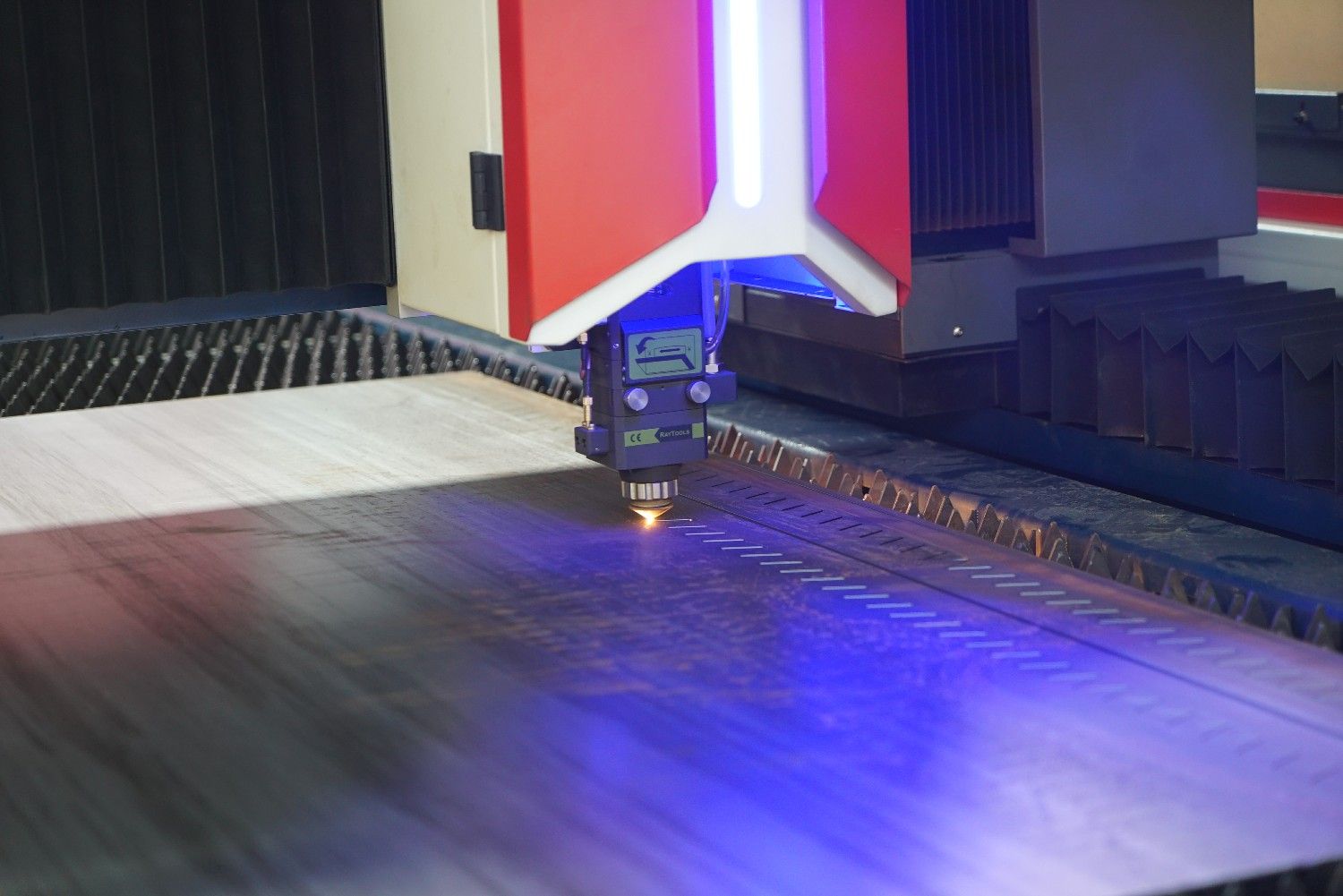

Fiber Laser Cutting Machine Principle:
It funtions by working highly focused energy and density spot of laser onto metal work pieces, causing the thermal zone melt and vaporized. Under mechanical motion control, automatic laser cutting is realzied. It is currently one of most advanced processing technologies which involves Fiber Optics, CNC Control and Precision Mechanics
Parameter:
| MODEL | EETO-FLS3015-1000W | STRUCTURE | Gantry type |
| OUTPUT POWER | 1000W | DRIVEN STRUCTURE | Duel-driven |
| CUTTING AREA (L*W) | 3000*1500mm | DRIVEN MODE | Servo control |
| MAX CUTTING THICKNESS | 10mm CS; 6mm SS | X AXIS STROKE | 3020mm |
| MAX CUTTING SPEED | 45m/min | Y AXIS STROKE | 1520mm |
| MAX IDELING SPEED | 80m/min | Z AXIS STROKE | 150mm |
| POSITIONING ACCURACY | ±0.03 mm | COOLING | Water chiller |
| RE- POSITIONING ACCURACY | ±0.02 mm | AMBIENT TEMPERATURE | 5ºC-45ºC |
| CUTTING GAP | 0.1mm | BEARING WEIGHT OF TABLE | 1000Kgs |
| CONTINIOUS WORK TIME | 24H | PROTECTION LEVEL | IP54 |
| POWER SUPPLY | AC380V±5%(50Hz/60Hz) | TOTAL GROSS WEIGHT | 4.5Tons |
| TOTAL POWER | <10.2KW | TOTAL DEMENTION(L*W*H) | 4300*3200*1700 |
Product Features:
1. Rigid machine body obtained through standard annealing process in high - temperature electric furnace, ensuring precision in the long term
2. Imported original fiber laser generator with super beam quality and stable performances, laser passes through fiber without reflectors, free of light path adjustment, maintenance free, service life up to 100,000 hours
3. Photoelectric Conversion Efficiency (PCE) by 30%, far more higher than CO2 laser or YAG, which saves much of energy cost.
4. Imported precision motion parts and servo motors, which support high-speed running
5. Capable of cutting various graphics and words, which makes work simple , flexible, and convenient.
6. Smooth cut without deformation.
7. Extremely low energy cost, which accounts only 1/3-1/5 of YAG machine if output powers were the same, environment-friendly.
8. Solid-state laser type, which supports multimode integration with multimode power outputs, able to cut a variety of sheets with fair speed. In addtion, it supports air cutting thin sheets, greatly shortening period of ROI (return of investment)

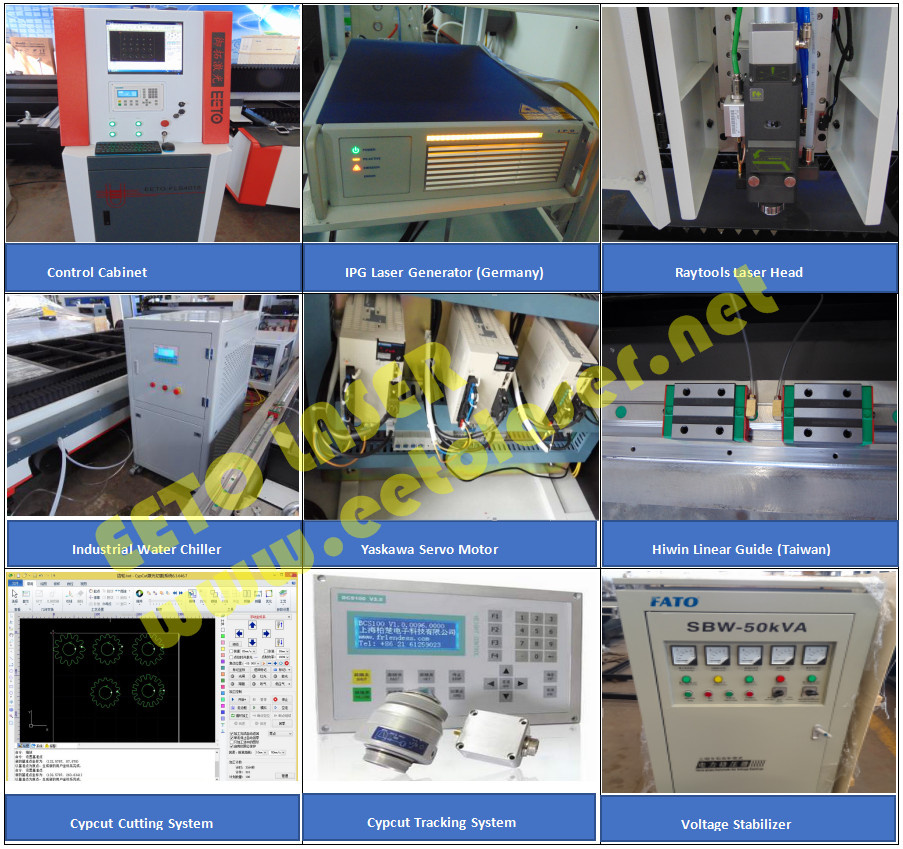

Standard Configurations
For our EETO, we adhere to adopting the best configurations and State-of-the-art technology, and bring our customers with reliable and excellent quality products, meeting various processing requirements, at the same time, we also provide tailored solution for customers in specific field, now you can see our configurations below.

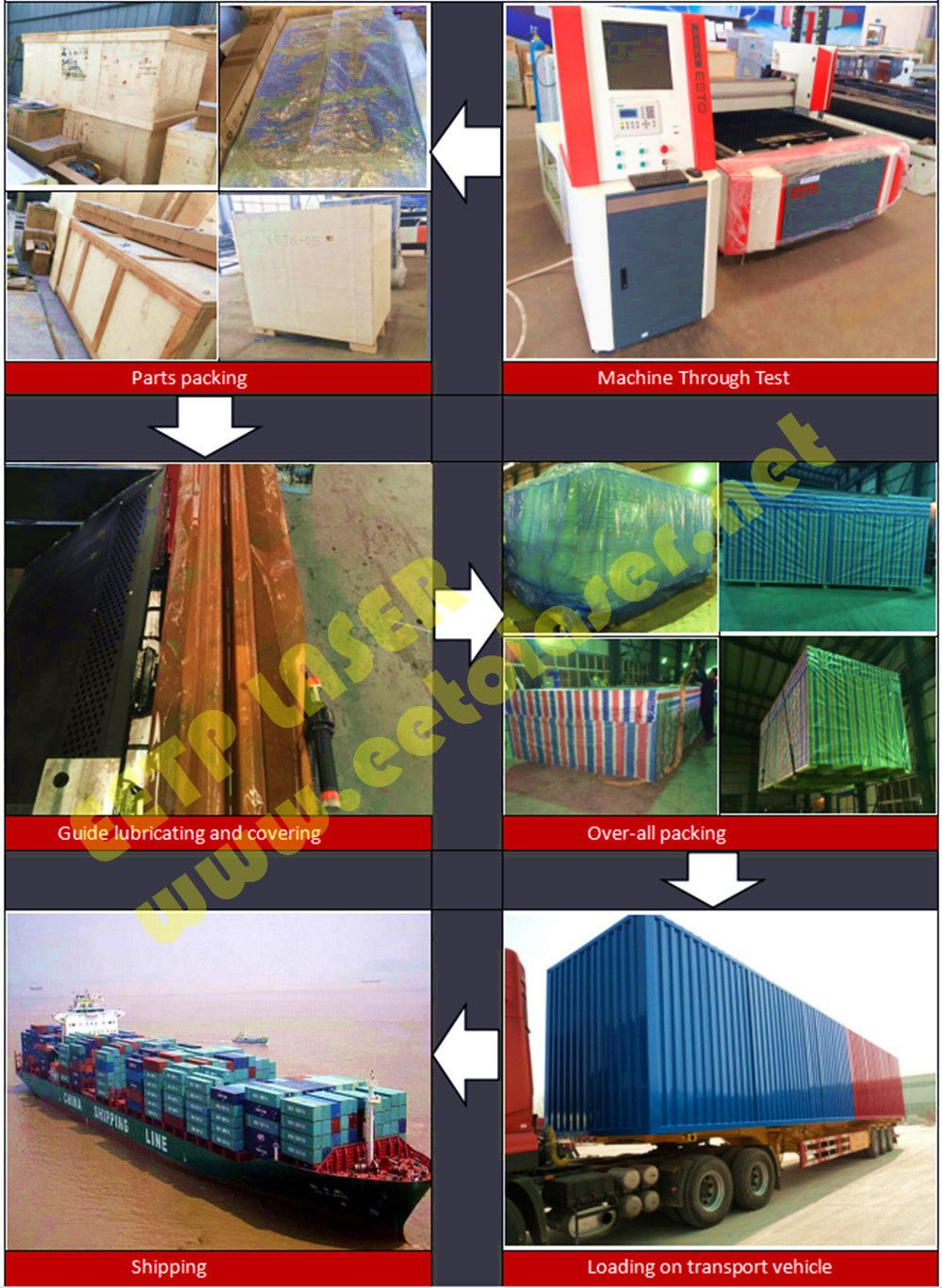

Standard Package
Package and Delivery are of great important part in aftersales service, we provide all-round and complete services to customer to make sure your products arrive safely without damages. For packaging.
1. We use wooden cases that meet international export standard
2. All the motion parts are lubricated and covered with firm to avoide direct air contact and thus prevent getting rust.
3. The whole machine and parts are well packed and fixed inside of the wooden case without moving or sliding inside.
4. The inner space of the wooden case will be made into vaccum to keep dry and the plywood case will be covered with waterproof cloth to stop rain drops or sea water from entering the wooden case
After-sales Service
1. Based on Service-oriented conception, complete pre-sales and after-sales services for customers will be provided like installation, testing, training and maintenance.
2. Before signing a contract, parameters and processing technics will be explained and given to customers to make product fully comprehended.
3. After signing a contract, transport vehicle or ship will be arranged to carry goods to the appointed location within delivery period, and engineers will be sent on site later for installation, lasting 1-2 days.
4. Training period takes about 3-4 days till all the operations are perfectly performed under regulations.
5. We promise to visit our customers once a year ,during the visit, we will help them with machine maintenance, operation, and enhance their knowledge and operation skills.
Power-on/off procedures
Operations of control panel ;
Parameter setup
Operations of software; Clean and maintenance
Common hardware troubleshooting; Warnings during operation.
Extra Tech Support
Two-year warranty guaranteed from EX-factory, meanwhile, lifelong maintenance succeeds after warranty. Any malfunction or damage occurs during warranty ( man-made causes and force majeure exclusively), please email or call us immediately, professional engineers will be arranged on the resolution, all the charges are free including cost of changing new parts (consumable parts excluded).
Our promises: 24 hours on-line service and response time less than 2 hours
15 days after signing a contract, a layout drawing will be sent to user( including preparations on foundation, water, electricity, gas, air/water pipe, interface, etc). Preparatory works and space spared for machine installation are required on user side . Professional engineers then will be dispatched after all these preparations are finished, In order to run everything smoothly, on-site assistance from user side will be quite necessary.
Our Customers
EETO are delicated to bringing best laser products to the world-wide customers, we are establishing up our sales network and network of distributors, now we have close contact with many clients from a great many countries like Thailand, Indonesia, Malaysia, Singapore, Taiwan, Spain, Macedonia, Canada, U.S. Mexico, , Brazil, Argentina.... welcome to work with EETO, and WELCOME TO JOIN US!

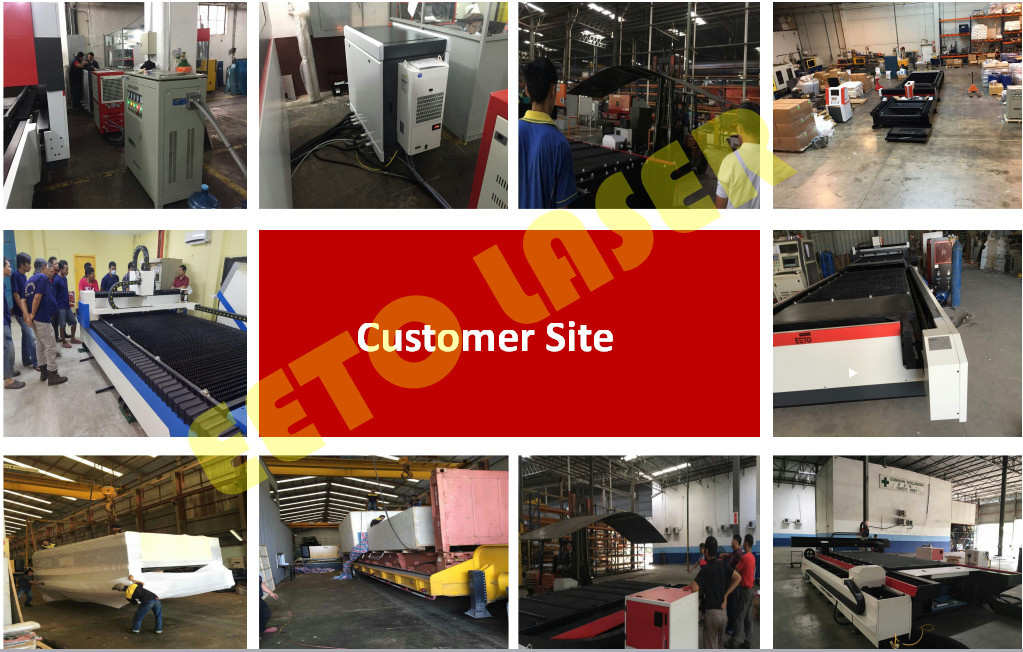

On-site Installation and Training
