| Price: | US $ 5000-11000/Set |
|---|---|
| Trade Terms: | FOB,EXW,CIF |
| Min Order: | 1/Set |
| Pay Type: | T/T,Western Union |
| Prod Model: | WSH |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: | Solar and Wind Hybrid System |
| Capacity: | 10kw |
| Wind Capacity: | 5kw |
| Solar Capacity: | 4kw |
| Controller: | MPPT Solar Controller and Win Controller |
| Wind Protection: | Electromagnetic Torque Control and Bra |
| Can Do Capacity: | 300W-100kw |
| Warranty: | Wind 5 Years, Other 3years |
| Application: | Home |
| Specification: | Normal |
Why Choose Tanfon?
1) TANFON has sold the system to Nigeria, Colombia, Burkina Faso, Egypt, Bolivia, Kenya, Ghana, South Africa, Argentina, Philippines, Congo, etc. Almost 85% of Africa countries !
2) With a professional installation team, Have went to Egypt, Chad, Nigeria, Ghana, Doha, Pakistan for installation
3) Already started some inverter factories in some countries. so there is no problem in after sale service. And we are still looking for local factories in other countries, to unfolding depth of cooperation
4) We insist on using good quality raw material whenever and wherever.
5) With customer's' praise as an assurance,Tanfon is a guaranteed brand.
6) Our company's philosophy is: one-stop solar energy service platform
Foshan Tanfon Energy Technology Co.,LTD
Factory manufacturer of all kinds of inverter, solar energy system, solar street light system, wind turbine system, solar wind hybrid power system.
Off grid home use solar and wind hybrid energy system have power design 500W to 20KW.

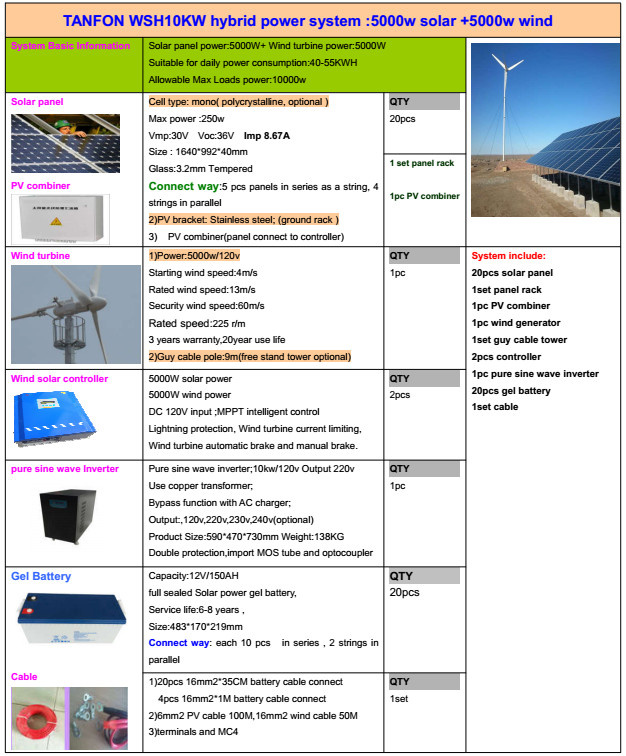

(10kw solar wind hybrid energy system details for reference, need more power design system and want to get more details, please send inquiry to us)

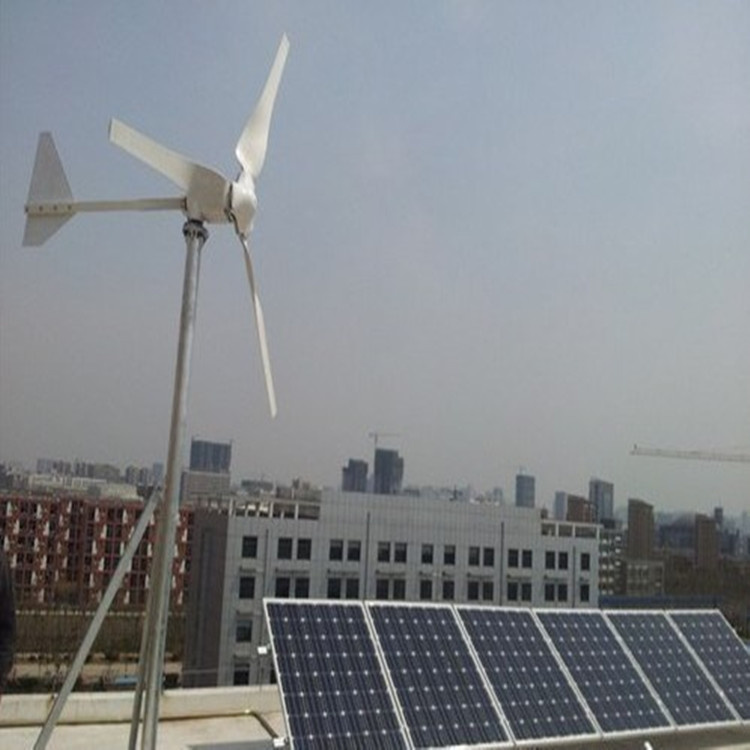

10kw Home Solar charge system

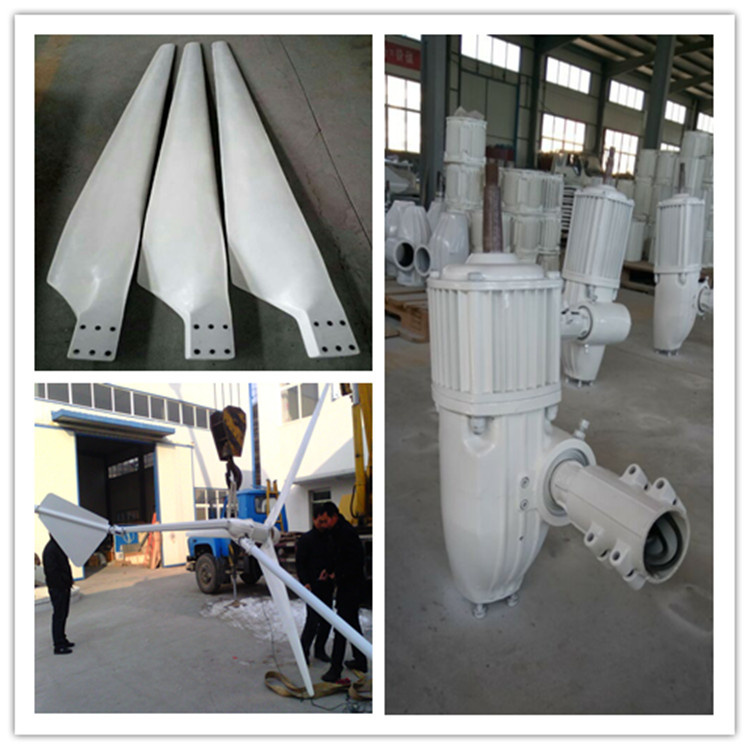

Wind turbine generator(5KW)
Wind turbine Features:
1. Rare earth permanent-magnet generator
2. Small vibration and tiny friction, stable rotation in higher speed
3. Streamlined wind turbine body and blade outline design
4.Blades have 2 kinds, 300w-1kw for high-rigidity FRP materials and blades are dynamic-balanced
5. Noise level below 55dB around the wind turbine tower
6. State of the art, workmanship and beautiful appearance
7. Use magnetic saturation technology, with 20years designed life;
8. Select high quality bearing, free to maintenance;
9. Anti-twist device, generator can whirl in each direction
10. Anti strong wind, the blade protect itself automatically,
11. Supply matched controller/inverter, make the system more stable.

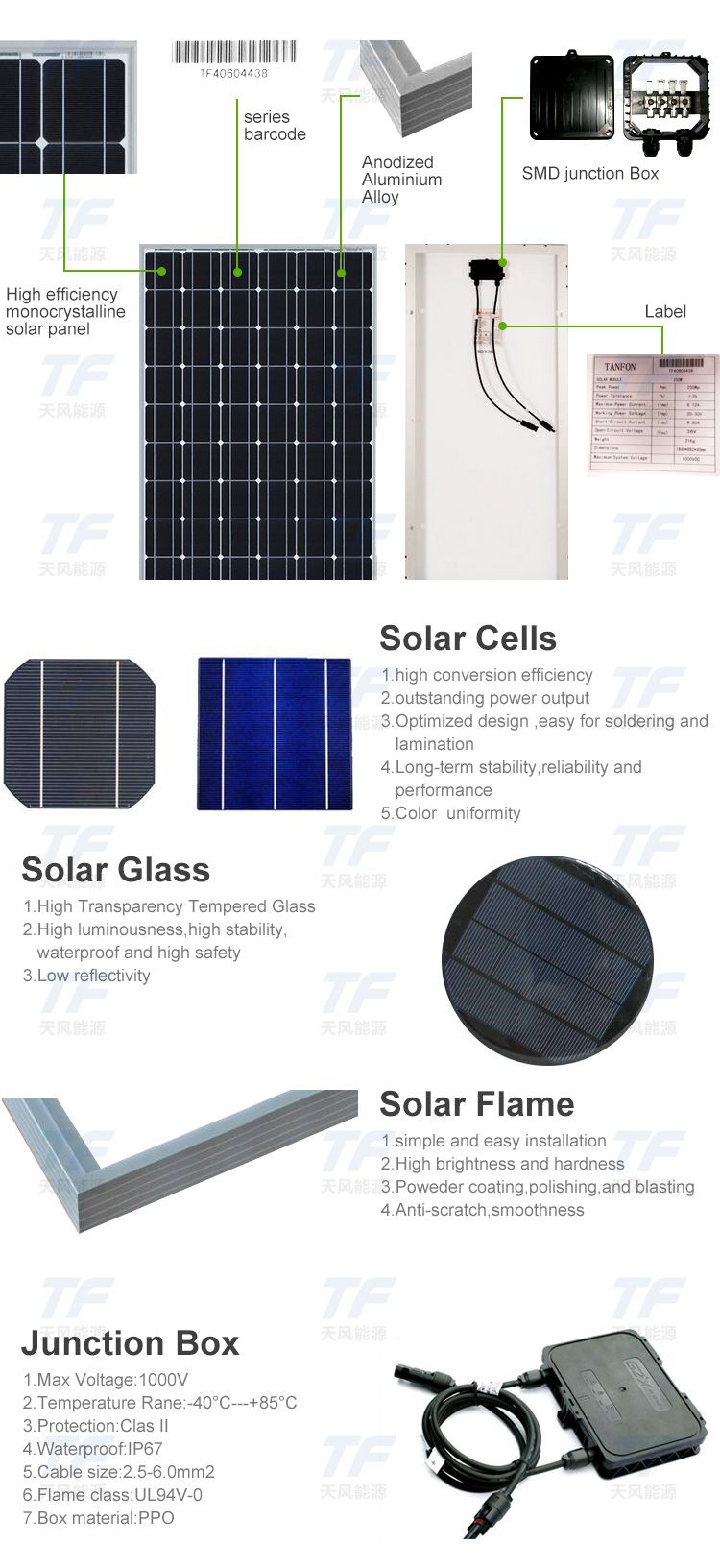

Solar PV panel characteristics
| Module Type | FS250-24v |
| Maximum power at STC(Pmax) | 250W |
| Optimum operating voltage(Vmp) | 30V |
| Optimum operating current(Imp) | 8.33A |
| Open-circuit voltage(Voc) | 36V |
| Short-circuit current(Isc) | 9.68A |
| Short-circuit current temperature coefficient | (0.065±0.015)%/ºC |
| Open-circuit voltage temperature coefficient | -(80±10)mV/ºC |
| Peak power temperature coefficient | -(0.5±0.05)%/ºC |
| NOCT (Air 20ºC; Sun 0.8kW/m wind 1m/s) | 47±2ºC |
| Operating temperature | -40ºC to 85ºC |
| Maximum system voltage | 600V DC |
| Power tolerance | ±3% |
| STC | lrradiance 1000W/m², Module temperature 25ºC, AM=1.5 |
Features
1. Nominal 24V DC for standard output.
2. High efficiency.
3. Outstanding low-light performance.
4. High transmission tempered glass.
5. Rugged design to withstands high wind pressure and snow load, easy installation.
6. Aesthetic appearance.
7. Design to meet unique demand of customer.
8. 25 year module output warranty.

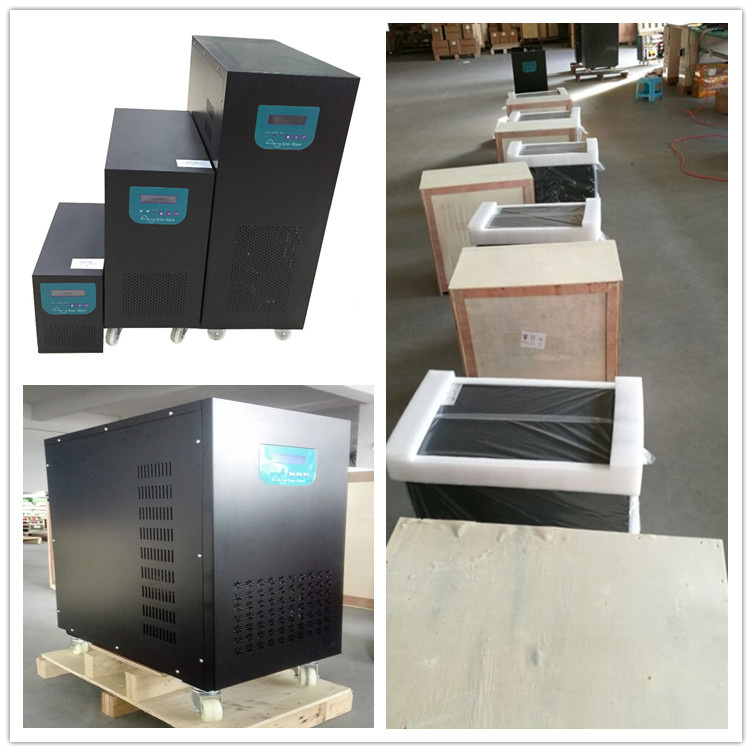

Pure sine wave power inverter (power design 300W to 30KW)
Specification
| Model | TF10K | |||
| Capacity(W) | 10000 | |||
| DC voltage(V) | 96 | |||
| Input voltage(V) | 145-280VAC | |||
| Input frequency | 45-65HZ | |||
| Output voltage | Four steps AVR, 110V/120V/220V/230V for optional | |||
| Output wave form | Pure sine wave | |||
| THD | ≤ 3% | |||
| Low-voltage protection(V) | 78 | |||
| Over voltage protection(V) | 120 | |||
| Recharge current | 20-30A | |||
| Unit size(mm) | 560*280*680 | |||
| Transfer efficiency | 87%--90% | |||
| Protections | Protection against short-circuit, over load, high-voltage, reverse polarity protection and low-voltage protection | |||
| Over load | 120% of the rate capacity | |||
| Short circuit | 300% of the rate capacity | |||
Pure sine wave home inverter/solar,wind system off grid inverter Feature:
1) super wide input voltage: 160V---280VAC
2) completely controlled by CPU. Battery temperature sensor (BTS) Automatic generator starting (AGS)
3) protect against output short-circuit/overload. When you throw off its load, it will turn on automatically.
4) optional for charge build-in, charge current is 10A----30A.
5) different DC voltage: 12V, 24V, 36V, 48V, 96V, 110V,192V, 240V for optional.
6) inverter can operate with 120% of nominal load during 1 minute ;150% of nominal load during 10 second.
7) it can drive inductive loads, such as lighting, TV sets, fans, refrigerators and air-conditioner
8) it's humanized design, when the AC comes, it will start the unit automatically; And when it overload, it will also close the unit automatically, when you cancel the load, then it will return to work automatically.
9) ATM inverter, RS232 software, SNMP card for optional.
10) 100% import MOS and IC, promise high quality materials .
11) double protection ,city power &battery working mode button

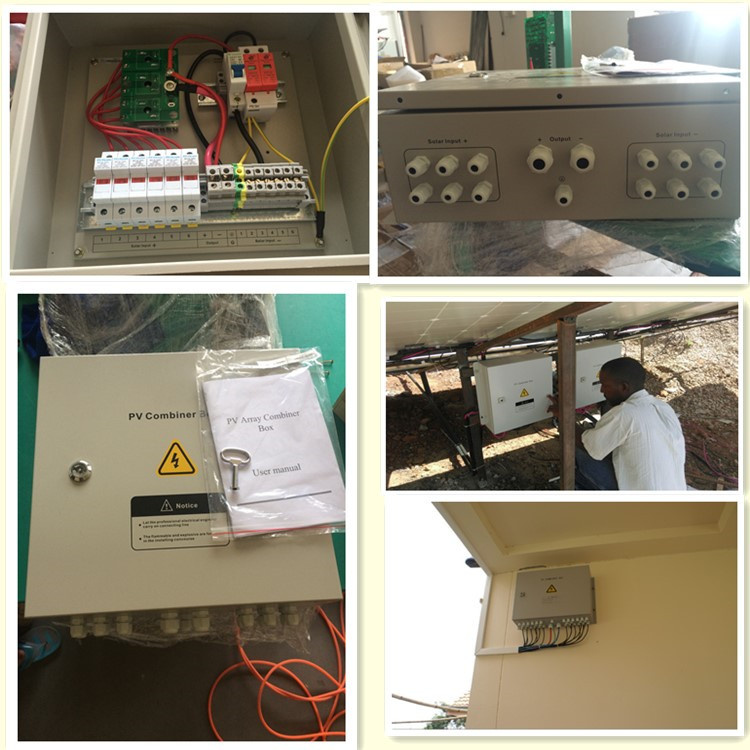

PV Array Combiner(model design: H4T, H6T, H8T, H10T, H12T)
Features:
1. Use to connect to multiple PV array strings inputs, Simplify wiring between PV array and controller, protections to controller.
2. It is equipped with the solar DC lightning protection devices. Both the positive pole and negative pole have the dual lightning protection function.
3. It adopts the professional DC breaker, capable to withstand voltage not lower than DC1000V. So it is safe and reliable.
4. The protection class is IP65, which meets the outdoor installation and usage requirements.
5. Easy and convenient installation and maintenance, long-term service life.
6. Reliable thunderstorm& surge protection

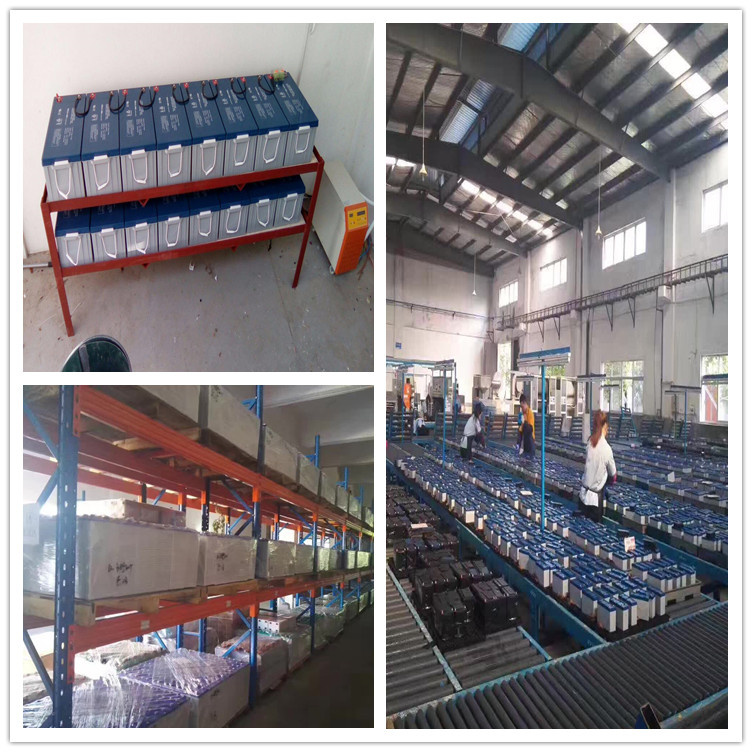

Gel Battery
Gel battery Features
1. A high storage capacity
2. Charge and discharge without mist.
3. Good charge acceptance, can be high current charge (0.8C-1C)
4. Can be high-current discharge; current will not damage if 30C discharge current in 8 seconds.
5. Can be super-deep discharge and repeated to make discharge, battery will not undermine.
6. Well adapt to the temperature, can be used within -50~60ºC.
7. Small self-discharge; completely maintenance-free; the battery can still be used for normal if stored at room temperature after full charge.
8. Long design service life, double the life of lead acid batteries.
9. Environmental protection; It is easy to recycle and no pollution.
10. Astigmatic and well adjusts to poor working conditions.
11. Without space limitation and allowed to be operated in any orientation.
12. Simple operation
Maintenance free operation, and with the good coherence of internal resistance, capacity and floating charge, there is no equalizing charge required.
We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
