12 Head Bead&Sequin Barudan Style Embroidery Machine for Industry Used

WONYO Best Selling 9/12 Needles 12 Heads High Speed Computerized Most Durable Tajima Barudan Type Embroidery Machine

Much Better Than Second-hand Barudan Machine!
Suitable for cap, finished garments, jeans, belt, shoes, socks, insoles, bead, sequin, cording, boring, 3D, flat embroidery.




Model	Needle	Head	N.w G.w	Emb.area	Meas Outer CBM
WY1201CS/WY1501CS	12/15	1	120kg 138kg	360*510mm	750*740*850mm 840*830*930mm 0.648CBM
WY1201CL/WY1501CL	12/15	1	201kg 238kg	360*1200mm	1490*980*1000mm 1580*1030*1090mm 1.774CBM
WY1202CS/WY902CS	12/9	2	390KG 429KG	400*450MM	1520*970*1400mm 1710*1060*1470mm 2.665CBM
WY1204CS/WY904CS	12/9	4	720KG 900KG	400*450MM	2700*1140*1660mm 5.110CBM
WY1206CS/WY906CS	12/9	6	1100KG 1210KG	400*450MM	3438*1160*1500mm 3460*1200*1670mm 6.934CBM
WY1208CS/WY908CS	12/9	8	1200KG 1335KG	400*450MM	4238*1090*1500mm 4510*1130*1670mm 8.511CBM
WY1212CS/WY912CS	12/9	12	1800KG 1960KG	400*450MM	5838*1490*1610MM 6000*1500*1680MM 15.120CBM

I. Main features of the embroidery machine
1. Suitable for flat bed embroidery, cap
Embroidery and finished garments embroidery
2. Embroidery area: 400 x 450 mm, or 15.7" x 17.7"
3. Automatic thread trimmer
4. Maximum speed 850 RPM
5.270° Wide cap frame unit
6.5" color LCD display showing real time stitching
7. USB port ready
8. Auto color change
9. Thread break detection
10. Pre-Sew Design Trace capable
11. Memory size: 20, 000, 000 stitches
12. Electricity: 110V/60Hz or 220V/50Hz available
13. Start, Stop, and Emergency Stop
14. On-board lettering

II. Full color control panel
1.8" High Definition color LCD display showing real time stitching
2. Function keys including Menu, Speed up and slow
Down (also Page Up and Page Down), Help, USB-
Input, Parameter Settings, Clear, ESC, Enter, etc.
3. Numeric keys for selection of needles
4. Frame-moving keys
5. Manual Trimming
6. Manual Color Change
7. Embroidery Status
8. Embroidery Method
9. DOT Key to return to 100 degrees
10. Mutli languages available

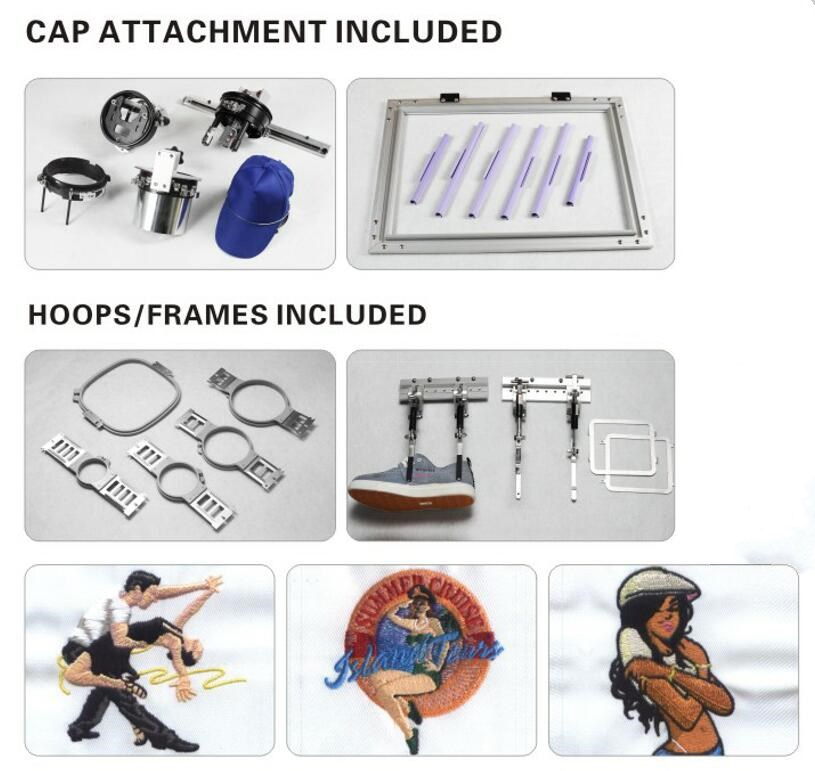

III. Frames/hoops
1 Sash Frame: 244cm x 48cm
2 sets of back hoops for 30cm x 30cm (11.80" x 11.80") for each head
2 sets of front hoops of 19cm (7.50") for each head
2 sets of front hoops of 15cm (5.90") for each head
2 sets of front hoops of 12cm (4.70") for each head
2 sets of front hoops of 9cm (3.50") for each head



IV.Optional Devices
1.Accessories Included:
2.Table and stand with wheels for easy moving around, 70 x 70 x 78 cm or 27.50" x 27.50" x 30.50" with the net weight of 38 kilograms Operation Manual Tool Kit
3.Optional Device:
4.Sequin device
5.Cording device
6.Robot Frame
7.8 in 1 device
8.Belt hoop
9.Boring device
10.Laser positioning device

V.Packing and Delivery
Delivery term: Production takes around 13 days ship within 7-10days after receiving 100% payment
Payment term: 30% TT advance payment before production, 70% TT remaining balance before shipping.

Service
1. Pre-sale & in-sale services
Offer consulting service, sample's process experiment , equipment selection, training and the installation to the engineers and the user of the buyer.

1) Training : after the acceptance check by the buyer, the supplier offer the free training for 2-3 operators and maintenance persons of the buyer.
2) Training and installation time is 3-5 days
3) Installation & adjustment : When the buyer receives the equipment, the supplier install and adjusts the equipment with buyer's assistance on site then finally deliver it to the buyer.

 2. After-sale services

Our company offer One-year warranty and lifetime maintenance for the buyer , during the warrantyperiod, if there is any fault in the course of using the equipment (except the man-made factors and factors other than force majeure), we offer free maintenance, the parts which need to change also provided by us(except the consumable parts) . After the warranty period, we will charge appropriately according to the maintenance situation.


FAQ Hot Questions
Q: Is this a trustable long-term strategic partner?
A: Just ask our customers, view our company profile, assessment of capability, factory glimpse, and the honor we had. And why not contact us or pay a visit to us?
Q: What service will I get with this buying?
A: Simply at your service: available consultancy before sales, easy communication during sales, easy payment term, smooth and safe delivery of guaranteed quality, and assured timely services after sales.
Q: What kind of embroidery work and embroidery machine do I need?
A: Think: ready-made garment/cap/hat, or garment before sewing, or just flat fabric?
Normal flat stitch, or special chenille/chain/loop stitch, or sequin/paillette, or cord/tape/ribbon to add value to your embroidery?
Q: How many heads do I need and what embroidery area on each head?
A: Think: how big is your factory and how much is your expected production?
The embroidery area on each head depends on the maximum area of your embroidery design to run.
Q: How many stitches do I get per minute (SPM) on each head?
A: Super high speed model gives max. 1500SPM,
High speed model gives max. 1200SPM,
Normal speed model gives max. 1000SPM,
Lower speed model gives max.850SPM.
Q: Do I need the Elite model or economy model?
A: Think: How much would you pay for a machine? What we offer is what you need!
Q: Can I represent and sell ORDER machines in my market?
A: Welcome to join ORDER family and grow to be a strong distributor.
