Stainless Steel Woven Wire Mesh Window ScreenHengshui Zhongbao Wire Mesh Co.,Ltd. is localed in Anping of China where is the county for wire mesh products.
We are a professional manufacturer and supplier for stainless steel wire mesh .
Product description
Weave Type: Plain Weave,Twill Weave.
Materials:SS302,SS304,SS304L,SS309,SS316,SS316L,SS321,SS410,SS430,Brass Copper,Nickel Monel Chrome Alloy.
Characteristics:Acid resistant,Alkaline-resisting,Anti-corrosion,Heat-resisting,Wear-resistant,High temperature etc.
Specifications Plain Weave Stainless Steel Woven Wire Mesh |
Mesh/inch | Wire diameter (mm) | Aperture (mm) | -- | Mesh/inch | Wire diameter (mm) | Aperture (mm) |
2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 |
3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 |
4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 |
5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 |
6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 |
8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 |
10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 |
12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 |
14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 |
16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 |
18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 |
20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 |
26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 |
30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 |
40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 |
50mesh | 0.19 | 0.318 | 500mesh | 0.025 | 0.0385 |
Technical Note: 1.Standard roll length:15.24m, 30m, 30.5m, 61m 2.Standard roll width:0.61m(2'), 0.9144m(3'), 1.22m(4'), 1.30m(4.265'), 1.524m(5), 1.60m(5.25') 3.Special sizes available at request 4.Packing:In waterproof paper, PVC bag, wooden case.Custom packing available at request. |
Usage:Widely used in such fields as environmental protection, pharmaceutical industry, chemical industry,food industry,
mechanical industry,smelting industry,coal mining, paper making,cement,construction industry,decoration,
aeronautics and astronautics,etc.
Advantage:Square aperture,high flow through,relative high open area,as result less pressure drop during filtration suitable
for all kinds of filtration up to 63 µm.
The weaving is determined according to our customers specific requirements,such as the material,the wire diameter,
the size of the mesh,width and length.we have export to many countries

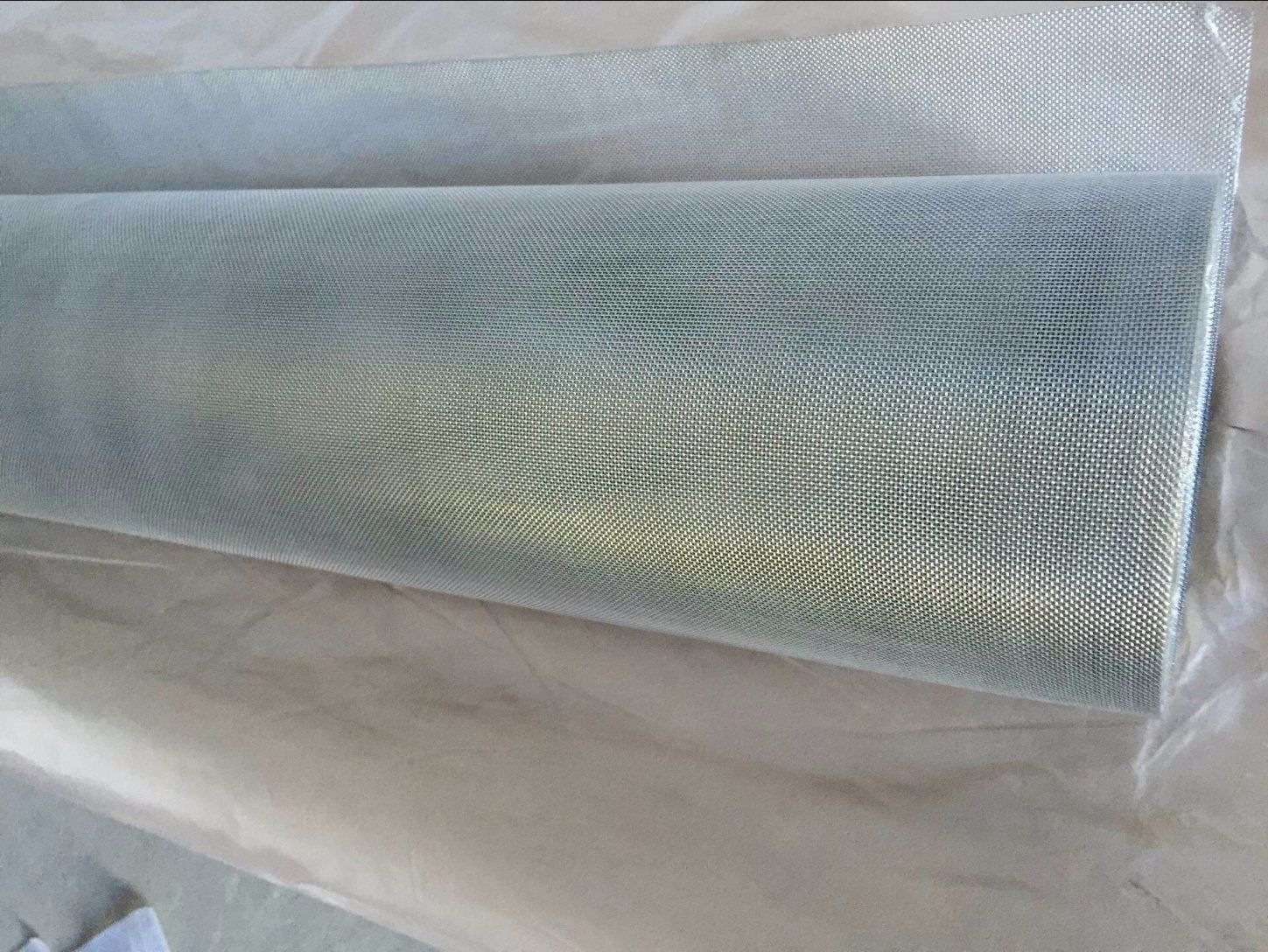

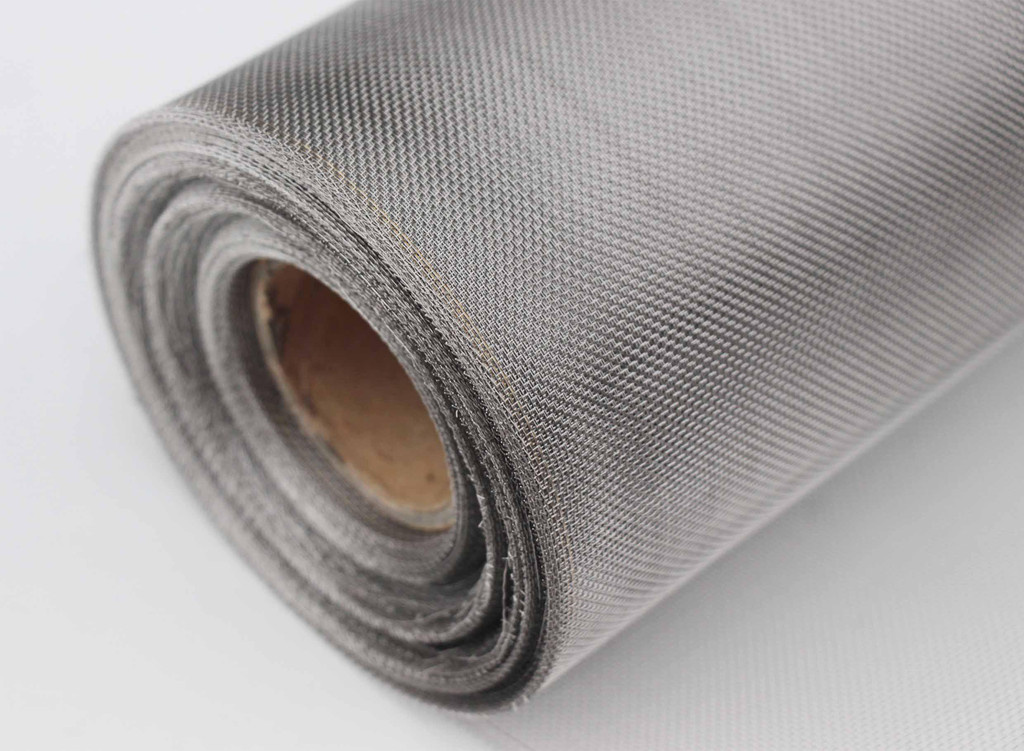

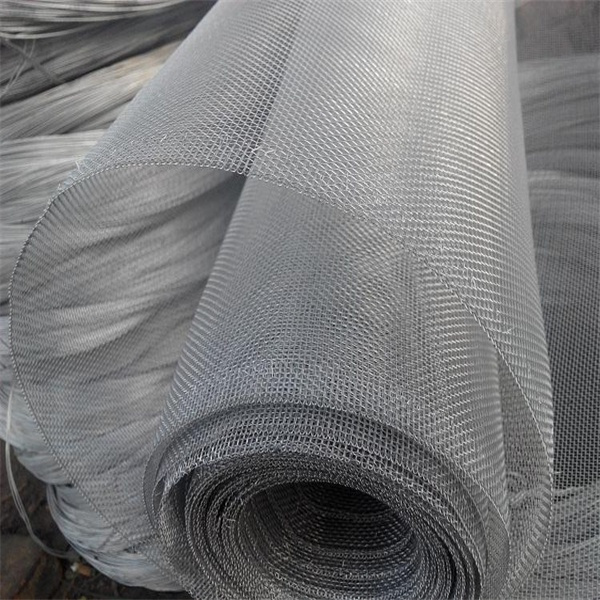

Stainless Steel window screen, mosquito screen
Material : Stainless steel
Color: Silver color/bright color or black color,gray color,brown color,etc.
Size: 18 x 16, 18 x 14, 14 x 14
Wire dia.: 0.21mm-0.38mm
Width: 40cm-1.82m
Packing: Waterproof Paper Inside and bubble film outside,then in wooden case.
We can also do as your special requirement.

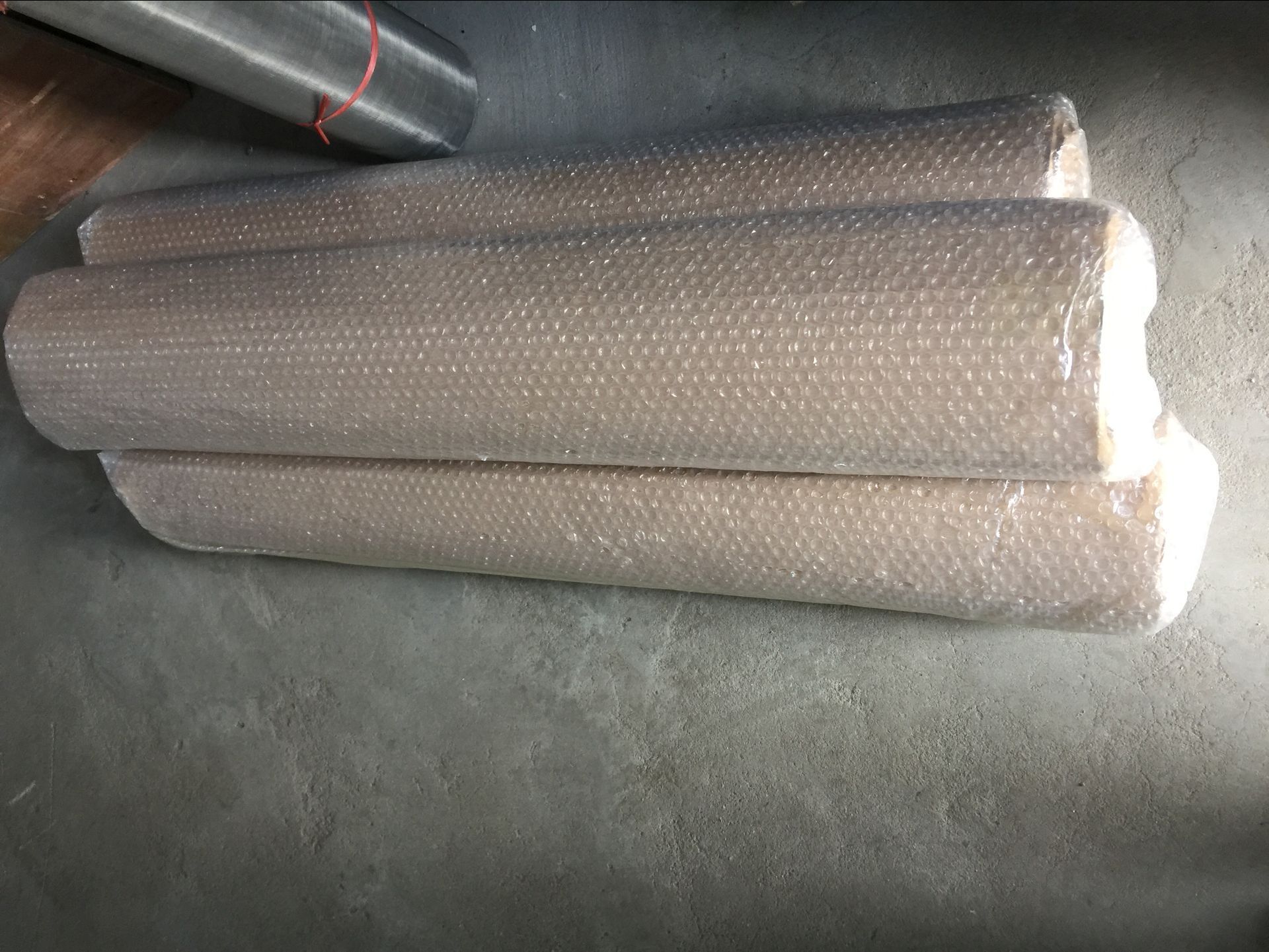

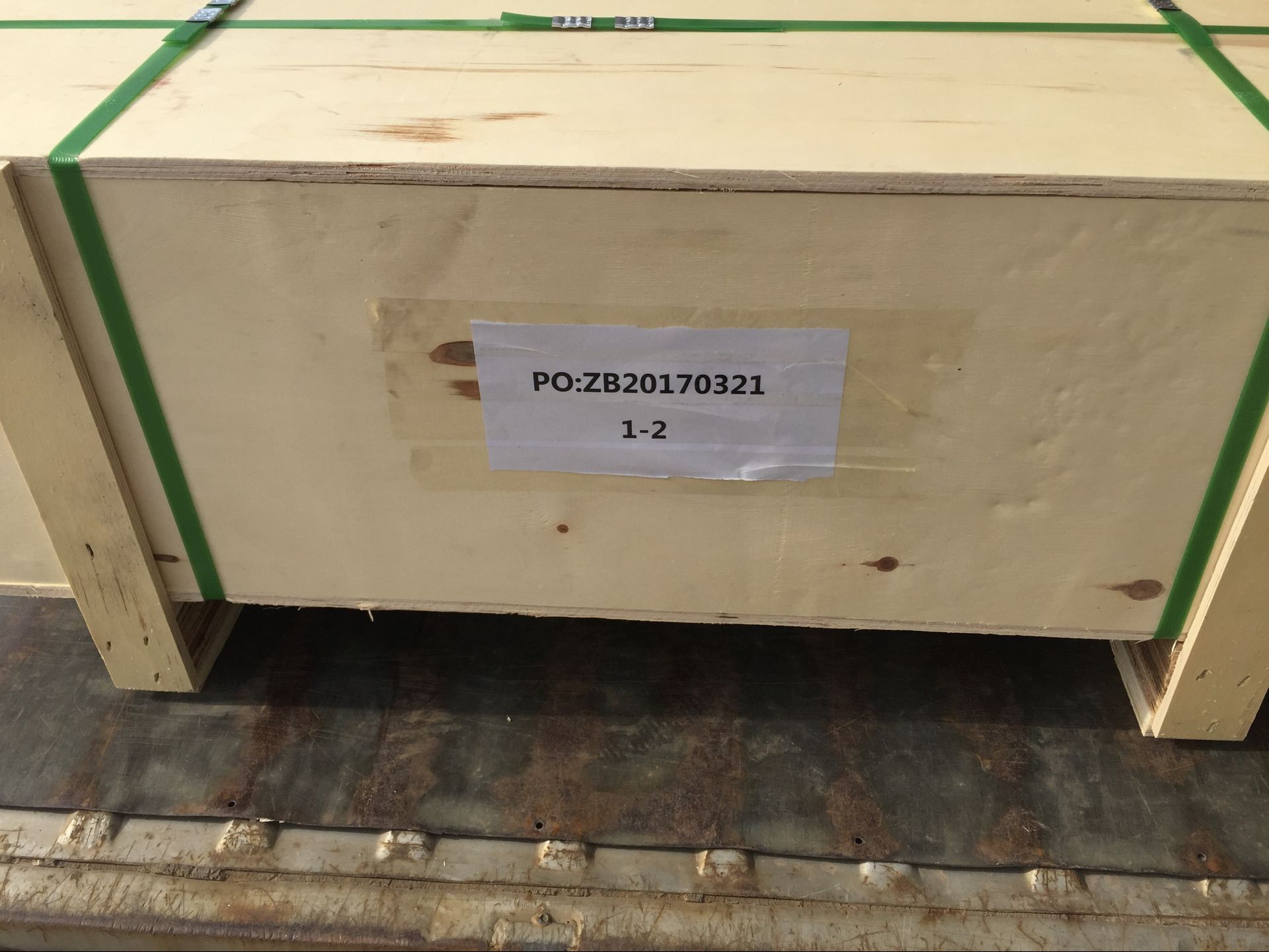

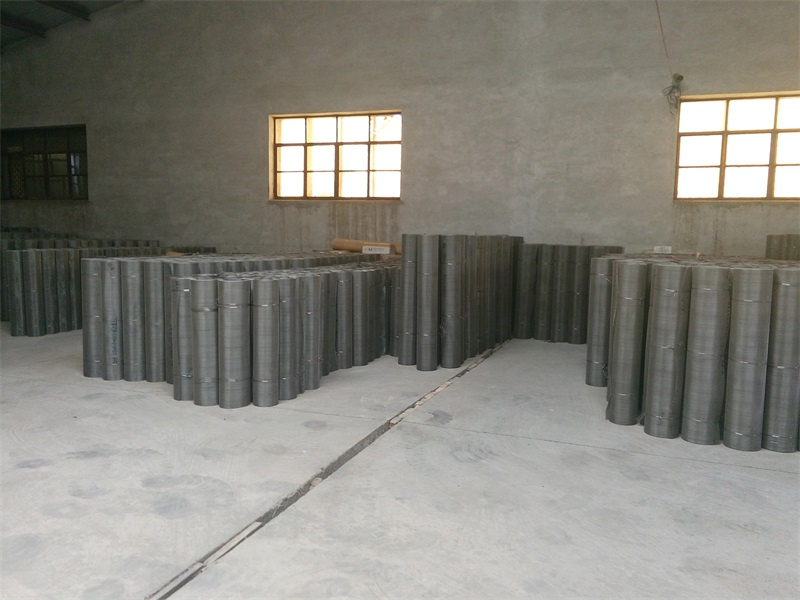

Packing (Waterproof paper and bubble film)Wooden Case (more protection)Warehouse(Various size available) Product name | Mesh | Wire diameter | size | weaving method |
Stainless Steel Window Screening | 14×14 | 0.18mm-0.4mm | 2'X100' 2.5'X100' 3′×100′ 3.5'X100' 4′×100′ 5′×100′ size can according to customers' special requirements | plain weaving |
18X14 |
18×16 |
20X20 |
18*18 |
16*16 |
Hengshui Zhongbao Wire Mesh Co., Ltd. Specializes in the customized manufacture of high quality and unique water and oil filters and filtration equipment. We also specialize in the design and production of decontamination plants. Oil, gas and water separation units are our specialty. Our mainly products are structured packing, wire mesh demister, stainless steel filter mesh, filter element, and so on.
Our company brings together a large number of outstanding scientific, technical and managerial personnel who are specifically trained in the research and development of unique filtration and purification techniques. Our company is equipped with advanced production, monitoring and self-contained testing equipment. Our products are widely used in the petroleum and chemical manufacturing industries, textile manufacturing, energy and electric power generation, heavy construction equipment, transportation and many other customized commercial needs.
We welcome your special requirements, and we can produce your prototypes or production runs on time due to flexible manufacturing schedules.
