| Price: | US $ 1750-3000set |
|---|---|
| Min Order: | 1set |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |
Standard Features:
*Suitable for 1-2 color small size printing, widely apply in many industries including stationery, toys, plastic, gift, electrical appliances, electronic, etc;
*Microprocessor operation system, electro-pneumatic control;
*125mm standard stroke, ink cup design, no smell and low evaporation;
*Independent adjustment of up and down, forward and rear stroke;
*Versatile X, Y printing pad adjustment;
*Ink cup base with X, Y, Z adjustment;
*The shuttle is disassembly flexible;
*Heavy-duty construction with cabinet ensures years of reliable operation;
*Stable, durable working and fine workmanship;
*Foot pedal operation for single cycle;
*Using Germany FESTO pneumatic components;
*Installed safety guard and emergency stop button(optional);
*Complying with CE safety standards.

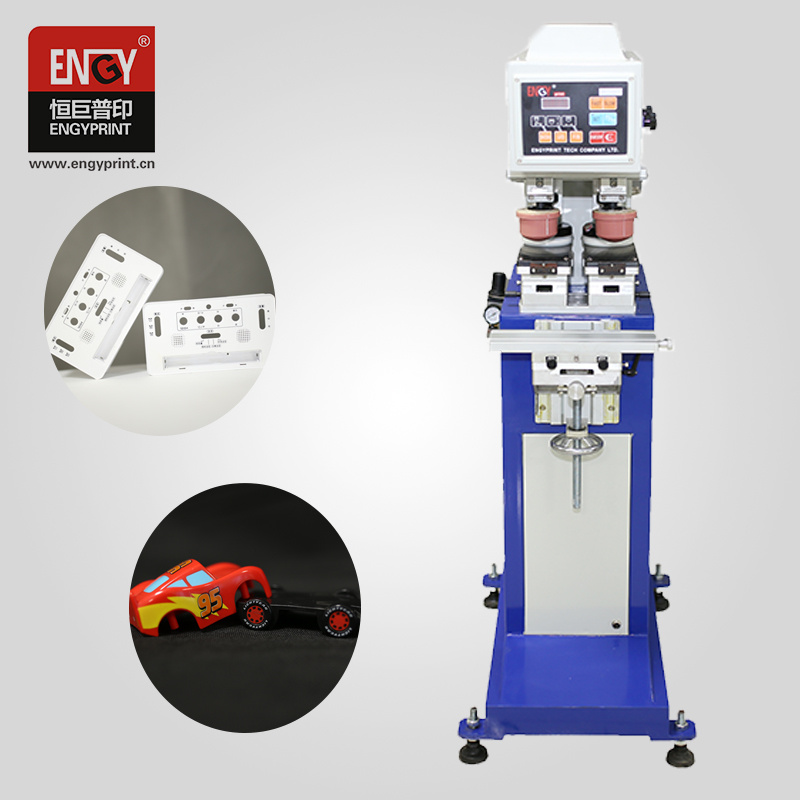

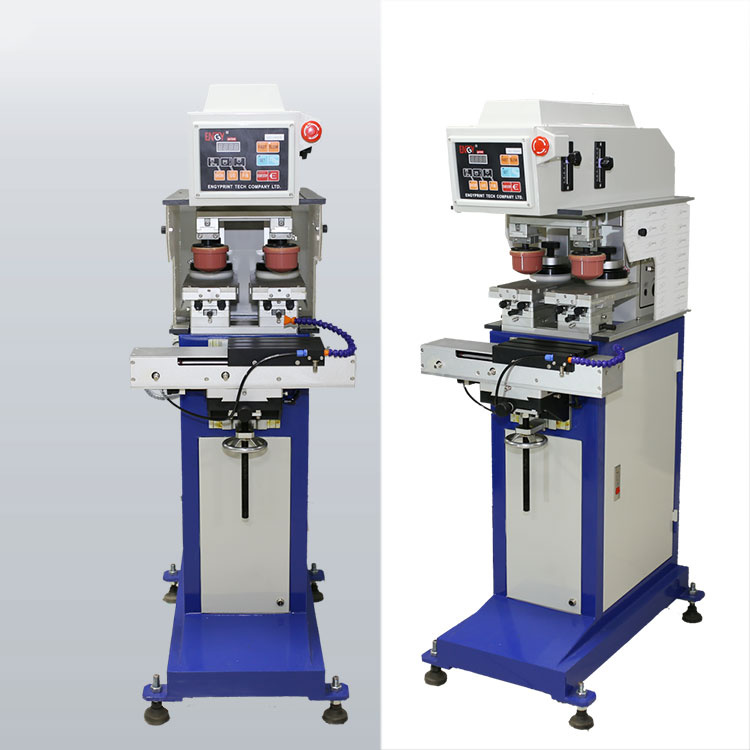

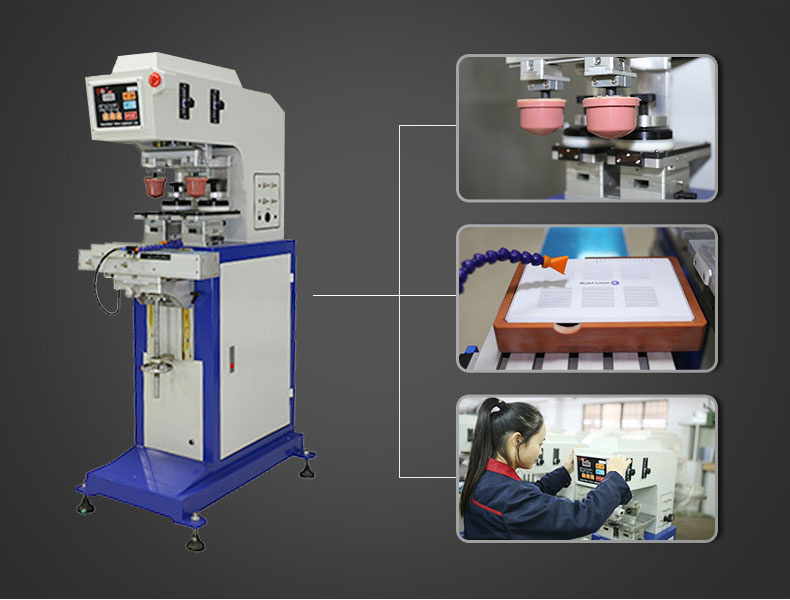

ENGYPRINT Two Colour Inkcup Pad Printing Machine Specifications:
| Model NO. | EN-C125/2S |
| Plate size | 200 x 100mm (8"x4") |
| Ink cup size (diameter) | ID82 x OD90 mm (3.23"x3.54") |
| Max. printing size | 75 x 75 mm (2.95"x2.95") |
| Printing capacity | 1800 cycles/hour |
| Drive | Pneumatic |
| Front & back working stroke | 125 mm |
| Main voltage | 110V/220V 50/60Hz 40W |
| Machine size | L680 x W460 x H1310 mm (26.8"x18.1"x51.6") |
| Net Weight | 75 kg (154 lbs) |
| Warranty: | One Year |
|---|---|
| HS Code: | 8443198000 |
| System: | Sealed Ink Cup System |
| Solenoid Valve: | SMC |
| Cylinder: | Festo |
| Speed Control: | Adjustable |
| Transmission Type: | Pneumatic Pad Printer |
| Speed（pcs/hr）: | 1800 |
