| Price: | US $ 2-8000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
Main Features

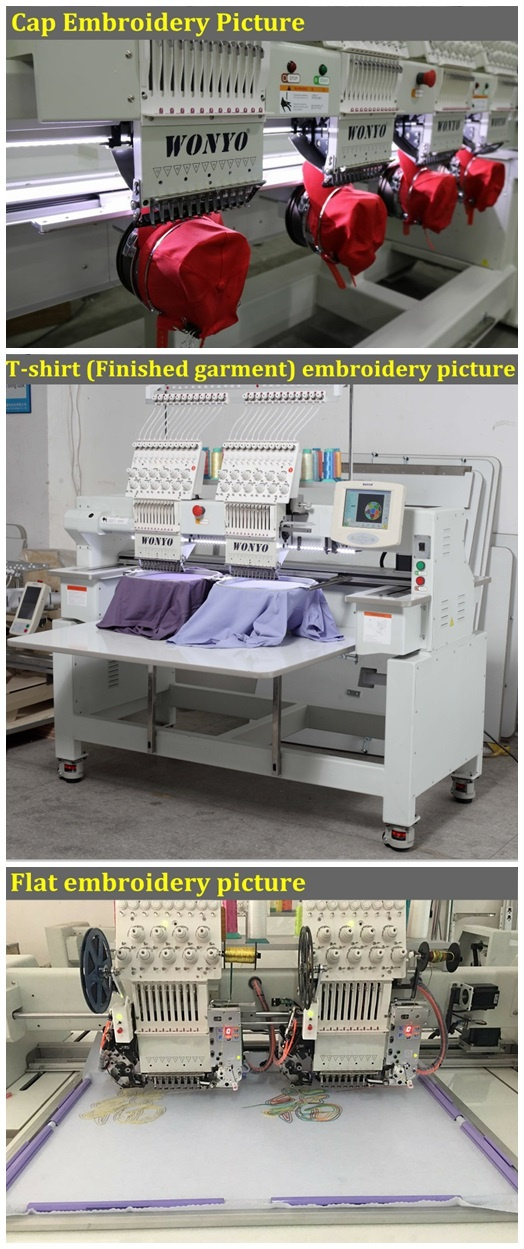

1) Suitable for flat embroidery, cap embroidery and finished garments embroidery
2) Automatic thread trimmer
3) Maximum speed 1000 RPM
4) 270 degree Wide cap frame unit
5) Color LCD display showing real time stitching
6) USB input port
7) Automatic color change
8) Thread break detection
9) Pre-sew design trace capable
10) Memory size 20, 000, 000 stitches
11) Emergency stop
12) Electricity: 110V/60Hz or 220V/50Hz available
13) Built-in bobbin winder
14) Keeping current data or work when emergency stop or power off
15) Mending function. (back and skip stitches under controller)
16) Switch of Cap/ flat embroidery mode eliminating hitting the frame.
17) USB port with fast data transmission and good compatibility
18) Mainboard intergated into control panel protecting from dust or external force.
19) Lay-out of keys on panel is user-friendly.
20) Built-in Network
Machine Specifications
| Specifications | ||
| Speed | Standard Speed: 850RPM, Customized High Speed: 1000RPM | |
| Embroidery Area | 400*450mm per head | |
| Motor | Maine Axis | Panasonic Servo Motor * 1 |
| X-Y Axis | Stepper Motor * 2 | |
| Operation Box | Standard: 10" True Color LCD Screen | |
| Hook | Japanese Rotary Hook | |
| Memory Capacity | Standard: 20,000,000 Stitches matched with 200 patterns | |
| Design Input | By U disk, USB and Transmission from PC to Control System | |
| Readable Data | Compatible with designs of Tajima(DST), Barudan(DSB) and etc. | |
| Safety Device | Standard: Emergency Stop | |
| Multi Languages | 12 languages: Chinese, English, French, Russian, Dutch, Spanish, Portuguese, Turkish, German, Arabic, Thai, Vietnamese | |
| Optional Device | Sequin, Double Seguin, Boring, Cording, Laser trace Device, 8-in-1 Hoop Set, Shoes Device | |

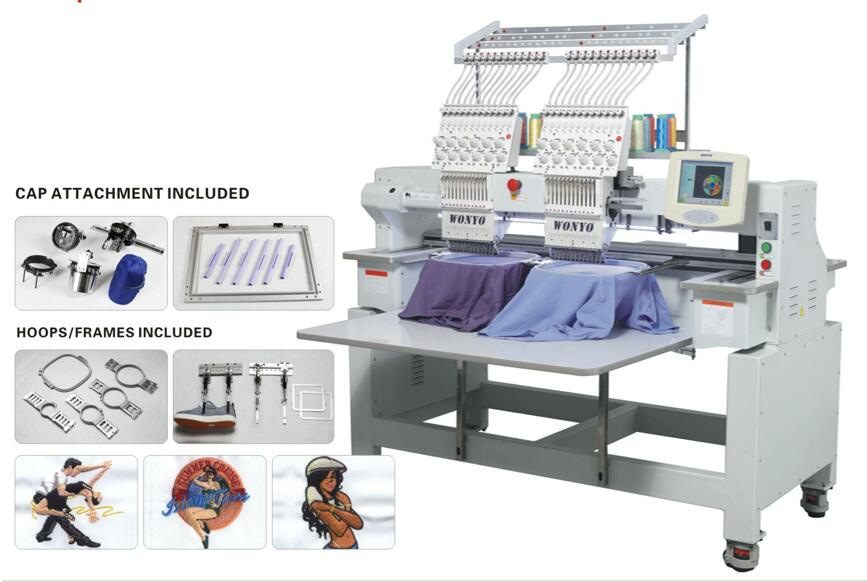

Suitable for all commercial embroidery needs, WY902C can embroider caps, flats, bags,
finished garments and more.

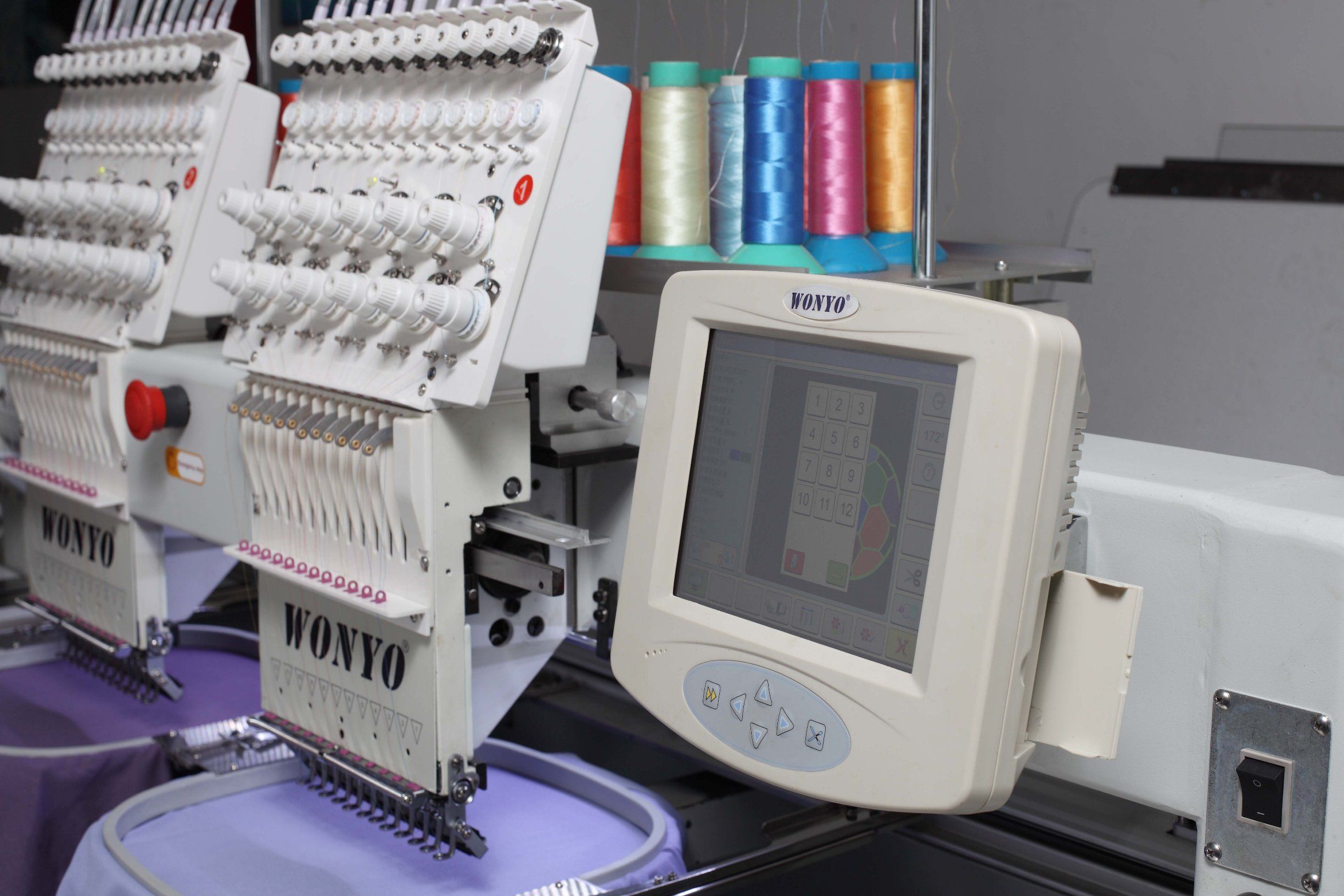

Compact Control Panel
A. Color LCD display showing real time stitching
B. Manual, Semi-auto, Auto Color Change
C. Function keys including Menu, Speed up and slow
D. Multi languages available
E. Frame-moving keys, Manual Trimming
F. DOT ket to return to 100 degree
G. Start, Stop, and emergency Stop
H. Embroidery Status (Page Up/Page Down), USB Input,
I. Parameter Settings, Clear, ESC, Enter, etc.
J. Numeric keys for selection of needles

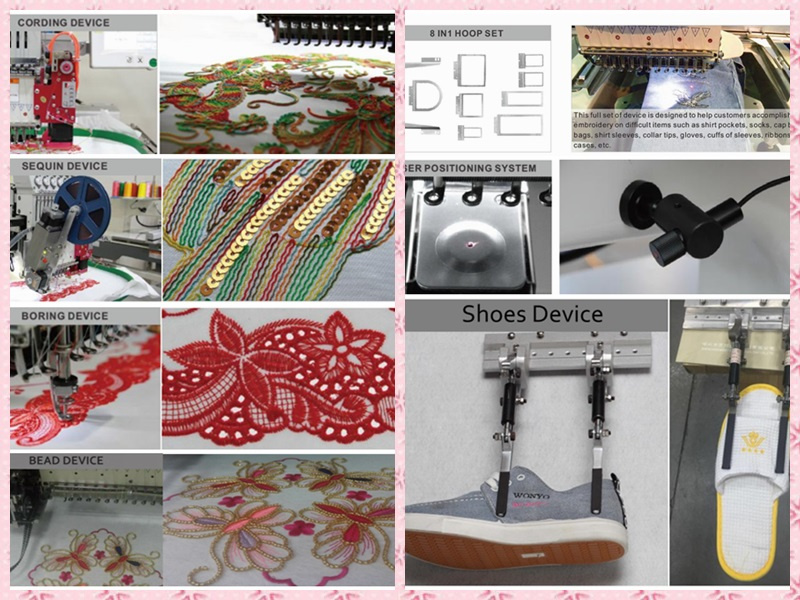

Optional Devices:

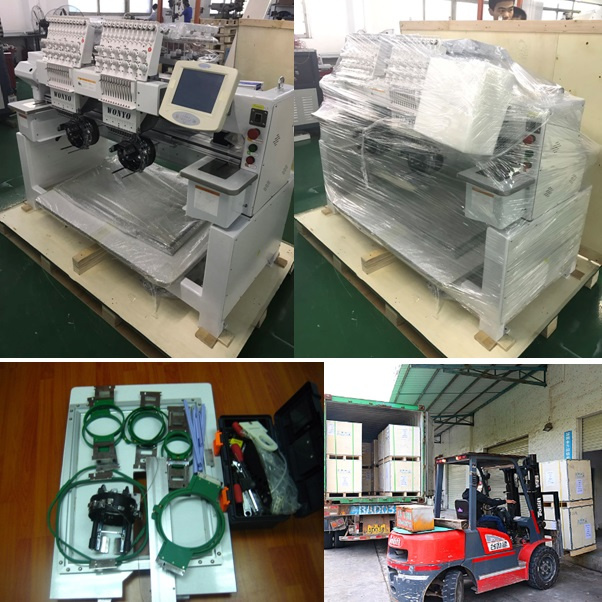

Packing and Delivery
| Package | |
| Size | 1550*1300*1590mm |
| Weight | 470KGS |
| Package details | The normal package is wooden box(Size: L*W*H). But it's ok to pack it according to customers special request. |
FAQ Hot Questions
Q: Is this a trustable long-term strategic partner?
A: Just ask our customers, view our company profile, assessment of capability, factory glimpse,
and the honor we had. And why not contact us or pay a visit to us?
Q: What service will I get with this buying?
A: Simply at your service: available consultancy before sales, easy communication during sales,
easy payment term, smooth and safe delivery of guaranteed quality, and assured timely services after sales.
Q: What kind of embroidery work and embroidery machine do I need?
A: Think: ready-made garment/cap/hat, or garment before sewing, or just flat fabric?
Normal flat stitch, or special chenille/chain/loop stitch, or sequin/paillette,
or cord/tape/ribbon to add value to your embroidery?
Q: How many heads do I need and what embroidery area on each head?
A: Think: how big is your factory and how much is your expected production?
The embroidery area on each head depends on the maximum area of your embroidery design to run.
Q: How many stitches do I get per minute (SPM) on each head?
A: High speed model gives max. 1200SPM,
Normal speed model gives max. 1000SPM,
Lower speed model gives max.850SPM.
Q: Do I need the Elite model or economy model?
A: Think: How much would you pay for a machine? What we offer is what you need!
Q: Can I represent and sell ORDER machines in my market?
A: Welcome to join WONYO family and grow to be a strong distributor.
Looking for agent from all over the world!
Welcome to contact Christina at Tel/ : +86-18261729837
| Prod Model: | WY1202C/WY902C |
|---|---|
| Language: | 12 Languages |
| Motor: | Japanese Servo Motor |
| Screen: | 8" Inches Touch Screen |
| Needle: | 9/12 Needle |
| Trimmer: | Automatic |
| Memory Size: | 20million Stitches with 200 Patterns |
