Price: | US $ 300-350/Piece |
---|---|
Trade Terms: | FOB,CIF |
Min Order: | 1/Set |
Pay Type: | T/T,Paypal,Western Union |
Model | KT-HFM08 | KT-HFM04 | KT-HFM05 |
Product name | portable rhinestone machie | ultrasonic single disc rhinestone hotfix machine | ultrasonic double discs rhinestone hotfix machine |
Voltage | 110/220V | 110/220V | 110/220V |
Power | 80-150W | 0.3KW | 0.3KW |
Diamond size | 1-10mm | 1-10mm | 1-10mm |
Speed | 60-120pcs/min | 110-220pcs/min | 110-220pcs/min |
Size | L268*W168*H198 | L650*W800*H1080 | L650*W800*H1080 |
Weight | 7KG | 80KG | 88KG |

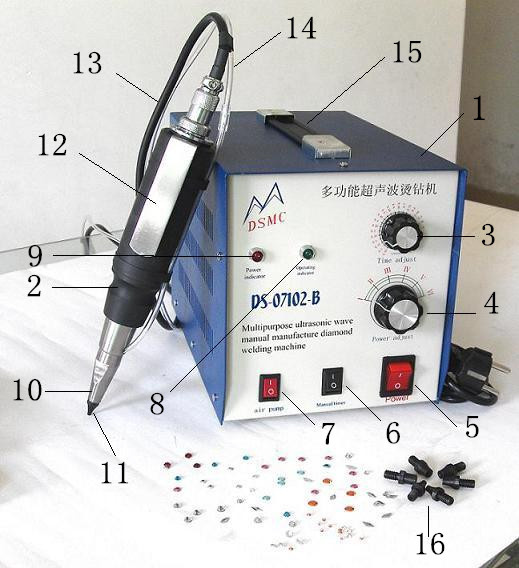

2.transducers
3.timing(senconds)
4.power adjustable
5.power switch
6.timing switch
7.air pump switch
8.working indicator
9.power indicator
10.dismounting tips
11.tip
12.ultrasonic control switch
13.output wire of ultrasonic signal
14.air intake tube( 180cm )
15.handle
16.different size tips(Seven tips :#6/ # 10/ # 12/ # 16/ # 20/ # 30/ # 40)

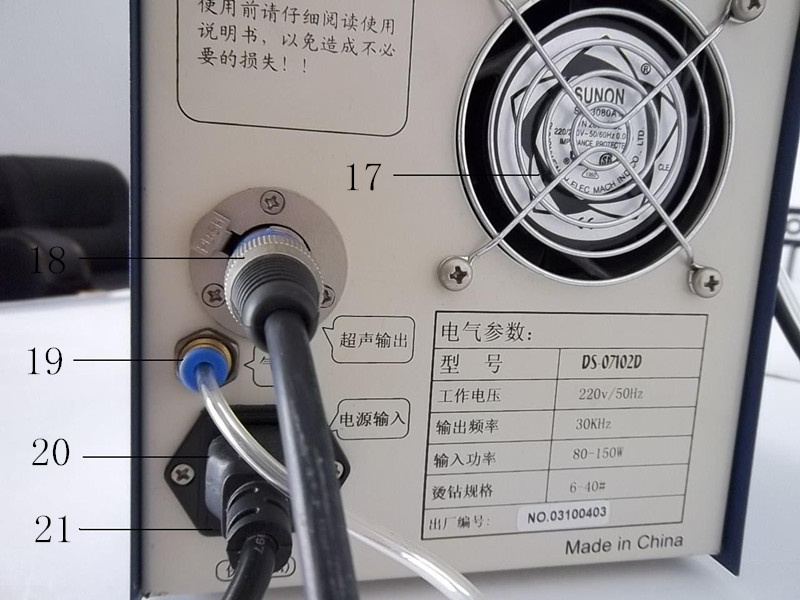

17. cooling fans
18.output interface of ultrasonic
19.interface of air intake tube
20.power interface
21.fuse box(1A)
Trouble | Reason | Solve |
Not power | 1.The power wires broken 2.Fuse working 3.The switch broken | 1.Fixed and change 2.Change 3.Change |
No sucking or not enough air when sucking | 1.The pump can not work 2.The welding head blocked 3.The air tubing broken | 1.Repair and change 2.Dredging the tubing 3.Change the tubing |
Can't weld well or no enough energy when welding | 1.The welding head broken 2.Not connecting well 3.Out put port broken 4.The out put wire broken | 1.Repair and change 2.Screw.it 3.Connecting it 4.Change the wire |
Mucus on the welding head | The surface of the welding head is abrasive | Contact serivce to fix it |
Prod Model: | KT-HFM08 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Voltage: | 110V/220V |
Power(W): | 28kHz |
Input Power: | 80W |
Output Power: | 28kHz |
Temperature Range: | 0-399 |
Time Range: | 0-999 |
Stone Size: | Ss6-Ss40 |
Feature: | More Than 80 Pieces Per Minute |
Dimension(L*W*H): | 268*168*198mm |
Certification: | ISO9001: 2000 |
Condition: | New |
