| Price: | US $ 20-25/Roll |
|---|---|
| Min Order: | 1/Roll |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | QY-CS-50 |
|---|---|
| Type: | High Operating Safety Belts |
| Safety Belts Material: | Polyester |
| Safety Ropes Material: | Polyamide Ester |
| Certification: | RoHS |
| Fixed Mode: | Two-point |
| Color: | White |
| Safety Belts, Safety Ropes Length/Meter: | 600 M |
| Strength: | 500kg |

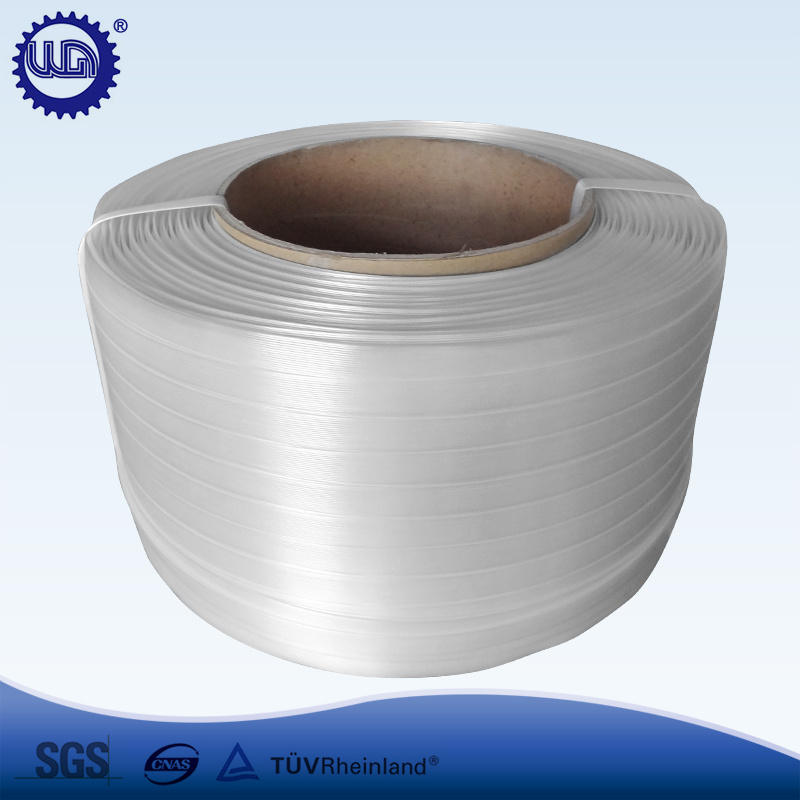

Composite cord strapping is co-extruded polyester strapping made from high tenacity polyester textile fibers. This belt composites of parallel lying polyester single threads with polypropylene encased. It is the latest development in non-metallic shipping technology and most commonly used. Made from high tenacity polyester filament yarns embeeded in a polymer coating. Composite cord strapping is often refered to as "synthetic steel". our strap was TUV certified .
Technical data:
| Type | Width(mm/inch) | Linear breaking (daN/lbs) | Length per coil(M/FT) | Coils per CTN | coils per pallet |
Light Range: | ||||||
QY-CSL-40 | 13 | 380 | 1100 | 2 | 90 | |
QY-CS-40 | 13 | 480 | 1100 | 2 | 90 | |
QY-CSL-50 | 16 | 600 | 850 | 2 | 90 | |
QY-CS-50 | 16 | 680 | 850 | 2 | 90 | |
QY -CS-55 | 16 | 900 | 600 | 2 | 90 | |
QY -CS-60 | 19 | 770 | 600 | 2 | 90 | |
Standard Range: | ||||||
QY -CS-65 | 19 | 1050 | 500 | 2 | 90 | |
QY -CS-69 | 19 | 1400 | 450 | 2 | 90 | |
QY -CS -85 | 25 | 1300 | 500 | 2 | 90 | |
QY -CS-86 | 25 | 1700 | 450 | 2 | 90 | |
Heavy duty range: | ||||||
QY -CS -105 | 32 | 2600 | 300 | 2 | 90 | |
QY -CS -105 | 32 | 2600 | 250 | 2 | 90 | |
QY -CS -105 | 32 | 2600 | 230 | 2 | 90 | |
In addition to the above models, we can produce any type according to your needs.
