2018 Sln Synthectic Fibre Eye Type Flat Webbing
| Price: |
US $ 3.2-3.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T |

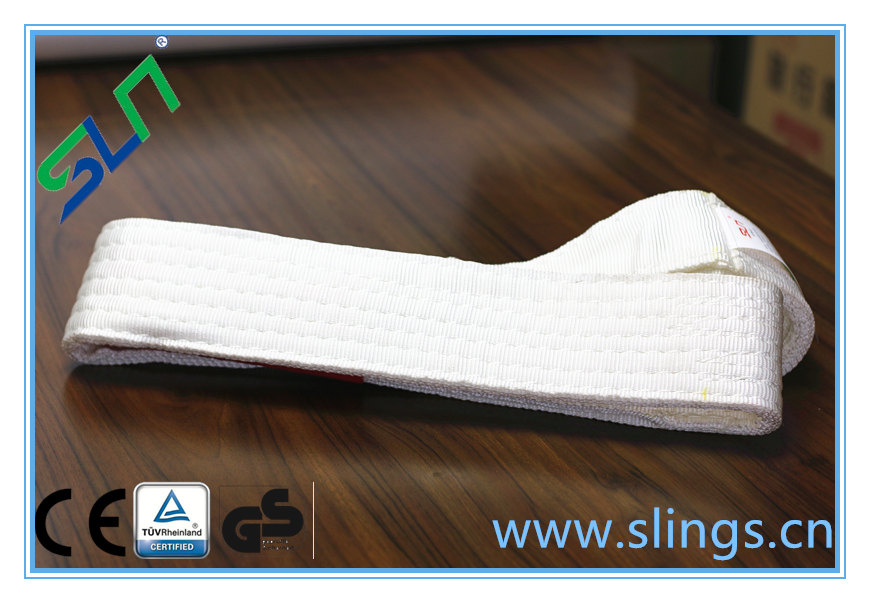

2018 SLN Synthectic Fibre Eye Type Flat WebbingWebbing sling is produced from top quality synthetic fibre by advanced international level of weaving technology and equipment in various sewing methods. According to customer's requirement, the safety factor of sling has 4:1,5:1,6:1,7:1,8:1, its load range is from 0.5t to 50t. Which is produced according to International stanard,for color and load capacity.
ESLINGAS PLANAS
También son conocidas como: Eslingas Planas Sin Fin, Eslingas Planas Verticales, Eslingas Planas Enlazadas, Eslingas Ojo a Ojo; La eslinga es una herramienta que se utiliza para levantar grandes pesos ya sea en pequeños o grandes volúmenes ya que por su material es capaz de resistir más de 200 toneladas de peso.
Se les llama eslingas planas, por realizarse solamente con la correa haciendo dobleces en los extremos para darle funciones específicas. Consta de una banda de poliéster o nylon en la que sus hilos se entretejen generando una compleja y apretada malla que le dará la fuerza necesaria para el trabajo.
Specification: | Width | 25MM-250MM |
| Working Load | 1000kg-20000kg |
| Material | 100% polyester |
| Length | 1M-100M According to buyer's requirements |
| Safety Factor | 6:1 or 7:1 or customized |
| Color | Orange |
| Usage | Machining, Harbour Handling, Shipbuilding, Power installation, Transportation etc. |
| Package | Gunny bag, carton and pallet |
| Delivery time | According to the quantity of the goods |
| Payment terms | 30% advanced payment, 70% balance payment after getting copy of B/L |
| Sample | Available |
| Certificate | ISO9001, CE |
| Note | Special specifications and marks can be made according to customers requirements |
Features| 1) Low weight, thus easy to handle |
| 2) Protection against hand injury |
| 3) Protection against damage on the surface of cargo |
| 4)Highly flexible and adaptable to given shapes |
| 5)Equal pressure distribution over tension and pressure sensitive loads |
| 6)Heat resistant up to +100ºC |
| 7)Moisture-resistant fabric, thus preventing frost damage (up to approx, -40ºC) |
| 8)Low-strain, wear-resistant, long-life material (100%PES) |
Características:100% poliéster de alta tenacidadCapa sencilla o mas capasCon ojos reforzados para cargaBaja elongaciónLongitud disponible: de 1 a 10mFactor de seguridad disponibles: 5:1, 6:1 ,7:1 y 8:1De acuerdo con la norma EN 1492-1: 2000Packing Info.(Web Sling)| Decscription | Size | Pcs/CTN | SIZE/CTN | CTNS/PALLET | TOTAL PALLET | G.W. KGS/CTN | N.W. KGS/CTN | TOTAL PCS/20' |
| Eye type webbing sling | 1T*1M | 100 | 54*35*34 | 36 | 10 | 24.54 | 23.54 | 36000PCS |
| 2T*2M | 36 | 54*35*34 | 36 | 10 | 35.24 | 34.24 | 12960PCS |
| 3T*2M | 28 | 54*35*34 | 36 | 10 | 37.34 | 36.34 | 10080PCS |
| 4T*2M | 19 | 54*35*34 | 36 | 10 | 32.14 | 31.14 | 6840 PCS |
Other products recommended:| webbing sling | solid webbing |
| assembly sling | ratchet straps |
| round sling tubing | cover for round sling |
| ratchet | hook |
Care of using Synthetic web sling:
1, Must not be overlapped.
2, Ties should not be done like picture shows
3, Slings should not be hang on the tip of the hook.
4, Flat webbing slings and round slings should not be placed around sharp edges or over rough surfaces, use wear sleeves and edge protectors where necessary.
5, when lifting pipes, angle of the slings should not too big.
6, Correctly using the fittings to connect the slings.
7, In "choke" lifts, only use flat webbing sling with reinforced eyes.8,Flat Webbing Slings should be applied in such a way that carrying the load over the full sling width.
9, Using Flat webbing slings with eyes, the eye opening angle should not exceed 20° at the connecting point.
10, Loads may only be placed on slings if damage is precluded. Do not drag slings from under load. Position the sling correctly to ensure easy removal after use.
11, don't drag the slings on rough surface.
12, Place correctly the slings after use.
What Can I Do For You?| 1. | Our sling products carry out strict supervision during production and make sure every finished product with high quality |
| 2. | Delivery time:20-25 days after your deposit, which also will be on basis of your order. |
| 3. | Payment:30% advanced payment, 70% balance payment after getting copy of B/L |
| 4. | Designing factory,technical support project. |
| 5. | Related webbing sling, round sling, ratchet tie down, chain sling, wire rope sling and so on for sale. |
| 6. | All necessary documents and videos. |
FAQ>> 1.Are you a factory or a trading company? 1.We are a factory focused on webbing sling over 12 years. 2.Our main products are webbing sling,wire rope,lifting beam, lifting clamp, ratchet tie down, chain, shackle and hook. 3.We own warehouse over 15,000 square meters. 4.We have numerous distributors at home and board.>> 2.How do you control your quality?1.Incoming Material Inspection :Checking all incoming material including sub-contractor provide products to ensure the quality meet requirement and nonconformity is found in time so as to prevent released nonconforming incoming material.2.Input Process Quality Control :Random sampling was taken at different time intervalsthroughout the day in the production process to guarantee the quality.3.Outgoing Quality Control:Upon receiving shipment notification, inspectors will have inspections on the products to be shipped, including the routine tests on shipping marks, packaging, appearance and quantity (weight), etc. by following the standards set by contracts and relevant stipulations.4.The third party product inspections are acceptable. 5.ISO Quality Management System Certificated Factory 6.The products will be delivered to the customers timely and safely as agreed.About us:Hebei SLN Sling Group Co,Ltd. a direct factory, which was founded in 2005, located in Baoding,A city in north of China.SLN is specialized in producing webbing slings, round slings, ratchet straps and other synthetic slings. Factory and Workshop

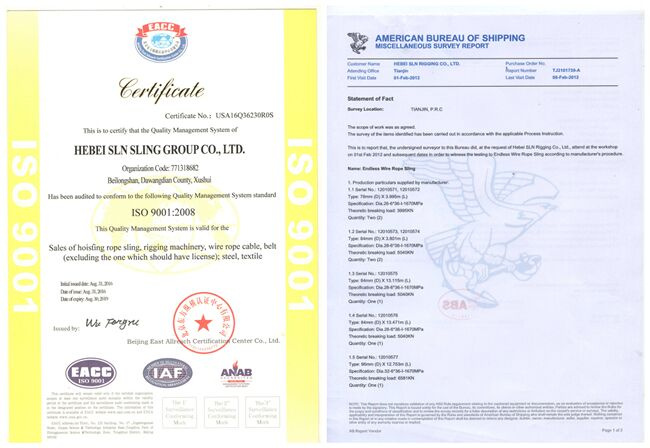

★ CertificatesCertificates including CE,GS,ABS,ISO9001 etc..
Es muy importante elegir el tipo de eslinga de acuerdo a la carga y a la operación q se va a realizar ya que existe una variedad muy grande de tipos y capacidades de eslingas. ¡Llámenos! Nosotros le asesoramos para elegir la eslinga apropiada . Contact Info:
Maureem Mo
Tel:+86 22 66200668 Fax: +86 22 66205666
Ph: +86 177 2016 2771
Add.: Dawangdian Industrial Park, Baoding City, Hebei, China
| Prod Model: |
SLN W 083 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wll: |
1t-1000t |
| Length: |
0.5-20m |
| Delivery Time: |
25-30days |
| MOQ: |
Non-Limited |
| Producer: |
Hebei Sln Group |
| Samples: |
Free |
| Application: |
for Lifting Heavy Goods |
| Brand Name: |
Sln |
| Materials: |
High Tensile Polyester |
| Payment Terms: |
T/T, L/C |
| Type: |
Synthetic Fibre Sling |
| Material: |
Polyester |
| Lifting Capacity: |
1t-20t |
Hebei SLN Sling Group Co, Ltd. which was founded in 2005, located in ancient city Baoding, a superior geographical positon and convenient transportation place where is formed the golden triangle with Peking, is specialized in producing synthetic webbing slings, round slings, ratchet straps and other synthetic slings. SLN Group is the only private enterprise which accesses to Shanghai World Expo.
SLN could produce almost all types of synthetic webbing slings, round slings, ratchet straps, Dyneema slings. At this moment SLN has been became one of the most important slings suppliers at home and abroad.
The producing standard we could follow are ISO487, European EN1492: 2000, EN12195: 200, American ASME B30.9-2003 and other relative standard. SLN Group has experienced the ISO9001: 2000 certificate which has the best producing machine in the world.
CE, ABS, DNV, CCS are the certificate what we could offer to our customers.
" To be the safest slings brand in China" is our unswerving aim. In order to improve the development of slings market, our company develops new artwork, exploits new project, produces new products, create more good occasion. SLN Group will bring good future for both you and us.
