255G/M2 Kevlar K49 Fiber Fabrics
Price: |
US $ 11.9-12.21/Square Meter |
Min Order: |
1/Square Meter |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

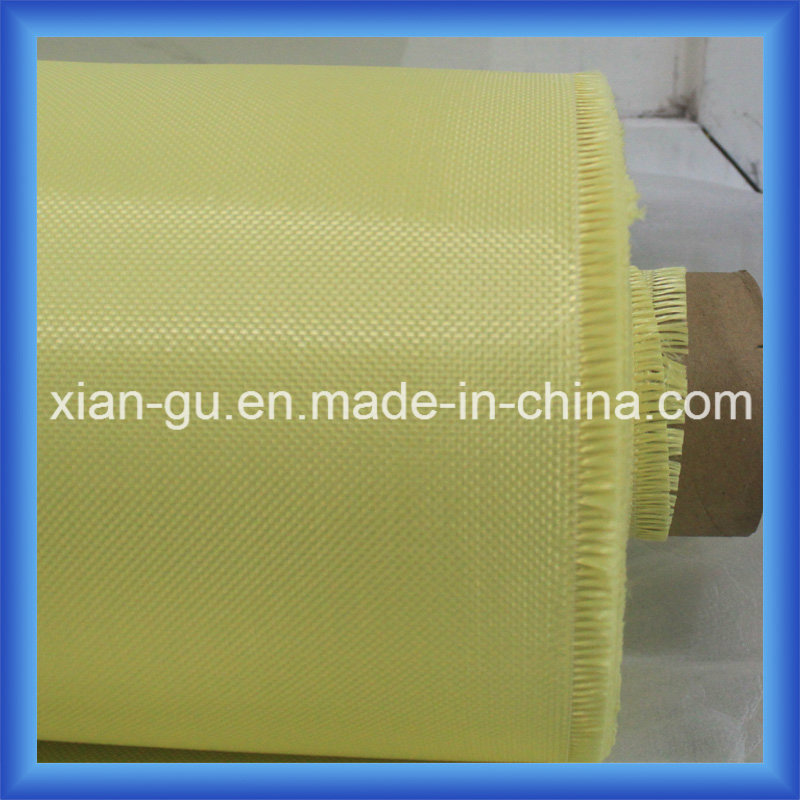

255g/m2 P-aramid fiber fabric was woven from 1500D levlar K49 filament with high strength & modulus.This fabric has high strength and modulus,strong hydrogen bonding force. Aramid filament strength up to 24 g/D or more,5-6 times of steel wire,the modulus 2-3 times,toughness 2 times,while the weight is just 1/5 of steel wire.Continuous use temperature range is extremely wide,long run in the range of -196 ºC to 204 ºC.Does not decompose at high temperature of 500 ºC,it does not melt, undergo 100 hours at 200 ºC, strength can still maintain 75% of the original.While with properties resistance to chemical solvents and acid,anti-aging,flame retardant,also good adhesion to rubber,and therefore very suitable as a reinforcing fiber for personal protection,bulletproof products,friction and sealing products.Usually been used as a reinforcing material,widely used to make composite mateiral with rubber,thermoplastics,thermosetting plastics,various high-temperature composite structures reinforced fabric,bullet-proof armor,bullet-proof panels,bulletproof shield,bulletproof helmets,body armor,bulletproof vests and the like.SPECIFICATIONS:Model: | PK49-255 |
Color: | yellowish |
Weave pattern: | 1/1 Plain |
Fiber type: | Kevlar K49 |
Roll width(cm) | 150 |
Roll length(m) | 100 |
Gram per square meter(m2) | 255 |
Cloth thickness(mm) | 0.42 |
Fiber linear density(D) | 1500 |
Warp brake force(KN) | 11.89 |
Weft brake force(KN) | 12.59 |
Thread Count(pcs/5cm): | 36 x 34 Length & Width |
APPLICATIONS:1. bulletproof products:Kevlar metal bulletproof armor plate,Kevlar ceramic armor plate,resin composite armor plates,bulletproof vest,body armor.2. Automotive parts:fenders,bumpers,automotive interior,bulletproof vehicle shell.4. The heat-resistant products:reinforced rubber conveyor belts,high temperature filters,high temperature gas filter bags,high-temperature mechanical and electrical insulation materials, machinery parts soft connection.5. Building Components:Enhanced pier construction,large-scale floating body construction,oil well platform.6. Sports Equipment:racing vehicle body,horse racing helmets,skis,ski poles, bows and arrows, fishing rods,kite skeleton,golf club. STORAGE:The P-aramid fiber fabric should be keep dry in their original bags and stored in a suitable place,preferably at room temperature with 35-65% relative humidity.Avoid the sun, rain and fire.
PACKAGING:
PRODUCT DETAIL IMAGES:
Prod Model: |
PK49-255 |
Model: |
Pk49-255 |
GSM: |
255G/M2 |
Colors: |
Yellowish |
Fiber: |
K49 |
Roll Width: |
150cm |
Roll Length: |
100m |
Thickness: |
0.3mm |
Fiber Linear Density: |
1500denier |
Warp Brake Force: |
11.89kn |
Weft Brake Force: |
12.59kn |
Usage: |
Bulletproof |
Feature: |
Bullet Proof |
Pattern: |
Plain |
Function: |
High Strength Fiber |
Structure: |
Miscellaneous Chain Synthetic |
Material: |
Kevlar Fiber |
Fiber Type: |
Fabric |
Color: |
Yellow |
Width: |
150cm |
