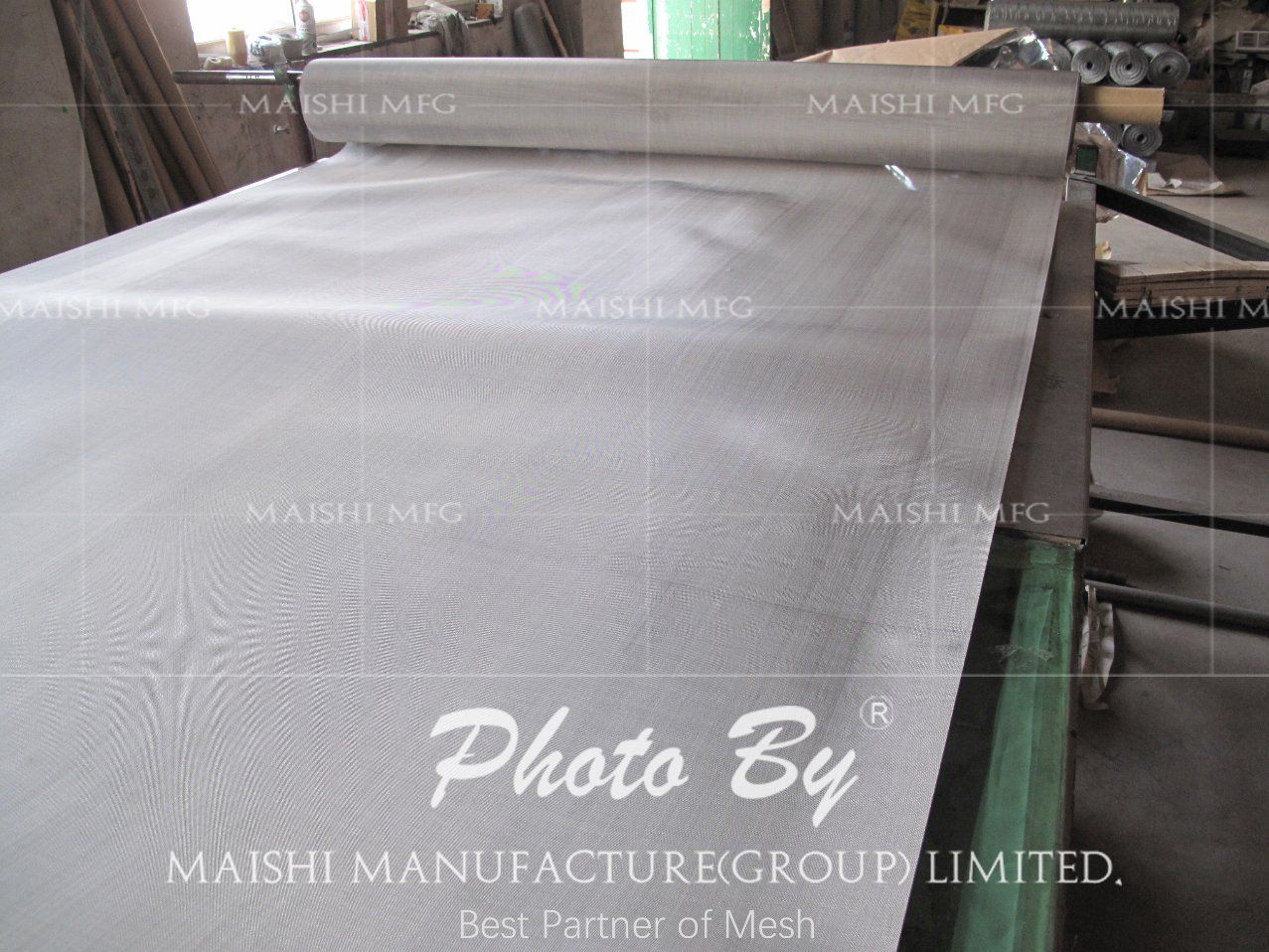

316 Filter Wire Cloth

Prod Model:	HBMS
Wire Diameter:	0.04mm-1.80mm
Mesh Count:	2mesh-420mesh
Aperture:	0.038mm-10.9mm
Width:	Usually 1m, 1.2m, Can Be Customized
Length:	Usually 30m, Can Be Customized
Weave Style:	Plain Weave, Twill Weave, Dutch Weave
Features:	Heat Resisting, Corrosion Resisting
Our Advangtage1:	1) Right Quality with Competitive Prices
Our Advangtage2:	2)Excellent Export Service.
Hole Shape:	Square
Application:	Window Curtain
Type:	Stainless Steel Plain Wire Mesh
Material Type:	Stainless Steel Wire
Weave Technique:	Plain Dutch Weave
Wire Mesh Width:	2m
Technique:	Woven
Nickels:	8%
Certification:	Ce
Material:	Ss304 Ss316 Ss316L

Product Description

316 filter wire cloth:
High resistance to corrosion by salts, acids, and seawater.
Also called 18-10 Stainless Steel
For marine and industrial environments
Use with medical, pharmaceutical, laboratory, semiconductor, food processing, marine, waste water, and water purification equipment

Stainless steel wire cloth can easily bend by hand and cut with scissors or laser.
Commonly used for filters and laboratories.
This market grade mesh is woven from a standard wire diameter which is heavier than the wire used to weave bolting cloth.
Material: SS304, SS316, SS316L.
Weave: Plain Weave, twill weave, dutch weave.

316 filter wire cloth features:
High tension: Much higher tension than common polyester mesh and smooth tension;
Super precision: Uniform wire diameter and aperture with extremely low difference;
Low elongation: Very small elongation of wire mesh at high tension;
High flexibility: The wire mesh will not lose elasticity at extreme tension;
High corrosion resistance: The excellent corrosion resistance of stainless steel wire exceeds polyester fiber;
Non-electrostatic: To avoid affects of non-electrostatic for print and ensure the safety of printing;
Good heat-melting resistance: Special features of stainless wire mesh. Suitable for heat-melting ink;
Good solvent resistance: To avoid the affects of any solvents to wire mesh and to ensure the safety of print screen.

316 filter wire cloth uses:
Mainly used for filtering and sieving,  extensively used in petroleum, chemical industry, enviroment protection, mine,
airspace, paper-making, electronic, metallurgy etc.

316 filter wire cloth screen type: Plain weave, Twilled weave, Dutch weave
1. Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves.
In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern.
Each weft thread crosses the warp threads by going over one, then under the next, and so on.
The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave:  In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left,
forming a distinct diagonal line. This diagonal line is also known as a wale.
A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave:  difference from standard Dutch weave lies in the thicker warp wires and less weft wires.

316 filter wire cloth specification

Stainless Steel Woven Wire Mesh (Plain Weave)
mesh/inch	wire diameter(mm)	aperture(mm)	-	mesh/inch	wire diameter(mm)	aperture(mm)
2mesh	1.80	10.90		60mesh	0.15	0.273
3mesh	1.60	6.866		70mesh	0.14	0.223
4mesh	1.20	5.15		80mesh	0.12	0.198
5mesh	0.91	4.17		90mesh	0.11	0.172
6mesh	0.80	3.433		100mesh	0.10	0.154
8mesh	0.60	2.575		120mesh	0.08	0.132
10mesh	0.55	1.990		140mesh	0.07	0.111
12mesh	0.50	1.616		150mesh	0.065	0.104
14mesh	0.45	1.362		160mesh	0.065	0.094
16mesh	0.40	1.188		180mesh	0.053	0.088
18mesh	0.35	1.060		200mesh	0.053	0.074
20mesh	0.30	0.970		250mesh	0.04	0.061
26mesh	0.28	0.696		300mesh	0.035	0.049
30mesh	0.25	0.596		325mesh	0.03	0.048
40mesh	0.21	0.425		350mesh	0.03	0.042
50mesh	0.19	0.318		400mesh		0.0385



Stainless Steel Woven Wire Mesh(Dutch Weave)
Mesh	Wire Dia. (MM)	Material(AISI)
12meshX64mesh	0.58/0.40	304 or 316
24meshX110mesh	0.36/0.25	304 or 316
14meshX88mesh	0.50/0.33	304 or 316
30meshX150mesh	0.18/0.14	304 or 316
40meshX200mesh	0.14/0.11	304 or 316
50meshX250mesh	0.10/0.071	304 or 316
80meshX700mesh	0.06/0.05	304 or 316
165meshX800mesh	0.071/0.040	304 or 316
165meshX1400mesh	0.05/0.032	304 or 316
200meshX1800mesh	0.05/0.03	304 or 316
325meshX2300mesh	0.030/0.025	316L
400meshX2800mesh	0.030/0.02	316L



Stainless Steel Woven Wire Mesh(Dutch Weave)
Mesh	Wire Dia. (MM)	Material(AISI)
12meshX64mesh	0.58/0.40	304 or 316
24meshX110mesh	0.36/0.25	304 or 316
14meshX88mesh	0.50/0.33	304 or 316
30meshX150mesh	0.18/0.14	304 or 316
40meshX200mesh	0.14/0.11	304 or 316
50meshX250mesh	0.10/0.071	304 or 316
80meshX700mesh	0.06/0.05	304 or 316
165meshX800mesh	0.071/0.040	304 or 316
165meshX1400mesh	0.05/0.032	304 or 316
200meshX1800mesh	0.05/0.03	304 or 316
325meshX2300mesh	0.030/0.025	316L
400meshX2800mesh	0.030/0.02	316L


316 filter wire cloth test:
1.Mesh count inspect
2.Thickness inspect
3.Thread dia & hole inspect
4.Tensile strengh test
5.Surface tension test

316 filter wire cloth quality control:
1.Raw material check
2.Material preparation
3.Finish dia.warping beam
4.Mesh wearing
5.surface check

316 filter wire cloth application:
Use with medical, pharmaceutical, laboratory, semiconductor, food processing, marine, waste water, and water purification equipment.
