| Prod Model: |
CKD-CMLA-10/30/60 |
| Function: |
Marking, Engraving |
| Material: |
Ceramics, PVC, Wood, Paper and Other Nonmetal |
Product Description

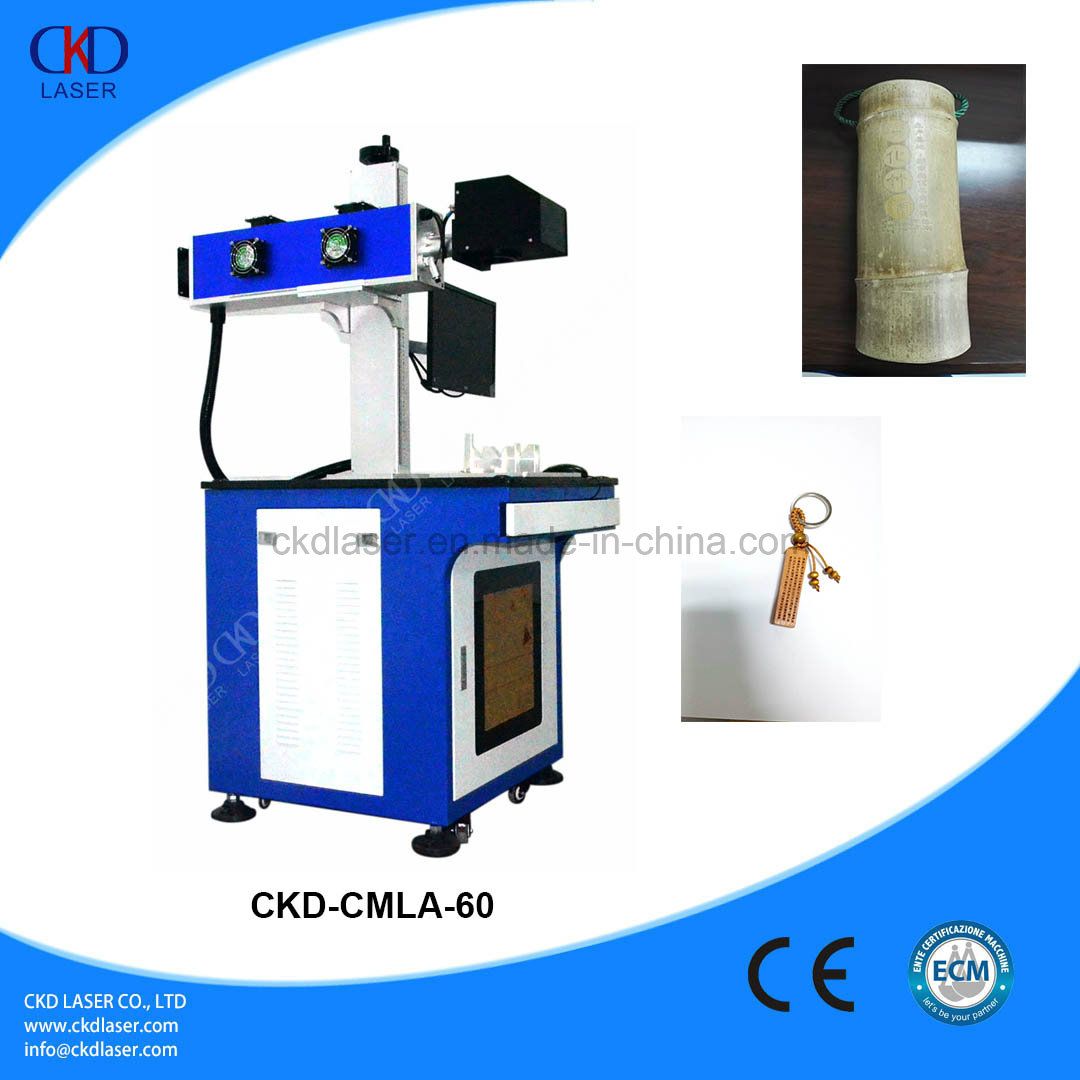

3D Dynamic Focus Laser Marking Machine for Jeans marking
Application
Woodworks, gifts, electronic components, clothes, leather, paper, medicines, food and package, etc.
Advantages
1, Superior quality CO2 laser beam, stable light and low failure rate
2, With the excellent servo motor, the high-speed scanning galvanometer is of high marking speed and precision.
3, Adopt industrial control computer, strong resisting disturbance capacity, assuring the long stable working.
4, Easy operation software, compatible for all formats from CorelDraw, Photoshop, AutoCAD, etc.
5, Reasonable whole structure design, better stability and higher reliability.
6, SYNRAD / COHERENT tube can be refilled, excellent performance, Max. 45000 hours' life without maintenance
7, Be applicable to flying marking production line.
Material
Most of Non-metallic materials, such as, ceramics, PVC, ABS, acrylic, plastic, bamboo, organic materials, epoxide resin, glass, wood, and paper, etc.

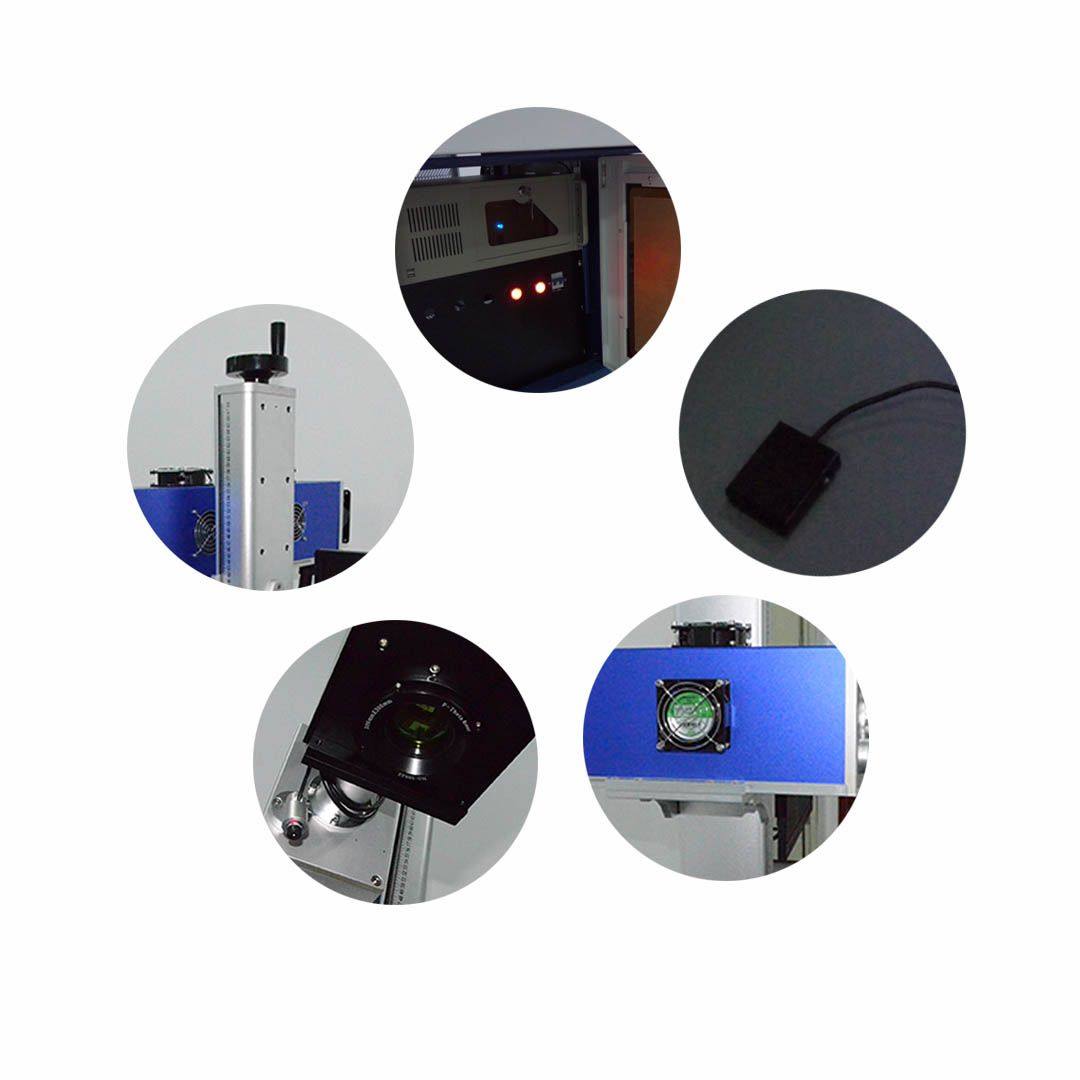

Product Fittings
Parameters| Parameters | Unit | Data | Data | Data |
| Type | | CKD-CMLA-10/30 | CKD-CMLB-50 | CKD-CMLA-60 |
| Power | W | 10/30 | 50 | 60 |
| Laser | | CO2 laser | CO2 Laser | CO2 Laser |
| Laser Wavelength | um | 10.6 | 10.6 | 10.6 |
| Optional Marking Area | mm | 50*50/100*100/110*110/
200*200/300*300 | 50*50/100*100/110*110/
200*200/300*300 | 50*50/100*100/110*110/
200*200/300*300 |
| Marking Speed | mm/s | ≤7000 | ≤7000 | ≤7000 |
| Repeated Frequency of Laser | KHz | <=100 | <=100 | <=100 |
| Marking Type | | Dynamic Mark / Static Mark | Dynamic Mark/Static Mark | Dynamic Mark/Static Mark |
| Minimum Line Width | mm | 0.1 | 0.15 | 0.15 |
| Minimum Character | mm | 0.3 | 0.4 | 0.4 |
| Controller /Software | | EzCad | EzCad | EzCad |
| System Operation Environment | | Windows 7/8/10 | Windows 7/8/10 | Windows 7/8/10 |
| Cooling Mode | | Air cooling | Water cooling | Air cooling |
| Temperature of Operation Environment | ºC | 15~35 | 15~35 | 15~35 |
| Voltage | | 220V/50Hz/10A | 220V/50Hz/10A | 220V/50Hz/10A |
| Computer Requested | | With | With | With |
| Communication Interface | | USB | USB | USB |
| Dimension (L*W*H) | mm | 700*650*1200 | 750*700*1300 | 750*700*1300 |
| Weight | Kg | 150 | 200 | 160 |

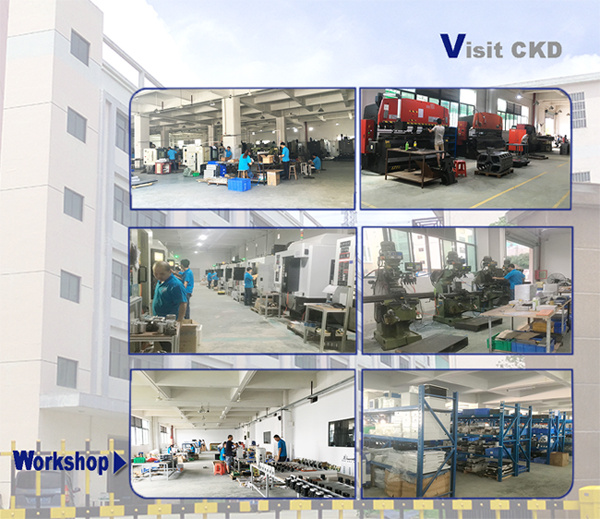

Our Factory
We are a factory established in 2007, which specializes in the customized laser equipment for 9 years. We have a professional team and pursue high-tech, high quality, and high customer satisfaction products, to seek long-term cooperation and common development customers.
Our main customized products: Marking laser machine, including portable marking laser machine, table marking laser machine, rotary multi-station marking laser machine, sealing marking laser machine, UV marking laser machine, CO2 marking laser machine; welding laser machine; ITO laser machine; slicer laser machine; cutting laser machine and a lot of self-developed laser equipment devices.
Our laser equipment is widely used in industries of hardware tools, solar energy, auto accessories, electronics, electric appliance, medical, glasses, leather, optical accessories, advertising, commodity, communication, sheet metal industry, jewelry industry, kitchenware, jet coding and crafts gifts etc.
Company concept: All participants in and strive together to creative our future.
Company policy: Based on customers' satisfaction
Armed high quality by high-tech
Welcome new customers' attention and thank old customers' support! We will as always provide and feedback you the higher performance, cost-effective, better quality products and timely service.
Why choose us:
1.CKD LASER product is widely used in almost all the materials you can think of.
2.CKD LASER is the professional manufacturer of cnc laser machine for more than 9 years. There is no middle man and no agent, so the price is pretty competitive.
3. CKD LASER have a experienced and professional team for the technical support.
4. CKD LASER always stick to the principles: Customer first,Quality First, Service First!
5. CKD LASER company has international technical service office and provides 24 hours online services and technical supports for customers.
FAQ
Q: Are you a factory or a trade company?
A: We are a factory.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhen, Guangdong province, China.
All our clients from home or abroad are warmly welcome to visit us!
Q: Do you have any certificates?
A: All series of machines have passed CE and ISO verification.
Q: What is the trade term?
A: FOB/CNF/CFR/CIF/EXW are favorable.
Q: What is the payment term?
A: 100% T/T in advance.
Q: How can I get the documents after shipment?
A: All original documents will be sent to the client by E-mail.
Q: Do you arrange shipment for the machines?
A: We will arrange shipment for transactions based on FOB/CIF terms.
For EXW price, shipment should be made by clients or their agents.
Q: Warranty?
A: Depend on the series of machine.
For other questions, we will reply you ASAP after receriving your consult!
Welcome to contact us!
