3m CAT6 UTP Cable Patch Cord
Price: |
US $ 0.3-6/Piece |
Min Order: |
100/Piece |
Pay Type: |
T/T,Paypal |
Prod Model: |
CAT6U |
Wire Gauge: |
24AWG |
External O.D.: |
6.3mm |
Insulation: |
HDPE |
Connector Housing: |
Clear Polycarbonate, 94V-0 Rate |
Plug Terminals: |
Phosphor Bronze with Gold Plating |
Maximum Tension: |
110 N |
Minimum Bending Radius: |
8X Outside Diameter |
Operating Temperature: |
-20deg.C to 60deg.C |
Keyworkds: |
Network Patch Cord |
Color: |
Customized |
Application: |
LAN Cable |
Conductor Material: |
Copper |
Cover Material: |
PVC |
Type: |
Cat 6 |
Certification: |
RoHS |
Model: |
CAT6 |
Brand: |
OEM |
Product Description
Hot sale Cat6 Unshielded Bare Copper Ethernet Patch Cord For Data Center
Cat6 UTP copper network patch cord for computer device is an ultra-high quality category 6 unshield twisted pai r(utp) molded plenum patch cable.Utp is accepted for residential and general commercial installation.In cenyarak, you can get true cat6 performance with component certified cat6 patch cables, our patch cables are made of 100% pure copper wire and 3~50 micron gold plated rj45 plugs. You can also enjoy the custom service. Color - white, yellow, black, blue, gray, green, orange, purple, red are all available.
Product FeaturesCopper material provides better transmission performance;
Meets cat6 TIA/EIA 568-C.2 standards;
High quality environmental PVC jacket;
With customized durable molding boots.SpecificationsConductor Material: | Bare Copper 99% | DC resistance Max.: | 93.8 Ω/km |
Conductor Construction: | Stranded copper 7*0.20 mm | Insulation resistance Min.: | 100 MΩ/km |
Gauge: | 24 AWG | Dielectric strength: | AC-500V 1 min no breakdown |
Conductor Nom.O.D: | 0.61 mm | DC resistance unbalance: | Max 2% |
Insulation Material: | HDPE | Input impedance: | 100±15Ω @4-100MHz |
Sheath Material: | PVC | Maximum tension: | 110 N |
Sheath External O.D.: | 6.3 ± 0.4 mm | Elongation: | ≥100 % |
Sheath Sheath Color: | Red | Minimum bending radius: | 8x outside diameter |
Sheath Plug Housing: | Clear polycarbonate, 94V-0 Rate | Operating temperature: | -20°C to 60°C |
Sheath Terminal: | Phosphor bronze 3~50U gold plating | Weight: | 35.7 KGS/1000m |
ApplicationsDesigned for network adapters, hubs, switches, routers, dsl/cable modems, patch panels and other computer
networking applications;
Voice/data/video distribution;
Handle bandwidth-intensive applications.
FAQQ1. Can I have a sample order for your products?A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time?A:Sample needs 3~7 days, mass production time needs 2-3 weeks for order quantity less than one container. Q3. Do you have any MOQ limit for network patch cord order?A: Low MOQ, 1pc for sample checking is available. Q4. How do you ship the goods and how long does it take to arrive?A: Airline and sea shipping are also optional. Shipping time depends on distance. Q5. How to proceed an order for network patch cord?A: Firstly, please let us know your requirements or application. Secondly, We provide specification according to your inquiry. Thirdly, customer confirms the samples and formal order. Fourthly, We arrange the production. Q6. Is it OK to print my logo on network patch cord products?A: Yes. Please inform us formally before our production and logo printing need 10000 PCS MOQ. Q7: Do you offer guarantee for the products?A: Yes, we offer 25 years warranty to our standards products.Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.

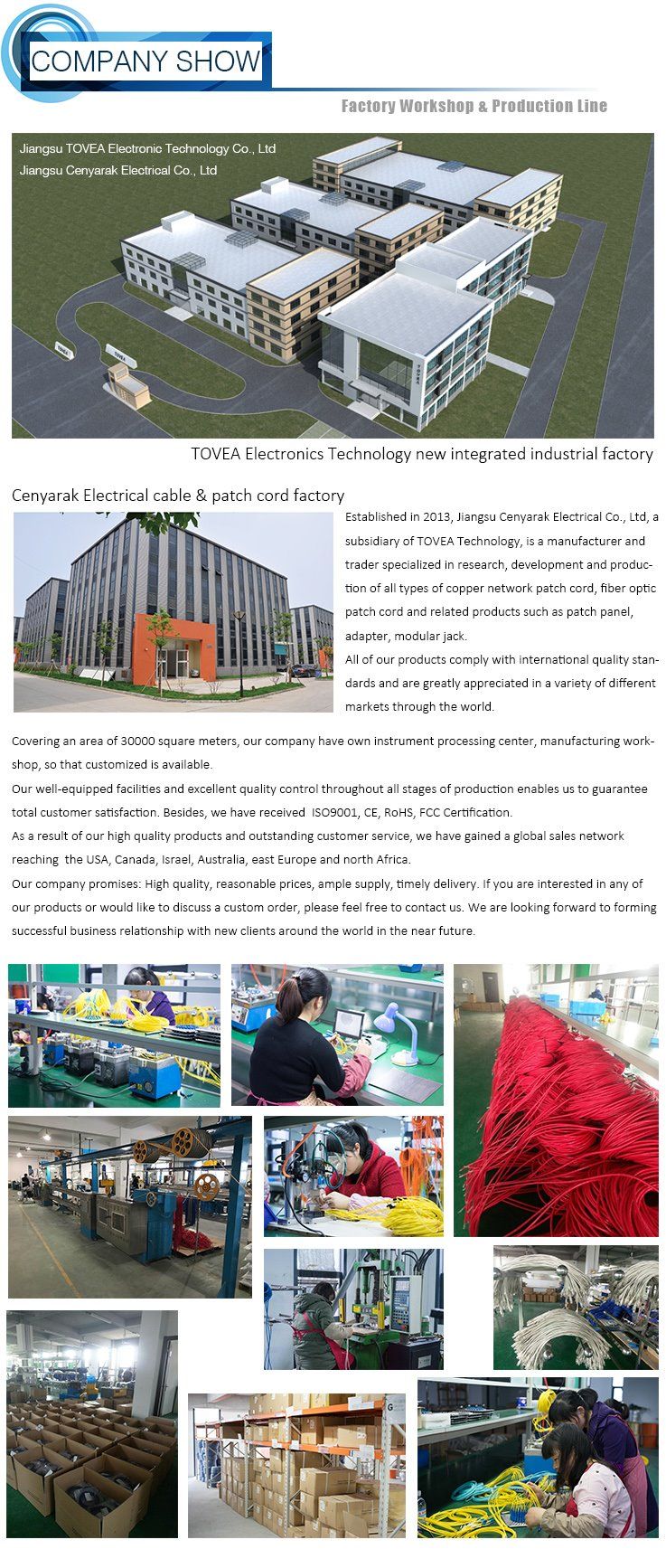

Established in 2013, Jiangsu Cenyarak Electrical Co., Ltd is a manufacturer and trader specialized in research, development and production of all types of Fiber Optic Patch Cords and related products(). We are located in Jiangsu Nanjing, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets through the world.
Covering an area of 800 square meters, our company have own instrument processing center, manufacturing workshop, so that customized is available.
Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received _ISO90012008.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching North America, South East Asia, Europe, Africa ect.
Our company promises: High quality, reasonable prices, ample supply, timely delivery. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationship with new clients around the world in the near future.
