4 Head Computer Tajima Wilcom Type Industrial Embroidery Machine
| Price: |
US $ 9500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

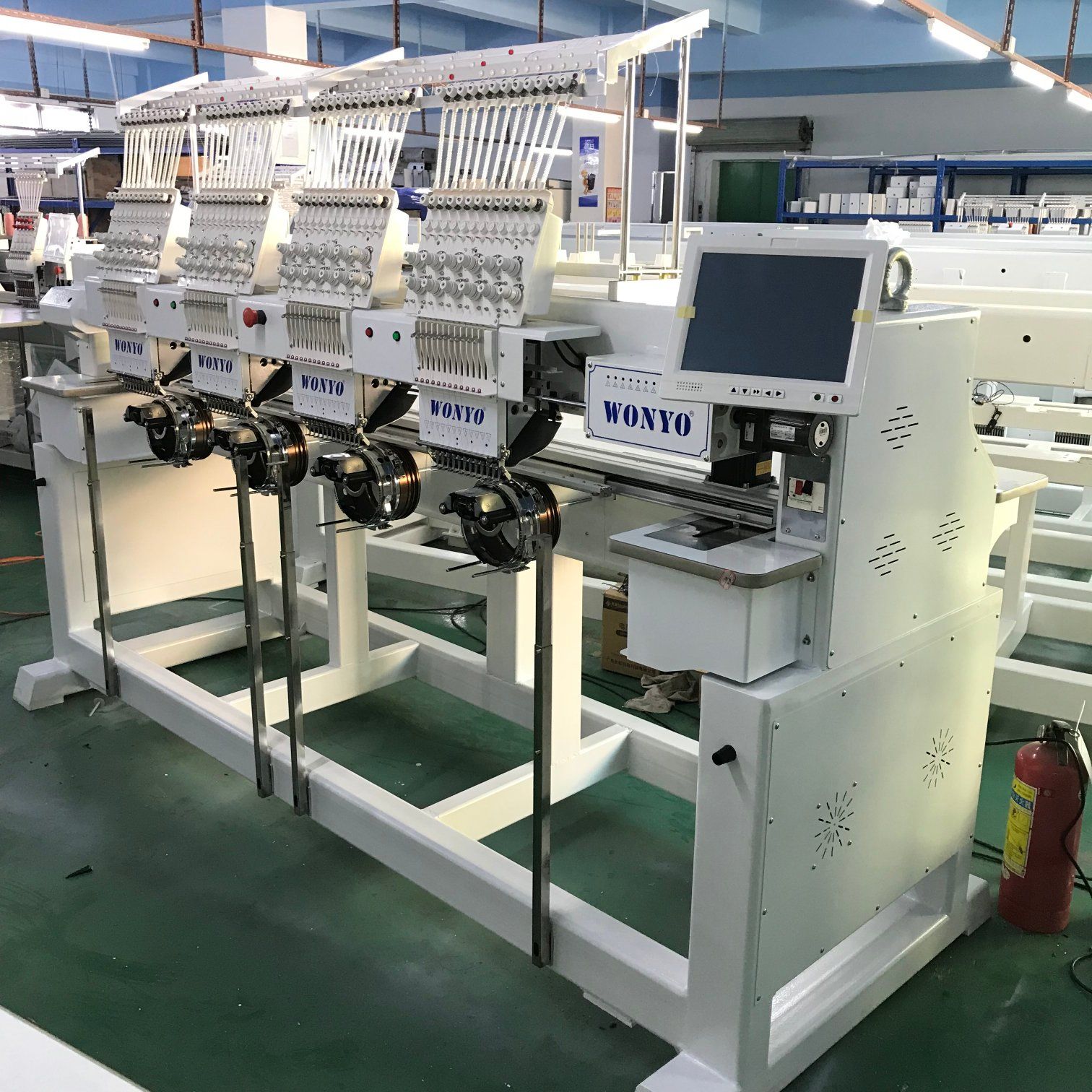

4 Head Computer Tajima Wilcom Type Industrial Embroidery Machine
4 Heads Models:
Model | Needles | Heads | Net Weight | Embroidery Area | Overall Size |
| WY904C | 9 | 4 | 850kg | 400*450mm | 2700*1150*1650mm |
| WY1204C | 12 | 4 | 850kg | 400*450mm | 2700*1150*1650mm |
| WY1504C | 15 | 4 | 850kg | 400*450mm | 2700*1150*1650mm |
*cap embroidery
*t shirt embroidery
*textile flat embroidery
*towel embroidery
*cording embroidery
*sequin embroidery
*bead embroidery
*taping embroidery
*boring embroidery | Main parameters |
| Function | cap embroidery, t shirt embroidery, flat embroidery... |
| Model# | WY904C, WY1204C, WY1504C |
| Speed | 850-1200 stitches per minute |
| Main Motor | Panasonic Servo Motor |
| XY Motor | Stepper motor |
| Digitizing software | Dahao |
| Embroidery Design format | DST, DSB |

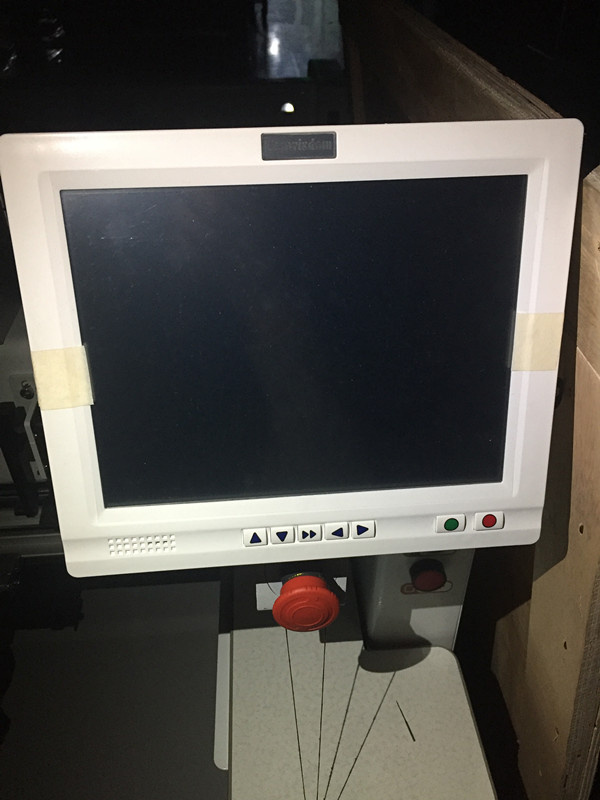

| Control Board | Topwisdom, 10" LCD touch screen |
| Language | English, French, Spanish, Portuguese, Arabic... total 12 languages |
| Voltage | AC110-220V, adaptable for any volatge |
| Power | 50-60HZ |
| Control System |
| Automatic trimming | yes |
| Automatic cutting | yes |
| Automatic color change | yes |
| Thread broken detecting | yes |
| Memory size | 20,000,000 stitches/200 embroidery design patterns |
| Font/letter software | available |
| Error code | yes |
| Real-time stitching | yes |
| Different languages setting | yes |
| USB port, network transferring design | yes |
| Laser position with red light | yes |
| Led light | yes |

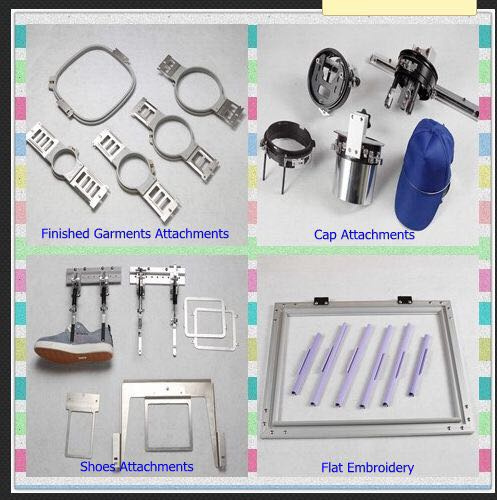

| Accessories included |
| Frames:( free sent) |
2 sets of back hoops for 30cm x 30cm (11.80" x 11.80") for each head
2 sets of front hoops of 19cm (7.50") for each head
2 sets of front hoops of 15cm (5.90") for each head
2 sets of front hoops of 12cm (4.70") for each head
2 sets of front hoops of 9cm (3.50") for each head |
| Cap attachment | (2 cap ring, 1 cap drive, 1 cap frame)for each head |
| Flat frame | 1 Sash Frame: 81cm x 48cm (32" x 19") for 2 heads |
| Foot wheels | included for easy movement of the machine |
| Operation manual | English and French version, other languages can be added |
| Bobbin Winder | Included |
| Tool box | yes, with needles, reciprocators, sensor, bobbin... |
| Optional Devices: |
| Sequin embroidery |
| Taping embroidery |
| Boring embroidery |
| Cording/Coiling embroidery |
| Bead embroidery |
4 Good after-sales service| Packing details |
| Packing material | Fumigation-free wooden box |
| Packing size | 4510*1130*1670mm |
| Gross-weight | 1335kg |
| Other request | As customer required |
Look For Agent All over the world!!
| Other models as choice to meet your demands for embroidery business |
| Model# | Head# | Needle# | Embroidery Area | Speed | Package Size |
| WY1201C, WY1501C | 1 | 12/15 | 360*510mm | 1200SPM | 840*840*930mm |
| WY1201CL, WY1501CL | 1 | 12/15 | 360*510mm | 1200SPM | 1580*1040*1100mm |
| WY11201CL, WY1501CL(customized) | 1 | 12/15 | 500*1200mm | 1200SPM | 1500*1100*1200 |
| WY902C, WY1202C | 2 | 9/12 | 400*450mm | 850SPM | 1710*1060*1480mm |
| WY904C, WY1204C | 4 | 9/12 | 400*450mm | 850SPM | 2700*1140*1660mm |
| WY906C, WY1206C | 6 | 9/12 | 400*450mm | 850SPM | 3760*1140*1690mm |
| WY908C, WY1208C | 8 | 9/12 | 400*450mm | 850SPM | 4510*1130*1670mm |
| WY910C | 10 | 9 | 400*450mm | 850SPM | 4910*1130*1690mm |
| WY912C | 12 | 9 | 400*450mm | 850SPM | 5838*1490*1600mm |
Welcome to visit our factory in Shenzhen, China.
Feel free to contact us for price and video of the machines.
Sales contact: Nicki Wang(008618696118389)youtube link: https://www.youtube.com/watch?v=KB4Y82oDQJg
Address:No. 1 B, Weihao Technology District, Yangguang Industrial Park, Xili Town, Nanshan
District, Shenzhen, Guangdong, China Look for agent/distributor all over the world!
| Prod Model: |
WY904C /WY1204C/1504CH |
| Number Of Heads: |
4 |
| Warranty: |
24 Months |
| Speed: |
850/1000rpm |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Brand Name: |
Wonyo/OEM |
| Number Of Needles: |
9/12/15 |
| Average Yearly Sales: |
500sets |
| Motor: |
Servo Motor/Stepper Xy Motor |
| Computer: |
10" Touch Screen with 12 Lanuguages |
| Embroidery Area: |
400*450mm |
