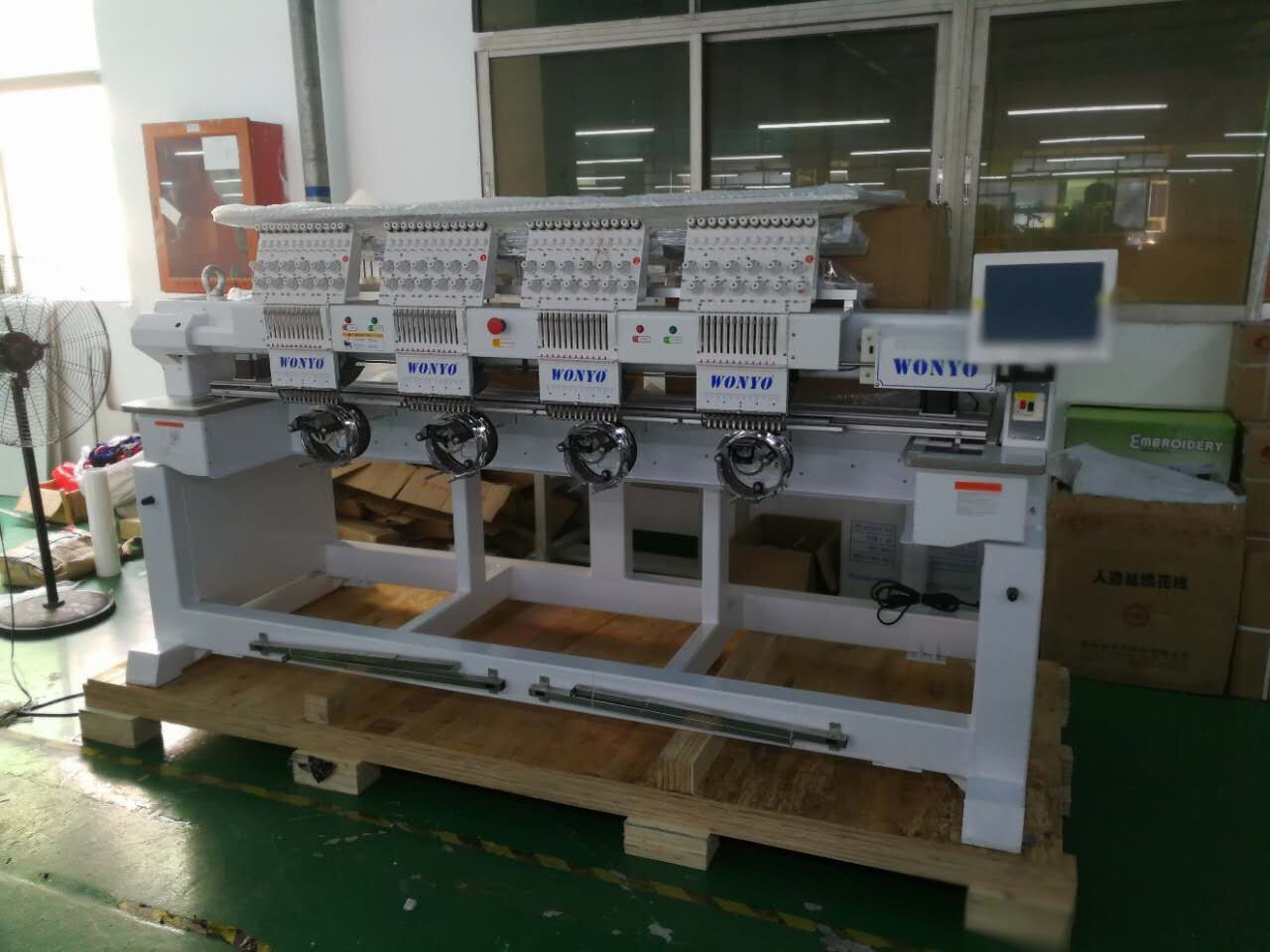

4 Head Computerized Embroidery Machine do Uniforms and Caps Badges
1. Embroidery Machine Features1. 4 head cap; flat; finished garment embroidery machine with 9 or 12 needles
2. Automatic thread trimmer
3. Maximum speed 850 SPM
4. 270° Wide cap frame unit
5. Main motor: panasonic servo mortor, xy motor: stepper motor
6. USB input port
7. Automatic color change
8. Thread break detection
9. Pre-sew design trace capable
10. Memory size 20, 000, 000 stitches
11. Emergency stop
12. Electricity: 110V/60Hz or 220V/50Hz available
14. Low power consumption 100W to 150W
15. Built-in bobbin winder2. Control pannel functions1. 10" touch screen showing real time stithing
2. Manual, Semi-auto, Auto Color Change
3. Function keys including Menu, Speed up and slow
4. Multi languages available like English, French, Spanish etc.
5. Frame-moving keys, Manual Trimming
6. DOT ket to return to 100 degree
7. Start, Stop, and emergency Stop
8. Embroidery Status (Page Up/Page Down), USB Input,
9. Parameter Settings, Clear, ESC, Enter, etc.3. Hoops/frames included 1) Clothes and flat hoop
1pcs x aluminum embroidery box 450x 1600 mm
2pcs x square hoops 300mm
2pcs x round hoops 190mm per head
2pcs x round hoops 150mm per head
2pcs x round hoops 120mm per head
2pcs x round hoops 90mm per head 2) Cap Attachment Included 2pcs x cap ring
1pcs x hoop station
1pcs x cap driver3)Other accessories
1pcs x Table top
1pcs x Operation manual
1pcs x Tool kit
1pcs x Bobin winder
1pcs x U disk 4. Optional devices A. Sequin device
B. Boring device
C. Simple Coiling/Cording
D. 8 in 1 device (for shirt pockets, socks, cap backs, bags, shirt sleeves, collar tips, gloves, cuffs of sleeves, ribbons, CD cases,)
5. Testing and inspectionThe machine will be fully assembled and tested in our factory to the standard test procedures. If the customer has arranged any special test materials or test procedures these will be carried out the same time. Upon approval, the machine will be packed and shipped. 6. InstallationStaff in Shenzhen factory will install the machine and a training period for the operator and maintenance person will be provided after the machine being set up in Shenzhen Factory.
Packaging7. Wooden Case/as Customer RequiredModel | Needle | Head | N.w G.w | Emb.area | Machine size Packaging size CBM |
WY1201CS/WY1501CS | 12/15 | 1 | 120kg 138kg | 360*510mm | 750*740*850mm 840*830*930mm 0.648CBM |
WY1201CL/WY1501CL | 12/15 | 1 | 201kg 238kg | 360*1200mm | 1490*980*1000mm 1580*1030*1090mm 1.774CBM |
WY1202C/WY902C | 12/9 | 2 | 390KG 429KG | 400*450MM | 1520*970*1400mm 1710*1060*1470mm 2.665CBM |
WY1204C/WY904C | 12/9 | 4 | 720KG 900KG | 400*450MM | 2638*1090*1500mm 2700*1140*1660mm 5.110CBM |
WY1206C/WY906C | 12/9 | 6 | 1100KG 1210KG | 400*450MM | 3438*1160*1500mm 3460*1200*1670mm 6.934CBM |
WY1208C/WY908C | 12/9 | 8 | 1200KG 1335KG | 400*450MM | 4238*1090*1500mm 4510*1130*1670mm 8.511CBM |
WY1212C/WY912C | 12/9 | 12 | 1800KG 1960KG | 400*450MM | 5838*1490*1610MM 6000*1500*1680MM 15.120CBM |
8. Delivery and payment termDelivery term :Production takes around 20 days ship within 7-10days after receiving 100% payment .
Payment term:30% TT advance payment before production, 70% TT remaining balance before shipping.9. Company informationShenzhen Wanyang technology Co., Ltd is a highly advanced technology enterprise in which design, manufacture and marketing are integrated.
The main focus of our company is single head embroidery machine, cap embroidery machine, finished garments embroidery machine, shoes embroidery, multifunctional sewing and embroidery machine, laser cutting and embroidery machine, customized service of intelligent and automatic sewing equipment.10. The reason to choose wonyo1 good quality, machine running stable, high production
2 Reasonable prices for machines and parts
3 Professional staff, easy to communicate
4 Short time and safe delivery
5 Good after-sale service
