4 Heads Computerized Embroidery Machine for Jackets Cap and Towel
Machine basic information as bellows
Brand: WONYO
Original: Shenzhen city of China. 100% new
HS Code: 8447902000
Certificate: CE & SGS & ISO9001
Head & needle: 4 head with 9/12 needle
Machine color: white / black / yellow
Standard functions: Cap & T-shirt / Garments & Flat embroidery &3D
Flat working area:400*450 mm per head
Cap working area: 75*270 mm
Garments working area: 9/12/15/18/29 cm round frames
Option devices: shoes / sequin / cording / Beads / boring / bags / pockets / socks / pants
Minimum order: 1 set
Production scale: 500sets per year
Test and install: 100% in our factory, customer can use directly when received.
Packaging : Standard Vacuum wooden case or as customer requested
Delivery Term: Production takes around 20 days, ship within 7-10 days .
Payment Term: Via transfer, 30% for the deposit, 70% before ship.
Warranty: 2 years for the whole machine, 3 years warranty for the compurter control system, Free training and lifetime after-service. Also we are willing to provide spare parts service if customer need.
Panel functions as bellows

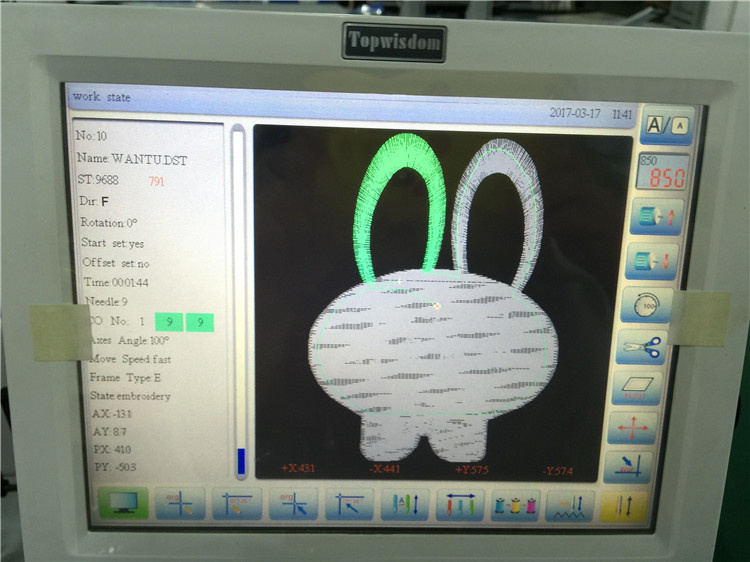

Computer control system: Topwisdom
Monitor size: 8"color touch screen,
Memory size: It can store 200 patterns and 20 million needles.
Max Speed: 850 RPM, Customized 1000RPM
Format: Tajima(DST), Barudan(DSB) and etc
On board lettering: Support
Design Input: By U disk, USB and Transmission from PC to Control System
Language: Chinese,English,French,Russian,Dutch,Spanish,Portuguese,Turkish,German, Arabic,Thai, Vietnamese
Protection Device: Emergency Stop, Prevent Accidents. Avoid hitting and etc. intelligent inflect mistake system
Full automation: Auto-trimmer; Auto-color change; Auto-thread broken detection, support back to stitches, Auto-adjust frames
Machine technical parameter
Motor: Main motor is Panasonic servo, X.Y motor is Stepper motor
Hook motor: Stepper motor, Trimmer motor: Stepper motor
X.Y Driving : Reinforced high speed linear guide rail
Rotary hook: Japanese Rotary Hook
Needle: Groz-Beckert Needles
Belt: Italy Brand Belt
Frames: A class Feiya farmes
Voltage: 110v 60hz and 220v 50hz (as customer requested)
Power: 750w
Accessories

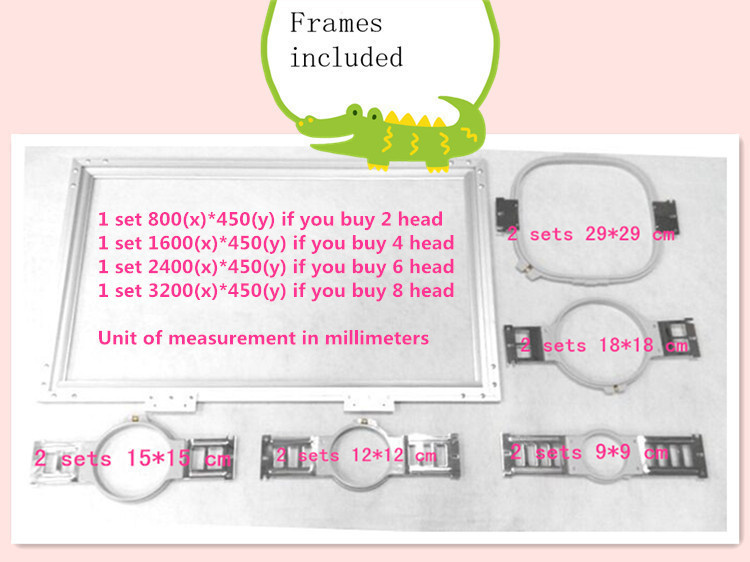

Frames included
A. 2 x Shirt Front Round Hoop 9 cm (3.5")
B. 2 x Shirt Front Round Hoop 12 cm (4.7")
C. 2 x Shirt Front Round Hoop 15 cm (5.9")
D. 2 x Shirt Front Round Hoop 18 cm (7.5")
E. 2 x Jacket Back Square Hoop 29 x 29 cm (12"x 12")
F. 1 x Flat Aluminum Frame 450*1600mm(17.7"*63")

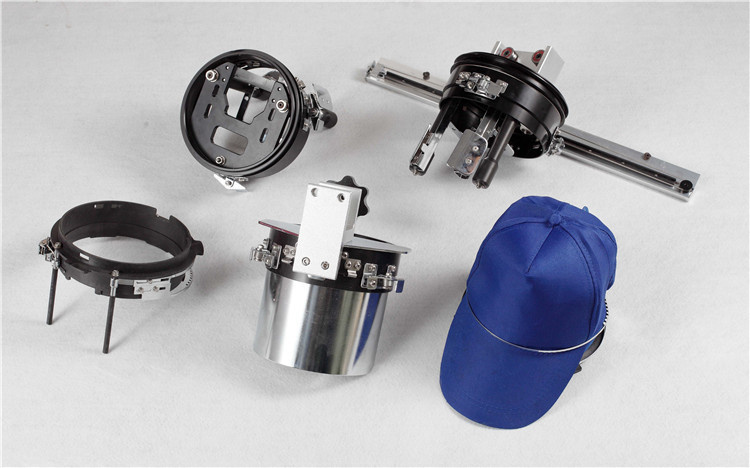

Cap attachments included
A. 1pcs cap hoop station for one machine
B. 1pcs cap driver per head
C. 2pcs Cap hoops for each head"
Other accessories included
A. Machine stand with wheels
B. Extended Table Top
C. Operation Manual In English
D. Tool Kit
E. USB driver"

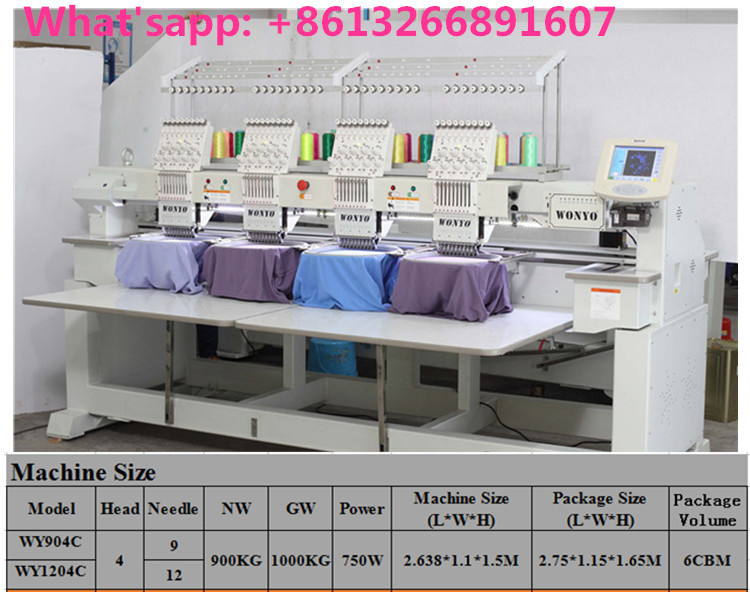

| Model | Head | NW
KG | GW
KG | Power
W | Machine size
M | Packing size
M | Packing volume CBM |
WY1201CS
WY1501CS | 1 | 150 | 170 | 150 | 0.75*0.74*0.85 | 0.84*0.83*0.94 | 1 |
WY1201CL
WY1501CL | 1 | 200 | 250 | 150 | 1.49*0.98*1 | 1.58*1.03*1.09
| 2 |
WY902C
WY1202C | 2 | 350 | 450 | 400 | 1.52*0.97*1.4 | 1.72*1.085*1.45 | 3 |
WY904C
WY1204C | 4 | 900 | 1000 | 750 | 2.638*1.1*1.5 | 2.75*1.15*1.65 | 6 |
WY906C
WY1206C | 6 | 1000 | 1100 | 750 | 3.438*1.1*1.5
| 3.7*1.15*1.65 | 8 |
WY908C
WY1208C | 8 | 1100 | 1200 | 1000 | 4.238*1.1*1.5
| 4.7*1.15*1.65 | 9 |
