Price: | US $ 40-60/Roll |
---|---|
Min Order: | 1/Roll |
Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

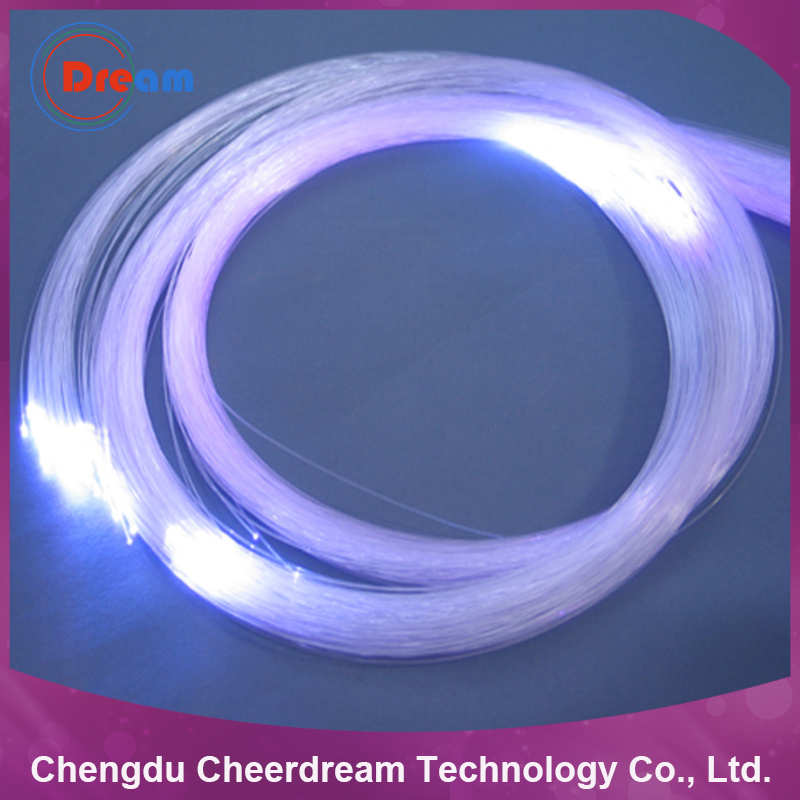

0.5mm End Glow Illumination Fiber Optic
A. Features:
B. Fiber Optic Application:
C. Fiber Optic Basic Properties:
Fiber core material | Polymethyl methacrylate (PMMA) |
Clad material | Fluororesin |
Appearance | Smooth, transparent |
Numerical aperture | 0.5 |
Elongation-at-yield rate | ≥4 |
Allowable bend radius | No less ten times of the optical fiber diameter |
Using temperature range | -20~+70 centigrade |
D. Model Specifications:
Model | Fiber diameter(mm) | Roll length(m) |
LF-250 | 0.25 | 12000 |
LF-500 | 0.5 | 6000 |
LF-750 | 0.75 | 2700 |
LF-1000 | 1.0 | 1500 |
LF-1500 | 1.5 | 700 |
LF-2000 | 2.0 | 350 |
LF-2500 | 2.5 | 250 |
LF-3000 | 3.0 | 150 |

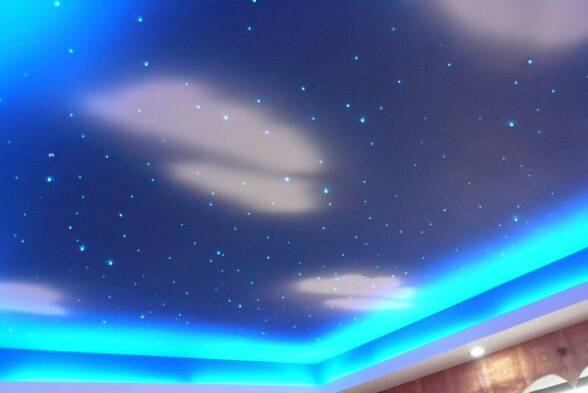

E. Lighting Fiber Optic Show:

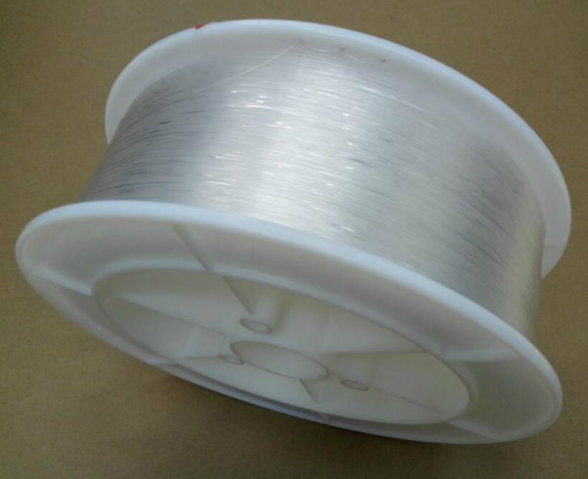

F. Plastic Fiber Optic Packing:

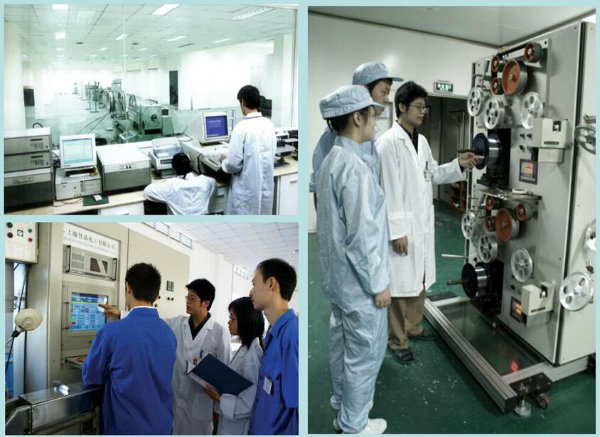

G. Factory:
H. FAQ:
1. Where is your company?
Our company lacated in Chengdu City, Sichuan Province. Welcome to visit our company.
2. Is the PMMA lighting fibre optic sample available?
Yes, we can provide free samples of the fibre optic for you to check the quanlity.
3. Can you provide OEM service?
Yes, we can provide OEM service.
I. Our Services:
1. Your inquiry related to our products or prices will be replied in 6 hours
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. Best after-service
4. Supply full accessories related to our main products
Prod Model: | LF-500 |
---|---|
Product Name: | 0.5mm End Glow Illumination Fiber Optic |
Fiber Material: | PMMA |
Fiber Diameter: | 0.5mm |
Weight: | 2.5kg/Roll |
Application: | Decorative Lighting |
OEM: | Yes |
Roll Length: | 6000m/Roll |
Light Source: | LED |
Color: | RGB |
Certification: | RoHS |
With Light Source: | Without Light Source |
Applicable Scope: | Fiber Optic Lighting |
