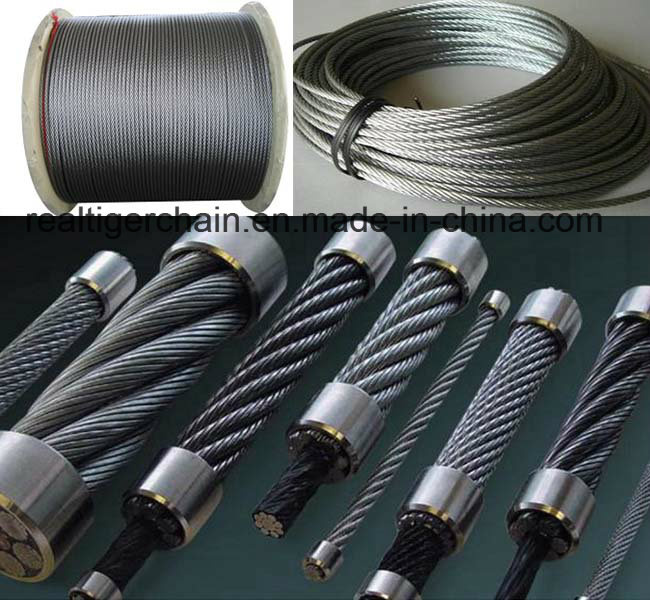

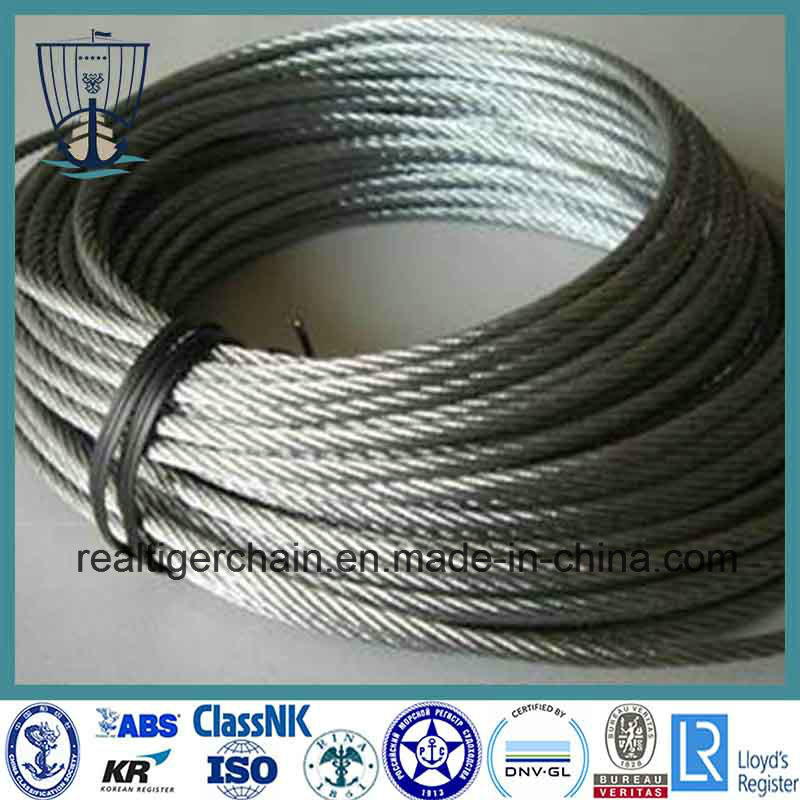

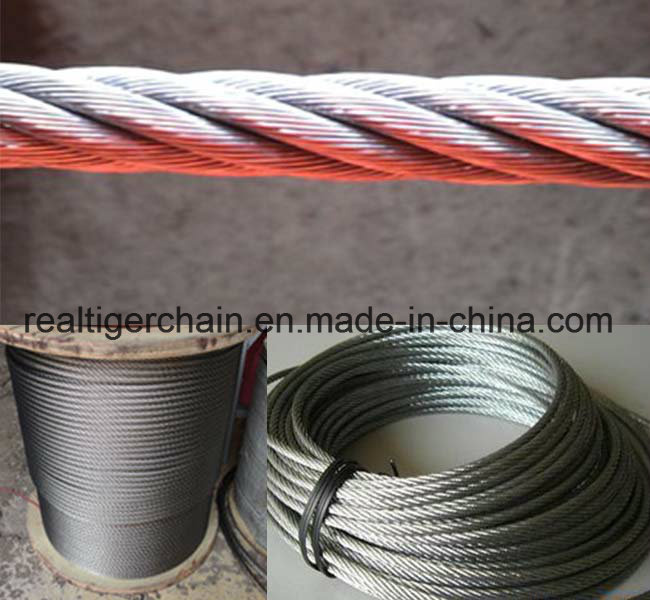

6*19 Structured Galvanized Wire Rope

Name: 6*19 Structured Galvanized Wire Rope
Brand: FullPackage
SKU: 722888002
Availability: InStock
Rating: 4.8 (134 reviews)

Price:	US $ 560-600/Ton
Min Order:	1/Ton
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

*Product Name: 6*19 Steel Wire Rope
*Dia.: 3-80mm
*Material: Carbon Steel, Staineless Steel
*Structure: 6X19+FC 6X19+IWS 6X19+IWR
*Tensile Strength: 1570Mpa, 1670 Mpa, 1870Mpa, 1960 Mpa
*Twist Dirction: RHOL, RHLL, LHOL, LHLL
*Standard: GB/T, DIN, BS, ASTM, JIS,ISO
*Application: Various equipments for hoisting, derricking, lifting and drawing.

Nominal Diameter	Approx.Weight			Nominal Tensile Strength of Rope(Mpa)
				1570		1670		1770		1870		1960
				Minimun Breaking Load of Rope
	NF	SF	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
	NF	SF	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
mm	kg/100m			(KN)
3	3.16	3.1	3.6	4.34	4.69	4.61	4.99	4.89	5.29	5.17	5.59	5.42	5.86
4	5.62	5.5	6.4	7.71	8.34	8.2	8.87	8.69	9.4	9.19	9.93	9.63	10.4
5	8.78	8.6	10	12	13	12.8	13.9	13.6	14.7	14.4	15.5	15	16.3
6	12.6	12.4	14.4	17.4	18.8	18.5	20	19.6	21.2	20.7	22.4	21.7	23.4
7	17.2	16.9	19.6	23.6	25.5	25.1	27.2	26.6	28.8	28.1	30.4	29.5	31.9
8	22.5	22	25.6	30.8	33.4	32.8	35.5	34.8	37.6	36.7	39.7	38.5	41.7
9	28.4	27.9	32.4	39	42.2	41.5	44.9	44	47.6	46.5	50.3	48.7	52.7
10	35.1	34.4	40	48.2	52.1	51.3	55.4	54.3	58.8	57.4	62.1	60.2	65.1
11	42.5	41.6	48.4	58.3	63.1	62	67.1	65.8	71.1	69.5	75.1	72.8	78.7
12	50.5	49.5	57.6	69.4	75.1	73.8	79.8	78.2	84.6	82.7	89.4	86.7	93.7
13	59.3	58.1	67.6	81.5	88.1	86.6	93.7	91.8	99.3	97	105	102	110
14	68.8	67.4	78.4	94.5	102	101	109	107	115	113	122	118	128
15	79	77.4	90	108	117	115	125	122	132	129	140	135	146
16	89.9	88.1	102	123	133	131	142	139	150	147	159	154	167
17	101	99.4	116	139	151	148	160	157	170	166	179	174	188
18	114	111	130	156	169	166	180	176	190	186	201	195	211
20	140	138	160	193	209	205	222	217	235	230	248	241	260
22	170	167	194	233	252	248	268	263	284	278	301	291	315
24	202	198	230	278	300	295	319	313	339	331	358	347	375
26	237	233	270	326	352	347	375	367	397	388	420	407	440
28	275	270	314	378	409	402	435	426	461	450	487	472	510
30	316	310	360	434	469	461	499	489	529	517	559	542	586
32	359	352	410	494	534	525	568	556	602	588	636	616	666
34	406	398	462	557	603	593	641	628	679	664	718	696	752
36	455	446	518	625	676	664	719	704	762	744	805	780	843
38	507	497	578	696	753	740	801	785	849	829	897	869	940
40	562	550	640	771	834	820	887	869	940	919	993	963	1040
42	619	607	706	850	920	904	978	959	1040	1010	1100	1060	1150
44	680	666	774	933	1010	993	1070	1050	1140	1110	1200	1160	1260
46	743	728	846	1020	1100	1080	1170	1150	1240	1210	1310	1270	1380
48	809	793	922	1110	1200	1180	1280	1250	1350	1320	1430	1390	1500
50	878	860	1000	1210	1300	1280	1390	1360	1470	1440	1550	1500	1630
52	949	930	1080	1300	1410	1390	1500	1470	1590	1550	1680	1630	1760
54	1024	1000	1170	1410	1520	1500	1620	1580	1710	1670	1810	1750	1900
56	1100	1080	1250	1510	1630	1610	1740	1700	1840	1800	1950	1890	2040
58	1180	1160	1350	1620	1750	1720	1870	1830	1980	1930	2090	2020	2190
60	1260	1240	1440	1740	1880	1850	2000	1960	2120	2070	2240	2170	2340
62	1350	1320	1540	1850	2000	1970	2130	2090	2260	2210	2390	2310	2500
64	1440	1410	1640	1970	2140	2100	2270	2230	2410	2350	2540	2460	2670
66	1530	1500	1740	2100	2270	2230	2420	2370	2560	2500	2700	2620	2830
68	1620	1590	1850	2230	2140	2370	2560	2510	2720	2650	2870	2780	3010
70	1720	1690	1960	2360	2550	2510	2720	2660	2880	2810	3040	2950	3190
72	1820	1780	2070	2500	2700	2660	2870	2820	3050	2980	3220	3120	3370
74	1920	1880	2190	2640	2850	2810	3040	2980	3220	3140	3400	3300	3560
76	2030	1990	2310	2780	3010	2960	3200	3140	3390	3320	3590	3480	3760
78	2140	2090	2430	2930	3170	3120	3370	3310	3580	3490	3780	3660	3960
80	2250	2200	2560	3080	3340	3280	3550	3480	3760	3970	3970	3850	4160

Prod Model:	6*19 wire rope
Product Name:	6*19 Wire Rope
Structure:	6X19+FC 6X19+Iws 6X19+Iwr
Standards:	GB/T, DIN, BS, ASTM, JIS, ISO
Tensile Strength:	1570MPa, 1670 MPa, 1870MPa, 1960 MPa
Twist Dirction:	Rhol, Rhll, Lhol, Lhll
Usage:	Lifting, Bearing for Ship/Crane etc.
Certification:	Ce, ISO9001:2000
Cross Sectional Shape:	Round
Application:	Crane
Material:	Carbon Steel
Type:	Chain Hoist

Qingdao Real Tiger Marine Company is located in the beautiful coastal city of Qingdao, which is a professional one-stop marine equipment suppliers. Main products are anchor chain and accessories, ship anchor, mooring rope, wire rope, door, window, cover, bollard, chain stopper and other deck equipment. Products got CCS, DNV, GL, ABS, BV, LR, NK, KR, RINA classification society certificate, and passed the ISO9001-2008 international quality system certification.

Companies adhering to the "High Quality for Success, Sincere Credit for Cooperation

" concept, sincerely serve for the domestic and foreign customers, efforts to achieve win-win cooperation.

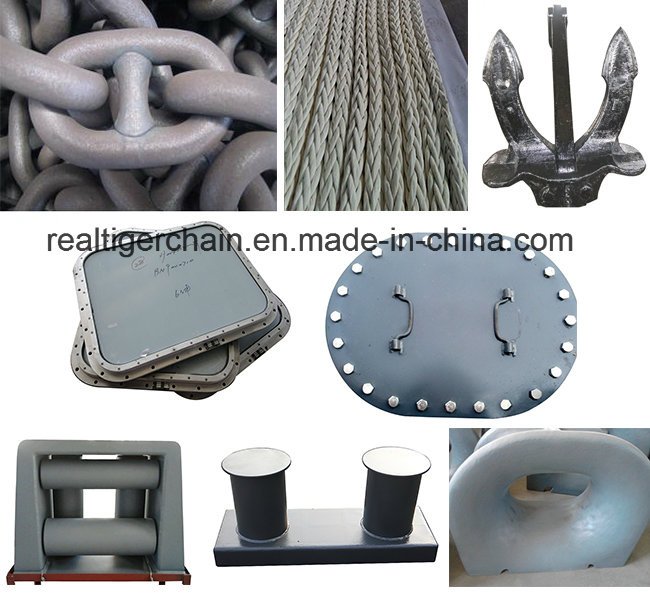

Maine Products:

*Anchor Chain: U1 U2 U3( Dia. 6-162mm)

*Offshore Mooring Chain: R3 R3S R4 R4S R5 R5S( Dia. 34-162mm)

*Anchor Chain Accessories: Kenter Shackle, Joining Shackle, End Shackle, Swivel, Pear Kenter Shackle, C Connector, Swivel Shackle, etc

*Ship Anchors: Hall Anchor, Spek Anchor, Admiralty Anchor, Japan Stockless Anchor, AC-14 HHP Anchor, Danforth Anchor, Pool Anchor, Delta Anchor, etc

*Mooring Rope: 3/4/6/8/12 Strands Ropes, Double Braided Ropes, UIIMWPE Ropes, and rope net

*Deck Equipments: DoorS, Windows, Hatch Cover, Manhole Cover, Chock, Roller Fairlead, Chain Stopper, Guide Roller, Bollard, etc

*Marine Rubber Fender: Pneumatic Rubber Fender, Super Cell Rubber Fender, Cone Rubber Fender, Semi-Circular Rubber Fender, Cylindrical Rubber Fender, Super Arch Rubber Fender, etc.

*Lashing Securing Series: Lashing Chain, Tension Lever, Ratchet Load Binder, D Ring, Hooks, etc

*Hardware: US Type Shackle (G209/210/2130/2150/2410/2160), Turnbuckle, D Ring, Hooks, Ratchet Load Binder, Wire Rope Clips, etc.

If you have requirements for OEM or CUSTOMERISED PRODDUCTS, are also available.

For more infomation, you can contact me at any time.
