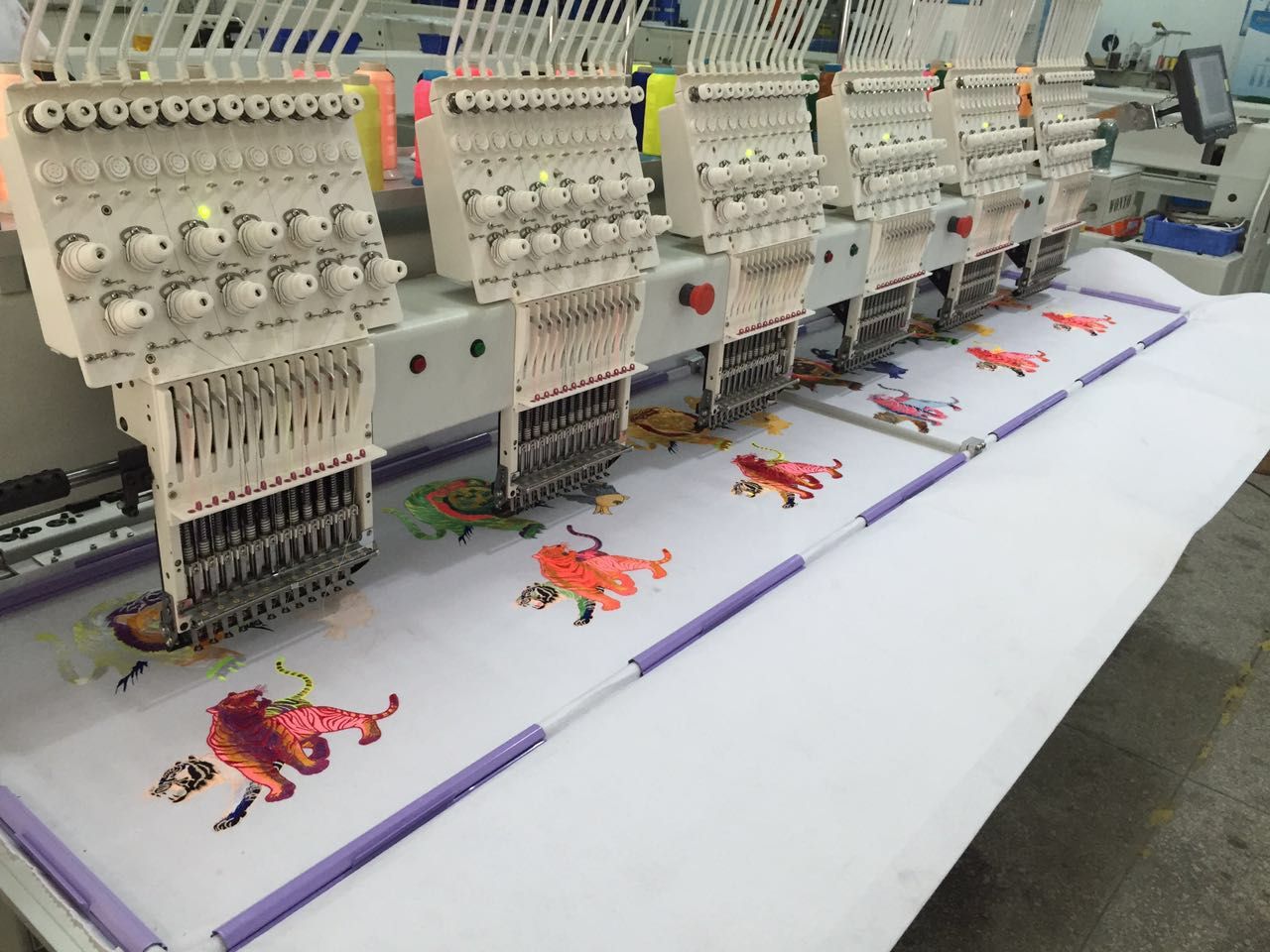

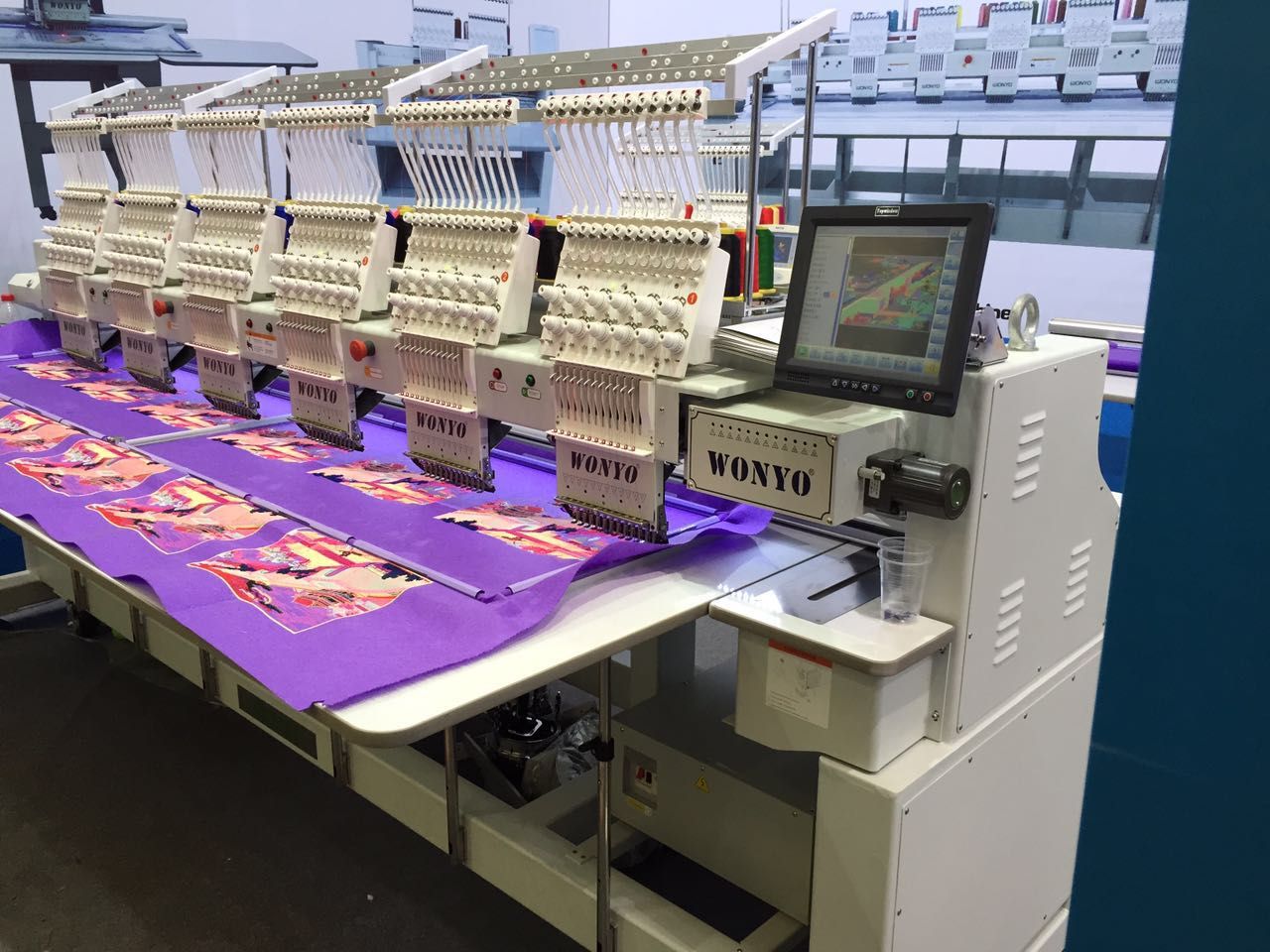

6 heads computerized embroidery machine for T-shirt/caps industry with big touch screen
I. Main features of the embroidery machine1. 9 needles, 8 heads, suitable for flat bed embroidery, cap Embroidery and finished garments embroidery
2. Embroidery area: 400 X 450 mm, or 15.7" X 17.7"
3. Automatic thread trimmer
4. Maximum speed 850 SPM
5. 270° Wide cap frame unit
6. 8" color LCD display showing real time stitching
7. USB port ready
8. Auto color change
9. Thread break detection
10. Pre-Sew Design Trace capable
11. Memory size: 1, 000, 000 stitches
12. Electricity: 110V/60Hz or 220V/50Hz available
13. Start, Stop, and Emergency Stop
14. On-board lettering
II. Full coler control panel1. 8" High Definition color LCD display showing real time stitching
2. Function keys including Menu, Speed up and slow Down (also Page Up and Page Down), Help, USB-Input, Parameter Settings, Clear, ESC, Enter, etc.
3. Numeric keys for selection of needles
4. Frame-moving keys
5. Manual Trimming
6. Manual Color Change
7. Embroidery Status
8. Embroidery Method
9. DOT Key to return to 100 degrees
10. Mutli languages available
III. Frames/hoops1 Sash Frame: 40.5cm X 48cm (16" X 19") for single head, 81cm X 48cm (32" X 19") for 2 head
2 sets of back hoops for 30cm X 30cm (11.80" X 11.80") for each head
2 sets of front hoops of 19cm (7.50") for each head
2 sets of front hoops of 15cm (5.90") for each head
2 sets of front hoops of 12cm (4.70") for each head
2 sets of front hoops of 9cm (3.50") for each head
IV. AccessoriesTable top Operation Manual Tool Kit Bobbin Winder
About usShenzhen Wangyang Technology Co., Ltd., is an advanced Scientific and Technological Manufacturer with R & D, manufacturing and sales. Lactated in high-tech enterprise gathering Park, High-tech Industrial Park, Shenzhen.
WangYang dedicated in laser cutting equipment, laser marking equipment, multi-function sewing embroidery machine, automatic soldering robots, automated dispensing robots etc.
Warranty, Service and Lifetime Support 1# in the industry!
WangYang insists exploration, innovation and sustained value creation concept, providing top quality products and perfect service from production& processing solutions to comprehensive pre-sales, sales, after-sales support and services for customers all over the world.
NEEDLES
| HEAD
| EMBROIDERY SPACE(L*W)
| HEAD INTERVAL(mm)
| LENGTH(mm)
| WIDTH(mm)
| HEIGHT(mm)
| WEIGHT(kg)
|
6\9\12
| 2
| 400*450
| 400
| 1520
| 900
| 1530
| 350
|
6\9\12
| 4
| 400*450
| 400
| 2620
| 900
| 1500
| 600
|
6\9\12
| 6
| 400*450
| 400
| 4250
| 900
| 1500
| 950
|
6\9\12
| 8
| 400*450
| 400
| 5050
| 900
| 1500
| 1200
|
