| Price: | Negotiableset |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T |

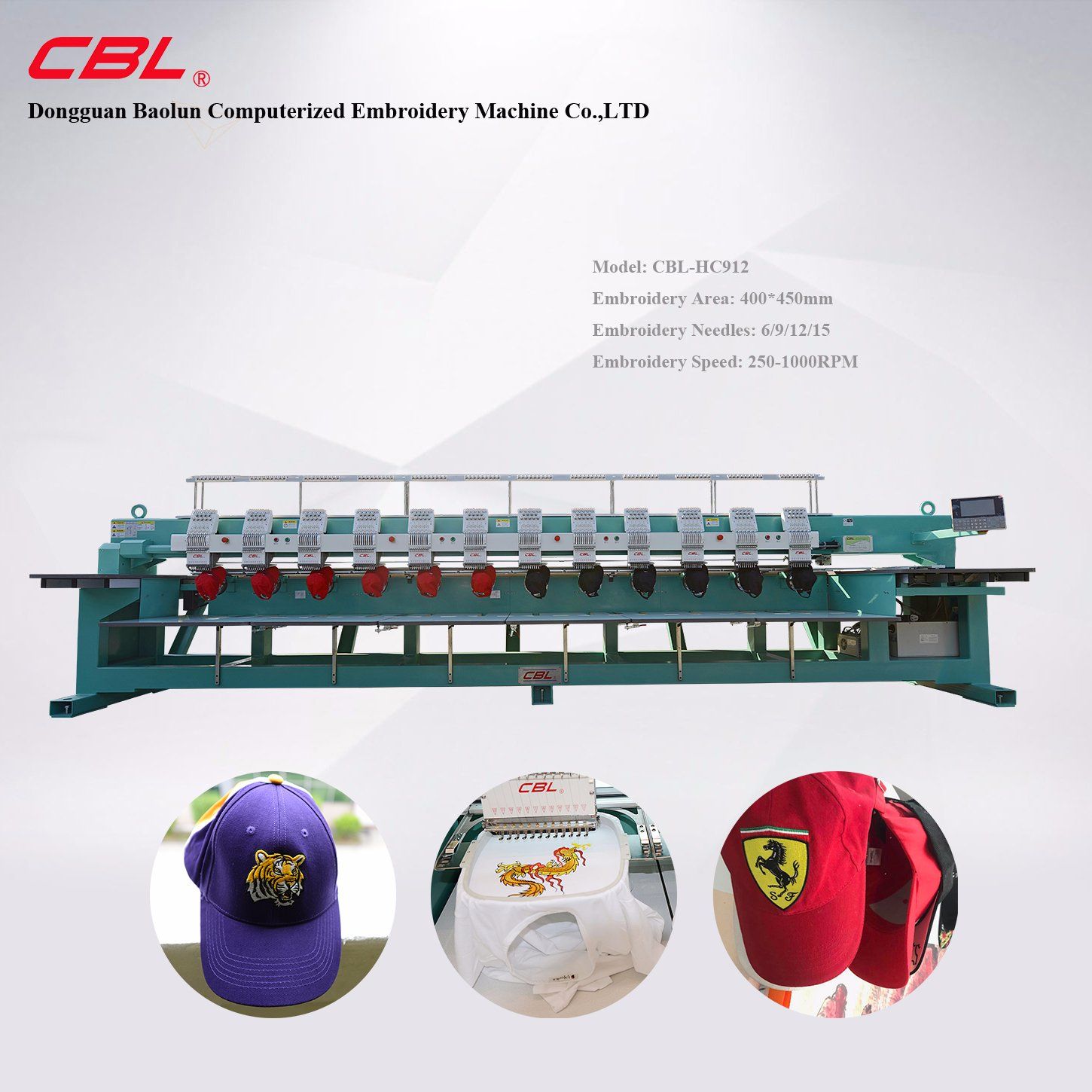

| Prod Model: | CBL-HC912 |
|---|---|
| Brand: | Cbl Brand From China |
| Control System: | Original Dahao A58 Touchpad Computer |
| Head Distance: | 400mm |
| Embroidery Area: | 400*450mm |
| Place Of Original: | Dongguan City |
| Design Speed: | 1000 Rpm |
| Certificate: | SGS,Ce |
| Motor: | All Servo Motor |
| Machine Body: | Tajima Bridge Machine Body |
| Color: | environment Green |
| Tension Base | Intelligent thread break detect | X,Y-axis Motor | 1.5KW servo motor*2PCS |
| Control System | Dahao A58 series 10" LCD screen computer | Power Consumption | 1.5KW-5KW |
| Design Input | By U disk | Embroidery Head | Free-adjusting head with liner guide rail |
| Memory | 2,000,000 stitches,200 pcs designs | X,Y Driving | Reinforced high speed liner guide rail |
| Design Format | Compatible with designs of Tajima(DST),DSB,BARUDA,ZSK, binary system,ternary system | Input Voltage | Single phase 220V (50/60HZ) Three phase 380V (50/60HZ) |
| Stitch Length | 0.1-12.7mm | Thread Trimming | Automatic |
| Main Shaft Motor | 2KW servo motor*1PC | Color Changing | Automatic |
| Upper thread holding device | For Option | Head guide | Free-adjusting head with linear guide rail |
| Embroidery Speed | 250-1000rpm | Machine Stand | Bridge Type |
| Machine color | Enviromental green | Jumping style | Stepping jumping motor |

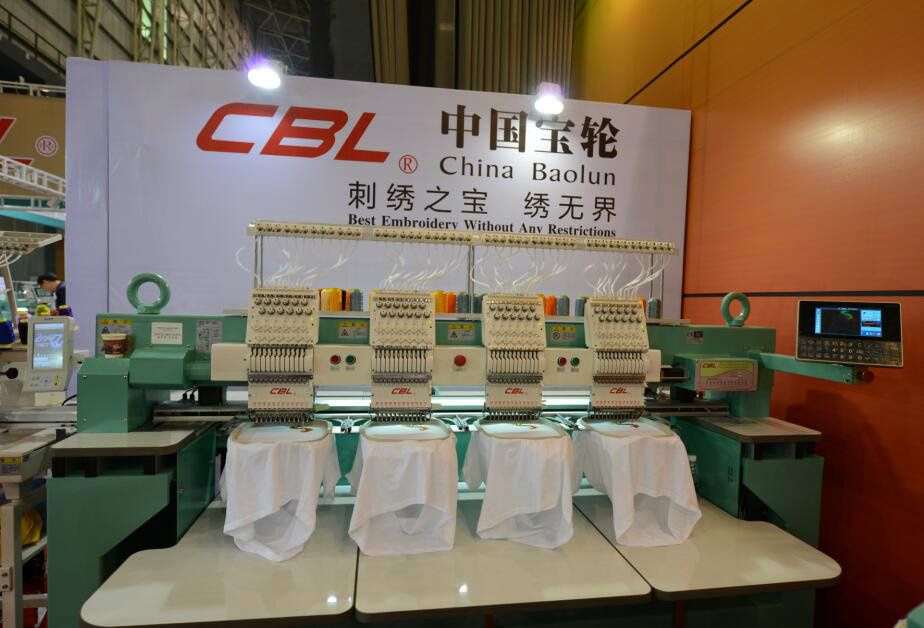

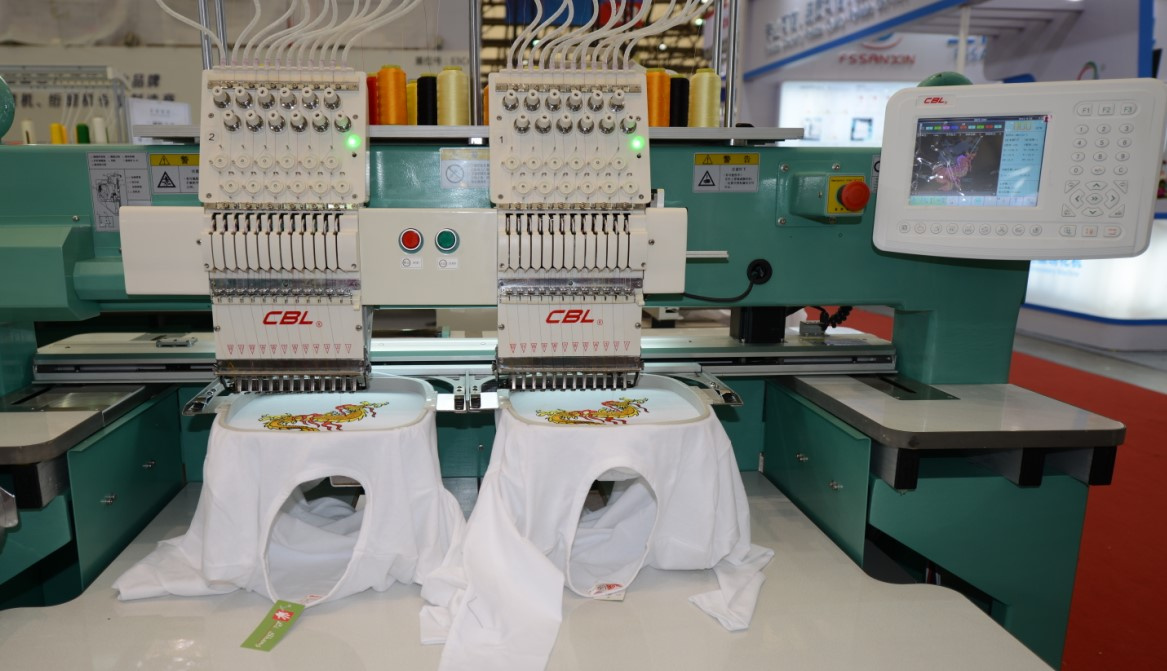

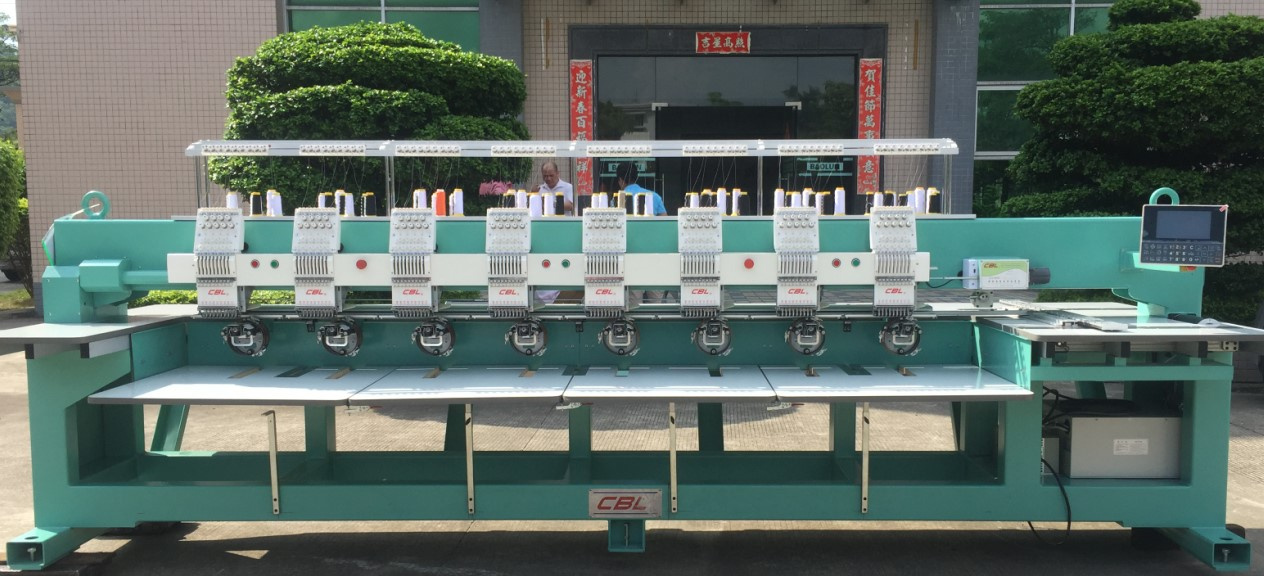

Machine model series:
Machine Model:CBL-2MC902 Needle number:9 needle Head number:2 head
Embrodiery area:400*450mm(for option) Machine size:1800*1350*1400MM
Machine Model:CBL-HC1204 Needle number:12 needle Head number:4 head
Embrodiery area:400*450mm(for option) Machine size:2600*1350*1400MM
Machine Model:CBL-HC908 Needle number:9 needle Head number:8 head
Embrodiery area:400*450mm(for option) Machine size:4840*1630*1500MM
Machine Model:CBL-HC912 Needle number:9 needle Head number:12 head
Embrodiery area:400*450mm(for option) Machine size:6440*1630*1550MM

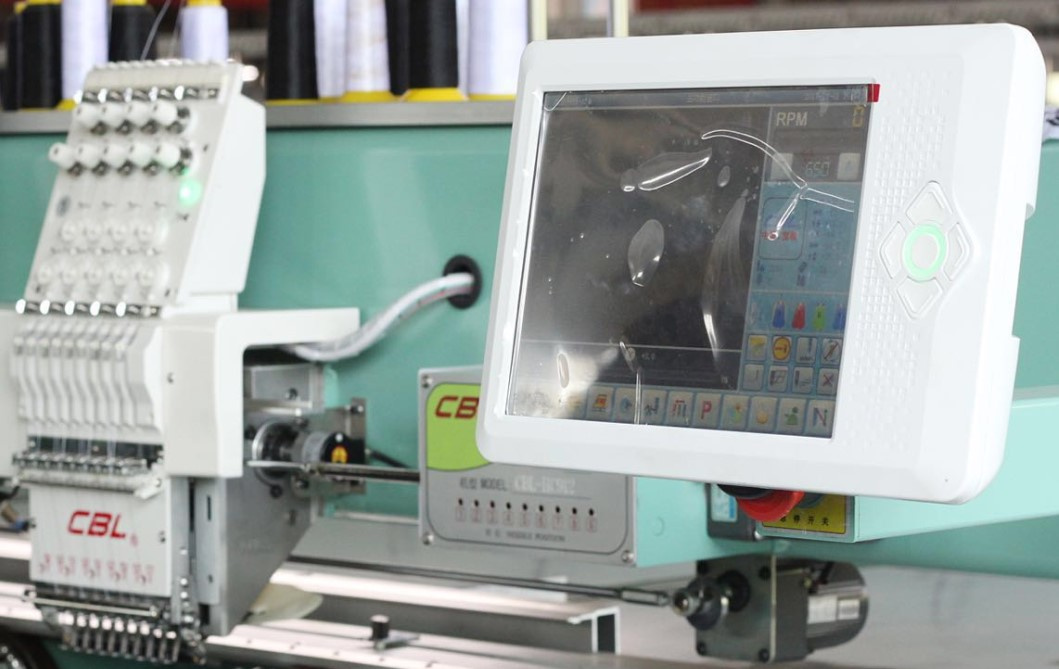

Latest Dahao A58 10 inch LCD touch screen controal systerm
Remark:
1, above machines contains Tubular, cap and flat embroidery functions,
have full function of flat embroidery machine
2, with a set of tool, abundant easy-use spare parts
3, wooden box pack
4, lead time: 30-45 days
5, free training is available at our premises of factory
6, double sets 5 different sizes tubular frames: 90mm, 120mm, 150mm, 180mm and 300*300mm
2 sets cap frame and 1base frame for each head, 1 setting frame for one machine
7, with OWNER'S MANUAL, PARTS LIST MANUAL, MAINTENANCE MANUAL (English version)
8, one big size flat embroidery frame
9, one year warranty of broken parts replacement.
Technical features and functions:
> Used for finished cap, overalls, T-shirt, cloth,etc. embroidery
> Original Daohao BESC-A58 control system, 10 inches LCD
> Assembled with Japan origin sophisticated parts
> Built-in USB slot, easily input and output designs.
> Compatible with designs of TAJIMA,BARUDAN,ZSK, binary system, ternary system, etc
> Automatical trimming (thread cutting), both for upper and under thread
> Automatical color changing
> Intelligent thread break detect, for both under and upper thread. When thread breaks
or threadless,the machine will stop and corresponding head will be warning.
> Editing designs by ways of copying, altering, separating combining, deleting, insert, etc.
>1000RPM Real speed

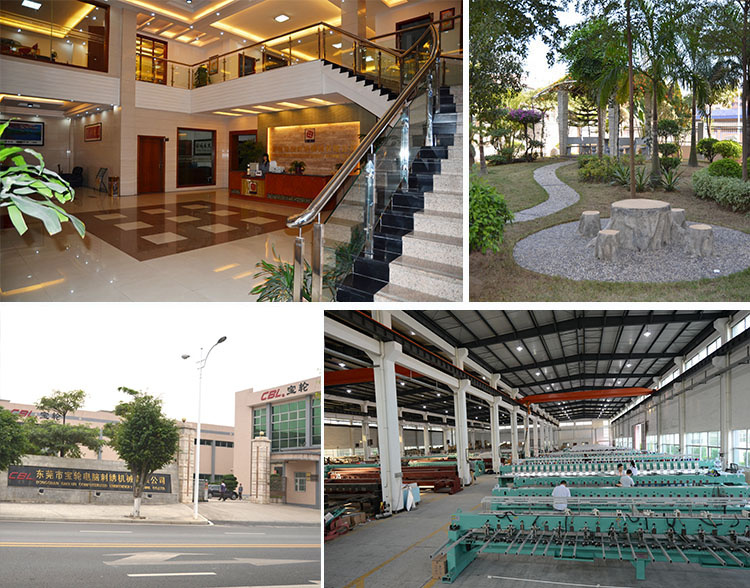

Our factory view:
Welcome to visit our factory!
