| Prod Model: |
JFW-08 |
| Material: |
Q235 Steel Wire |
| Brand Name: |
Jinfeng |
| Surface Treatment: |
Galvanization |
| Colour: |
Silver White |
| Warranty: |
20years |
| Chicken Cage Tier: |
2/3/4/5 |
| Water System: |
Automatic/Semi-Automatic |
| Feeding Way: |
Automatic/Semi-Automatic |
| Manure Removal System: |
Automatic/Semi-Automatic |
| Egg-Collection System: |
Automatic/Semi-Automatic |
| Power Source: |
Electric |
| Type: |
Chicken Equipment |
| Usage: |
Chicken Cage |
Product Description
A and H Type Battery Chicken Poultry Frame For Longer Use
| chicken cages specifications in Jinfeng |
| Items | Dimension | Tiers | Cells/Tier | Birds/Cell | Total birds |
| 1 | 195*35*38cm | 3 | 10 | 3 | 90 |
| 2 | 195*35*38cm | 4 | 10 | 3 | 120 |
| 3 | 195*35*38cm | 3 | 8 | 4 | 96 |
| 4 | 195*35*38cm | 4 | 8 | 4 | 128 |
| 5 | 215*42*41cm | 3 | 10 | 4 | 120 |
| 6 | 215*50*43cm | 3 | 10 | 5 | 150 |
| 7 | 215*50*43cm | 4 | 10 | 5 | 200 |
Advantages:- Greater number of birds is reared per unit of area.
- Facilities correct maintenance of records.
- It helps in identifying poor producers and prompt cullings.
- Automatic system can save work labor.
- Control of poultry cannibalism and egg eating.
- It helps in production of clean eggs because the Egg conveyor system can deliver all eggs from different houses to egg storage room.
- Removal of stress factors.
- Easy control of parasitic disease like coccidiosis and worm infestation.
- Prompt walking steps to control feed wastage.
- The cage method is ideal for the area of moderated climate conditions where the day temperature in summer is not high or fall too low.
- Egg production of caged layer was reported to be more those kept in deep litter system.
- Feeding efficiency and egg weight are better in caged birds than the laying flock under deep litter system.
Technology Descriptions:- H Frame Layer Battery Cage System Materials: Q235A Steel for the Cage Frame Systems.
- Surface Treatment: Hot dipped Galvanization by Jinfeng Hot Galvanization Production Line.
The system Specifications:- Cage Dimension/Cell: 450*600*410mm, 5 cells/Unit
- Back to Back: 2250*1200*400mm
- Total Floor Area per cell: 2700sq.cm
- Total Birds/Cell: 6 birds; 450 sq.cm average area per bird.
- Battery Cage System tiers: 2-8 tiers available optional.
Automatic Feeding System:- The Hopper Thickness is 22mm, and the Volume is upon the birds' quantity of each row. The Feed Dropping Average Equipment is under every hopper.

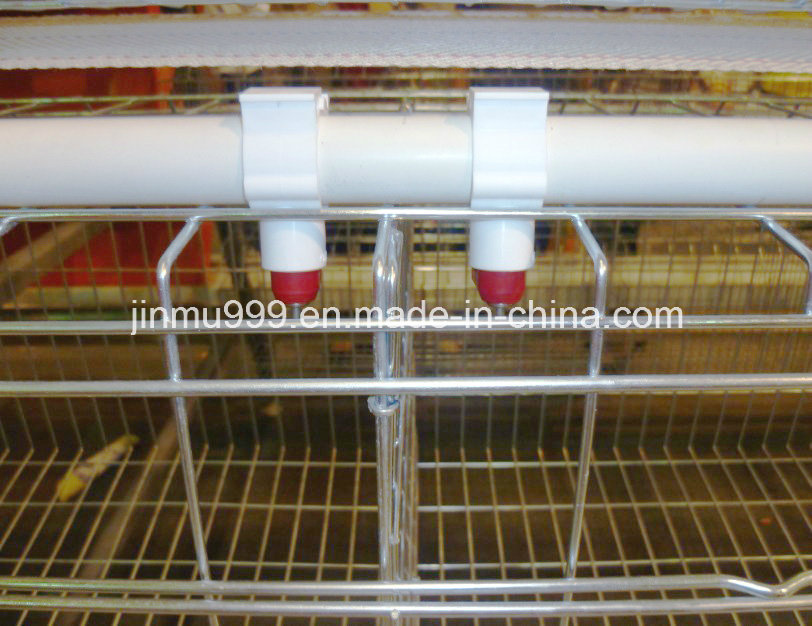

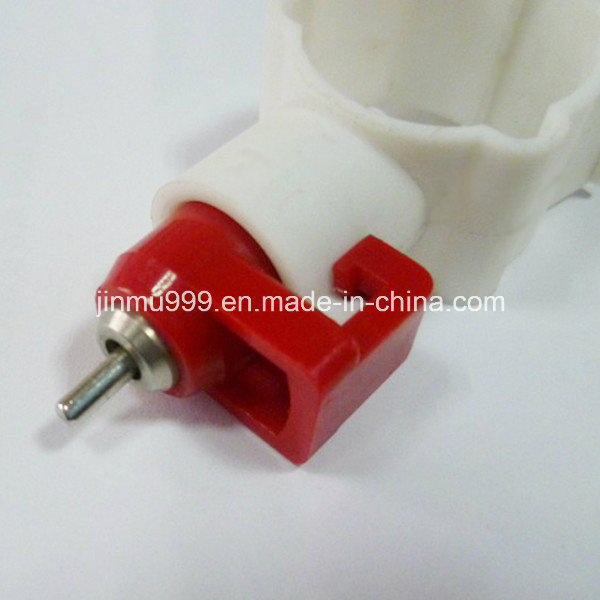

Automatic Drinking System:- Square or round pipes (thickness 2.5mm) with stainless steel nipple drinkers, and constituted by Water Pressure Regulators, filters and dosers from DOSATRON.

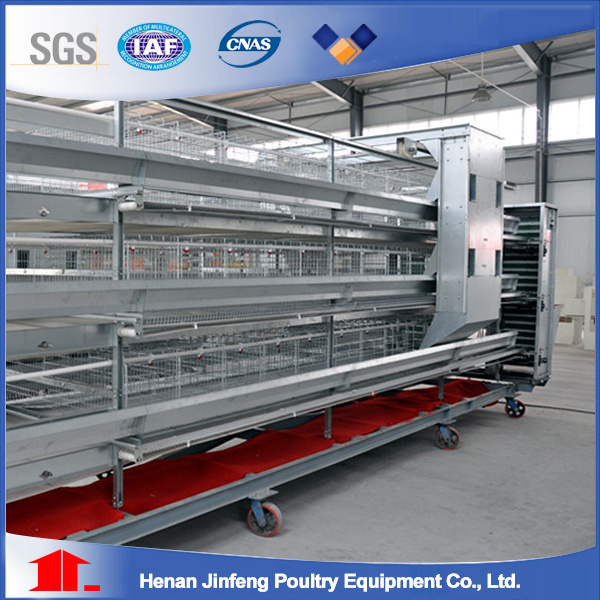

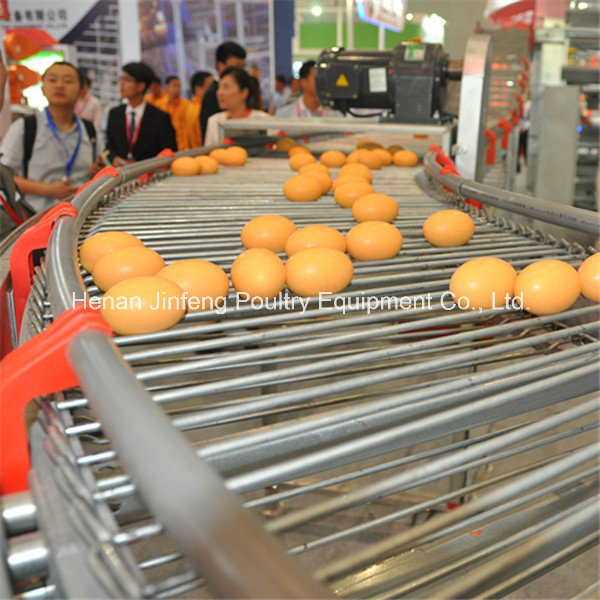

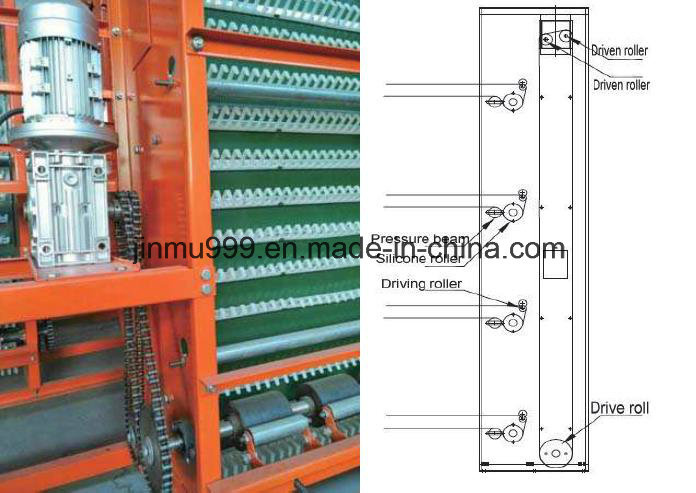

Egg-collection/Manure Removal System:- It will be equipped with the Transverse Egg Conveyor System which can deliver all eggs from different houses to egg storage room.
- The Chicken Manure Belts and Egg collection belts are all imported from Italy.
- Labor saving and time saving
- Low egg breaking rate
- Easy operation and management
- Suit for both Atype and H type
Advantages of Our Company:
Excellent military company culture;
More than 24 years of experience in poultry equipment industry;
Sino-Spanish joint venture;
Public limited company;
Owning biggest production base in the same industry in the world;
Chairman of Commerce Chamber of Henan Animal Husbandry Machinery;
Many branch offices in China and agent offices in the world;
Passed many certifications:ISO9001,SGS
FAQ
Q: How many chickens can the cage hold? How many layers?
A: 90, 96 ,120 chickens in 3 layers, and 120,128,160 chickens.
Q: which one is suitable to my chicken farm?
A: Once you want to start your chicken farm, you can tell us your chicken coop size, we will provide free chicken farm layout design, We have a team to do research the poultry industry for 15 years, they will help you to start a modern and scientific farm.
Q:What is the MOQ of chicken cage? How many sets can fit in one Container?
A:MOQ is 60 sets, one 20 ft container can fit in 90-150 sets chicken cage, one 40 ft container can be 140 sets chicken cage
Q: How many years it can use?
A:15-20years(based on different material)
Q:How to install a the cage?
A:We provide installation service in two ways!
1:We provide manual book or DVD to tech you that how to install the cage
2:Send our engineer to your farm!
Q:How is your Payment Term ?
A: Payment Terms: 30% of Total Amount as Deposit paid by T/T in advance,and the Balance Paid before the Mass Production Shipment.
Q:How is your delivery time ?
A:We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
Our Services
We can make a free layout design for you according to your chicken farm size and how many chickens you will feed. We provide professional suggestion before sale to help you make a right decision. Choose us, save money.
Welcome to visit Henan Jinfeng Poultry Equipment Co., Ltd. Our company covers more than 30, 000 square meters and we are specialized in the production of Animal Husbandry Equipment. The annual output of poultry cages is more than 360, 000 sets that can hold 30 Million chicken. And we've been the Chinese Animal husbandry Association Member Unit, we were honored "Advanced Product in China 2002" and the "Champion Brand of Poultry Raising Equipment Manufacturers" in 2008 because of our unique design, qualified production technics and thoughtful services.
Jinfeng supply Product as follows,
1. Cage Modules for Layers
2. Egg-collecting Systems
3. Cage Modules for Pullets
4. Henhouse Automatic Feeding Units
5. Henhouse Automatic Litter Removal Systems & Water Moving Dosers
6. Henhouse Automatic TCU (Temperature Control Systems)
7. Henhouse Automatic Drinker Systems for Broilers and Breeders
We imported the Automatic Environmental Galvanization Line from German in 2007 which we spent 180 Million CNY. It's most advanced and only in the Poultry Equipment industry till now in China, so we are especially the Leader manufacturer on the product surface treatment.
Our company has numbers of engineers and technicians who have profound technical background, and they are ready to serve every customer with quality products. We are professional in the design of hen houses and provide free technical consultation services.
Along with the collaboration with national famous specialized colleges and universities in technique and implementation of strategy plan of the nation R&D center and marketing center, Jinfeng is ready for the international competition. Jinfeng will provide advanced products and fine post-sales service, aiming to become one of the most advanced poultry company.
Welcomes clients all over the world to visit us. We are looking forward to establishing long-term business relationships with you. Jinfeng will offer you the Best Service.
