| Price: | US $ 2.99-11.99/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
Introduction:

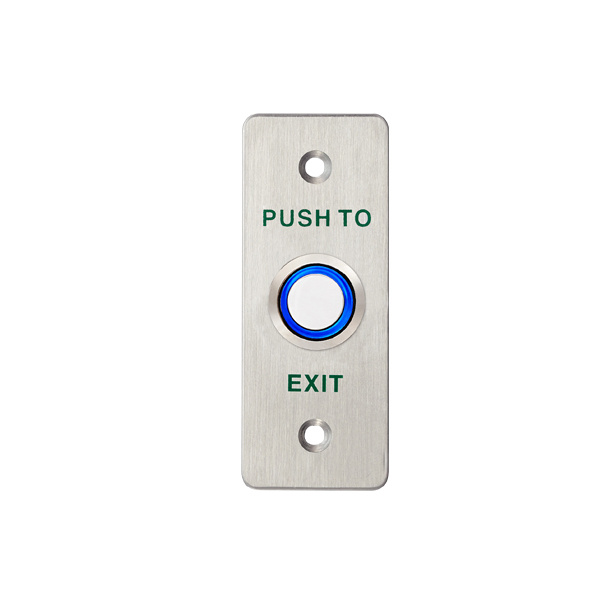

AB-814A(LED) is a stainless steel door release button with LED in size of 90Lx35Wx31H(mm), which is the most common and the most frequently used in the access control systems.
Specification:
| Dimensions | 90Lx35Wx31H(mm) |
| Standard Structure | Stainless steel Panel, Steel Button |
| Suitable for Door | Hollow Door |
| Output Contact | NO/COM |
| Current Rating | 3A@36VDC Max |
| Operating temp | 10~+55ºC(14-131F) |
| Operating Humidity | 0-95% ( relative humidity) |
| Weight | 0.18kg |
Advantage:
Stainless steel Panel with Elegant Style.
500000 Cycles tests.
Many Kinds of Colour, Applicable to and the Place.
Three Contact Output,Suitable for all kinds of Locks.
The Best Choice for Access Control.
About us:

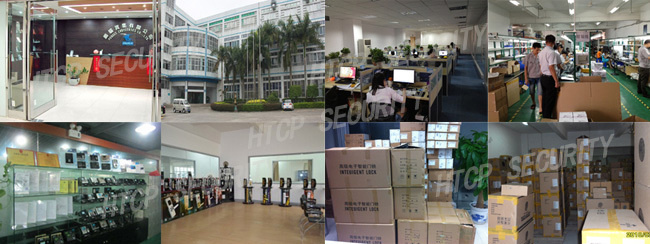

Techcrepower is a professional supplier, who has specialized in Access Control Sytem over 10 years, we has provided hundreds of millions of product, such as access controller, electronic lock, release button, reset switch,etc. in China and worldwide.
We always focus on quality and services firstly. Believe you would be impressed with our products and services !
We will cherish any opportunity to cooperate with you!

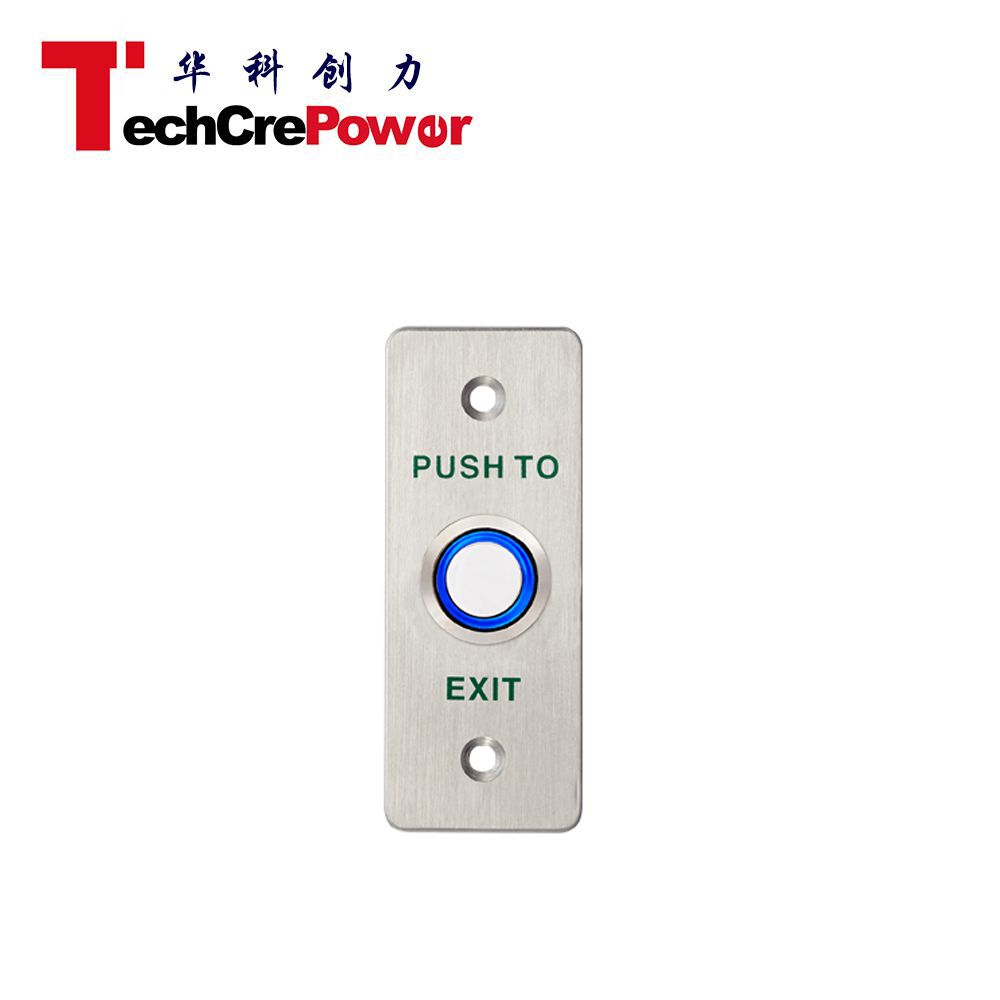

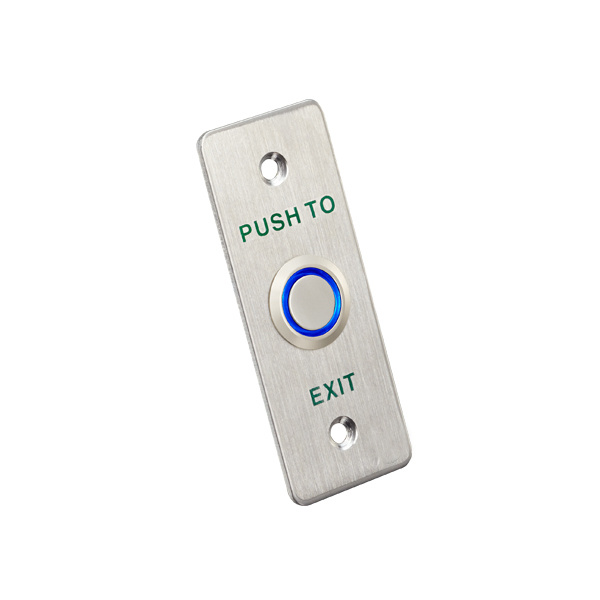

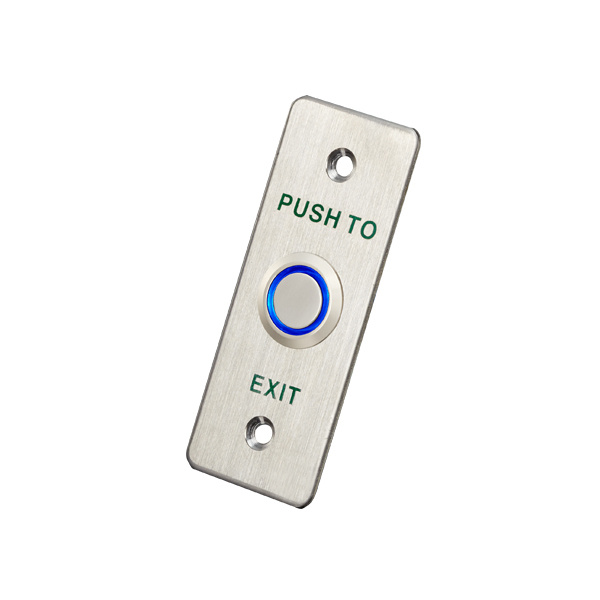

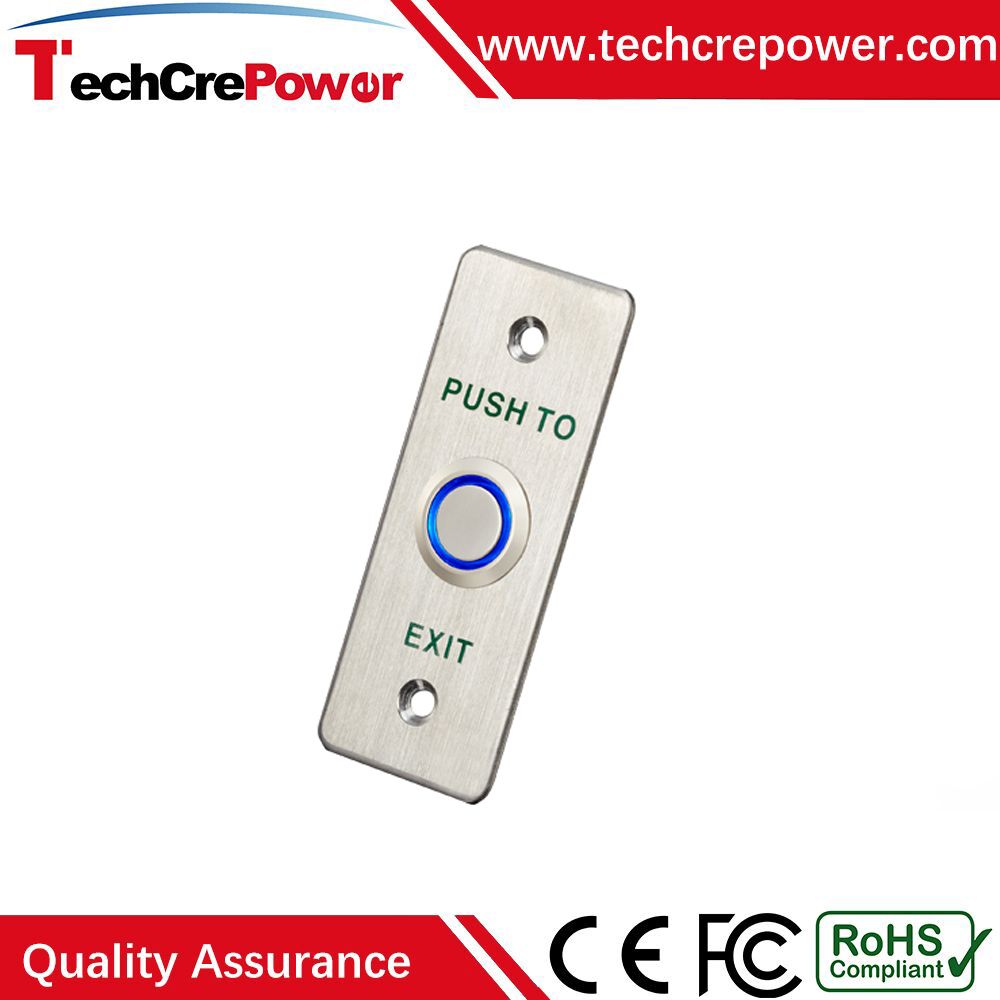

Product Picture:

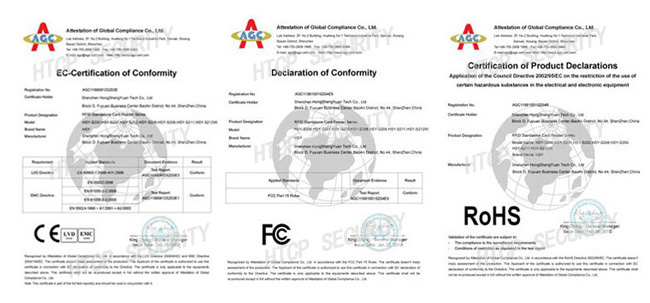

Product Certification :
1. Professional R&D department, can offer you OEM/ODM services;
2. Professional technique supports and good service;
3. We strictly control the quality and regard it as our base for existence! QC staffs make piece-by-piece checks for all products. Products are conducted aging test for 72 hours.
4. Our products are chosen high quality materials and ensure the prophase stability.
5. Our products meet ISO, CE, FCC, RoHS certificates;
hanks for your visiting! Please contact us online or send your inquiry details in the below,
click "send" now, we are waiting for your any inquiry!
| Prod Model: | AB-814A(LED) -B |
|---|---|
| Voltage: | 12-24V |
| Dimensions: | 90lx35wx31h(mm) |
| Standard Structure: | Stainless Steel Panel, Steel Button |
| Current Rating: | 3A@36VDC Max |
| Output Contact: | No/Nc/COM |
| Mechanical Life: | 500000 Tested |
| Suitable For Door: | Hollow Door |
| Operating Temp: | 10~+55ºC(14-131f) |
| Operating Humidity: | 0-95% ( Relative Humidity) |
| Weight: | 0.18kg |
