ABS Hf RFID Disc Hard Tag, Hf RFID Tags Writable Button Inspection

Prod Model:	AT-G147
Reading Range:	About 1~10cm (Vary From Different Reader and Envir
Operating Frequency:	13.56MHz
Printing Option:	Full Color Offset Printing, Silk-Screen Printing
Protocol Standard:	ISO14443A
Work Experience:	More Than 10 Years

Product Description

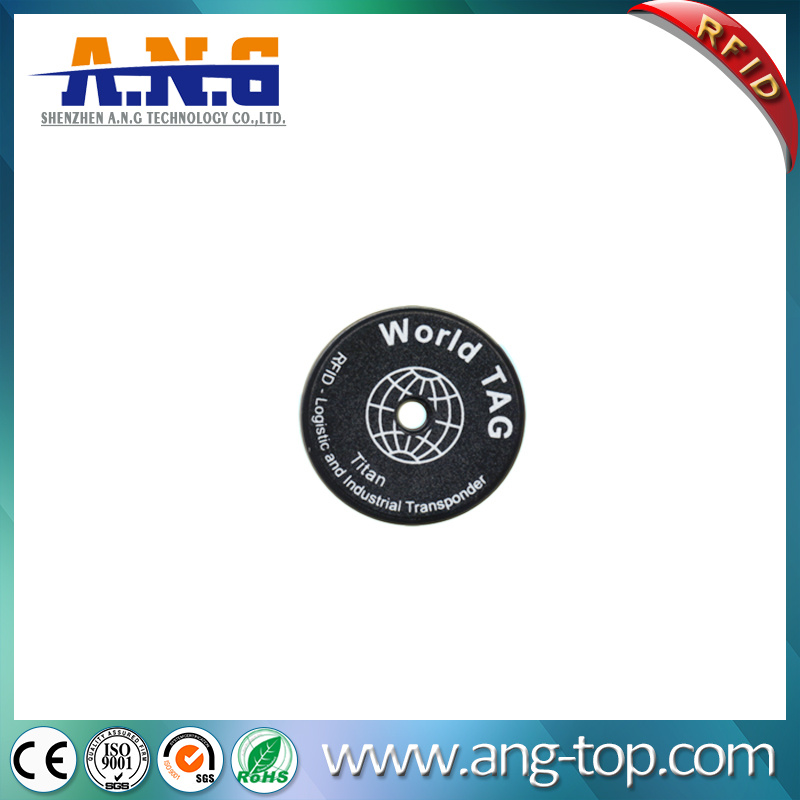

Φ30mm ABS HF RFID Disc hard Tag,rfid writable button Inspection Tag

    This ABS disc tag is one of a family of passive, contactless, transponders designed for effective asset tagging, carrying a unique tag identity. They are designed to be used in a wide range of applications offering a robust tag that can stand up to most normal workplace environments.

Feature:

Small and exquisite appearance, durable, do not fade
Waterproof, shock-proof, anti-corrosion
Channeling can be hung on a keychain, easy to carry
A variety of colors to choose from
Can provide customers with design production
125Khz/13.56Mhz variety of chip available on-demand package can be a composite package
Can be sprayed ID code

Use:

The applicable production line piecework, product identification, inspection, etc.

Specifications


Chip type	Mifare Classic S50,NFCA
Operating frequency (modulation scheme)	13.56Mhz
Read and write cycles	Greater than 1,000,000 times
Dimensions	Diameter: 30mm
Material	ABS
Antistatic	Prevent electrostatic breakdown withstand voltage 5000V or more
Operating Temperature	-20 - 95 ºC
Storage Temperature	-20 ºC - 90 ºC
Work Experience	More than 10 years
Maximum read range *	20-50 mm

* based on the chip reader energy, antenna size, orientation, and environmental conditions, and the package

RFID Chip Options


Frequency	chip type	Memory	RF Standard
125KHz	EM4100,EM4102	64 bit R/O	ISO 18000-2
	EM4200	64 bit R/O	ISO 18000-2
	EM4205,EM4305	512 bit R/W	ISO 11784/11785
	EM4450,EM4550	1K bit R/W	ISO 18000-2
	T5577	330 bit R/W	ISO 18000-2
	Hitag 1	2K bit R/W	ISO 18000-2
	Hitag 2	256 bit R/W	ISO 11784/11785
	Hitag S2048	2K bit R/W	ISO 11784/11785
13.56MHz	MF Classic 1k S50	1K Byte R/W	ISO 14443A
	MF Classic 4k S70	4K Byte R/W	ISO 14443A
	MF Ultralight	512 bit R/W	ISO 14443A
	MF Ultralight C	192 bit R/W	ISO 14443A
	MFUltralight EV1	384/1024 bit R/W	ISO 14443A
	MF DESFire EV1 2K	2K Byte R/W	ISO 14443A
	MF DESFire EV1 4K	4K Byte R/W	ISO 14443A
	MF DESFire EV1 8K	8K Byte R/W	ISO 14443A
	MF DESFire 4K D40	4K/8K Byte R/W	ISO 14443A
	MF Plus 2k	2K Byte	ISO 14443A
	MF Plus 4k	4K Byte	ISO 14443A
	I CODE SLI	1K bit R/W	ISO 15693, ISO18000
	NTAG203/203F	144 Byte R/W	ISO 14443A
	NTAG210	48 Byte R/W	ISO 14443A
	NTAG212	128 Byte R/W	ISO 14443A
	NTAG213/213F	144 Byte R/W	ISO 14443A
	NTAG215	504 Byte R/W	ISO 14443A
	NTAG216	888 Byte R/W	ISO 14443A
	NTAG213F/216F	144/888 byte	ISO 14443A
	FM11RF08	1K byte	ISO 14443A
	FM11RF32	4K byte	ISO 14443A
	Topaz512(BCM20203)	512 byte	ISO 14443A
	Felica Lite-S(RC-S966)	14 blocks+1 subtraction block(1 block= 16 byte)	ISO/IEC 18092
	Legic MIM 256	256/1K Byte R/W	Legic RF Standard
	TI2048	2K bit R/W	ISO 15693, ISO18000
	Picopass 2k	2K/32K bit R/W	ISO 14443B, ISO 15693
UHF/2.45GHz	UCODE HSL	2K bit R/W	ISO 18000
860~960MHz	UCODE EPC G2	512 bit R/W	EPC class1,G2
	Monza 5	128 bit R/W	EPC class1,G2,ISO 18000-6C
	Monza 4D/4E/4QT	128 bit R/W	EPC class1,G2,ISO 18000-6C

About us:

1.We are a manufacturer, the price, quality and delivery time are all controlled by ourselves.
2.Low MOQ offered, we accept sample order as a test order.
3.Many years' experience on producing these products.
4.Can produce any products by designing a new mold.
5.Offer you very affordable price, and fulfill your all specific needs.
6.Factory manufacture high quality Low Cost  13.56MHz Custom Printed Rewritable RFID NFC Tag Label Sticker

Q1. When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

Q2. How can I get a sample to check your quality?
    After price confirmation, you can require for samples to check our quality.
    If you just need a blank sample to check the design and paper quality, we will provide you sample for free, as long as you afford the express freight.
    If you need printed samples, we will charge $30-$100 to cover the cost on film.
Q3. How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

Q4. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. We suggest that you start     inquiry two months before the date .

Q5:Is there cheap shipping cost to import to our country?
For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Q6:Can we get support if we have our own market position?
Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

Q7: If I want to printing our logo or some text,what should we do?
Brand:OEM and ODM are available,and we can printing the LOGO, that the customers required.
Design: Client's artwork / our professional designer design free.
Artwork: AI, Corel Draw, Photoshop,CAD.
