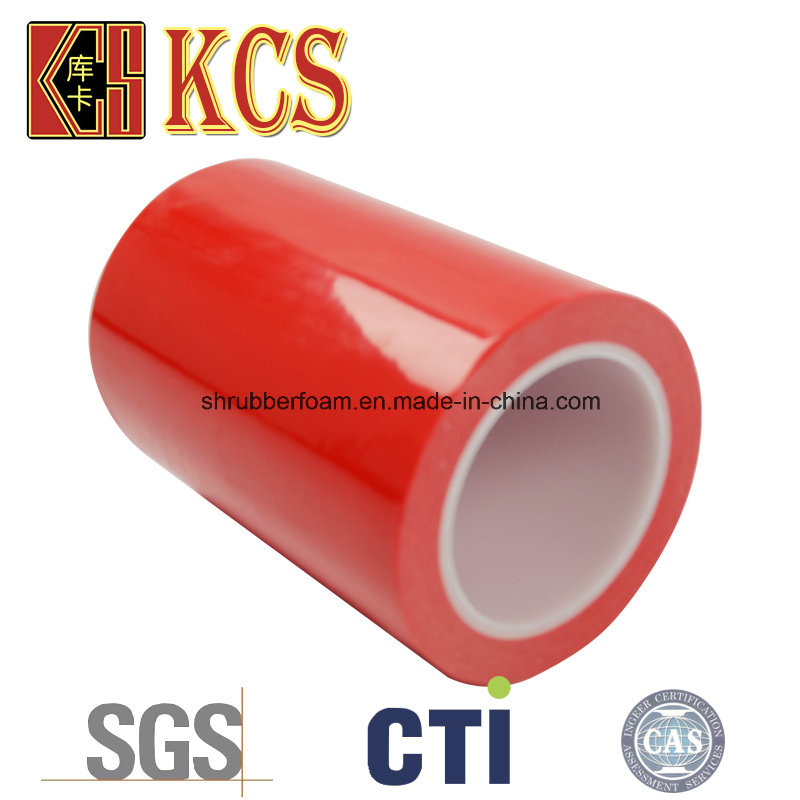

Acrlicy Foam Tape Simlar 3m Vhb Tape

  PRODUCT DESCRIPTION
Auto industry Double Side VHB Acrylic Foam Tape With Good Adhesion
Building operations such as heat insulation, connection, bundling, amendment, sealing.
 FEATURES
*Waterproof, sound and shake proof
*UV resistance
*Excellent adhesion to metal, plastic, wood, leather, paper which is hard to stick material
  APPLICATION
*Dustproof and airproof of glass curtain wall assembly
*Building operations such as heat insulation, connection, bundling, amendment, sealing
*Electronic, digital products assembly and processing
*Automotive industry: nameplate, decoration bars, marks, a ideal substitution for 3M VHB tape


  PHYSICAL PROPERTIES


Item	Unit	Value	Test Method
Carrier		Acrylic Foam
Adhesive		Acrylic
Color		Clear
Thickness	mm	1.00±50μm	ASTM-1000
Standard Roll Width	mm	800
Standard Roll Length	m	33
Tensile Strength	Gf/cm²	≥7,000	(T-Block) To Aluminum
Peel Adhesion	gf/25mm	≥4,000	To Stainless Steel Room Temperature 180°Peel
Holding Power	Hr	>24	To Stainless Steel 80ºC Temperature 1000g Static Load



Note: The above technical information and data should be considered representative or typical only and should not be used for specification purposes.
 SHELF LIFE
Product shelf life is 2 years from date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the products original packaging.
 AVAILABLE SIZES
Width: Maximum width 31.5  inches (800 mm). (Can be Customized)
Length: 33m (Can be customized).
Custom Sizes: If you need customized sizes or die cut parts please feel free to contact NKS sales representative.




ApplicationGuideline
 APPLICATION GUIDELINES

1.) Substrate surfaces should be clean and dry prior to tape application. Isopropyl alcohol (isopropanol) applied with a lint free wipe or swab should be adequate for removing surface contamination such as dust or finger prints. Do not use "denatured alcohol" or glass cleaners which often contain oily components. Allow the surface to dry for several minutes before applying the tape. More aggressive solvents (such as acetone, methyl ethyl ketene (MEK) or toluene) may be required to remove heavier contamination (grease, machine oils, solder flux, etc.) but should be followed by a final isopropanol wipe as described above.

Note: Be sure to read and follow the manufacturers' precautions and directions when using primers and solvents.

2.) Apply the tape to one substrate at a modest angle with the use of a squeegee, rubber roller or finger pressure to help reduce the potential for air entrapment under the tape during its application. The liner can be removed after positioning the tape onto the first substrate.

3.) Assemble the part by applying compression to the substrates to ensure a good wetting of the substrate surfaces with the tape. Proper application of pressure (amount of pressure, time applied, temperature applied) will depend upon design of the parts. Rigid substrates are more difficult to bond without air entrapment as most rigid parts are not flat. Use of a thicker tape may result in increased wetting of rigid substrates. Flexible substrates can be bonded to rigid or flexible parts with much less concern about air entrapment because one of the flexible substrates can conform to the other substrates.
