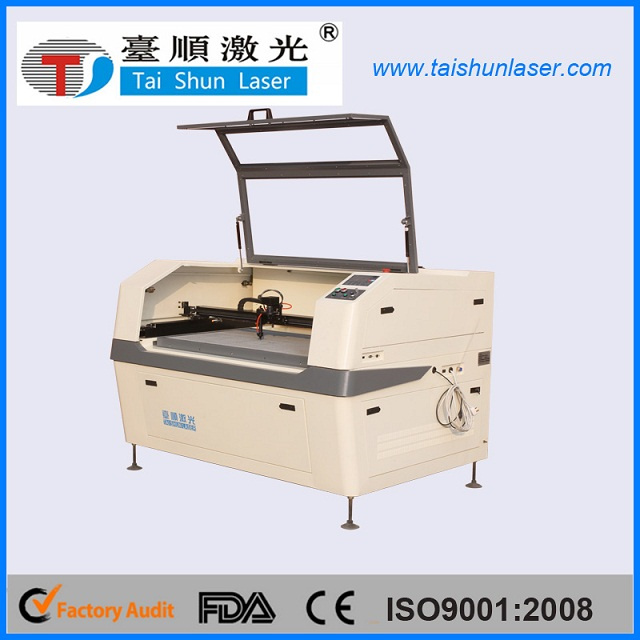

Product configuration:
Laser Type:CO2 glass laser tube
Laser head:dual head to cut faster,single head to cut for large format,available to choose according to the production demand
Type setting software:intelligent Taishun typesetting software to achieve continuous feeding material
Water Chiller:standard industried water cooling system CW5200/make sure the laser tube work in ambient temperature.
Fume extractor: 1 set 1100W exhaust fan
Linear guide Rail:imported U-shaped Linear guide from korea
Parameter:| Laser type | Glass CO2 laser tube | Movement system | stepping motor system |
| Output power | 80W | Cooling system | Water cooling |
| Working area | 1600mmx1000mm | Electrical Voltage | AC220V+-5% 50/60hz |
| Working table | Honeycomb or strip working table | Supported file format | AI,BMP,PLT,DXF,DST,AI,BMP,PLT,DXF |
| Working speed | Adjustable | Standard accessories | 1 set 1100W exhuast fans |
| Position accuracy | plus minus 0.1mm | Connect interface | USB |
Applied and Industries
It is applied to fabrics,acrylic,wood and other materials. It 's suitable for applied to industries such as clothing accessories,clothing,footware,advertising,gifts,packaging decoration and etc.Feature:1) The machine adopt advanced DSP control system which can continue and optimize the cutting speed, processing path, improve the working efficy, the clearance compensation ensure the processing quality.
2) High compatibility, can support CAD, CORELDRAW, PHOTOSHOP etc and meet the industry need.
3) Multi-document function : the machine can store 256 files, the machine can still work without computer.
4) All optical isolate system and high speed differential input circuit design protect the signal from distorting and interferacing. the system realizes 12 kinds working state output and 16 kinds state input, and the machine can easy operation all over the world.
5) Reasonable design of laser line with industry water chiller, keep the same power-force on each spot, ensure the quality of cutting.
6) Double laser heads adopt the double linkage design, the distance between two heads can adust freely. the laser heads can work at the same time and respectively.
7) Widely used in advertising , LGP, model, clothes, leather industry, mainly used for engraving and cutting
Sample

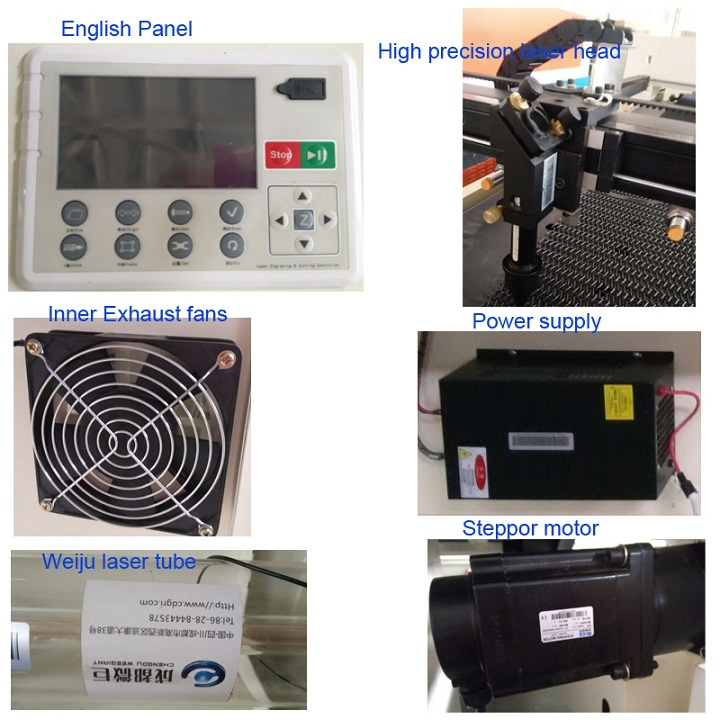

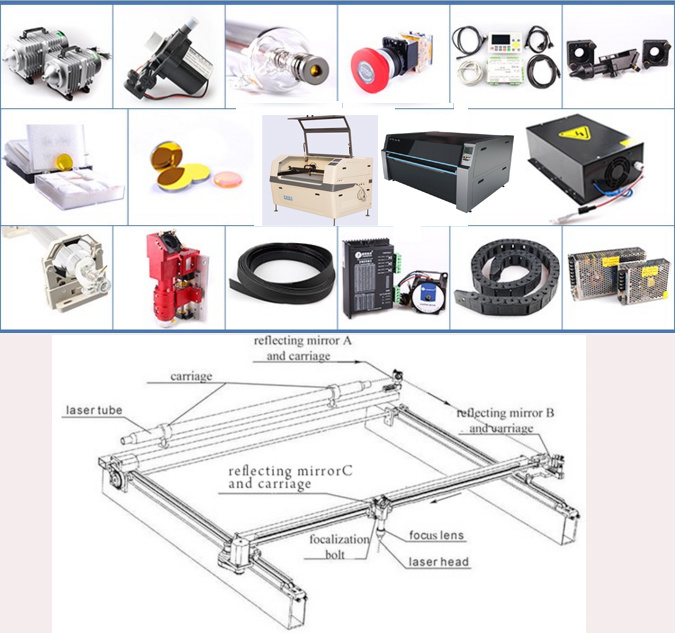

Close up for components and design
Video channelhttp://v.youku.com/v_show/id_XNTQ5NTc0NTI4.html laser cutting airbag applicationhttp://v.youku.com/v_show/id_XNTU2Nzc2NTky.html?from=y1.2-1-106.3.1-2.1-1-1-0-0 laser cutting carpet applicationhttp://v.youku.com/v_show/id_XNTU2ODEwMDE2.html?from=s1.8-1-1.2 laser cutting printing rug applicationhttp://v.youku.com/v_show/id_XNTU2NzA1MjQ4.html?from=y1.2-1-103.3.2-2.1-1-1-1-0 laser cutting foot pad for the automotive industryhttp://v.youku.com/v_show/id_XNTQ5NDk3MzI4.html?from=y1.2-1-103.3.5-2.1-1-1-4-0 laser engraving paper pattern machinehttp://v.youku.com/v_show/id_XNTkyNDU1NDQw.html?from=s1.8-1-1.2 laser cutting garment fabric applicationhttp://v.youku.com/v_show/id_XNjIxNjY0NzY0.html?from=s1.8-1-1.2 laser cutting slipper plush applicationhttp://v.youku.com/v_show/id_XNTU2NzY1MjU2.html?from=s1.8-1-1.2 laser cutting precious leather applicationhttp://v.youku.com/v_show/id_XNTU3NzA0Njg4.html?from=s1.8-1-1.2 laser engraving hallowing leather applicationhttp://v.youku.com/v_show/id_XNTU2ODA1Nzg4.html?from=s1.8-1-1.2 laser cutting diving fabric applicationhttp://v.youku.com/v_show/id_XNTM3NDI2MjE2.html?from=s1.8-1-1.2 laser punching holes applicationhttp://v.youku.com/v_show/id_XNTU3NjU0MTcy.html?from=s1.8-1-1.2 laser punching holes for leather material http://v.youku.com/v_show/id_XNTU2Nzg0MTky.html?from=s1.8-1-1.2 laser cutting EVA applicationhttp://v.youku.com/v_show/id_XNTU2Nzk3OTM2.html?from=s1.8-1-1.2 double head cutting insole applicationhttp://v.youku.com/v_show/id_XNTUxMDk3MTIw.html?from=s1.8-1-1.2 four head cutting plush toy material http://v.youku.com/v_show/id_XNTU3NjkwMTg4.html?from=s1.8-1-1.2 Laser cutting multi-layer Chemical fiber cloth application | Part description | Brand | Characteristic |
| Linear guide | Taiwan Hiwin | 1)High accuracy for positioning
2) Less abrasion and maintain accuracy for a long time;
3) for high speed movement and significantly reduce the required horsepower of drive machine;
4) can withstand the load from vertical and horizontal directions;
5) Easy assembling and with interchangeability;
6) simple lubrication structure |
| Transmission belt | Shanghai Fulong | Low noise,high transmission accuracy |
| Laser tube | Weiju | Domestic famous good brand with long lifespan |
| reflector Mirror and focus lens | America IIV(Diameter is 30mm) | long life span,precise focusing |
| Water Chiller | TEYU | alarm protection function,constant running |
| Ball Screw Rod | Taiwan TBI | enhance position accuracy |
| bearing | Japan NSK brand | high precision |
| Material | Cut | Engrave |
| Acrylic | Plexiglass | PMMA | Perspex | √ | √ |
| Organic board | Double color sheet | √ | √ |
| Wood | Plywood | Veneer | MDF | Balsa | √ | √ |
| Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather | √ | √ |
| Fabric | Cloth | Textile | √ | √ |
| Carpet | Mat | Rug | Wool Felt | √ | √ |
| Paper | Cardboard | Chipboard | Press Board | √ | √ |
| Ceramic | Tile | Marble | Glass | √ | √ |
| Plastic | √ | √ |
| Fiber Glass | Filter Cloth | √ | √ |
Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the material used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
