| Prod Model: |
PC6S |
| Type: |
Rolling |
| Open Style: |
Rolling |
| Opening Type: |
With Remote Control |
| Certification: |
CE |
| Position: |
Commercial |
| Surface Finishing: |
Finished |
| Material: |
Polycarbonate Slat + Aluminum Joining Tube |
| Special Function: |
Full Vision |
| Color: |
Transparent |
Product Description

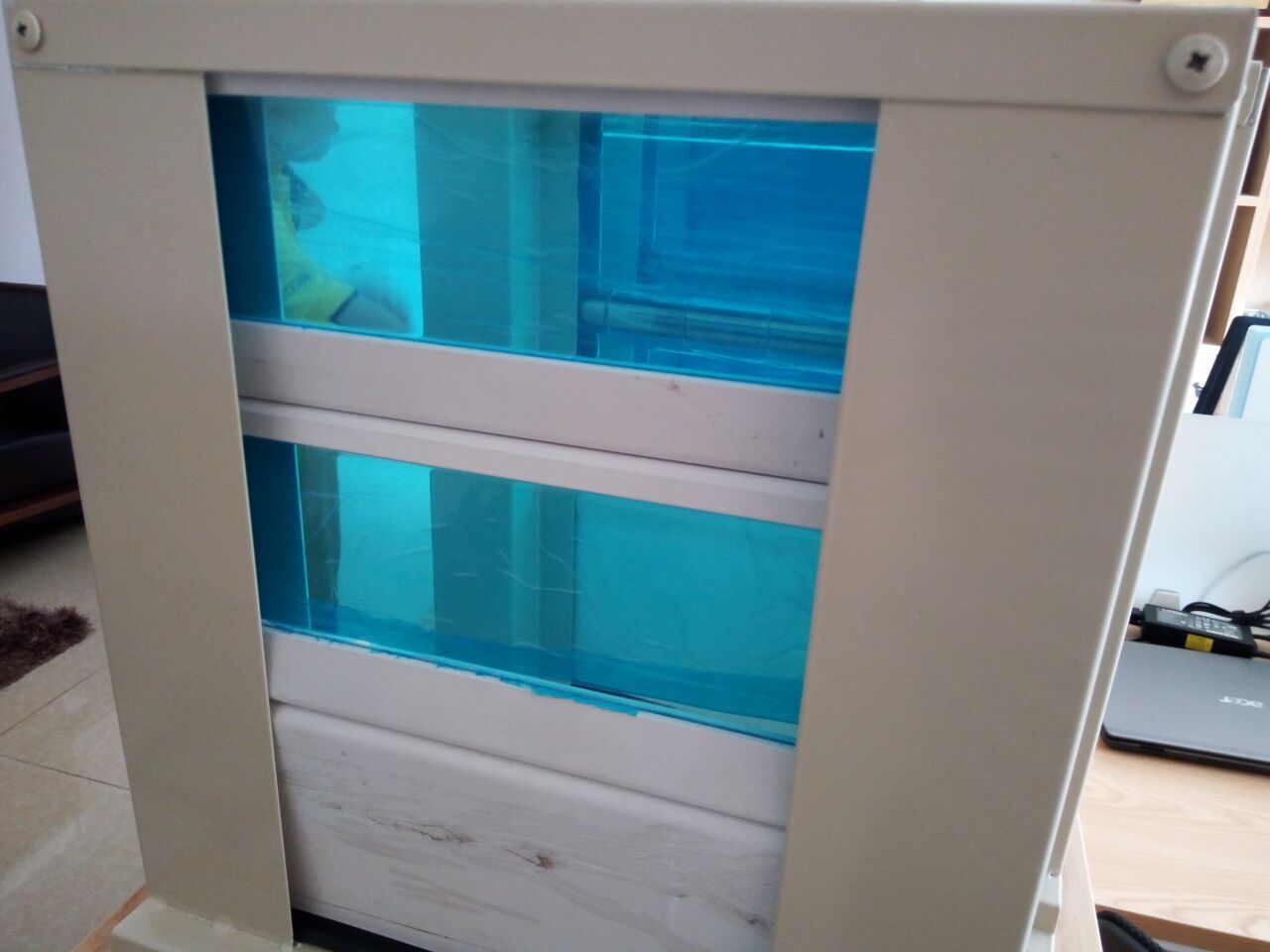

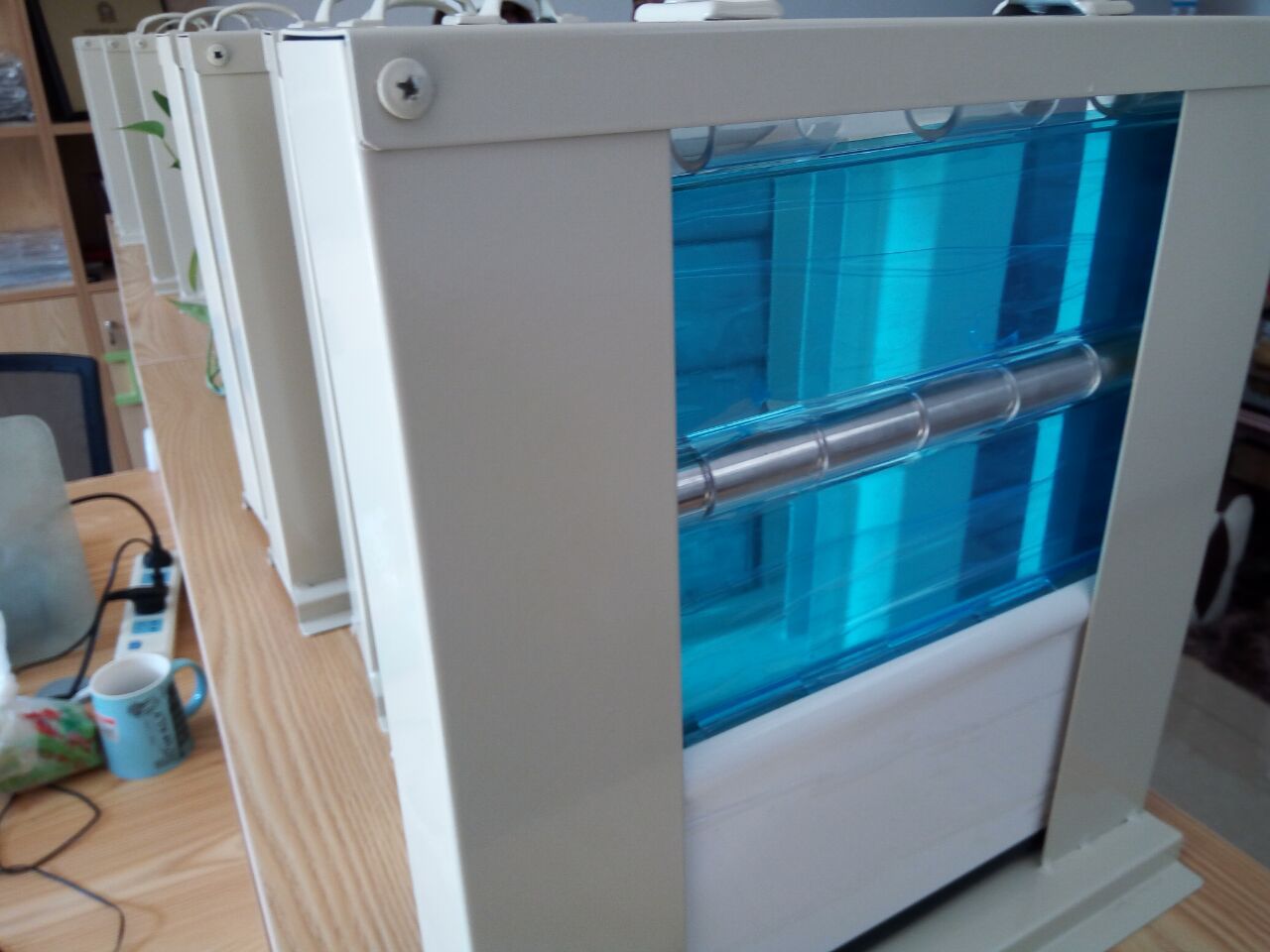

Acrylic Roller Shutter Acrylic roll up shutter
PC6s is always custom built in our modern ISO9001-2000 certified factory, which combines the transparency and strength of polycarbonate with extruded aluminum joining slat.
It is a popular design for applications which need secutiry as well as transparency. PC5 offers top security together with the ultimate excellent visibility.
As clear as glass, as strong as steel

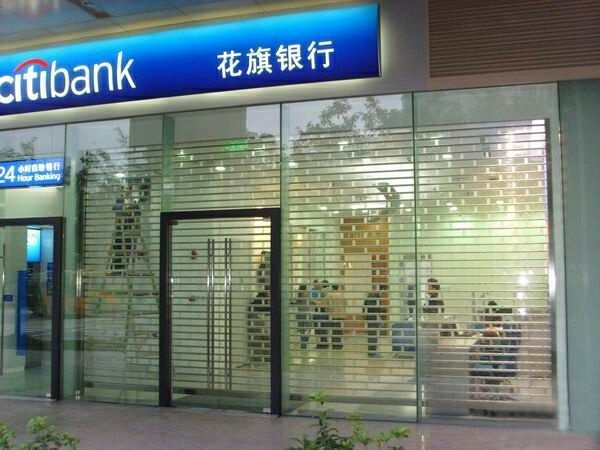

It's ideal solution for following Applications:
commercial shop
showroom
fashion shops
jewellery shops
airport
banks
club bars
Others
Features
excellent visibility
safety and security
anti-UV rays
heat insulation
energy saving
elegant appearance
high impact resistance
24 hours advertising effect
Shatter-proof
Motorized operation polycarbonate rolling shutter door
Specifications

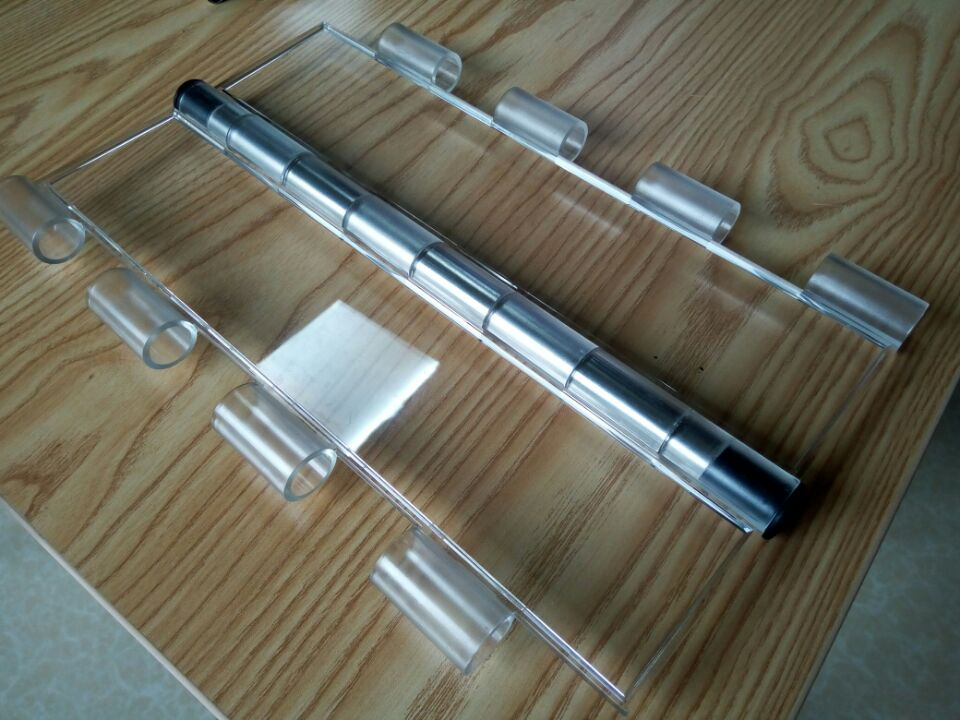

1, Item name: Curtain
Made of polycarbonate slat+aluminum joining slat
Detials of polycarbonate slat:
*Material: polycarbonate
*Color: transparent
*Length: 305 mm
*Width: 83 mm
*Thickness:3.7mm
*Weight: 110g/pc
*About 30 pcs/ square meter
Details of aluminum tube:
*Material: double aluminum joining tube
*Standard Color: white, powder coated
*Thickness: 4.0mm
*Max length: 10meters
*Need about 8 meters/ square meter
2, Item name: Aluminum bottom rail
Made of extruded aluminum,70*101mm, Depth*Height, with 1.5 thickness,
3, Item name: Aluminum Guide Rail
Made of heavy duty extruded aluminum "U"guide rail, 70*30*2.0 mm or 95*39*2.5 mm ,Width*Depth*thickness ,With brush strip to make the rolling shutter run more quietly
4, Switch button.
Switch button for operating rolling shutter, with stainless steel cover box
5, Endless chain
The rolling shutter could be opened by endless chain if power off.
6, Rolling shutter motor
Option 1: HOFUL brand side motor, CE certificate, 400KG, 600KG,800KG,1000KG,1300KG, 1500KG, 2000KG are available,
Rated voltage / Frequency could be 220V/50Hz, 380V/50Hz, 110V/60Hz
Option 2: DOOYA tubular motor, CE certificate, 60N, 80N, 120N, 140N, 230N, 300N,
Rated voltage / Frequency could be 230V/50Hz, 120V/60Hz
7, Shutter box (hood)
Made of galvanized steel or aluminum, it's optional.
8, Shaft (barrel)
Made of galvanized steel, 3 inches, 5 inches, 6 inches, 8 inches, 10 inches, it depends on the size of the rolling shutter.
9, Bearing
It's retractable, fixed by welding according to the width of the rolling shutter.
10, End plate
Made of heavy duty steel, fixed on both sides of the shaft.
11, connecting slat
Made of galvanized steel slat, connected with the top beam slat and shaft.
12, Top beam slat
Made of aluminum, used for connecting the curtain and the connecting slat
13, End clip
Made of steel, fixed on both sides of the aluminum tube, to protect the curtain from lateral moving.
Manual operation polycarbonate rolling shutter door
Specifications
1, Item name: Curtain
Made of polycarbonate slat+aluminum joining slat
Detials of polycarbonate slat: high transparency unbreakable polycarbonate material, with size of 315mm length and 93mm width, 3mm middle thickness
Details of aluminum tube: double extruded aluminum slats(one is big, the other is small), power coating surface finishing, in 3 mm thickness
2, Item name: Lock system
Lock system for manual operation rolling shutter, with lock bar extended to the guide rials on both sides
3, Item name: Aluminum bottom rail
Made of extruded aluminum,70*101mm, Depth*Height, with 1.5 thickness
4, Item name: Aluminum Guide Rail
Made of heavy duty extruded aluminum "U"guide rail, 70*30*2.0 mm or 95*39*2.5 mm ,Width*Depth*thickness, With brush strip to make the rolling shutter run more quietly
5, Manual system
Torsion spring for manual operation rolling shutter
6, Shutter box (hood)
Made of galvanized steel or aluminum, it's optional.
7, Shaft (barrel)
Made of galvanized steel, 2 inches
8, Manual system
Torsion spring for manual operation rolling shutter
9, End plate
Made of heavy duty steel, fixed on both sides of the shaft.
10, connecting slat
Made of galvanized steel slat, connected with the top beam slat and shaft.
11, Top beam slat
Made of aluminum, used for connecting the curtain and the connecting slat
12, End clip
Made of steel, fixed on both sides of the aluminum tube, to protect the curtain from lateral moving.
Feel free to inquiry us for more details !
