| Price: | US $ 60-80/Square Meter |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Money Gram,Western Union |

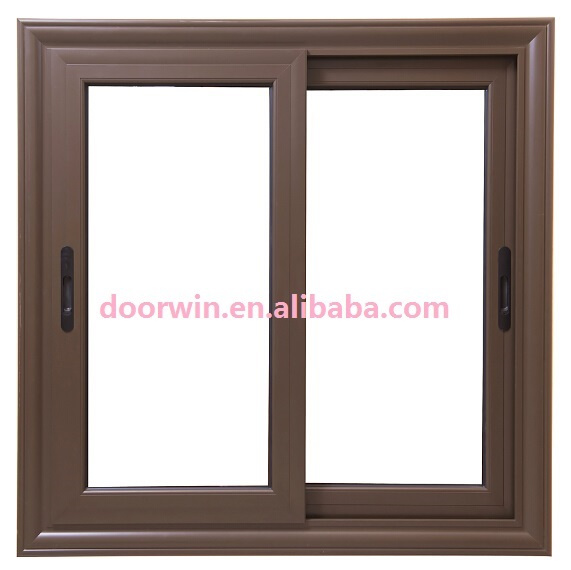

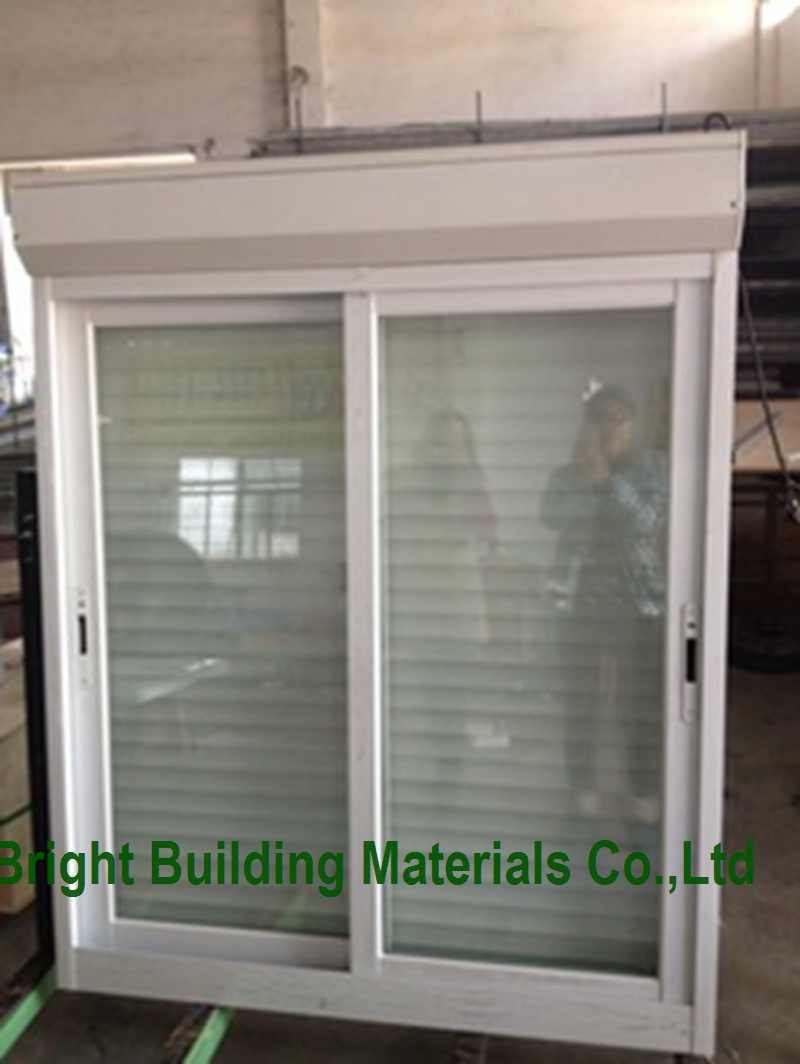

The ultimate low maintenance window style due to few moving parts, the sliding window is a classic design that will suit most architectural styles. The operating sash slides on adjustable minimal friction nylon rollers, along an aluminum track, providing a smooth opening and closing action. Fully weather sealed around the frame to minimize draughts, dust and water intrusion, our sliding windows feature interlocking sashes for increased window strength.
Bright sliding window has a Door sealing system that resists wind, rain and dust penetration.The sliding window or door is made up of two (or more) sashes that slide horizontally, to the left or right, on tracks. The sliding window and door can be made wider and taller with the addition of sashes. The sliders work on a 'ride over' mechanism. Result: The track on which the sash slides is raised slightly above the ground, preventing dust from settling in the track. The dust-free track ensures a far smoother sliding motion when compared to conventional sliders.
Widely used in condominiums, bungalows or villas, residential properties, schools, hospitals, and commercial settings like factories and business buildings. The system's compliance to the various performance specific criteria makes it an ideal choice in the construction market.
1.Profile
Aluminum Alloy:Thermal-break or non-thermal-break
Thickness:Window:1.4mm
Door: 2.0mm
Surface Treatment :Customized (Powder-coated/Anodized/Electrophoresis/Fluorocarbon, etc.)
Color:Customized (Wide range for options from color bond or RAL color)
2.Glass
Type:Customized (Low-e/Tempered/Reflective/Floated/Hollow/Laminated, etc.)
Glazed: Single/Double/Triple(for cold area and cyclone area)
Thickness:Customized: Single: 5mm-12mm
Double: 5mm+6A+5mm/ 5mm+9A+5mm/ 6mm+9A+6mm,etc.
Low-E Double Glazing: 5+12A+5 glass,6+12A+6 glass, etc.
Laminated Glass:4mm+0.38pvb+4mm/6mm+0.76pvb+6mm,etc
3.Hardware
Customized: Chinese Top Brand(Kin Long), German (Roto), Siegenia, Italian (Guise,ALU-K), etc.
4.Sealant
EPDM, Silicone Sealant for aluminum window
5.Other parts
Mosquito net/Stainless steel screen/Inside blinds/Grid, etc.
| Products details | |
| Products name |
80 series aluminium sliding window |
| Profile style |
Aluminium sliding window |
| Prof thickness |
80mm |
| Profile depth |
80mm |
| Aluminum thickness |
1.4mm / 1.6mm / 1.8mm / 2.0mm |
| Aluminum Surface finshing | Powder coated, Electrophoresis, Anodize and PVDF |
| Aluminium color option |
RAL Series, and Wood Grain, two option for inward and outward color |
| Glass option |
1. Single glazing: 5MM, 6MM, 8MM, 10MM 2. Double glazing: 5MM+9A+5MM, 6MM+19A+6MM 3 Triple glazing: 5MM+6A+5MM+6A+5MM 4 Laminated glass: 4MM+0.76PVB+4MM Glass style: Tempered glass, Low E glass, refective glass, frosted glass, laminated glass and so on (can install mini-blinds between glass) |
| sealand |
3 EPDM sealing strips |
| dimension |
sizes and colors as per customers' required |
| hardware |
Germany or Chinese top brand |
| Fly screen |
sliding / fixed |
| Prod Model: | CL-W016 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | Customer Required |
| Color: | Customer Required |
| Open Way: | Sliding / Casement / Folding / Top Hung |
| Window Materials: | Aluminum / PVC / Aluminum Wood Composite |
| Finishing: | Powder Coating / PVDF |
| Place Of Origin: | Guangdong China (Mainland) |
| Brand Name: | Doorwin |
| Features: | Soundproof,Waterproof,Safe Tempered |
| Main Products: | Aluminum Window and Door |
| Surface Treatment: | Anodized,Powder Coating,PVDF |
| Style: | European |
| Material: | Aluminum Alloy |
| Surface Finishing: | Finished |
| Screen Netting Material: | Fiberglass |
| Security Rating: | A |
| Frame Material: | Aluminum Alloy |
| Open Style: | Sliding |
| Opening Pattern: | Horizontal |
| Function: | Invisible |
