Aluminum Awning Window with Crimsafe Screen
| Price: |
US $ 170-175/Square Meter |
| Min Order: |
50/Square Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |

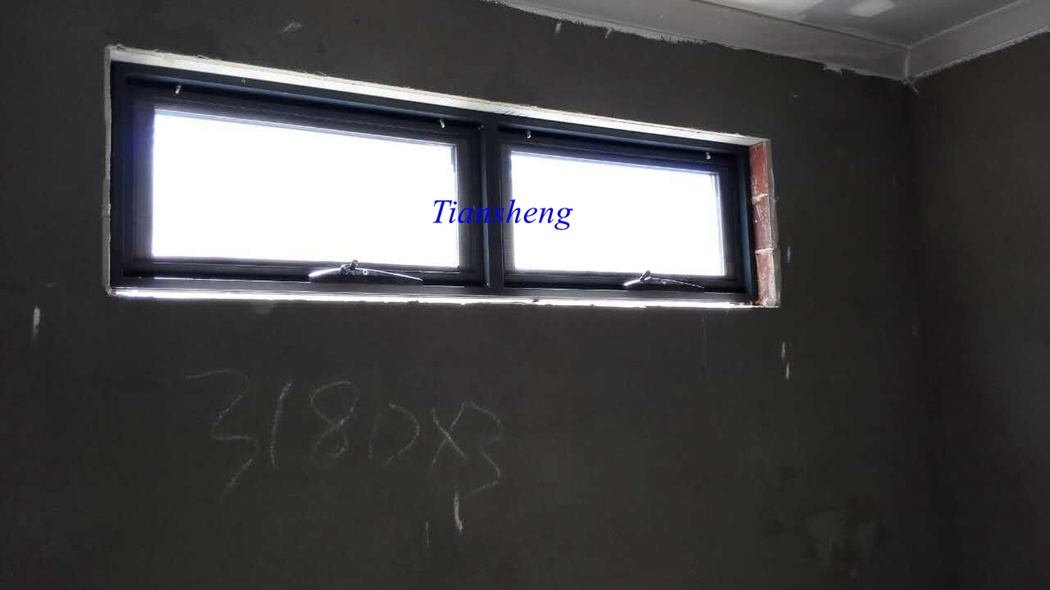

Australia alumiunm awning window with flyscreen installation on site
awning window 6063-T5
Design freedom
Multi function,high security
low maintenance,energy saving
Cost effective
Features of Awning window
1) 45mm frame width for anwing system.
2) Fixed flyscreen for chain winder type and retractable screen for L handle type.
3) Optional key lock chain winder or key lock L shape handle.
4) Excellent ventilation control.
5) Provides superior weathproofing.
6) Quality anti-scratch protective wrapping is optionable for all our products.
7) Glazing bar between the double glazing or attaching the surface is optional.
8) Gracious and elegant, yet practical and durable
9) For the chain winder type, the Maximum window height is 1900mm, max width is 900mm.
10) For the L handle type, the Maximum window height is 1900mm, max width is 1000mm. | tems | Aluminum sliding window |
| Profile thickness | 1.4mm |
| Frame width | 90.2mm |
| Frame face width | 30mm |
| Sash face width | 48.4mm |
| Glazing options | Type lOW-E/Reflective/Tempered/Floated/Coated
Single glazing 4/5/6/8/10/12/15/19mm etc
Double glazing Clear, Laminated, Low-E, Tempered
5mm+12A+5mm, 6mm+12A+6mm,5mm+0.76PVC+5mm,
6mm+12A+6mm, 6mm+1.14pvb+6mm+16A etc. |
| Aluminum color options | Anodized black,Anodized light champagne,Wooden grain,
Electrophoresis silver, powder coating white/grey,etc. |
| Glass color options | Light grey,Light blue,Dark green,Dark blue,Light green,Clear glass,
Bronze, Ford blue |
| Accessories | Handle,Hinge,Ball lock,square lock
Rubber strip for sealing,System
Retaining Washer |
| Performance parameter | 1.Wind pressure performance 5.0kpa GB/T7106-2008/9 Class
2.Air permeability 0.5m3/(h.m) GB/T7107-2008/8 Class
3.Rain water permeability 700Pa GB/T7108-2008/6 Class
4.Air noise performance 45dB GB/T8485-2008/6 Class
5.Insulation performance1.1W/(m2.k)GB/T8484-2008/10 Class
6.Shading performance of SC 0.2 GB/T2680-2008/7 Class |
Packing information:| Material: Plastic film, Foam, Carton, Wooden box |
| 20FT | Door(1.8mx2.2m) | Window(1.2mx1.2m) |
| 90pcs | 200pcs |
| 40FT | 200pcs | 420pcs |
| 40HQ | 250pcs | 530pcs |
Our Serive:
1.Engineers provide you with the on-site measurement.
2.R&D center offer professional solution according to you needs.
3.We provide install guidance if needed.
4.High production efficiency guarantees delivery in time.
5.Any broken items can be replaced after sale.
Any questions,pls feel free to contact us!Welcome to pay a visit for us!Photos:

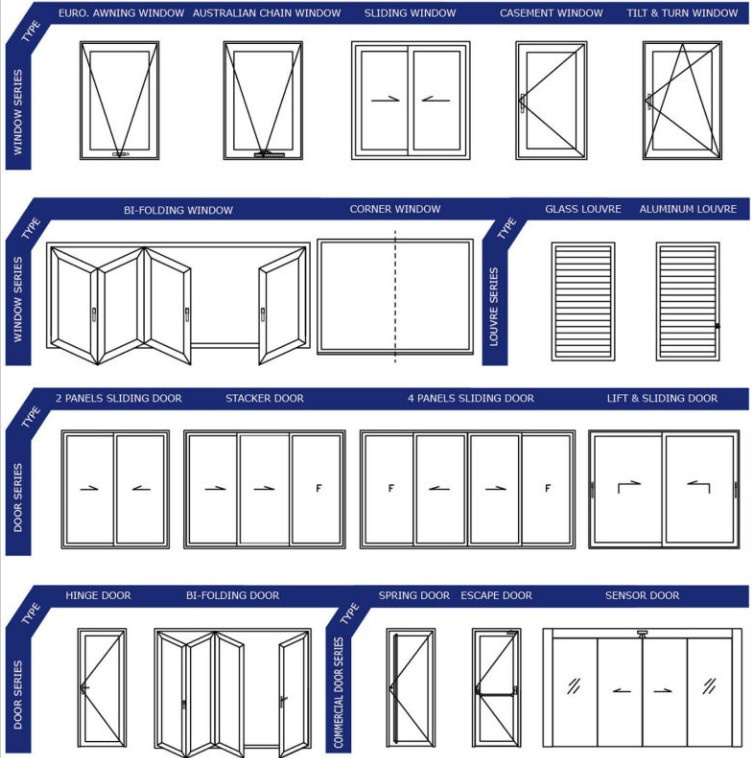

Design:

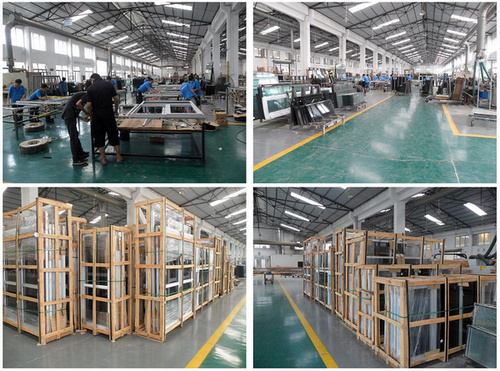

Workshop:
| Prod Model: |
TSW-1217 |
| Size: |
Customized |
| Color: |
Powder Coated White/Dark Grey or Customized |
| Hardware: |
Kinlong Brand |
| Material: |
Aluminum Alloy |
| Open Style: |
Swing |
| Frame Material: |
Aluminum Alloy |
| Opening Pattern: |
Vertical |
| Function: |
Invisible |
| Surface Finishing: |
Finished |
| Security Rating: |
A |
| Screen Netting Material: |
Stainless Steel |
| Style: |
Australia Style |
Tiansheng Industry & Trade (HK) Co., Ltd /Guangzhou Tiansheng Building Materials Co., Ltd is a professional manufacturer of curtain wall, windows and doors.
With so many years' experience, good quality, fast delivery time, best after-sale service, pretty competitive price and continuously development of new products, have established long-term business relationship with so many customers from all over the world.
Our mainly products are as followings: Windows and door, curtain wall, framless glass door, sun room/green house, wrought iron railing/fence/gate, garage door. Our products are widely applied in thousands of projects, including commercial & high-end residential, house, villas, school, hotel, hospital, offices. As our products are customized, please give your window/door measurements, drawings and requirements to us, we will provide you with the best solutions.
We are here waiting for your inquiries. If you are interested in our products, please don' t hesitate to contact us by sending inquiry or calling. We sincerely hope to establish business relationship with you from all over the world based on the principle of Mutual Benefits!
