| Prod Model: |
18x16 16x14 18x14 14x14 |
| Width: |
0.6m,0.9m,1.2m,1.5m,2.0m |
| Length: |
100' |
| Mesh Size: |
18X16 18X14 16X14 14X14 |
| Color: |
Grey Black White etc |
| Certificate: |
ISO9001 ISO14001 |
| Packing: |
in Arton or Pallets |
Product Description
Insect Screening is mainly used on windows and doors to protect against insects especially mosquitoes and acts against attracting dust. Also it is used for Star Hotels, Hospitals, Educational Institutes, Villas, Apartments, Independent Houses and for Industrial purposes such as sieves, filters and others. Our Mosquitio Nets are available in Fiberglass, Aluminum and Stainless Steel which are easily cleanable, durable and keeps the surfaces clean and free from fungus, rust and enhance your home, office with fly free environment.
Welltech Systems also Fabricates Aluminum Channels for sliding windows and doors, office partitions, bath room doors with solid PVC sheet. The advantage of using aluminum is for its lightweight, strength, corrosion resistance, durability, attractive appearance and easy maintenance.

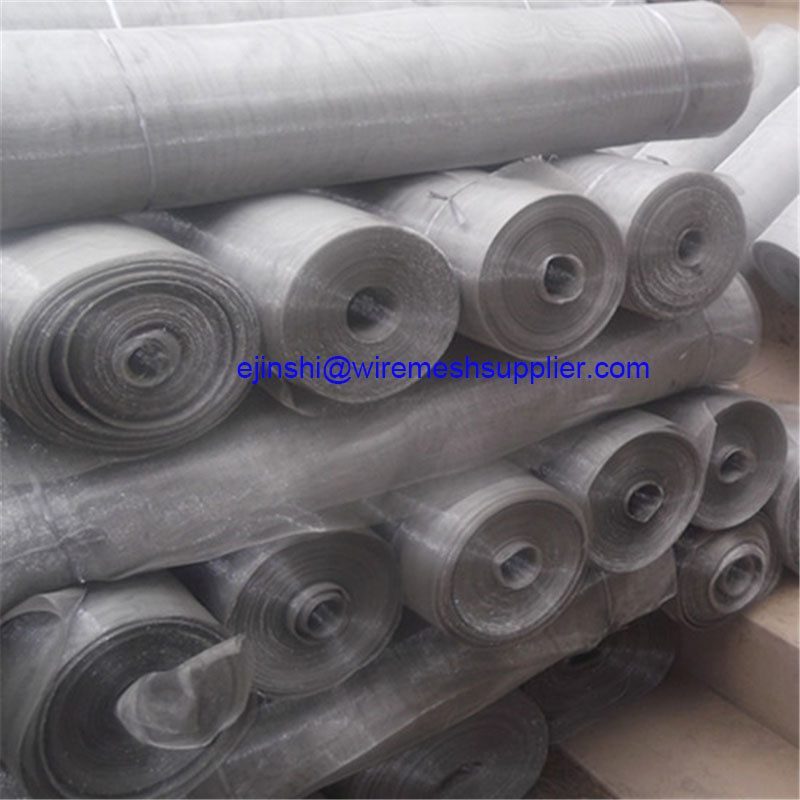

aluminum mesh screen against flies and insects is a kind of square opening mesh woven with aluminum alloy or pure aluminum wire then with charcoal treatment. Aluminum mesh with charcoal treatment offers reduced glare and greater visibility when used as window screens and insect screens.
Commonly used weaving type is plain weaving. It is made by each warp wire going alternatively above and below each weft wire to form a square opening. The warp wire and weft wire are generally the same diameter. Plain weaving aluminum mesh insect screening offers uniform opening and firm structure.
This type of special treated aluminum screen material also has the following features:
Good corrosion resistance.
Rust resistance.
Light weight.
Good air ventilation.
Long using life.
Easy to install and transport.
Application:
Widely used in hotels and buildings to prevent insects and bugs.
Materials applied: Aluminium alloy, pure aluminium wire, Al-Mg alloy wire, etc.
Wire diameter: 0.15--0.25mm
Wire Gauge : BWG31--34.
Common Mesh: 12*14 , 16*16 , 18*18 , 18*14 , 22*22 , etc.
Roll Width : 0.5--1.5m.
Roll Length:2--30m.
Weaving Type: Plain weave
Edge type: Wrapped, etc.
Charcoal Aluminum Insect Screen
| classification: | Stainless Steel Window Screen
Fibreglass Window Screen
PVC Coated Window Screen
Powder Coated Window Screen
Galvanized Window Screen
Aluminum Window Screen
Expoxy Coated Wire Mesh |
| Mesh Available: | 14*16mesh, 14*18mesh, 16*16mesh, 16*18mesh,
18*18mesh, 18*20mesh, 20*20mesh 10*12mesh, 12*12mesh, 12*14mesh, 14*14mesh, |
| Wire Diameter: | from 0.5mm to 0.45mm |
| Aperture: | 3'x100', 4'x100', 1x25m,1.2x30m,1.5x25m |
| Material: | stainless steel, aluminum, galvanized wire, fibre glass etc. |
| Surface treatment: | Epoxy coated, powder coated, PVC coated, Polished |
| Color: | white, black, grey, charcoal, bright, brown, green etc. |
| Edge: | locked edge, selvaged edge, non-selvaged edge, fold edge |
Hebei Jinshi Industrial Metal Co., Ltd. is a manufacturer and trading company of metal products, which is located in Hebei Provice, China and founded by businessman Tracy Guo in 2008.
Hebei jinshi industrial Metal Co., Ltd has passed ISO90012000 international quality management
System certification, passed ISO14001, passed CE Certificate and BV Certificate,
Province had access to "honor the contract shou-enterprises" and the city of "A class tax
Credit units".
Hebei jinshi indusrial Metal Co., Ltd adopts the advanced ERP Management System, which can be
With effective cost control, risk control, optimization and change the traditional processes and
Improve the operating efficiency, the full realization of "collaboration", "Quick Service",
" Agile Handling".
Hebei Jinshi Industrial Metal Co., Ltd had converged a large number of international trade, metal manufacturing, E-marketing experts. At present, we produce and design products of gabions,
T post, Y post, garden gate, farm gate ect., which are exported to America, Australia, New Zealand,
Chile and other countries. Our aim is to offer qualified products to our customers, our concept is to helping Chinese manufacturing boom, let Jinshi maufacturing to go global.
