| Prod Model: |

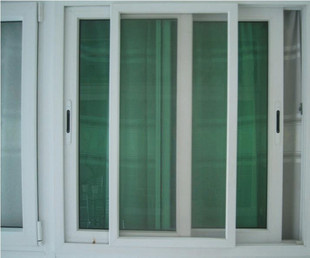

Doorwin-UPVC Sliding Window |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Applications: |
Villas and High-End Construction/Buildings |
| Glass: |
5mm+9ar+5mm Safety Toughened Glass, Triple Glazing |
| Design: |
as Per Customer's Drawing |
| Hardware&Accessories: |
Germany Origin Brand Roto/Siegenia,China Brand |
| Window Frames Materials: |
Top Quality Powder Coating Aluminum Alloy Profile |
| Package: |
Multiple Protections for Glass & Window Frames |
| Delivery Time: |
21~28 Days |
| Negotiable Payment Term: |
30%~50%Deposit Productions,Balance Before Delivery |
| Shipping Method: |
by Boat & Airplane |
| Service: |
Quick Technical Support / Enough Spare Parts |
| Section Bar Type: |
multiple-Cavity |
| Open Style: |
Sliding |
| Opening Pattern: |
Horizontal |
| Function: |
Commercial, Hotel, Living Room, Villa |
| Surface Finishing: |
Finished |
| Security Level: |
A |
| Wind Resistance Performance: |
3.5≤P3<4.0 |
| Color: |
Single Color |
| Customized: |
Customized |
| Style: |
American & European Style |
| Position: |
Exterior, Garden, Interior |
Product Description
Technical Parameters:
1. PVC Profile: Using top quality brand UPVC profile. Models: 60mm, 65mm, 70mm series, chamber: 3, 4, 5, 6 chambers, to be chosen
2. PVC Color: White or other colors, double-color profile and wooden color profile etc.
3. Glass: Single and double glazing; Thickness of glass: 4mm, 5mm, 6mm; 5mm+6A+5mm, 5mm+9A+5mm, 5mm+12A+5mm; 5mm+16A+5mm. Clear glass, tempered glass, floated glass, reflective glass, Low-E glass, patterned glass, argon gas glass, with grid or without, etc.
4. Reinforcement steel: Thickness: 1.2mm, 1.5mm, 2.0mm, 2.5mm; U form galvanized steel;
5. Seal: EPDN, rubber sealing strip, black or grey color, high quality;
6. Hardwar fitting: With high quality Chinese brand hardware, such as Puwei, Chuanguang, Quoqiang; As per customers request, ROTO brand also can be used.
7. Screen/ Mosquito meshes (options): Metal and nylon material. Aluminum frame retractable screen is recommended.
8. Packing: Plastic film, carton. Special packing can be done as per customers requirement.
Advantages:
1), Non corrosive in nature, Does not need painting or varnishing
2), Good abrasion resistance, Can be drilled, nailed, saved etc, Occupy little space, Easy to install, Easy to maintain
3), Availability in variety of colors, Perfect insulation-Thermos insulation saves energy
4), Excellent protection against weather, water proof, Shield against sound pollution
5), Long using life UV protection - will not fade or discolor Condensation free, Easy to clean, Sound insulation
| Place of Origin: | Beijing, China (Mainland) |
| Brand Name: | Doorwin Aluminum Window and Doors |
| Model Number: | Aluminum Window-Doorwin |
| Profiles | 1: 6063-T5 High Quality Thermal Break Aluminium Profiles |
| 2: 6063-T5 High Quality Non-Thermal Break Aluminium Profiles |
| 3: Solid Wood Aluminum Profiles |
| Glass Type | 1: Double toughened glazing: 5mm+12A+5mm,6mm+12A+6mm |
| 2: Single toughened glazing:6,8,10,12 |
| 3: Laminated glazing:6.38,10.76,10.38 |
| 4: Triple Glazing Tempered Glass: 5mm+9A+5mm+9A+5mm, 5mm+12A+5mm+12A+5mm, |
| Hardware | 1: Germany Origin Made Brand Hardware-ROTO / SIEGENIA |
| 2: China Top Brand Hardware-KinLong |
| 3: Australia Brand Hardware |
| 4: USA Origin Brand-TRUTH |
| Mesh/Fly Screens | 1: Stainless Steel Security Mesh |
| 2: Aluminium Security Mesh |
| 3: Fiberglass Flyscreen |
| 4: Retractable Flyscreen |
| Surface Finishing | 1: Akzo-Nobel Interpon Powder coating |
| 2: Anodized-Clear / Black / Bronze |
| 3: Electrophoresis |
| 4: Wood Grain |
| 5: Fluorocarbon(Kynar Finishing) |
| Service: | Quick Technical Support / Enough Spare Parts for Maintenance |
| Performance: | Equivalent Or Better Than USA, EU, Australia, and Middle East. |
| Accessoires: | Installation Screws, Drain Hole Caps, Bolt Hole Caps etc. |
| Spare Parts | Self-Drilling Expansion Screw / Steel Joint Pieces |
Doorwin is your Windows & Doors and Curtain Walls Specialists, Proudly manufacturing wide range of Windows & Doors products and offering the most advanced Curtain Walls system for over twenty years.
Doorwin working teams have always been dedicated to the research and development of energy efficient and eco-friendly aluminium Windows & Doors and Curtain Walls system.
The Doorwin products have made huge progress in the Strength, Waterproof, Sound-insulation, Anti-condensation. Right now, We have integrated design, innovation, development, manufacture and installation together.
We have over Twenty years experience in the Window & Door Market and can provide you a wide selection of Aluminium Windows, Doors and even Curtain Walling. We can help you from your initial design right through to installation.
Doorwin manufactures a wide range of products including:
Windows:
Bay
Roof
Awning
Casement
Turn & Turn
Double Hung
Horizontal Sliding
Vertical Sliding and French Window...
Doors:
Pivot
Sliding
Folding
Hinged
French and Patio Door
We also can offer Vinyl, Timer/Wood clad Aluminum windows & doors, Curtain wall.
Whatever your business requires, Doorwin will have a solution.
