Anti Static Fabric
| Price: |
US $ 0.99-1.0/Meter |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
HY-CON001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
100% Polyester |
| Usage: |
Garment |
| Feature: |
Anti-static |
| Width: |
57/58" |
| Pattern: |
Twill |
Product Description

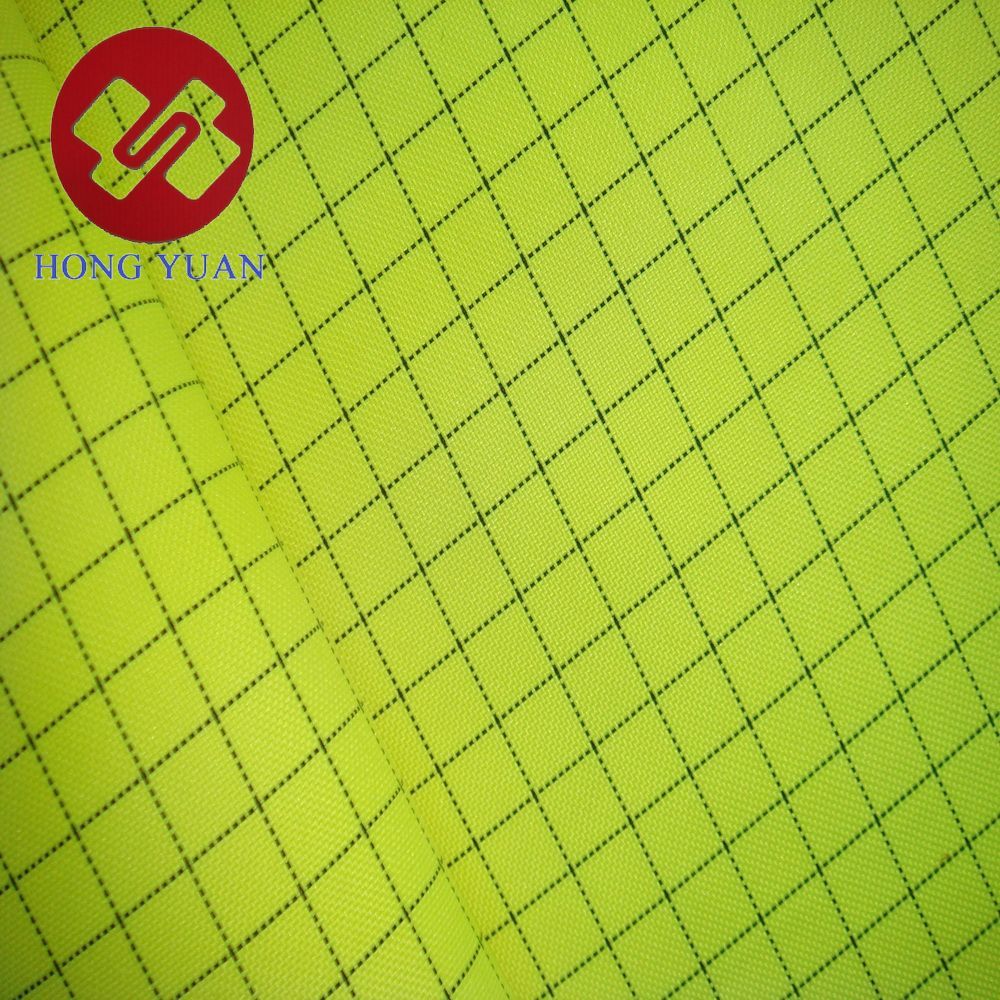

Anti-static fabric (ESD fabric)
Usage: Electronic plant / motor plant / test labtory / hospital /
Clean room / power station / high tech room
(5mm*5mm grid anti static fabric: 16 normal colors in current )
Anti static fabric specification:
1. Width: 150cm
2. Yarn: 100d/48f*100d/48f
3. Density: 165*82/ inch
4. Compisition: 98% polyester / 2% carbon conductive fiber
5. Construction: 1/2 twill
6. Weight: 115G/M2
7. Size: 5mm*5mm grid
8. Surface resistivity: 10(6) Ω -10(7) Ω
9. Frictional voltage: <500 v
10. Anti dust rate: 92%-95% (class1000-10000)
11. Teflon / nano treament optional
12. Anti bacteria optional
Any special request, please contact with us by email or tell, we can develop the fabric as your requestAttn: Mr leo hom (Market Manager)
Cell: 0086-13771689010
Tell: 0086-512-63519592
Fax: 0086-512-63519810
|
CODE |
NAME |
CONSTRUCTION |
YARN |
DENSITY |
SIZE |
WIDTH |
WEIGHT |
RESISTIVITY |
VOLTAGE |
ANTI DUST RATE |
CURRENT |
|
1 |
100D GRID |
2/1 TWILL |
100D*100D |
165*82 |
5MM GRID |
150CM |
115 GSM |
10 6 Ω -10 7 Ω |
< 500V |
92%-95% |
16 COLORS |
|
2 |
100D STRIP |
2/1 TWILL |
100D*100D |
165*82 |
5MM STRIP |
150CM |
115 GSM |
10 6 Ω -10 7 Ω |
< 500V |
92%-95% |
32 COLORS |
|
3 |
75D STRIP |
3/2 TWILL |
75D*75D |
188*120 |
5MM STRIP |
150CM |
110 GSM |
10 6 Ω -10 7 Ω |
< 300V |
95%-98% |
4 COLORS |
|
4 |
75D GRID |
3/2 TWILL |
75D*75D |
188*120 |
5MM GRID |
150CM |
110 GSM |
10 6 Ω -10 7 Ω |
< 300V |
95%-98% |
4 COLORS |
|
5 |
75D STRIP-2 |
2/1 TWILL |
75D*75D |
160*88 |
5MM STRIP |
150CM |
95 GSM |
10 6 Ω -10 7 Ω |
< 300V |
92%-95% |
4 COLORS |
|
6 |
100D GRID-2 |
2/1 TWILL |
100D*100D |
165*89 |
2.5MM GRID |
150CM |
120 GSM |
10 6 Ω -10 7 Ω |
< 300V |
95%-98% |
4 COLORS |
|
7 |
210T STRIP |
PLAIN |
66D*63D |
120*88 |
17MM STRIP |
150CM |
61 GSM |
10 7 Ω -10 8 Ω |
|
|
16 COLORS |
|
8 |
210T TWILL |
2/1 TWILL |
66D*75D |
160*89 |
20MM STRIP |
150CM |
76 GSM |
10 7 Ω -10 8 Ω |
|
|
16 COLORS |
|
9 |
UNIFORM-1 |
2/1 TWILL |
150D*T32S |
130*70 |
12MM STRIP |
150CM |
155 GSM |
10 7 Ω -10 8 Ω |
|
|
16 COLORS |
|
10 |
UNIFORM-2 |
2/1 TWILL |
300D*T32S |
100*53 |
12MM STRIP |
150CM |
230 GSM |
10 7 Ω -10 8 Ω |
|
|
16 COLORS |
|
11 |
T/C SINGLE PLY |
2/1 TWILL |
TC32S*TC32S |
130*70 |
12MM STRIP |
150CM |
155 GSM |
10 7 Ω -10 8 Ω |
|
|
16 COLORS |
|
12 |
T/C DOUBLE PLY |
2/1 TWILL |
TC32S/2*TC32S/2 |
100*53 |
12MM STRIP |
150CM |
230 GSM |
10 7 Ω -10 8 Ω |
|
|
16 COLORS |
|
13 |
UNIFORM-3 |
2/1 TWILL |
150D*300D |
100*64 |
12MM STRIP |
150CM |
160 GSM |
10 7 Ω -10 8 Ω |
|
|
4 COLORS |
WuJiang Hong Yuan Spray Weaving Co., Ltd. is located in the Eastern Silk Market China which is in Suzhou, Jiangsu Province, China.
It is about 150 kilometers from Shanghai port to our factory. Also it is only an hour from the airport of Shanghai or Hang Zhou to our place.
Hong Yuan Spray Weaving Co., Ltd. is the fabric manufacturer which was set up in 1990, major in manufacturing camouflage fabric which supply for the military uniform or tent fabric longtime. We once produced the 10 million meters tent fabric for the Sichuan Earthquake in 2008. Meantime, we also produce the fashion clothes fabric, beach shorts fabric, waterproof fabric, Suitcase fabric such as satin fabric, chiffon fabric, pongee fabric, peach skin fabric, oxford fabric, cation taffeta fabric and so on.

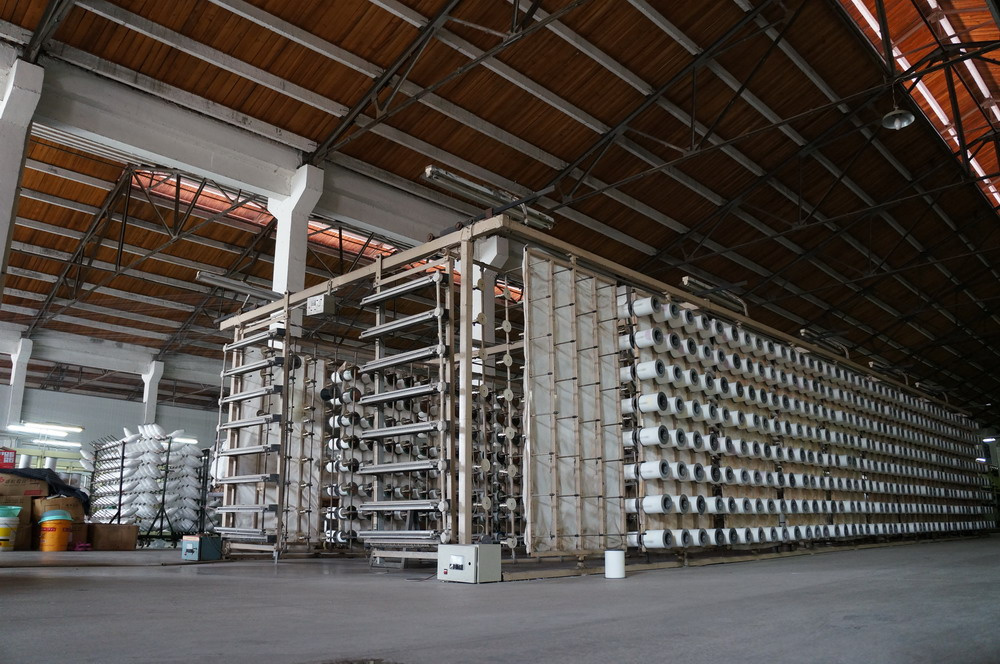

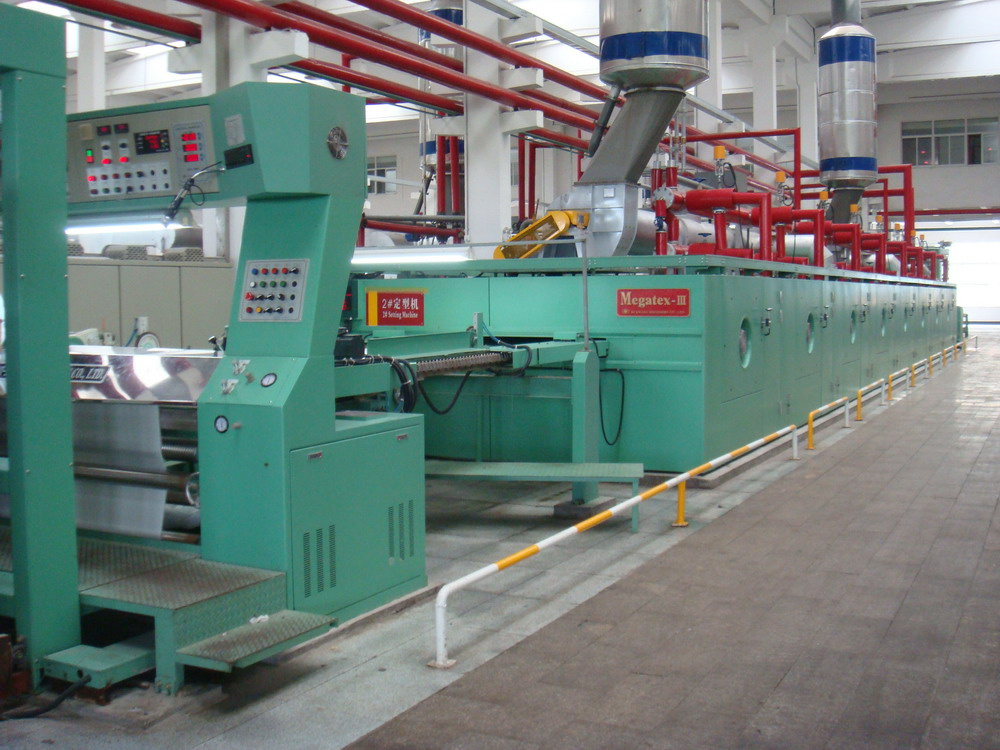

We have three factories including jet loom factory, print factory, coating factory. There are the 450 sets Jet loom imported from Japan, 6 sets coating machine, 4 sets printing machine. The annual capacity reached the 35 million meters fabric. It can be produced by your demand.
Hong Yuan Spray Weaving Co., Ltd. Passed the SGS and ISO 9001: 2000 Certification.
Efficiency, Pragmatic, High quality, Credibility and integrity are the principle of our company.
Welcome to our China, Welcome to our Company.
