Anti Wear Rubber Matting with Fabric Insertion
| Price: |
US $ 10-12/Square Meter |
| Min Order: |
500/Square Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

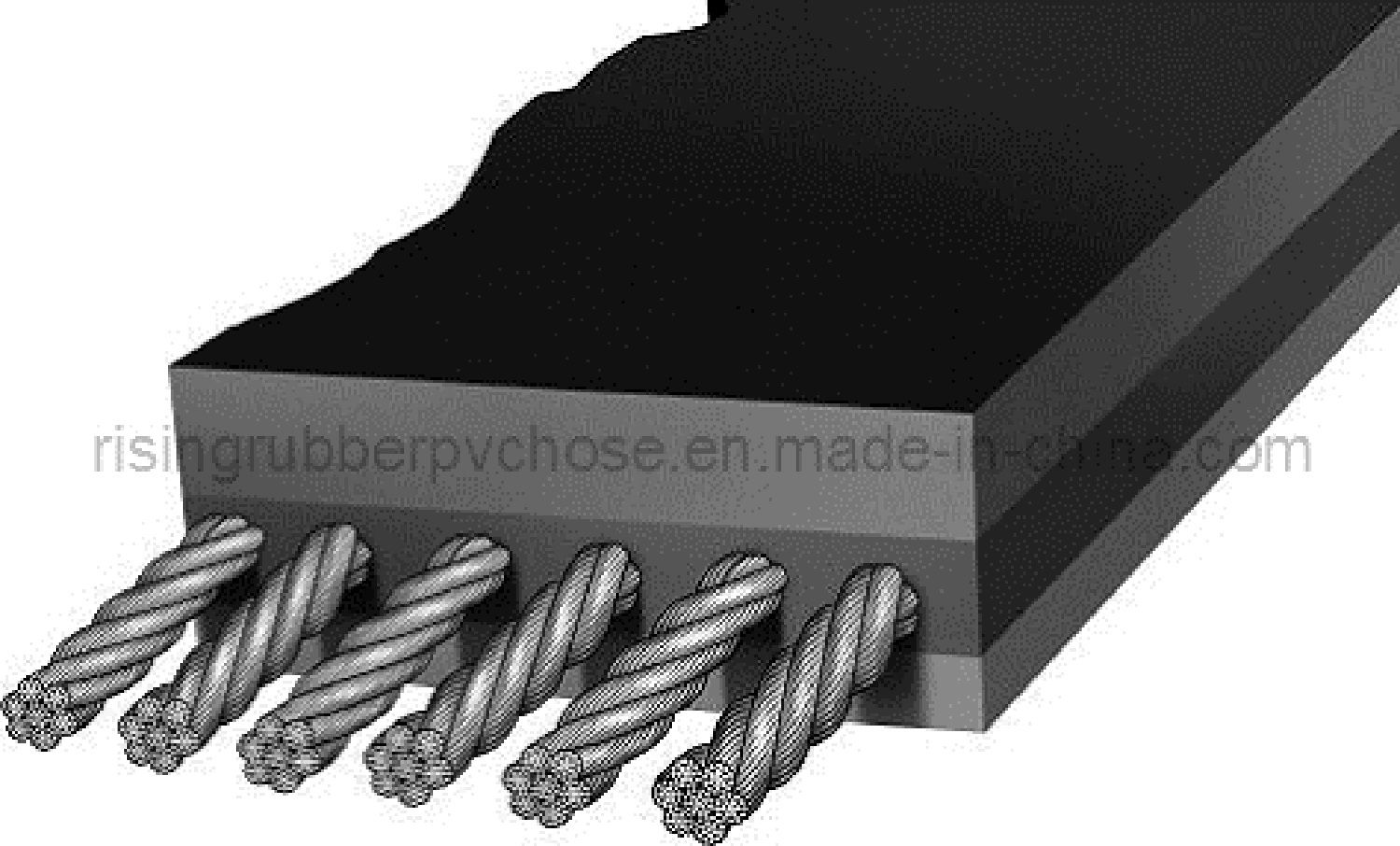

General Purpose Steel Cord Conveyor rubber BeltDescription: General-purpose steel cord belt use high-strength steel cord as frame materials, and it is built in a 'uniplane' construction with insulation gum and outer rubber covers, then after curing process, it will be the product.
Market: Distributed occasion, cement, coal mines, quarries, power plants, steel works.
Application Locations: Main transmission lines, long overland transportation, laneway transportation, ship loader, tilt transmission, the transmission of other demanding requirements.
Tensile strength: 500 ~ 10000N/mm Width: 500 ~ 3200mm.
Features and preponderances of the belt:
1.Using zinc galvanized open steel cord
We use zinc galvanized open steel cord in order to meet kinds of particular application. The cords are constructed to provide high flexibility, low elongation, and to permit efficient and high strength splice designs. The galvanized zinc coating produces a bonding agent between the cord and insulation gum and provides an important barrier against corrosion.
2.High tension capabilities
Our steel cord belt demanding applications, and we continue to design the strongest belt to meet the growing demand for long overland systems.
3.Limited take-up travel
Our steel cord belt elongates a maximum of 0.25% at rated tension. This allows lower cost take-up systems on many applications, and makes our steel cord belt the preferred choice for long overland and short stacker/reclaiming systems, where minimum elongation is critical.
4. Life -long splices
Our proven splicing methods, validated on Dynamic Splice Tester, results in dynamic splice efficiencies in excess of 50% rating defined in DIN22131 part 3.With proper technique, splice on Shandong Aneng's steel cord belt should last the life of the belt.
5.High impact resistance
Our advanced cover compounds and our insulation gum's superior adhesion combine to provide the impact, tear, and abuse resistance your applications demand.
6.Lower unit cost of transportation
Fewer conveyors and splices, shorter take-ups, and reduced belt inventory add up to significant cost savings right up front. Longer belt life, life-long splices, excellent belt training, and reduced downtime save you even more down the road. It all adds up to a lower cost-per-ton of material conveyed, which can make a major improvement in your bottom line. | | ST630 | ST800 | ST1000 | ST1250 | ST1600 | ST2000 | ST2500 | ST2800 | ST3150 | ST3500 | ST4000 | ST4500 | ST5000 |
Longitudinal tensile
strength N/mm | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 2800 | 3150 | 3500 | 4000 | 4500 | 5000 |
| Max Dia of cord mm | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 6.0 | 7.2 | 7.5 | 8.1 | 8.6 | 9.1 | 9.7 | 10.9 |
| Pitck of cord mm±1.5 | 2.8 | 3.2 | 4.0 | 4.5 | 4.9 | 5.7 | 6.8 | 6.8 | 7.6 | 8.3 | 9.1 | 9.7 | 10.9 |
| | 10 | 10 | 12 | 12 | 12 | 12 | 15 | 15 | 15 | 15 | 17 | 16 | 17 |
| Top cover thickness mm | 5 | 5 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8.5 |
| Belt thickness mm | 5 | 5 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 8.5 |
| Width mm | | | | | | | | | | | | | |
| 800 | 75 | 75 | 63 | 63 | 63 | 63 | 50 | 50 | 50 | 50 | | | |
| 1000 | 95 | 95 | 79 | 79 | 79 | 79 | 64 | 64 | 64 | 64 | 56 | 60 | 56 |
| 1200 | 113 | 113 | 94 | 94 | 94 | 94 | 76 | 76 | 76 | 77 | 68 | 72 | 68 |
| 1400 | 133 | 133 | 111 | 111 | 111 | 111 | 89 | 89 | 89 | 90 | 79 | 84 | 79 |
| 1600 | 151 | 151 | 126 | 126 | 126 | 126 | 101 | 101 | 101 | 104 | 91 | 96 | 91 |
| 1800 | | 171 | 143 | 143 | 143 | 143 | 114 | 114 | 114 | 117 | 103 | 107 | 103 |
| 2000 | | | 159 | 159 | 159 | 159 | 128 | 128 | 128 | 130 | 114 | 120 | 114 |
| 2200 | | | | | | 176 | 141 | 141 | 141 | 144 | 125 | 133 | 125 |
| 2400 | | | | | | 193 | 155 | 155 | 155 | 157 | 137 | 146 | 137 |
The conveyor min drug
dia mm | 500 | 500 | 630 | 800 | 1000 | 1000 | 1250 | 1250 | 1400 | 1500 | 1600 | 1600 | 1800 |
COMPANY INFORMATION RISING RUBBER, as a professional manufacturer and exporter with experience of 10 years, offers a broad range of Hydraulic Hose, Air Hose, Fuel Hose, Suction & Discharge Hose, Sand Blasting Hose, various PVC Hoses, Fittings and relative products to suit different types of applications.
Designed in compliance with international quality standards (SAE, DIN, ISO), our range of products is an outcome of persistent endeavors to attain maximum client satisfaction.
Our production lines include HIGH-SPEED and HIGH-TECH bunching machines, braiding machines, and LIQUID NITROGEN COOLING SYSTEM, which promotes our capacity to 150 000 meters per month and quality far ahead of competitors. A comprehensive laboratory offers inspection covering all production process from raw material, semifinished, to finished products and lasting to quality tracibility system after sale.
Today, we have a distinguished client list in the construction, mining & earthmoving industries. With strict quality control system and annual production capacity of 4 million meters, our products are also reaching foreign shores through markets in the Europe, North America, East Asia and other areas.
We believe our success is tied directly to the profitable growth and satisfaction of our customers. So if interested, do not hesitate to contact us. RELATED PRODUCTS We have full series of SAE and EN standard, including:
Wire braided: SAE R1/DIN EN 1SN, SAE R2/DIN EN 2SN, SAE R16, SAE R17
Wire spiral: SAE R9, R12, R13, DIN EN 4SP, DIN EN 4SH
Textile braided: SAE R3, SAE R6, SAE 5
Teflon: SAE R7, SAE R8
HYDRAULIC HOSE:
Wire braided: SAE R1/DIN EN 1SN, SAE R2/DIN EN 2SN, SAE R16, SAE R17
Wire spiral: SAE R9, R12, R13, DIN EN 4SP, DIN EN 4SH
Textile braided: SAE R3, SAE R6, SAE 5
Teflon: SAE R7, SAE R8
INDUSTRIAL HOSE
Air hose--WP 20 bar/300 PSI, BP 60 bar/ 900 PSI. 50-100M per roll.
Water hose--WP 20 bar/300 PSI, BP 60 bar/ 900 PSI. 50-100M per roll.
Suction hose--Water suction hose, water discharge hose, oil suction hose, oil discharge hose.
Sand blast hose--High abrasion resistant tube.
Welding hose--Oxygen hose, Acetylene hose, Propane hose, Twin hose
PVC HOSE
PVC Steel Reinforced Hose--for water suction and conveying.
PVC Fiber Reinforced Hose--For food grade liquid.
PVC Helix Suction Hose--plastic spiral reinforced.
PVC Garden Hose--for home and agriculture usage.
PVC Layflat Hose--agriculture irrigation and industry watering.
HOSE FITTINGS
HOSE PROTECTOR
SILICONE HOSE
RADIATOR HOSE
If any need or questions, pls do not hesitate to contact me.
It will be more than happy to be on your service. 1. Is sample available? Shall I pay for sample or delivery?
Free samples and free delivery.
2. How long will I get my order?
General production time for 1x20 feet container is 10-15 days, for 1x40 feet container 20-25 days.
3. How will my order be packed?
All hose is packed by 2 plies of PVC film, inner is tranparent, outer is color and thick one. (Color can be ordered as customer like). Special packing like Reel and Pallet also available. Fitting is packed by 3 plies, carton, PVC bag and then pallet.
4. What should I do if I find quality problem in using?
12 months Quality Garentee for all of our products. We offer replacement for any defective caused by non-human reasons.
5. Is it possible to visit your factory?
We warmly welcome you to visit our factory at any of your convenient time.
| Prod Model: |
500-3200mm |
| Usage: |
Transmission Chain, Transportation Chain, Dedica |
| Color: |
Solid Color |
| Structure: |
Roller Chain |
| Place Of Origin: |
Qingdao,China |
| Width: |
500-3200mm |
| Quality Guarantee: |
12 Months After Delivery |
| Inside Material: |
Steel Cord |
