| Prod Model: |
Laminated |
| Application: |
Building Curtain Wall |
| Configuration: |
Laminated Glass |
| Model: |
Jing Low E Glass |
| Warranty: |
5years |
| Logo: |
Custom Glass |
| MOQ: |
2000sqm |
| Sample: |
Free |
| Quality: |
High Quality, |
| Shipping: |
by Sea,by Air |
| Payment: |
Tt, LC |
| Type: |
Glass Block |
| Shape: |
Flat |
| Appearance: |
Flat |
| Structure: |
Solid |
| Layer Type: |
Common Laminated Glass |
| Function: |
Anti-theft |
| Melting Point: |
High Temperature |
| Production: |
Dry Laminated Glass |
| Color: |
Green |
| Usage: |
Window |
| Intermediate Film: |
PVB,Sgp, Xir |
Product Description

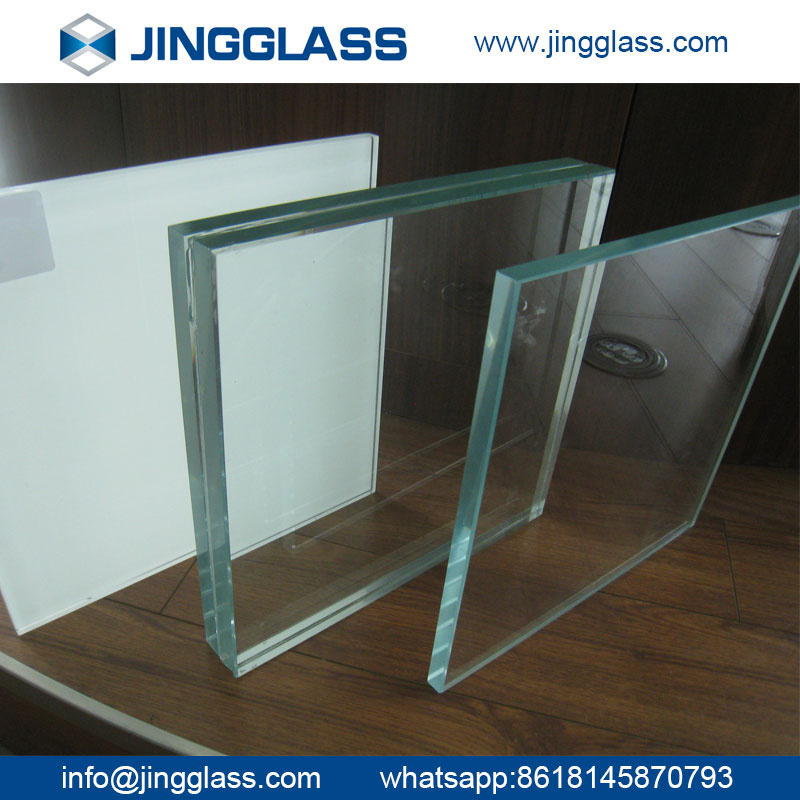

Architecture Construction Safety Tempered Laminated Flat Glass sheet distributorProduct Description Laminated glass is a type of safety glass that holds together when shattered. In the event of breaking, it is held in place by an interlayer or film, typically of polyvinyl butyral (PVB) or ethylene-vinyl acetate (EVA) or SGP film, between its two or more layers of glass.
Glass thickness: 3mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm
Pvb thickness: 0.38mm,0.76mm,1.14mm,1.52mm,1.90mm,2.28mm FEATURES1) Extremely high safety: The PVB interlayer withstands penetration from impact.
2) Energy-saving building materials: PVB interlayer impedes the transmission of solar heat and reduces cooling loads.
3) Create aesthetic sense to building: Laminated glass with a tinted interlayer will beautify the buildings and harmonize their appearances with surrounding views which meet the demand of architects.
4) Sound control: PVB interlayer is an effective absorber of sound.
5) Ultraviolet screening: The interlayer filters out ultraviolet rays and prevents the furniture and curtains fro fading effect.Poduct Display
Item Spcification | Glass Type | Tempered glass / Toughened glass |
| Color | Clear / Ultra-clear / Green / Grey / Bronze / Blue etc. |
| Maximum Size | 2440*6500mm |
| Minimum Size | 200*300mm |
|
| Thickness | Tempered:4-19mm half tempered :4-12mm |
| Glass Type | Insulated glass |
| Maximum Size | 2500*5000mm |
| Minimum Size | 200*300mm |
| Thickness | 3-19mm |
| Spacer Thickness | 6mm, 9mm, 12mm, 15mm, 16mm, 20mm |
| Regular Size | 5+9A+5 5+9A+5 low-e 5+9A+5 coated
5+12A+5 5+12A+5 low-e 5+12A+5 coated
5+16A+5 5+16A+5 low-e 5+16A+5 coated
5+20A+5 5+20A+5 low-e 5+20A+5 coated
5+24A+5 5+24A+5 low-e 5+24A+5 coated
6+12A+6 6+16A+6 low-e 6+12A+6 coated
6+24A+6 6+24A+6 low-e 6+24A+6 coated
5+12A+5+12A+5 5+12A+5+12A+5 low-e |
| Glass Type | Laminated glass |
| Maximum Size | 2500*7800mm |
| Thickness | 3-19mm |
| Total Thickness | 6.38-80mm |
| PVB | 0.38-2.28mm (0.38mm, 0.76mm, 1.14mm, 1.52mm ) |
| | Arch height< 50mm for curved laminated glass |
| Regular Size | 5+0.38pvb+5 tempered or not 5+0.76pvb+5
6+0.38pvb+6 tempered or not 6+0.76pvb+6
6+1.14pvb+6 tempered or not 8+0.76pvb+8
5+9A+5+9A+5 5+9A+5+9A+5 low-e
5+12A+5+12A+5 5+12A+5+12A+5 low-e
5+0.76pvb+5+9A+5 5+0.76pvb+5+9A+5 low-e
5+0.76pvb+5+12A+5 5+0.76pvb+5+12A+5 low-e
5+1.14pvb+5+9A+5 5+1.14pvb+5+9A+5 low-e
4+9A+4+9A+4 |
| Glass Type | Low-E glass |
| Low-E Types | On line Low-E Glass
Off line Low-E Glass
Double Silver Low-E Glass
Curved Tempered Low-E Glass |
| Maximum Size | 2440*3660mm |
| Minimum Size | 300*700mm |
| Thickness | 3-19mm |
| Popular Size | 2134*3050mm 2440*3050mm 2134*3300mm 2440*3300mm 2134*3660mm 2440*3660mm |
| Glass Type | Online reflective coated glass |
| Color | Silvery grey, grey, blue grey, blue, lake blue, grayish green, |
| Green, bluish green, golden, tawny, champagne, etc. |
| Maximum Size | 2440*7200mm |
| Minimum Size | 350*600mm |
| Thickness | 3, 4, 5, 6, 8, 10, 12, 15mm |
| Packing | Safe Plywood cases and interlayer paper between glass |
| Lead Time | On time delivery |
| Whether u request one container or a bulk shipment,we also attaches great importance to the details in every order,do a good job in each shipment. |

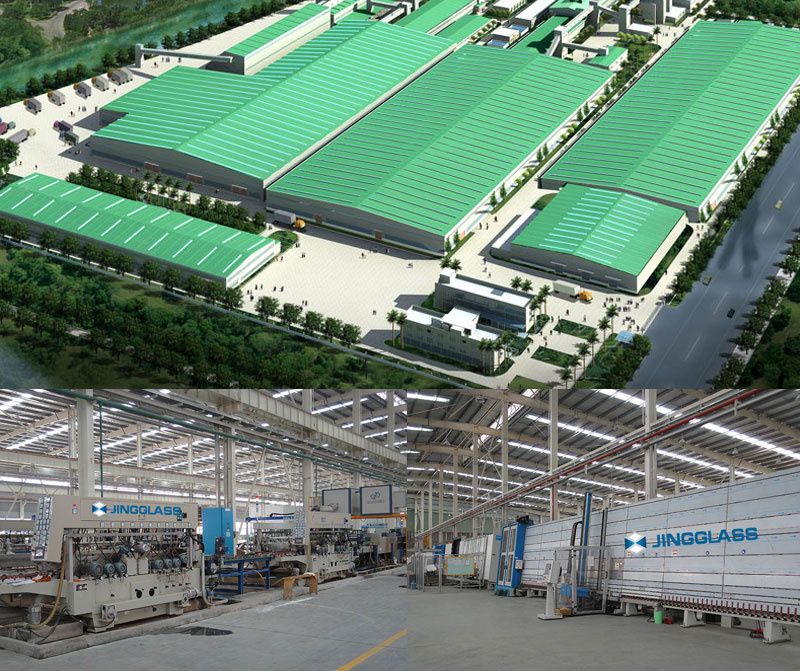

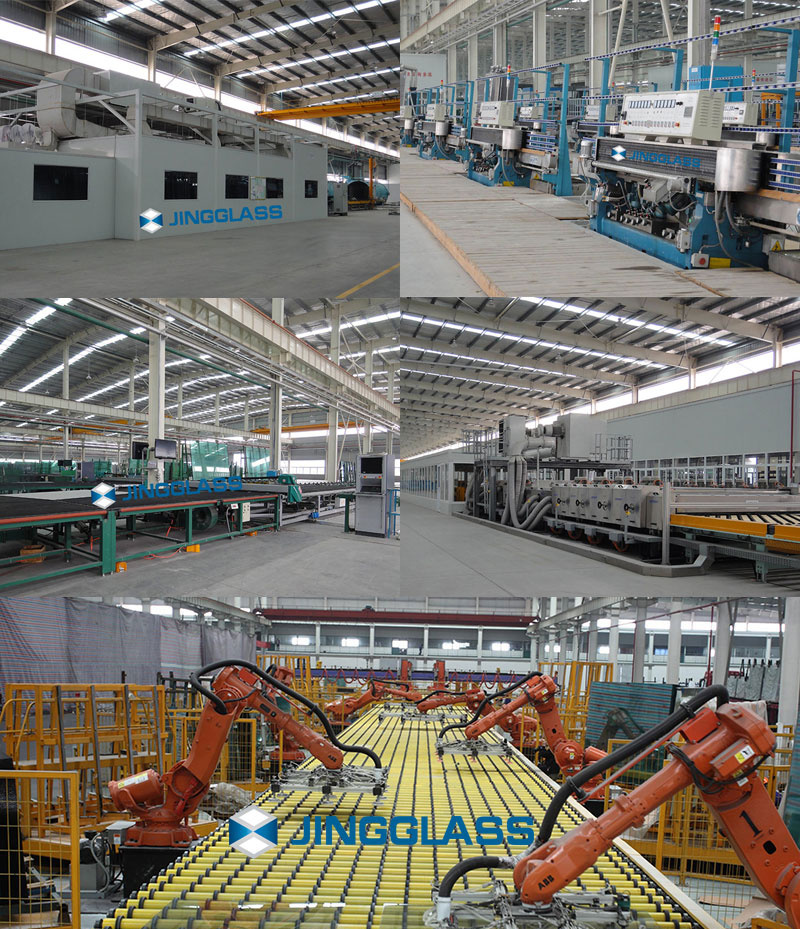

Manuacturing Jingglass Jointly manufactures and exports a variety of glass products for architectural, decorative and residential uses. Supplying a comprehensive range of products including clear float glass, low iron glass,tinted glass, Low-E glass, tempered glass,laminated glass,Ceramic Fritted Glass etc. We have been dedicated in the research and development of advanced glass manufacture techniques. Possessing Austria Lisec automated float production lines,
Finland TAMGLASS tempered furnace, Switzerland Bystronic automatic insulating glass production line, Italy Bottero two side edging equipment, USA's Applied Films Group and Germany's Von Ardenne Low-E coating line, Finland GLASSROBOTS laminated glass production line, our toatal prodution capacity is 100,000 tons per year.

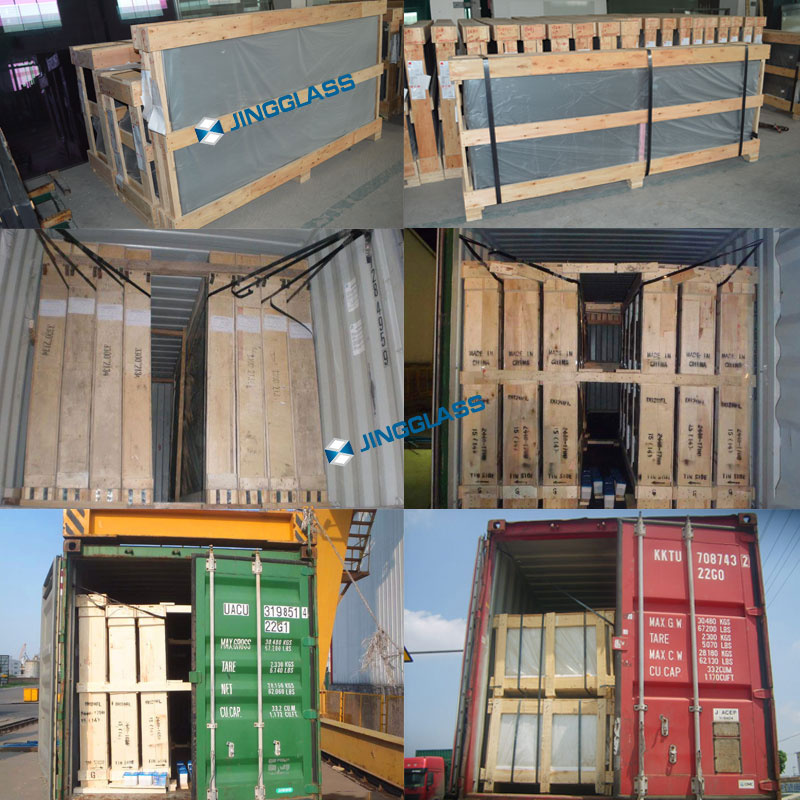

Packing and Shipping
FAQ
Q:What kinds of glass can you provide?
A:laminated glass,tempered glass,insulating glass and low-e glass etc.
Q: What is your minimum order quantity?
A:Our MOQ is one 20 feet container (20-27Tons).We can also do LCL orders.
Q: How can I get samples to check your qulity?
A:We offer samples for free. ALL YOU HAVE TO DO IS ASK!
Q:Can you do OEM Orders?
A:Yes,we hire technicians to design your products as per your specific needs.
Q:What is your trade Term?
A:FOB,CFR,CIF,EXW.
Q:What is your payment term?
A:T/T,L/C, Credit 30-90days.
Q:What is your delivery time?
A:15-30 days,depend on the order quantity.
Dongguan Jinghai Glass Co., Ltd abbreviates Jingglass, locates in famous manufacturing industrial city Dongguan, Guangdong province, China. Having more than 15 years experience in domestic and overseas architecture glass markets. Supplying a comprehensive range of products including laminated safety glass, tempered safety glass, low e insulated glass, reflective glass, ceramic frit glass, tempered glass, curved tempered glass, heat strenghened glass, fire proof glass, bullet proof glass, ultra clear glass(low iron glass), etc for curtain wall shower doors, windows, facades and furniture applications.
Possessing fully Austria Lisec automated float production lines, Finland TAMGLASS tempered furnace, Switzerland Bystronic automatic insulating glass production line, Italy Bottero two side edging equipment, USA's Applied Films Group and Germany's Von Ardenne Low-E coating line, Finland GLASSROBOTS laminated glass production line which make us more professional and compettive, our toatal prodution capacity is 5000, 000 tons per year.
Our glass pass Australian CSI certificates, US IGCC SGCC certificates, European CE certificates and Chinese national certificates. Now we are working with customers in over 68 countries. We are committed to providing global customers with safety, energy saving, practical, excellent products and satisfactory service.
