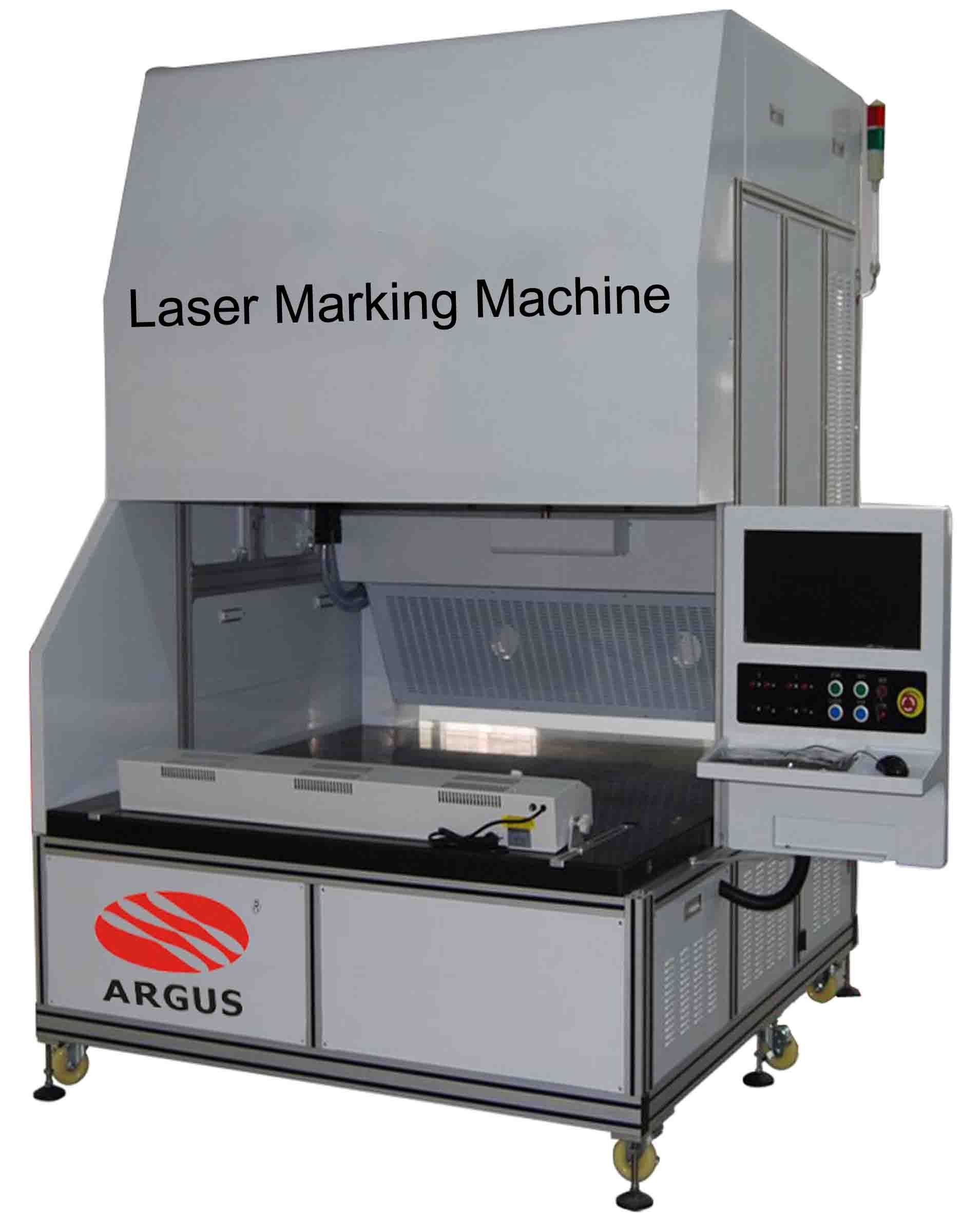

Argus Carpet Laser Marking Engraving Machine 1500X1500mm 250W
| Price: |
US $ 46000-55000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SCM3000 |
| Max Work Size: |
1500*1500mm |
| Power: |
250watts |
| Laser Source: |
Us Coherent CO2 RF Metal Laser Source |
| Galvo: |
CTI Galvo Scanner |
| Max Marking Speed: |
10000mm/S |
| Repetition Precision: |
0.01mm |
| Min.Letter Size: |
0.3mm |
| Output Compatibility: |
Auto CAD, Photoshop, Coreldraw etc |
| File Formats: |
Plt, Dxp, BMP, JPG, Ai etc |
Product Description
Argus Carpet Laser Engraving Machine 1500X1500MM 250W The Light guiding plate processed by Laser dotting display the excellent features of super thinner&brighter, uniform light guiding, energy saving and green, no dark areas, longtime lasting, no yellowing, convenient and easy maintenance:1, Thinner acrylic materials are viable, to save raw cost 2, Higher lighting efficiency3, Both dots and marking lines are generated by reasonable arrangement (sparse in edges and intensive in middle ) processed by professional optical designing software, to maximize the uniformity of lighting efficiency of at least 90%.4, Longtime lasting, and no yellowing features to ensure an indoor lifetime of 8 years' normal use5, No affects by water or humidity, while by which the LGP processed by screen printing can be easily affected and bleak.6, Simple process as well as higher flexibility with LGP production. It's supportive with various LGP shapes according to customers' designs. Faster marking, lower cost, and avoid the shortcomings of complexity processing, poor durability in screen printing craft.7, Much Lower requirement with plate flatness. The laser dotting machine is capable to bear a deviation of 5mm in flatness with few affect, which is totally unacceptable in screen printing industry.
| Model | SCM3000 |
| Power | 250watts |
| Max.work size | 1500*1500mm |
| Max Marking Speed | 10000mm/s |
| Power Consumption | < 7kWh |

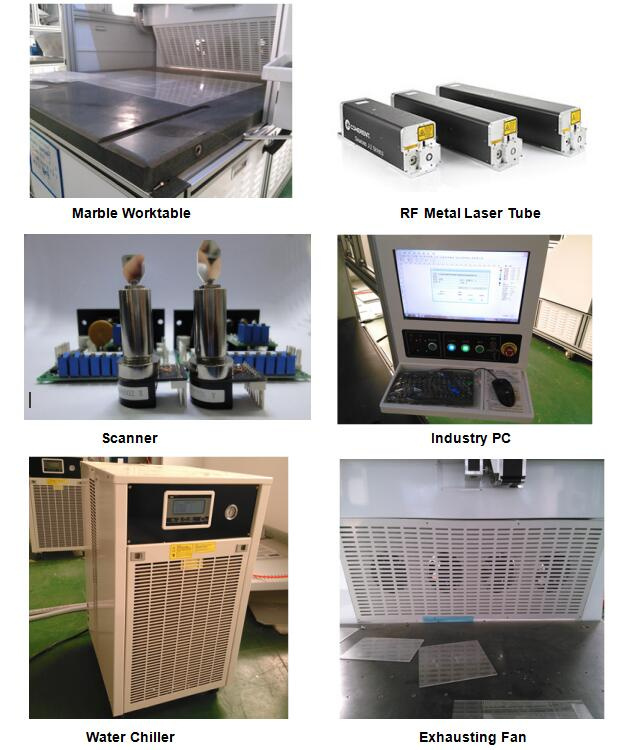

| Worktable | Almumin / Honeycomb / Marble for clients |
| Laser source | Amercian Coherent Co2 RF metal laser source |
| Laser wavelength | 10.64um |
| Laser Frenquency | 20k-200k Hz |
| Scanner | Amercian CTI |
| Repetition Precision | 0.01mm |
| Min.Letter Size | 0.3mm |
| System Support | WIN7/WIN8 |
| Output Compatibility | Auto CAD, Photoshop, CorelDRAW etc |
| File Formats | PLT, DXP, BMP, JPG, AI etc |
| Software Character | Integrated Function of Dotting Design, Vector Drawing, Marking, Scribing and Cutting |
| Power Supply | 110V~380V/50Hz~60Hz |
| Cooling Way | Circulation of Water Cooling |

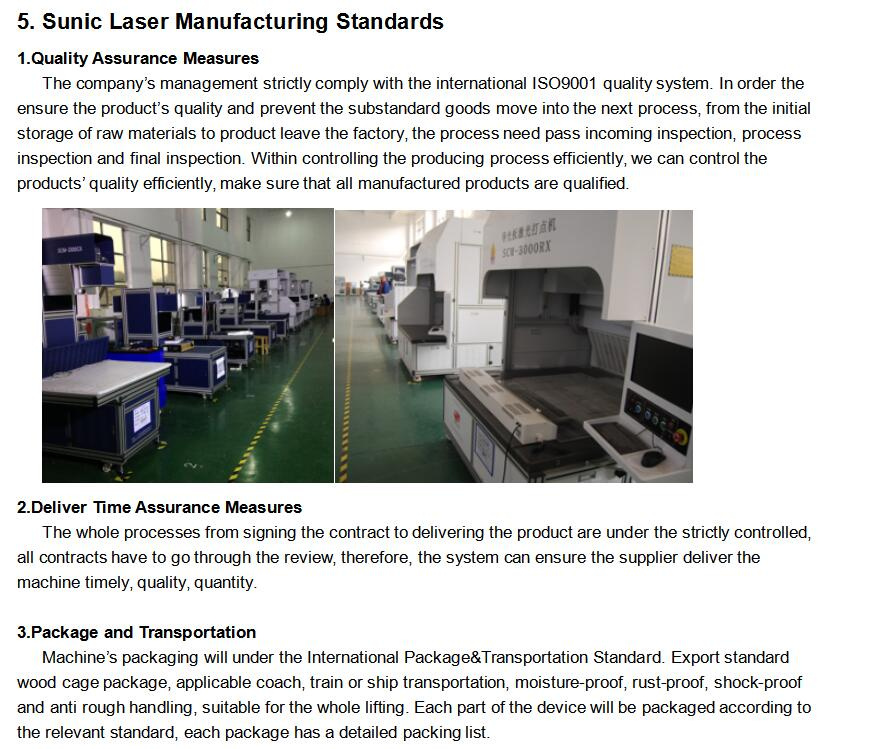

4. Sunic Laser Service SupportSunic Laser has always been committed with the service idea of Customer-centric, supply Installation, Adjustment, Training and Maintenance in pre-sales and after-sales service.1.Pre-sales ServiceBefore signing contracts, Sunic Laser supply customers service of production plan, technical consultant, sample trail and equipment suggestion and etc.2.Installation and DebuggingEquipments will be delivered to the target place in time according to customers' requirement. Our professional Engineer can make sure Installation and debugging processes be settled down in 1~2 days, as well as a clear, tidy and orderly field.3.TrainingSunic Laser supply free technical training for all customers all over the world until the workers from buyer can operate the machine normally and individually. Mainly training are as follow:1, Training for Control software operation2, Training for normatively turning on/off operation of the machine3, Instruction of technical parameters, as well as their setting ranges4, Basic daily cleaning and maintenance for the machine5, Solutions for common hardware problems6, Training for other questions and technical suggestions during daily productionTraining can be processed in the following ways:1,Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.2, We can send engineers to customers' country and do training for workers in customers' target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.3, Remote training through Internet tools like Team-viewer, Skype and other instant communication softwares.4. Equipment Maintenance1, One year free maintenance, lifelong caring2, Free technical consultant and software updating3, Customer Service responding in 12hours4, Continuous support with software and hardware after free maintenance5. Guarantee The guarantee period shall be 12 months counting from the date on which the commodity arrives at the port of destination. Except the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.
The Sunic Laser Co., Ltd began production in 1998 and is now one of the largest producers of industrial LASER equipment in China. With more than 200 employees (combined experience totals more than 1000 years! ), we have self-operation export and import rights to well over 80 different countries.

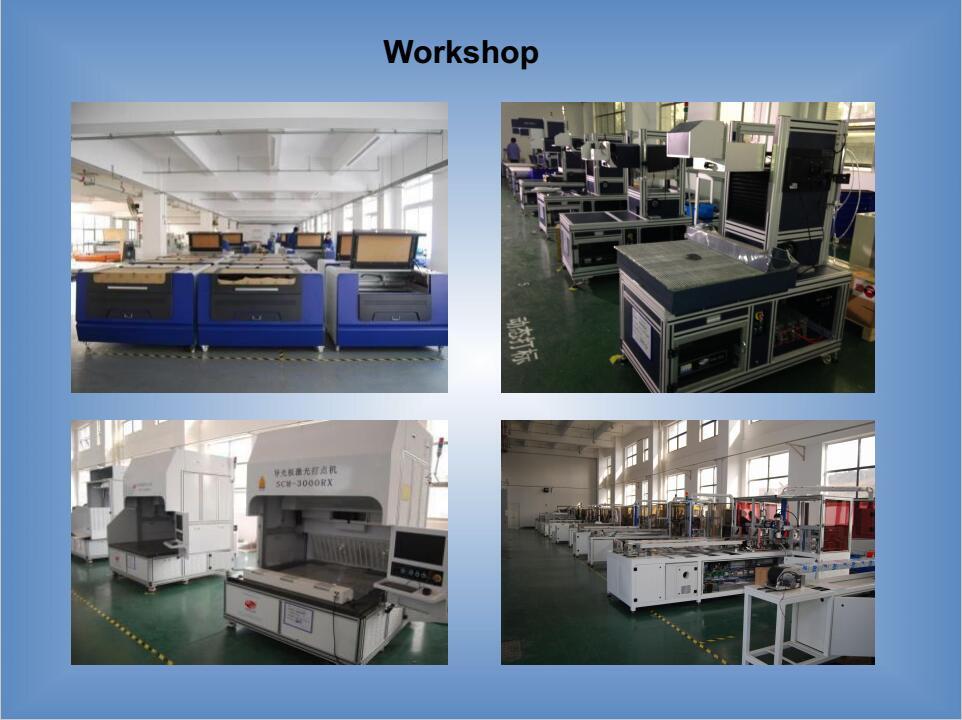

Since 1998, we have consistently weeded out older technology to implement the latest available technology in all of our 30+ LASER machines. The unparalleled growth of our company is evidenced in our four factory relocations over the last 7 years - each new premises allowing us to double the production capacity of the previous. Our sales of Scribing Machines are 85% domestic, making us the largest market occupier in this sector (in mainland China).
Aside from the Solar Industry, we supply a wide range of Marking Machines, Cutting Machines, and Engraving Machines that use the finest available German LASER sources where applicable. From cutting edge (no pun intended) Fibre LASERS to high-power CO2 LASERS, we will ensure that we provide you with the highest quality machine for your project - whilst maintaining a competitive price! Our mission is to provide you with consistently high quality in all areas of our business from the machines we make, through to our after-sales service. Our goal is to help you grow your business such that you come back to us for more of our quality products in the future.
