Price: | US $ 4000-6000/Piece |
---|---|
Min Order: | 1/Piece |
Pay Type: | T/T,Western Union,Paypal |

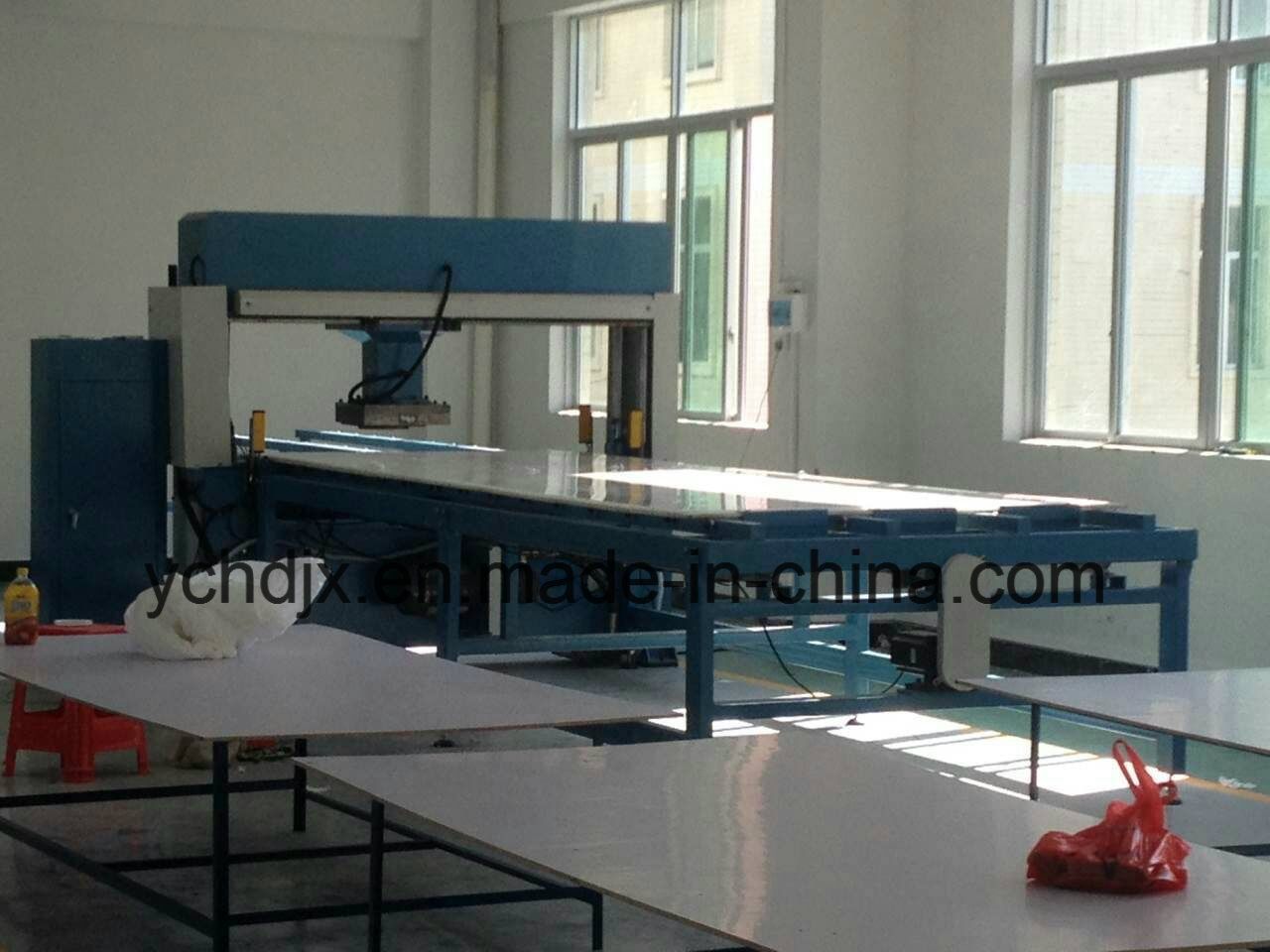

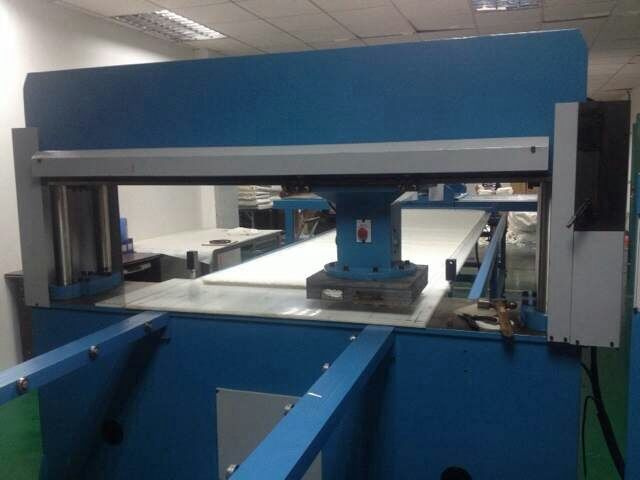

Automatic slipper cutting press machine is applicable to continuous cutting operation of nonmetal rolled materials of same specifications and large batches by die cutter.
1)Automotive components
2)Abrasives,abrasive paper
3)Carpet and flooring
4)Clothing-thing - components for hats, ties, collars, shoulder pads
5)Cork gaskets and mats
6)Disposables - pads, wipes, strips
7)Felt strips, washers, gaskets
8)Filters for machinery, breathing apparatus and the medical industry
9)Foam and sponge - gaskets, packaging, consumer products
10)Footwear components - shoes, insoles, insole socks, uppers, straps
11)Gaskets, seals, washers in plastic, cork, rubber, paper, felt, PTFE, graphite and more
12)Leather and leather goods - shoe uppers, wallets, purses, belts
13)Medical products - filters, dressings, foot care products, footwear
14)Packaging - foam, inserts, card, promotional products, blister packs
15)Paper, card - stationery, novelties, filters, labels
16)Plastic cards - promotional, business, badges, labels
17)Plastics - PVC binders, lampshades, stationery products, gifts, novelties, gaskets
18)Rubber - gaskets, seals, washers
19)Textiles - sample swatches and pattern books, underwear and outerwear components, hats, ties
20)Toys - soft toys, advertising novelties, mini jig-saw puzzles and more
21)Vacuum formed products
Main Features Of Automatic slipper cutting press machine
· Suitable for thick single and double roll material
· Two or three axis servo motor position system guarantees position accuracy of ± 0.2 mm.
· Working capacity of 15,000 to 20,000 cuts per 8 hours.
· User friendly computer control.
· Program and cutting die change within 5 minutes or less.
· Optional auto nesting software is available to achieve best material yield through computer auto nesting.
· Combine with optional feeding system to obtain automated die cutting systems for high production even with many daily die changes.
· Material savings up to 20% and more.
· Increase Productivity, Extend Die-Life, Assure Cutting Quality
options
· Powered feed table
· Twin feed tables
· Independent stroke/daylight setting for each side
· Head mounted cutting pad
· Larger feed table/conveyors for progressive cutting
· Manual or powered mechanical depth stops
· Linear or orbital pad shifting device
· Material feed rollers
Technical Data:
Max cutting force | 250KN/350KN/400KN/500KN(can be customed) |
Cutting speed | 0.15m/s |
Stroke adjustable range | 50--140mm |
The distance between the upper and lower plate | 30-180mm |
The punch transverse speed | 50-250mm/s |
Fedding speed | 20-90mm/s |
Size for upper board | 300mm |
Size for work table | 1800mm*500mm |
Motor power | 3kw |
Transverse motor power | 1.1kw |
Feeding motor power | 11kw |
Suction cup size | 300mm*300mm |
USAGE
This equipment is suitable for leather, plastic, canvas, nylon, paper board, vacuum forming, composite materials, sporting goods (ball), sandpaper, medicine, packaging, and various kinds of synthetic materials one layer or layers.Especially for cutting small die cutter, regular, bulk parts especially.Such as football, volleyball, tennis, grinding wheel, cutting slices, insoles, etc.Aiming at the various defects of traditional cutting machine modified, halcyon, quickly, and to upgrade the industry improve the work efficiency

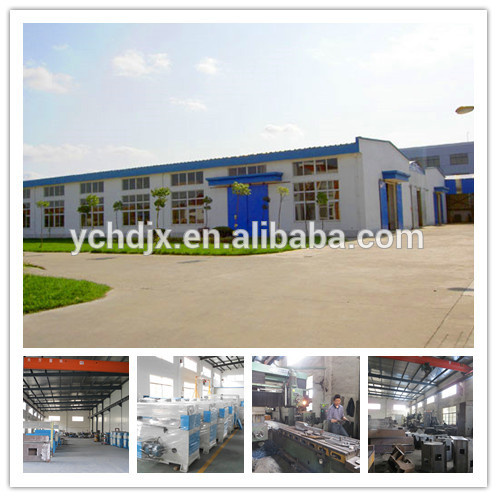

FACTORY OVERVIEW
CERTIFICATIONS
CONTACTS
Prod Model: | XCLP3 |
---|---|
Type: | Leather Cutting Machine |
Certification: | ISO9001 |
Color: | Blue or Customized |
