Auto PVC TPR Hydraulic Control Sandals Upper Mould Extruder Machine
Price: |
US $ 50000Set |
Trade Terms: |
FOB |
Min Order: |
1Set |
Pay Type: |
L/C,T/T,Western Union |
Prod Model: |
EK8806 |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
Productivity: |
8000-10000 Pairs/ 24hours |
Type: |
Injection Blow Molding |
Structure: |
Horizontal |
Plastic Type: |
Thermoplastic |
Plasticizing Way: |
Screw Type |
Clamping Way: |
Hydraulic & Mechanical |
Automation: |
Automatic |
Computerized: |
Computerized |
Certification: |
ISO9001:2008 |
Product Description
Specifications
Upper Molding machine is used to make three-color PVC or TPR upper, sole and stepping-pad of electronic bile and motorcycle, etc

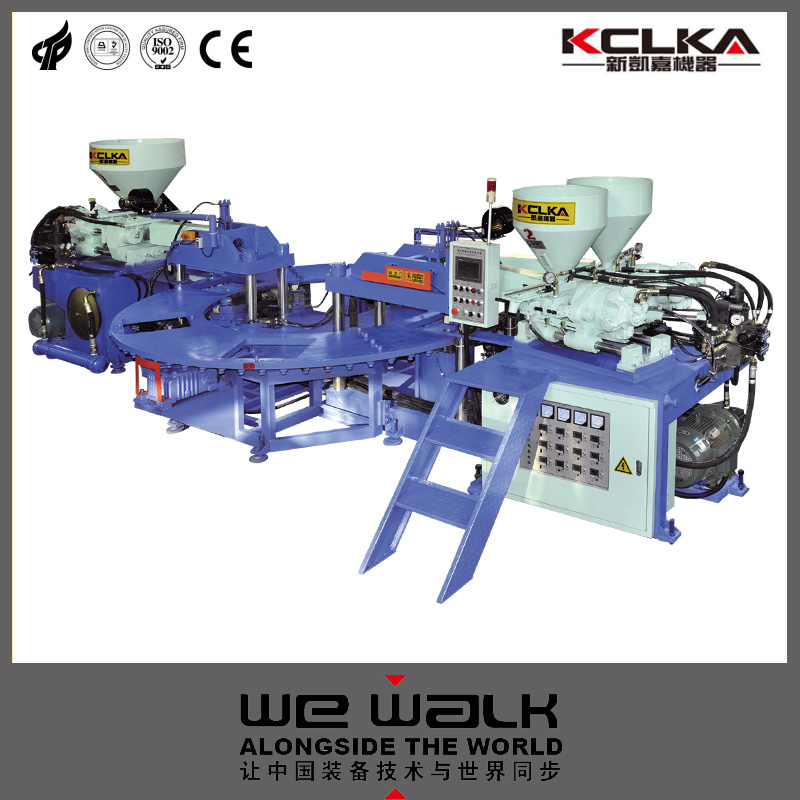

Upper Molding Machine EK-8806
Feature:
1. This machine can be used to make three-color PVC or TPR upper, sole and stepping-pad of electronic bile and motorcycle, etc.
2. Humanized man-machine interface, PLC controlling, touch-screen display.
3. Double-ratio hydraulic system;
4. Accurate digital measurement;
5. Rational layout, easy to operate and it can be run without professionals;
6. Energy-saving ,less laborer, high production;
7. Master and slave can be exchanged mutually to use, it has stronger adaptability, single color, double color and three color can be chosen freely.
8. This machine has large injection force, clamping force and can make large size products is high when producing large size shoes. Specifications:
Item | Unit | Specification |
Model | | EK-8806 |
Raw material | | PVC |
station number | Pcs | 6,8 |
Screw diameter | mm | 60, 45x2 |
Screw speed | r/pm | 0-155 |
Max Injection capacity | cm3 | 565, 240x2 |
Injection hydraulic | Mpa | 80 |
Clamping force | Kn | 100T |
Power of motor | kw | 15,11 |
Heating power | kw | 16 |
Limit of temperature | point | 4 |
Model size L*W*H (max) | mm | 400*400*110 |
Machine size | mm | 6300*2850*1920 |
Machine weight | Kg | About 10000 |
Daily Production | Pairs/24 hours | 8000-10000 |
New KCLKA machine Manufacture Limited Corporation, a subordination of Sheng Da Machine Manufacture institution, is a high-tech-exploring and designing company, specializing in making various kinds shoe machines.
Jinjiang KCLKA Machinery Manufacture Co., Ltd is located in Jinjiang City which is called the "Shoes Industry City" in China. Our company specializes on shoe-making machines together with researching, manufacturing and technology support. The innovation is the soul of our company, every member in KCLKA is deeply aware of that. We hold the idea of "Creating value, Breaking through achievement and Leading innovation". Our company has made great contributions to this field of our country. Right now, there are already more than 20, 000 square meters modern workshop in our factory.
Our company has been absorbed in the machine making soles, sandals, slippers, strap, rain boots, etc. For instance, Full automatic EVA injection moulding machine and PVC/TPR rotary injection moulding machine etc. Our machine is suitable for many sorts of material, such as EVA. TR, TPR, TPU, E-TPU, PVC.
Our company provides high quality merchandises, professional services and advantageous price. During the innovation and competition, we have established the sales structure in and out of China and also fulfilled our technique service system. We have many sales service networks in Beijing, Shanghai, Shenyang, Chengdu, Shijiazhuang, Guangzhou, Dongguan and Wenzhou. We have built our correspondent networks in overseas countries, with branches in Thailand, Vietnam, Malaysia, Iran, the Middle East, South America and other countries and other regions.
In recent years, we successfully export products to Indonesia, Nigeria, Vietnam, Mexico, Ethiopia, Guatemala, Russia, Poland, Turkey, Iran, India, Algeria, South Korea, Egypt, etc. All of our products are well-assessed by our clients.
"We walk alongside the world", we will constantly pursuit the perfectness. Hereby, we sincerely welcome all friends from all over the world, to be KCLKA guests and start the cooperation with us.
