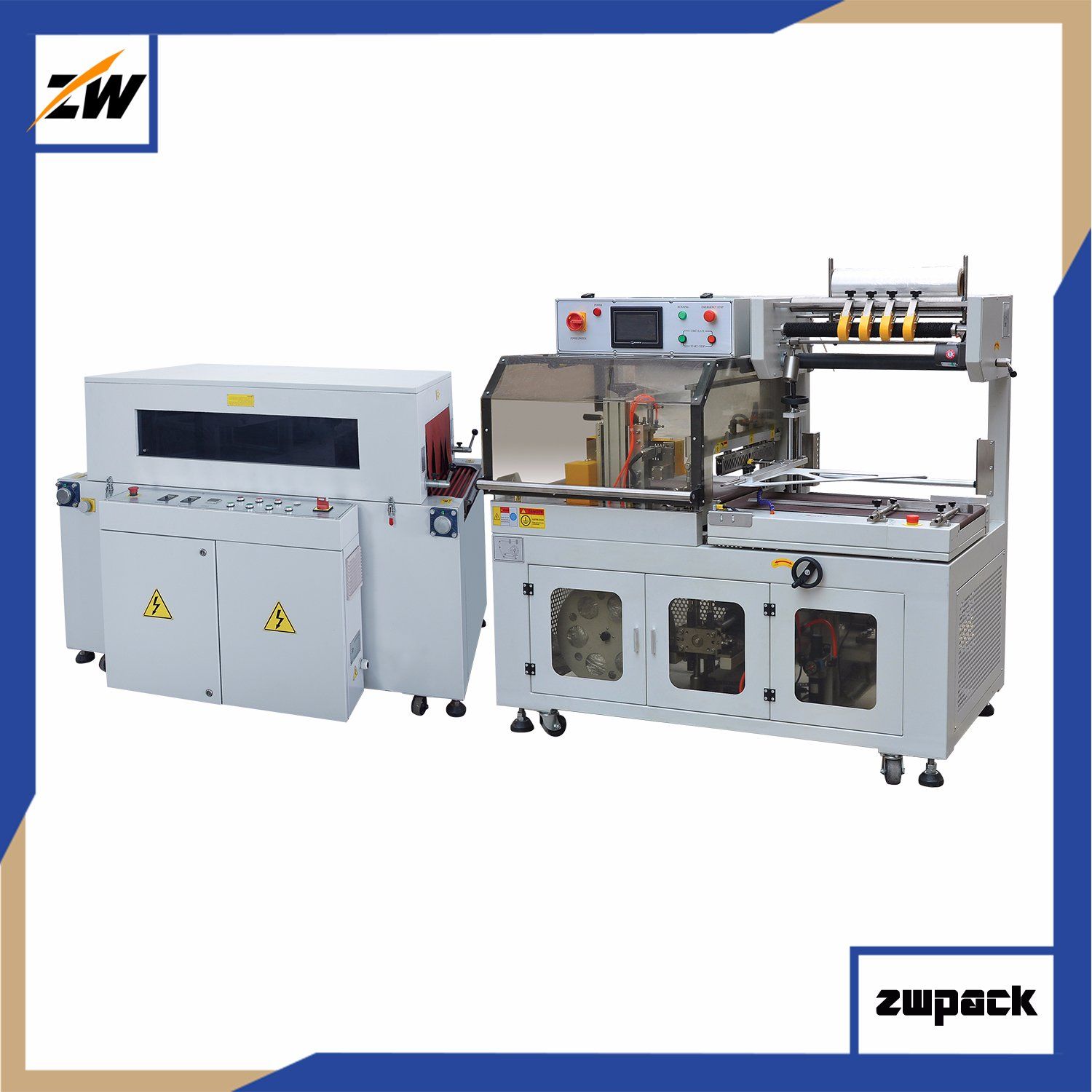

Auto Side Shrink Packaging Machine
| Price: |
US $ 9500-13000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product DescriptionApplication:
Automatic Side Sealer Shrink Packing MachineFeatures:1. ZWJ-300 is a fully automatic shrink packaging machine including side sealer and heat shrink tunnel which can feed products, seal and cut film and shrink film bag automatically. It is widely used in food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.2. This machine can pack long products. There is no limit of product length because of side sealing system.3. Special durable alloyed sealing knife with anti-stick Teflon coats makes sealing strong and has better performance of heat conduction.4. Side sealing line can be adjusted in the center of product or other desired position.5. Film perforating wheels can be adjusted or removed easily.6. Only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes. Packing length can be detected by the sensor automatically.7. Operate easily and conveniently by moveable control panel.8. Adopt Siemens PLC and colorful touch screen, Omron temperature controller, timer, relay, switch, and sensor.9. A pair of photoelectric switch in vertical for thin products.10. Optional sensor for transparent productsAutomatic Side Sealer Shrink Packing Machine
Sample Packed
| Technical data | zwj-300 |
| Sealing type | side sealing |
| Power supply | 380V/50-60Hz/3phase |
| Product length | infinite |
| Sealing height | 200 mm |
| Product size | width + height <=400mm |
| Conveyor speed | 20M/min |
| Film type | center-folded polyolefin (POF) film, center-folded polyethylene (PE) film |
| Max film size | 530mm (width) x 280mm(outer diameter) |
| Power consumption | max. 8.5kw |
| Shrink tunnel oven size | 450(W) x 220(H)mm (depends on product size) |
| Shrink tunnel conveyor speed | variable, 40 m/min |
| Shrink tunnel conveyor | rotating silicon coated rods |
| Working height | 750-820 mm |
| Air pressure | 0.5MPa (5 bar) |
| Sealing knife | Teflon coated alloyed knife with permanently heated bar |
| Main control components | Siemens PLC and touch screen, Omron temperature controller, relay and sensor |
| Machine main material | powder coated carbon steel |
| Machine dimensions | 1650x900x1420mm;1600x600x1300mm |
| Machine weight | 350kg |
Automatic Side Sealer Shrink Packing Machine

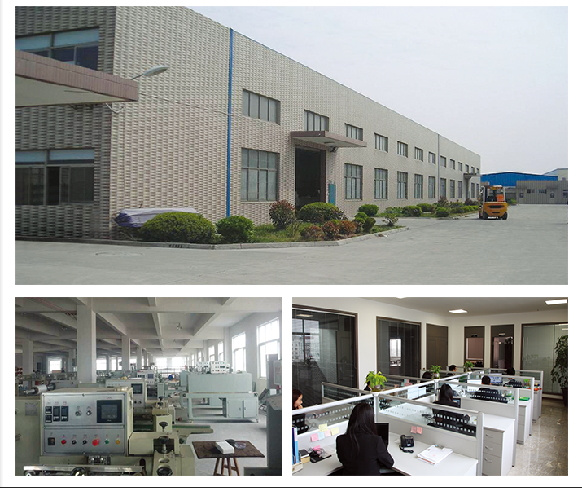

A Brief Introduction of the Company
Wenzhou Zhongwang Packing Machinery Co., Ltd., located in Pingyang county, wenzhou city, zhejiang province. Our company integrates scientific research, manufacture, marketing with services. It has abundant tachnical strength, advanced production equipment, high quality staffs and perfect post-services. The main products of our company are automatic heat shrink wrapping machinery such as auto L-bar sealing & shrink packing machine, automatic side sealing & shrink packing machine, automatic sleeve heat & shrink packing machine and related equipments. Also we are glad to provide OEM service for other manufacturer or company. Most of our machines have CE certificate. Our machines are famous for high quality and reasonable prices. They are popular in domestic and exported to over 40 countries. Till now, we have good reputation around shrink packing industry. On the basis of mutual benefit, we firmly insist on the principle of "credit and customers satisfication first". We have won the trust of clients form home and abroad and we are also looking forward to wider cooperation with new customer.
| Prod Model: |
ZWJ-300 |
| Application: |
Commodity |
| Packaging Materials: |
Film |
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
