Prod Model: |
SL-08E |
Power: |
0.37kw |
Product Description

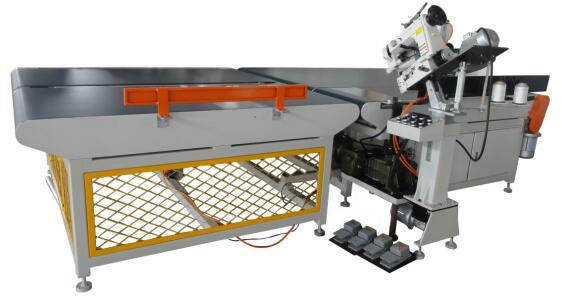

This machine is mainly used for
mattress tape sewing. The main advance is sewing head need not moving, but the lifting machine can turn angles to sew mattress of different thickness. It is equipped with
Singer-300U chain sewing head and microcomputer controlling system imported from America. When producing, the conveyer can move forward, backward, turning 90 degrees or 180 degrees to sew the whole mattress automatically.
Technical Specification:Model | SL-08E |
Machine size | 4000×2600×1400mm |
Work table size | 4000×2000×800mm(adjustable) |
Mattress thickness | 150mm - 300mm |
Sewing speed | ≤9m/min (adjustable) |
Angle of sewing head | 35°-55° |
Lifting range of sewing head | ≤300mm (adjusted by motor) |
Power of sewing motor | 0.37KW |
Power of lifting motor | 0.37KW |
Power of conveyer | 0.75KW×2 |
Power of the push motor | 0.75KW |
Air pressure | 6 KGS/cm3 |
Weight | 1350KG |
Taishan Softlife Mattress Machinery Co., Ltd. is a professional company for foam machinery, mattress machinery and mattress semi products, which locates in Taishan City, Guangdong Province, P. R. C. Our company is designed as landscape style, occupying an area 42000m2. Our products are mainly exported to Southeast Asia, Middle East, Euro, South America, Africa and so on. All our products are strictly tested before selling, to make sure that our products are in best working order.
Meanwhile, our strong technical team is dedicated to improve our products. Most of our products have adopted numerical control system, which increases productivity and ensure that our customers can benefit a lot from our products.
To always offering comprehensive after-sale service to our customers. "No the best, only better" is our working target. We always keep on offering better and better product and service.
