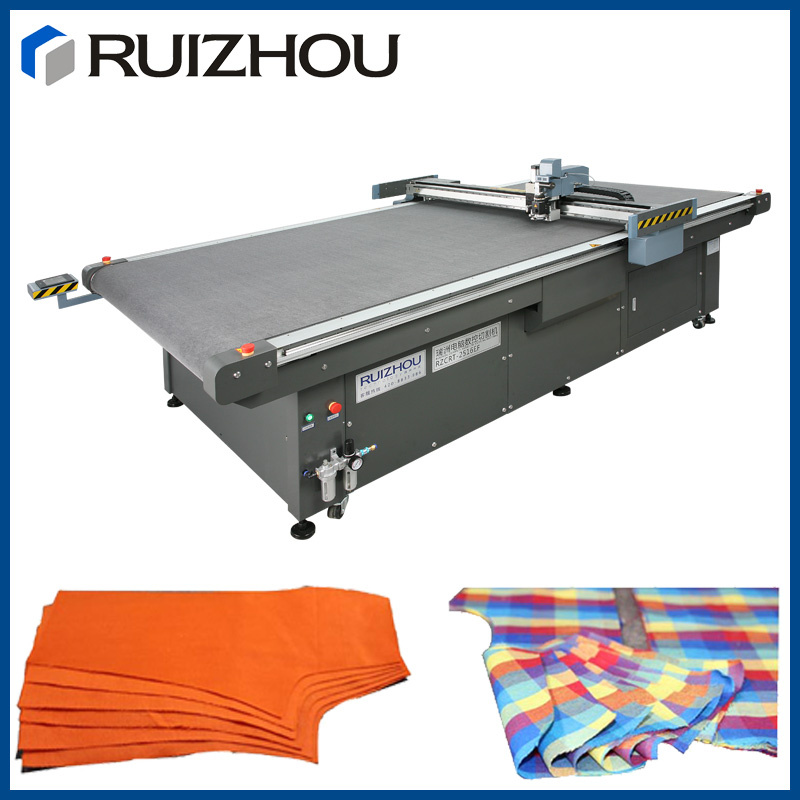

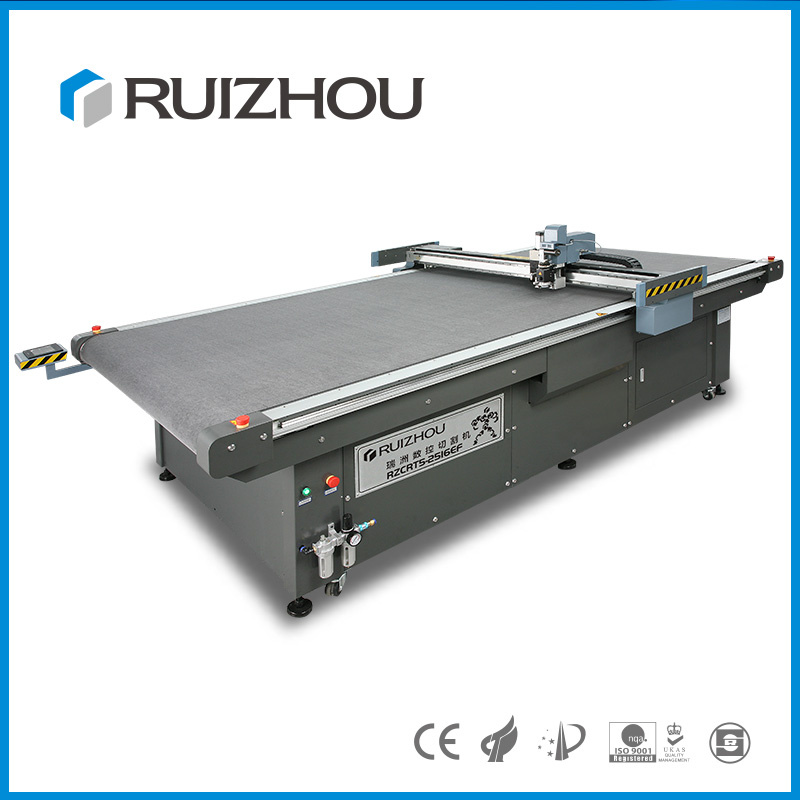

Automatic Conveyor Table Cloth Cutting Machine
Ruizhou CNC fabric cutting machine, is specially designed for fabric cutting. It is widely used in apparel industry. This fabric cutting machine can be applied to cut soft materials as common, fabric, clothing, PU, nylon, PVC, etc.
Characteristics:1.Fast, accurate and no burning. It cuts at a speed of 1500mm/s(max.) by knife, not laser. 2.Safe. Special safety sensory device meets the European standard.3.Professional. Oscillating knife, V-cutter, milling knife, creasing wheel and marking pen are available and optional. The profession machine can meet almost any requirement in package industry. 4.Saving. Labor saving, material saving and power saving. 5.Compatitable. Support any design software which can output files in DXF or PLT formats. (Such as AutoCAD, AI, CorelDraw) Tools & Functions

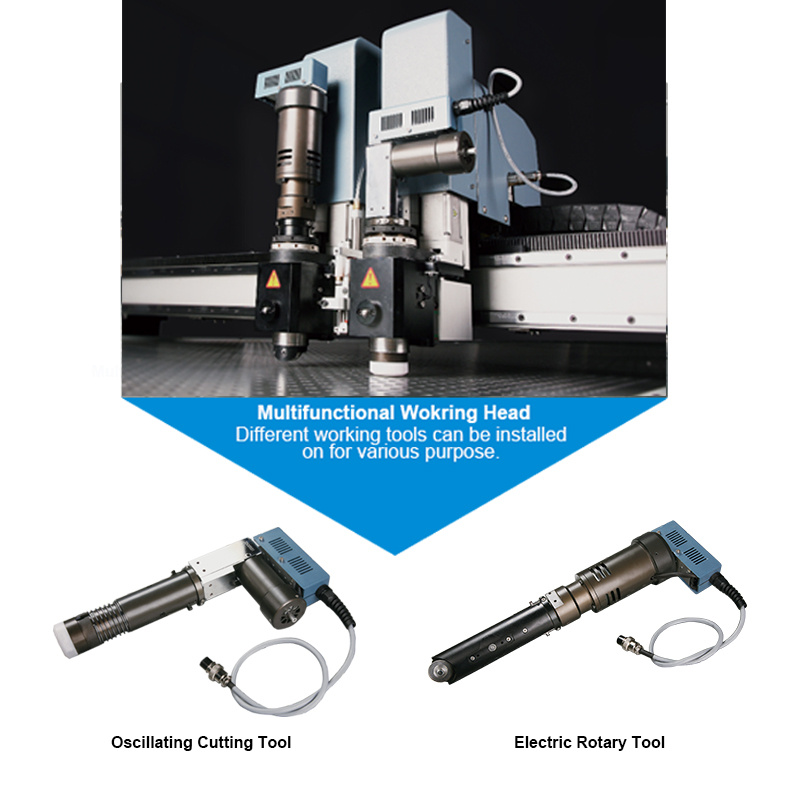

1. Oscillatin Cutting Tool
It is fast, accurate and no burning nor smell.
2. Electric Rotary Tool
It is more fast an low noise.

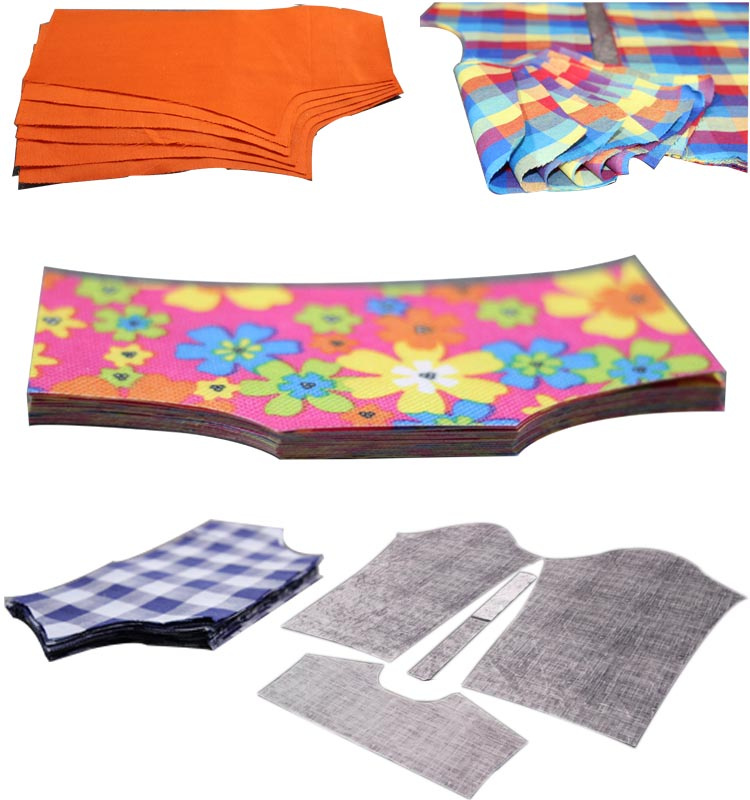

Cutting effect

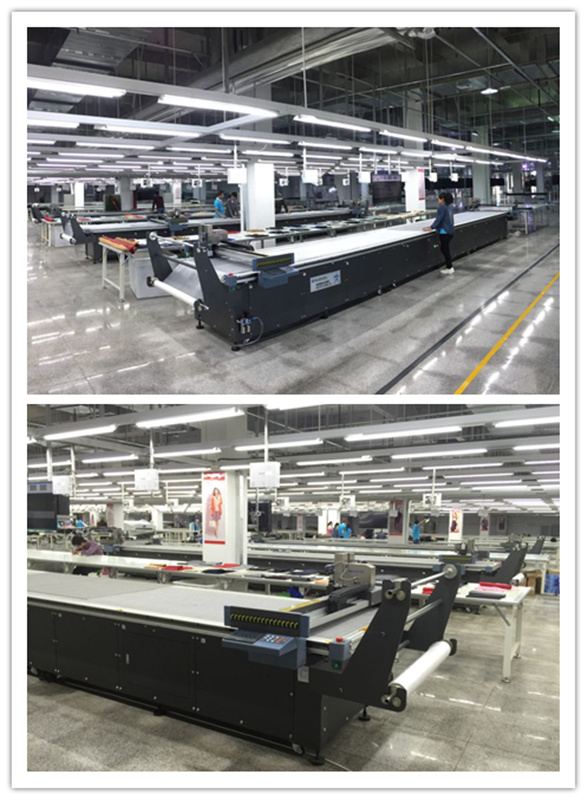

Customer Application
Parameter | Cutting speed | 0-1200mm/s |
| Applicable thickness | 0.4mm-50mm, can be adjusted according to the material thickness and pattern. |
| Cutting Materials | common, fabric, clothing, PU, nylon, PVC, etc. |
| Tools | Oscillating cutting tool |
| Hobbing cutter, Marking pen |
| milling cutter, creasing wheel, punching tool. (optional) |
| Material fixing method | Divisional vacuum absorption |
| Mechanical resolution | 0.07mm |
| Software resolution | 0.025mm, 0.01mm, 0.1mm (optional) |
| Interface of transmission | Network port |
| Buffer Capability | Once fast transfer |
| Command system | HP-GL and GP-GL compatible formats |
| Digital Control Panel | Liquid crystal display and touching button |
| Transimission Materials | Imported staight line guide track, synchronous belt |
| Motor | Servo motor |
| Cutting Blade Rotate | Vibrational cutting head 18000r/min, milling spindle motor 4000-1000r/min |
| Working Voltage | AC 220V ± 10%, 50HZ (Machine) |
| AC 380V ± 10%, 50 HZ (Air Pump) |
Models
| Model | Working area | Model | Working area |
| RZCRT5-1510E | 1500mm x 1000mm | RZCRT5-3616E | 3600mm x 1600mm |
| RZCRT5-2516E | 2500mm x 1600mm | RZCRT5-6016E | 6000mm x 1600mm |
| RZCRT5-2516EF | 2500mm x 1600mm | RZCRT5-9009E | 9000mm x 900mm |

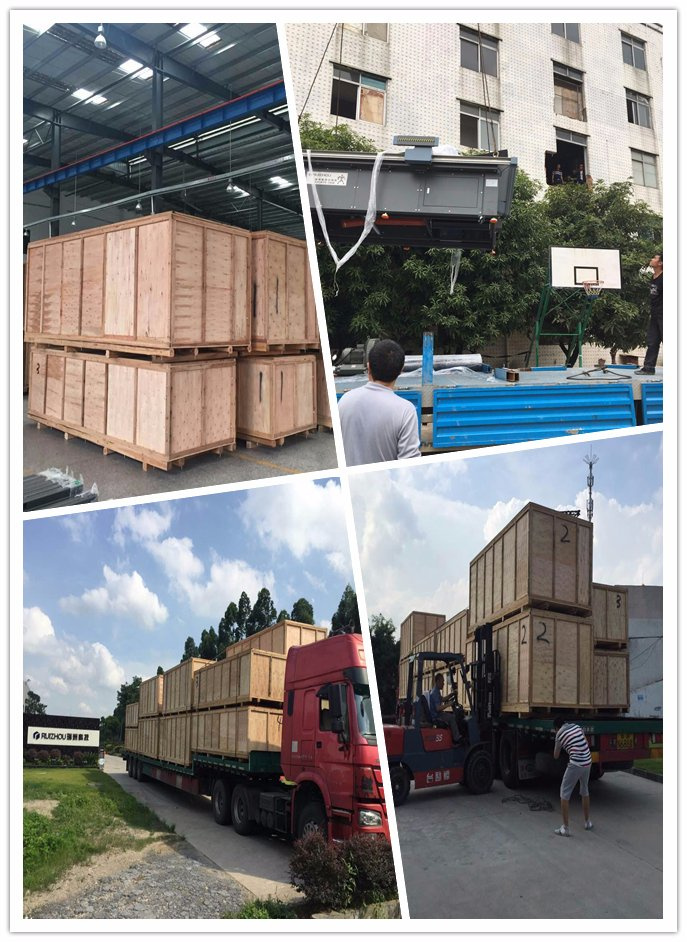

According to your requirements, different working area models are available.And both static table and conveyor table are optional. Packaging of Our CNC Cutting Machines

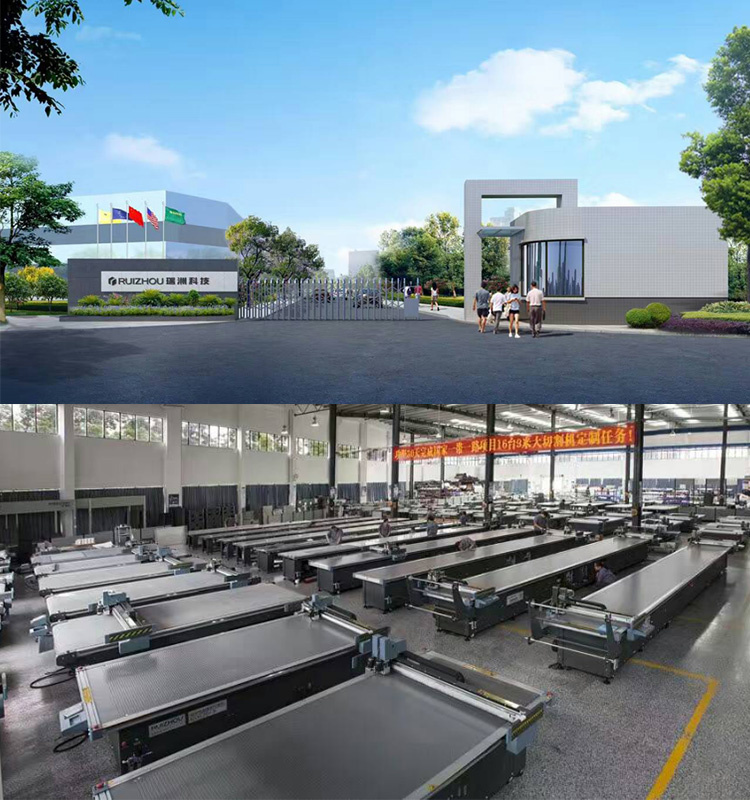

Company Factory Image
Warranty & afert sale service
1.One year guarantee for whole machine except of consumables such as knife blade, mat.
2. A free training at our company
3. 24 hours technical support
4. Calling or door-to-door service
5. User friendly English software, usual manual and videos.Note
Please contact with us for an accurate price;
It will be appreciated if you could kindly advise us your requirements in details!
