Automatic Linear Spindle Bottles Capping Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal |
| Prod Model: |
YLG-C6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cap Size: |
8mm to 110mm |
| Container Height: |
1in to 14in |
| Electrical: |
220VAC, Single Phase, 10 AMPS, 50- 60Hz |
| Capping Speed: |
up to 300cpm (Dependent on Operator, Container & P |
| Packaging Type: |
Bottles |
| Automatic Grade: |
Automatic |
| Packaging Material: |
Plastic |
| Application: |
Pesticide Medicine |
| Usage: |
Outpacking |
| Type: |
Cap Sealing Machine |
| Material Type: |
Liquid |
Product Description
Description:We manufacture our Automatic Capper for liquid packaging lines here in our facility. It is flexible, durable and works with most containers and caps including flat caps, sport caps, metal lids and many others. It's built on a heavy duty, tig welded, stainless steel frame with anodized aluminum plate construction to provide durability in almost any packaging environment. The modular design lets you start with just a cap tightener and easily add capabilities when you need them.
YLG offers an Automatic Spindle Capper for liquid product packaging, designed from the ground up to be flexible as well as durable. It is suitable for most rigid packaging lines, including those with flat caps, sifter caps metal lids and many other styles of twist on caps. Built on a heavy duty, tig-welded stainless steel frame with anodized aluminum plate construction, this capper provides durability in almost any packaging environment. The modular design lets you start with just a cap tightener and easily add capabilities when you need them.
Our Spindle Capping Machines are easily adjustable with tool-less Gripper Belts for containers from 1" to 14" tall. Add our tool-less 4 axis Cap Delivery Chute for caps from 8mm to 110mm. Changeovers are fast and simple. It is designed to be easily adaptable for special containers, special closures and harsh environments. YLG's Spindle Cappers are used in the production of cosmetics, food, beverage, cleaning, dry specialty products, pharmaceuticals, personal care and more.
Application:Will work with most containers and caps including flat caps, sifter caps, continuous thread metal lids and many others
Beverage
Coffee
Confection Items
Cosmetics
Pharmaceuticals
Personal Care
Technical Parameter: | Standard Construction | Heavy duty 304SS, tigwelded C-frame |
| Torque Range | 0-40in-lb (dependent on cap & container) |
| Capping Speed | Up to 300cpm (dependent on operator, container & product characteristics) |
| Cap Size | 8mm to 110mm |
| Container Height | 1in to 14in |
| Electrical | 220VAC, single phase, 10 amps, 50- 60Hz |
| Air Requirement | None for tightener
Options and sorters may require |

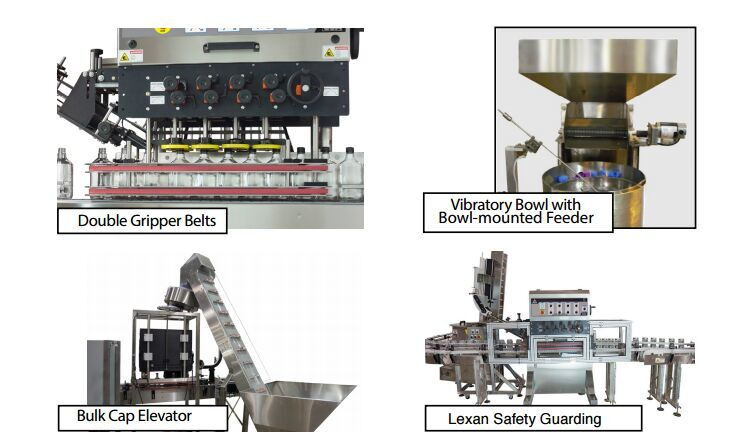

Features: Power height adjustment
Single, opposing, 3/4" Gripper Belts
Hand-wheel operated Gripper Belt height and width adjustment
Variable speed DC motors
4, 6 or 8 urethane Spindle Wheels
Spindle Wheel adjustment knobs, with lock nut hand wheel
No change parts required for a wide range of containers
304SS drive shafts and adjustment support shafts
Timing belt power transmission for Spindle Wheels
Bottom screw changeover on Spindle Wheels
1/2" aluminum mounting plates and 1/2" hard coat anodized supports on Cap Feed Chute
Cap Delivery Chute
