Automatic Paper Blister Packaging Machine for Plasticine
| Price: |
Negotiable/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
HZZ-350 |
| Automatic Grade: |
Automatic |
| Application: |
Oil |
| Driven Type: |
Electric |
| Material Type: |
Powder |
| Packaging Type: |
Cans |
| Packaging Material: |
Paper |
Product Description

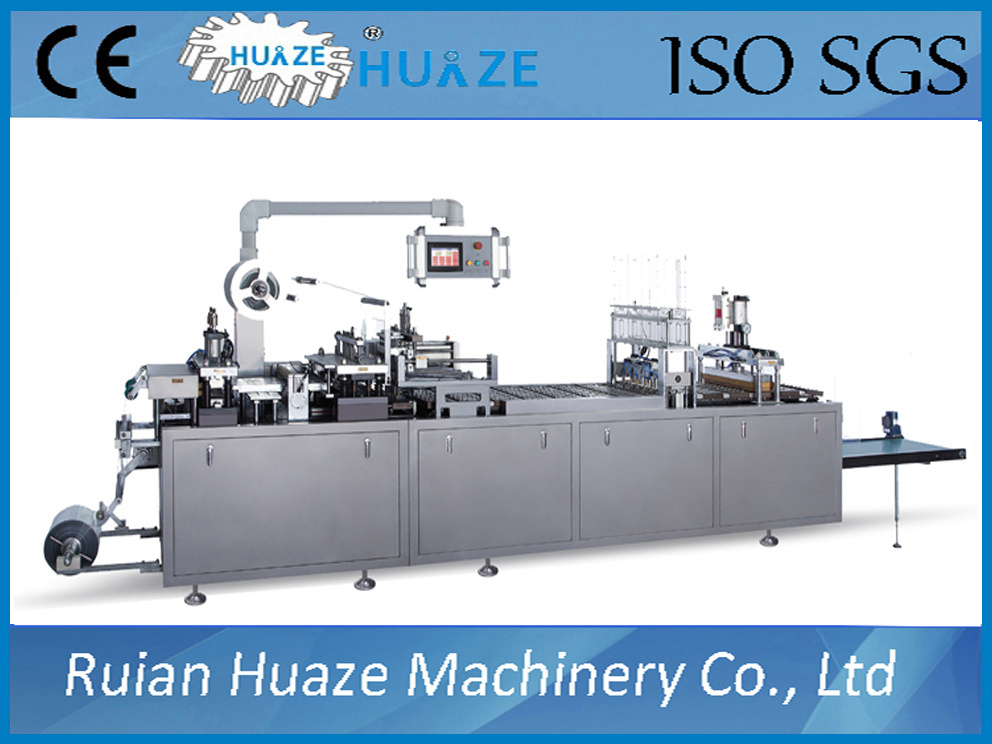

HZZ-350 Automatic Paper Plastic Blister Packaging MachineApplication:It is suitable for paper plastic packing of such products as cakes, injection, injectors, toy cars, scissors, flashlights, batteries, spark plugs,tooth brushes, lipsticks, facial masks, coat & hat hooks, chopsticks, cleaning balls, bottle openers, shavers, correction liquids, ball pens, etc. In food, medicine, medical equipment, toys, small hardware, small household appliances, electronics, automobile and motorcycle fittings, daily products, cosmetics, rubber & plastic products, table wares, kitchen wares, recreation & sports and other industries. Features:- Positive/negative pressure Molding, the butterfly(optional), cutting, paper card feeding, heart sealing, output conveying, etc. Simple structure, convenient operation.
- 304 stainless steel shell, conforms to the national pharmaceutical industry GMP requirements, beautiful appearance, easy to clean.
- Adopt servo motor stepless stroke control, stroke adjustment is simple,easy to changeover the molds.
- Photoelectric control, PVC exhaust and paperboard lack cause buzzing alarm.
- Using the split design, easy to transport and lift access.
- The respective plastic material feeding device, can save a lot a packing material.
- Molds designed according to requirements and automatic feeder equipment is optional.
Technical data: | Cutting Frequency | Paper/Plastic 10-20 times/min
(Standard 75mm*100mm*4) |
| Production Capacity |
Paper/Plastic 4320 pages/h |
| Adjustable Travel Range | 35-220mm |
| Max. Forming Area | 340×220mm |
| Max. Forming Depth | Paper/Plastic 40mm(Special machine 50mm) |
| Forming And Heating Power (Upper and Down) | 3.6KW(×2) |
| Rotating Disc servo Motor | 0.75KW |
| Sealing and Heating Power | 3.5KW |
| Total Power | 380V 50HZ(480V 50HZ)9KW |
| Forming Heating Power | 4KW |
| Main Motor Power | 1.5KW |
| Air Pump Volume Flow | ≥0.6m3/min |
| Packing Materials | PVC Roll | ≤400mm(Diameter)*350mm(Width)* 0.2-0.5mm(Thickness) |
| | Paperboard | ≤400×220×0.5mm (L*W*H) |
| Overall Dimensions | (1600*92*1600)(1500*1500*1300)mm (L*W*H) |
| Weight | 1800Kg |
Ruian City Huaze Machinery Co., Ltd. is a professional packaging machine manufacturer. We are engaged in manufacturing various types of packing machines that are highly reliable and consistent in operation. Our product range includes vacuum packaging machine, pillow type packaging machine, shrink packaging machine, plasticine packaging machine, card packaging machine, and etc. Our wide product line is manufactured using quality raw material to ensure durability and longer service life. For the past eight years, we has provided the worlds leading manufacturers, both large and small, with packaging machinery that is innovative, fast, reliable and cost effective.
