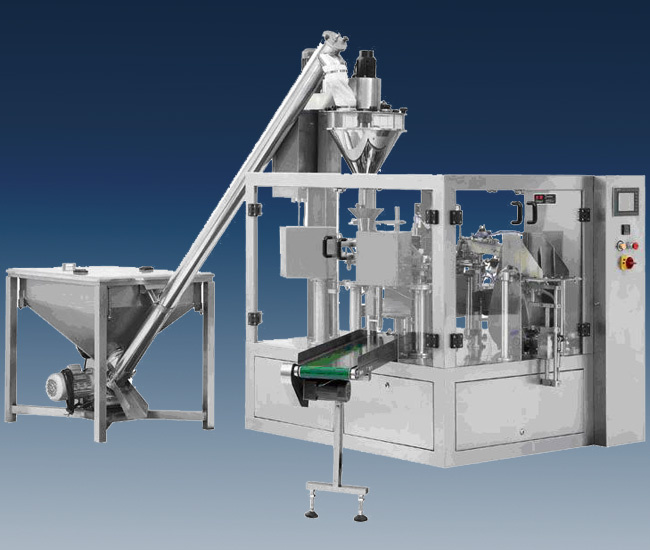

Automatic Rotary Doy Bag Packing Machine (Stand-Up&Zip Pouch)
Price: |
US $ 23000-45800/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,D/P,Western Union,Money Gram |
Packing Machine Description 1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly. 2. Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials. 3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm. 4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time. 5. The part where touch to the materials is made of stainlesss steel and according with the request of GMP.Main Technical Parameters:Working position | eight-working position |
Bag material | Laminated film/pe/pp |
Bag pattern | Stand-up with zipper & spout,stand-up ,flat bag, |
Max filling weight | 10-5000g |
Filling accuracy | 0.5-1.5% |
Bag size | W:100-200mm L:100-350mm (could be customized) |
Speed | 10-60bags/min |
Voltage | 380v 3phase 50/60hz |
Total power | 5.5KW |
Compress air | 0.6m3/min |

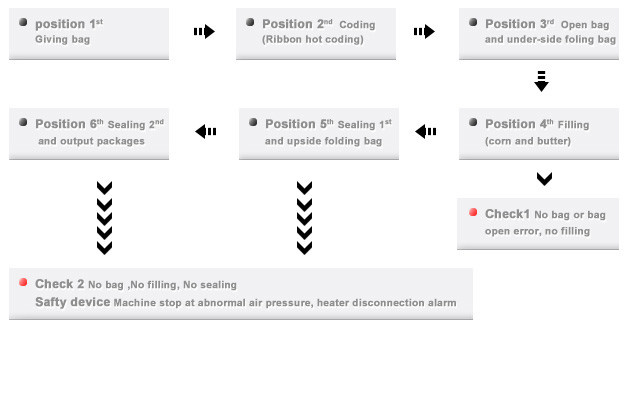

Working Proces

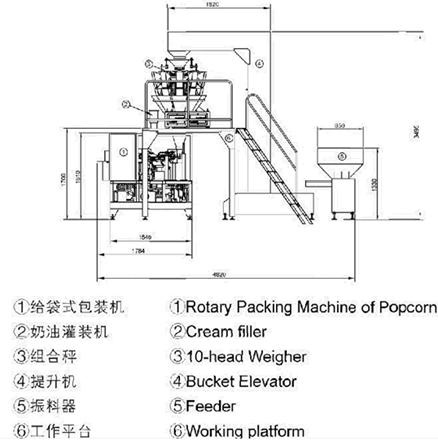

Mechanical Dimension:

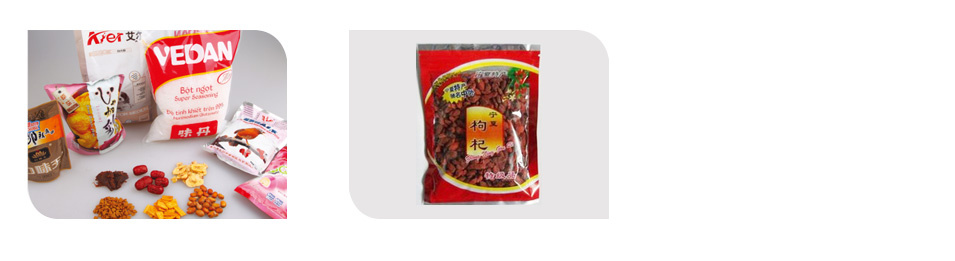

Sample:
Packaging and Delivery:
Our client :
Prod Model: |
MD8-200B |
Working Position: |
Eight-Working Position |
Bag Material: |
Laminated Film/PE/PP |
Bag Pattern: |
Stand-up with Zipper & Spout,Stand-up ,Flat Bag, |
Max Filling Weight: |
10-5000g |
Filling Accuracy: |
0.5-1.5% |
Bag Size: |
W:100-200mm L:100-350mm (Could Be Customized) |
Speed: |
10-60bags/Min |
Voltage: |
380V 3phase 50/60Hz |
Total Power: |
5.5kw |
Compress Air: |
0.6m3/Min |
Automatic Grade: |
Automatic |
Application: |
Oil |
Driven Type: |
Electric |
Material Type: |
Grain |
Packaging Type: |
Barrel |
Packaging Material: |
Plastic |
SME( China) has 3 brand: MOTECH; FENGYE; DESON distributed in China. With its own sales office in Shanghai, supporting by some 20 staff and dealers worldwide, its e-business marketplace and global distribution system, SME is always closed to its customers for the supply of both products and services MOTECH Specialize in designing and developing of integrated packaging products and solutions for food, beverage, household goods and pharmaceutical industries. With over 10 years of experience Motech packaging provides a complete end-to-end packaging solution by offering state of-the-art packaging equipment, installation, training, service and supplies Motech packaging believes in putting its clients needs first and offers innovative packaging solutions at affordable pricing DESON Polymer Solutions has been developing and Manufacturing innovative sealing systems based on Polyurethane and Silicone. MOTECH systems combine top Quality with exceptionally easy handling. Key Features include Low water Absorption, good adhesion, high long-term Temperature resistance, and a cost-efficient manufacturing process. MOTECH Polymer develop, produces and distributes worldwide polymer sealing, gluing and potting systems on polyurethane, silicon and PVC basis. Their performance is based on the experience of more than thousand formulations. The sealing material is applied onto structural components and modules of OEMs and industrial suppliers by the FIPFG/FIP (Formed-in-Place Foam Gasket/Formed-in-Place) technology We are committed to bringing 100% satisfaction to all our customers, so whether you're a small business working out of your home or a fortune 500 company, Motech Packaging has all your packaging needs covered Our machine combines a tightly crafted and functional design with optimum ease of operation and a long life span. Smart design ensure that strict standards and maintained at all times. Our customers, which range from the start-up operations to Fortune 500 multinational corporations, can be found a broad range of industries, including: · Medical· Pharmaceutical Energy· Food Processing· Aerospace Electronics/semiconductor· Telecommunications/ Fiber Optics· Packaging Material handling· General ManufacturingWe welcome any comments and questions you may have about our products or any other aspect of our business. We value your feedback as we are always looking for opportunities to provide better service.
