Automatic Shuttle-Table High Frequency Welding and Cutting Machine
| Price: |
US $ 6000-30000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Product Application
Machine profiles:

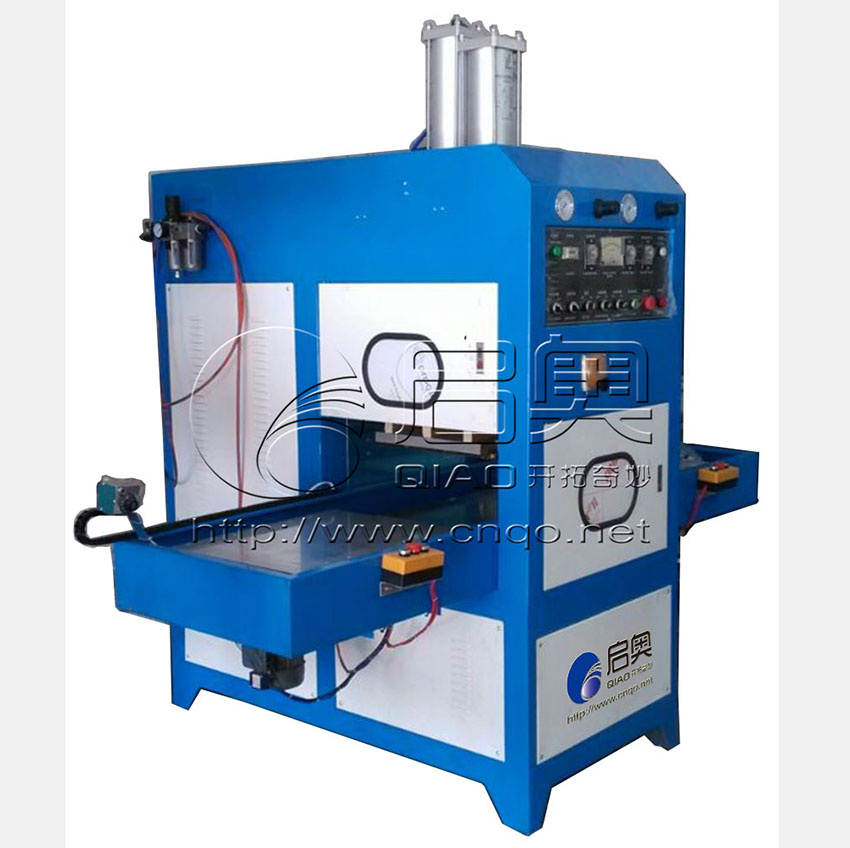

Automatic Shuttle-table High Frequency welding and cutting machine
This machine is automatic rotary type high frequency fusing machine, artificial feeding , automatic rotating welding, and synchronous cutting off the rim charge, equipped simple manipulator with automatic take out the products, the entire process, in addition to the previous manual feeding, after the nodes were automatic continuous operation, stable production efficiency, save manpower, effective control of the delivery time.
Application:
1. To seal blister of PVC, PET-G, PET-GAG, A-PET...
2. Clear blister packaging
3. Plastic clam-shell packaging
4. Plastic Blister with plastic blister packages
5. Plastic blister with cardboard packages
6. Positive/negative blister forming and packaging
It is especially designed for HF welding is a perfect machine for production of blister packages, But it is multipurpose machine.
Mainly used in PVC, APET, PETG, GAG environmental protection material double-sided blister packaging, blister sealing kit packaging, toothbrush seal packing, EVA cloth leather, leather, OPP, PU material welding and fusing.
It can be used for industry like PU leather cover for pad,, safety vests, reflective signs, inflatable toys, cosmetics, folding packing box, automotive, medical, rehabilitation, packaging, recreation, textile and clothing, reflective garments,.etc.
| Technical Specifications: |
| Model | QO-5KWDZ | QO-8KWDZ | QO-10KWDZ | QO-12KWDZ | QO-15KWDZ |
| Output Power | 5000W | 8000W | 10000W | 12000W | 15000W |
| Anti-Spark System | NL-5557 High sensitive anti-spark system |
| Voltage | 3P AC 380V/220V/440V 50Hz-60HZ or customize |
| Frequency | 27.12MHz +/- 0,6 % |
| Input power | 8KVA | 15KVA | 18KVA | 20KVA | 25KVA |
| Rectifier | SILICON DIODE |
| Oscillation tube | 7T85RB | 7T69RB | E3069 | E3130 | 8T85RB |
| Max pressure | 5T | 10T | 15T | 20T | 25T |
| Operation mode | Pneumatic Operated (Hydraulic pressure upon request) |
| Max gap of electrodes (mm) | 200 mm |
| Size of active horn (mm) | 150 mm |
| Working Stations | Standard 2 work stations |
| Upper Electrode (W*H*L)(mm) | 300*400 | 300*400 | 300*400 | 350*450 | 400*500 |
| Size of Work Table (L*W)(mm) | 350*450 | 350*450 | 350*450 | 400*500 | 400*500 |
| Welding time | 0.01~9.99s adjustable |
| Net weight | 1200KG | 1200KG | 1200KG | 1500KG | 1500KG |
| Foreseen productivity | 10~20times/min depending on welding and rotating times, and operator skills |
Detailed Images

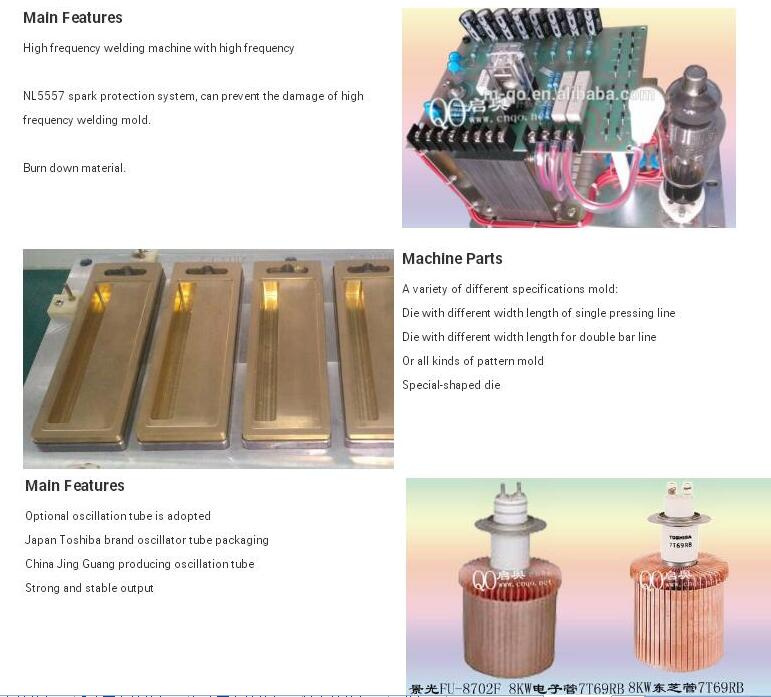

Main Features1. Anti-flash system, to protect the tooling / mould; C-Frame welded steel structure with integrated HF generator
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed
4. Heated Upper platen with thermostat, for helping HF sealing process
5. Close off HF welding function, the machine can be use as Standard Heat Welder
6. Universal usage for PVC, PET-G,A-PET,GAG, PU, PLA films
7. European-model square high frequency vibration box, more reliable and stable in output
8. Customer's site installation, training & maintenance available
9. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.
10. High frequency welding press pneumatically operated
11. equipped the simple manipulator automatic take out the product
| Prod Model: |
QO-8KWDZ |
| Voltage: |
220V/380V or Customized |
| Frequency: |
27.12MHz+/-0.6% |
