Automatic Stand up Zipper Doy Pack Filling Packing Machine

Name: Automatic Stand up Zipper Doy Pack Filling Packing Machine
Brand: FullPackage
SKU: 809889555
Availability: InStock
Rating: 4.8 (84 reviews)

Price:	US $ 15000-60000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

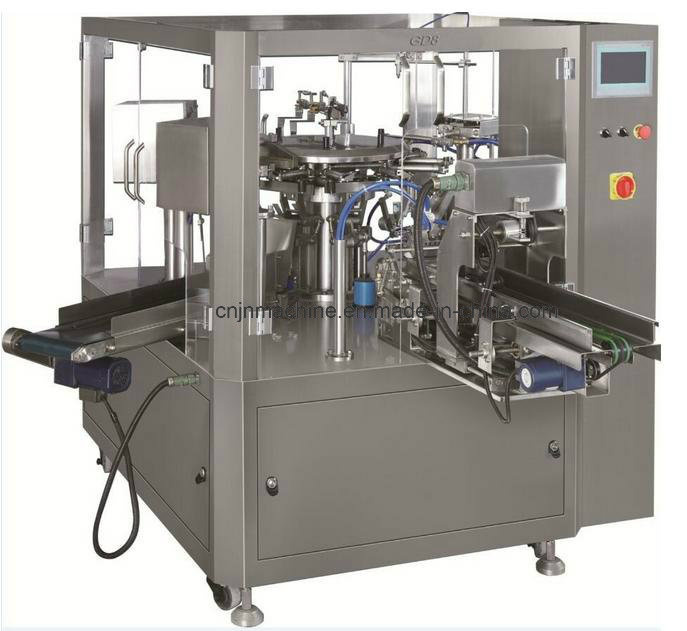

Automatic Stand up Zipper Doy pack Filling Packing Machine

♦ Technical Parameters

Model	GD8-200
Working position	eight-working position
Pouch material	Laminated film
Pouch pattern	Stand-up & Zipper
Pouch size	W:100-210mm L:100-320mm
Speed	≤35pouches/min (The speed depends on the product status and filling weight)
Weight	1300KGS
Voltage	380V 3phase 50HZ/60HZ
Total power	4KW
Compress air	0.6m3/min(supply by user)

10-Head Multied Weigher

Specifications:

Model	KJL-10
Weighing Range	10-1000G
Speed	Up to 70 bags/min
Structure	Stainless Steel - Two levels
Hopper capacity	1600ml
Driving Mode	Stepper Motor
Preliminary Program	99 Sets
Total power	1.5KW
Voltage	220V single-phase 50/60HZ
Dimension	1150(L)X950(W)X1129(H)
Display Screen	Color Display 5.7 Inch LCD digital keypad

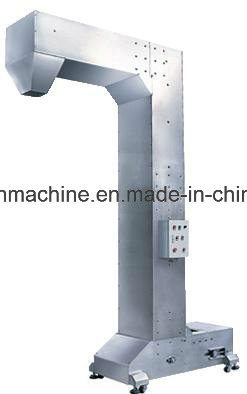

Z&L shape conveyor

Function and characteristics:

This kind of elevator is used mainly to convey the solid food ,such as rice, chip potato ,candy ,etc.it composes the automatic quantitative packing system combined with the weigher and packing machine, which is applying widely. Be made of 304 stainless steel and plastic (PP) which is hygienicand healthy .the elevator is controlled automatically.

Specifications:
Model: TSZ-200
Speed: 1 m3/h
Voltage: 220V single phase 50/60Hz
Total weight: 180Kgs

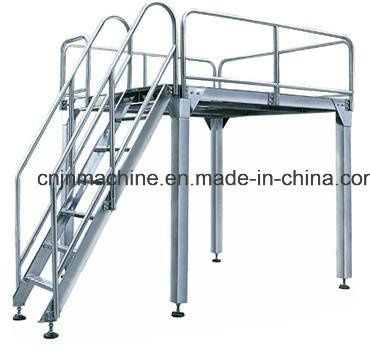

Working Platform

Function and characteristics:
The platform is beautiful ,firm ,skidproof ,and safe .the platform is mainly used to cases the weigher ,which is the general accessorial equipment in packaging system.

Samples:

Prod Model:	GD8-200B
Pouch Material:	Laminated Film\PE\PP etc.
Pouch Pattern:	Stand-up, Flat, Zipper Bag
Pouch Size:	W:80-200mm, L:100-350mm
Dimensions:	147013201450mm
Voltage:	380V 3phase 50Hz/60Hz
Total Power:	4kw
Material:	Stainless Steel

Wenzhou Jienuo Machinery & Technology Co., Ltd. is manufacturing and trading company which is mainly engaged in development, production and related services for Pharmaceutical Industry, Food Industry, cosmetics industry, stationery industry, etc...We do business for Mainland customers, also do exporting our products to a lot of different countries and areas around the world. Such as United States, UK, Mexico, Italy, Australia, Poland, Philippine, South Africa, Malaysia, Thailand, Pakistan, Dubai and so on. It is very popular and interested there.

The main products of machinery and complete line equipments as Rotary Pouch Packing Machine, Premade Bag Packing Machine, Horizontal Pouch Packing Machine, Doy Packer, High-Speed Pillow Packing Machine, Bottle Labeling Machine, Sitcker Label Machine, High Speed Vials Labeler, Multi-Surface Labeling Machine, Capsule Filling Machine, Cartoning Machine, Vertical Packing Machine, AL/PL Blister Packing Machine, Thermoforming vacuum packaging machine, etc...

We provide professional packing solution and do a series of service from beginning to end.

Our strength

1. Equipment make and assemble strictly in accordance with customers' Requires, like CE, ISO9001(certification) etc.

2. We cooperate with some experienced factory, which as our subsidiaries groups. And it' S experience in packing industrial with good after-sale service group.

3. Effective and fast to keep up with customer demand.

4. Professional engineers group could do overseas service if you required.

We don' T sell product only, we sell the solution and service also. Good quality, good service and competitive price. Welcome to work with us to win a mutual benefit future.
