The roller shutter is made of steel, which is applied for the curtain, the guide rails, the bottom rail, the door head, the box and etc. It is equipped with a rolling motor and a control box. It meets the requirements of integrity against fire.
Application: Factory, shopping mall, warehouse, garage, parking

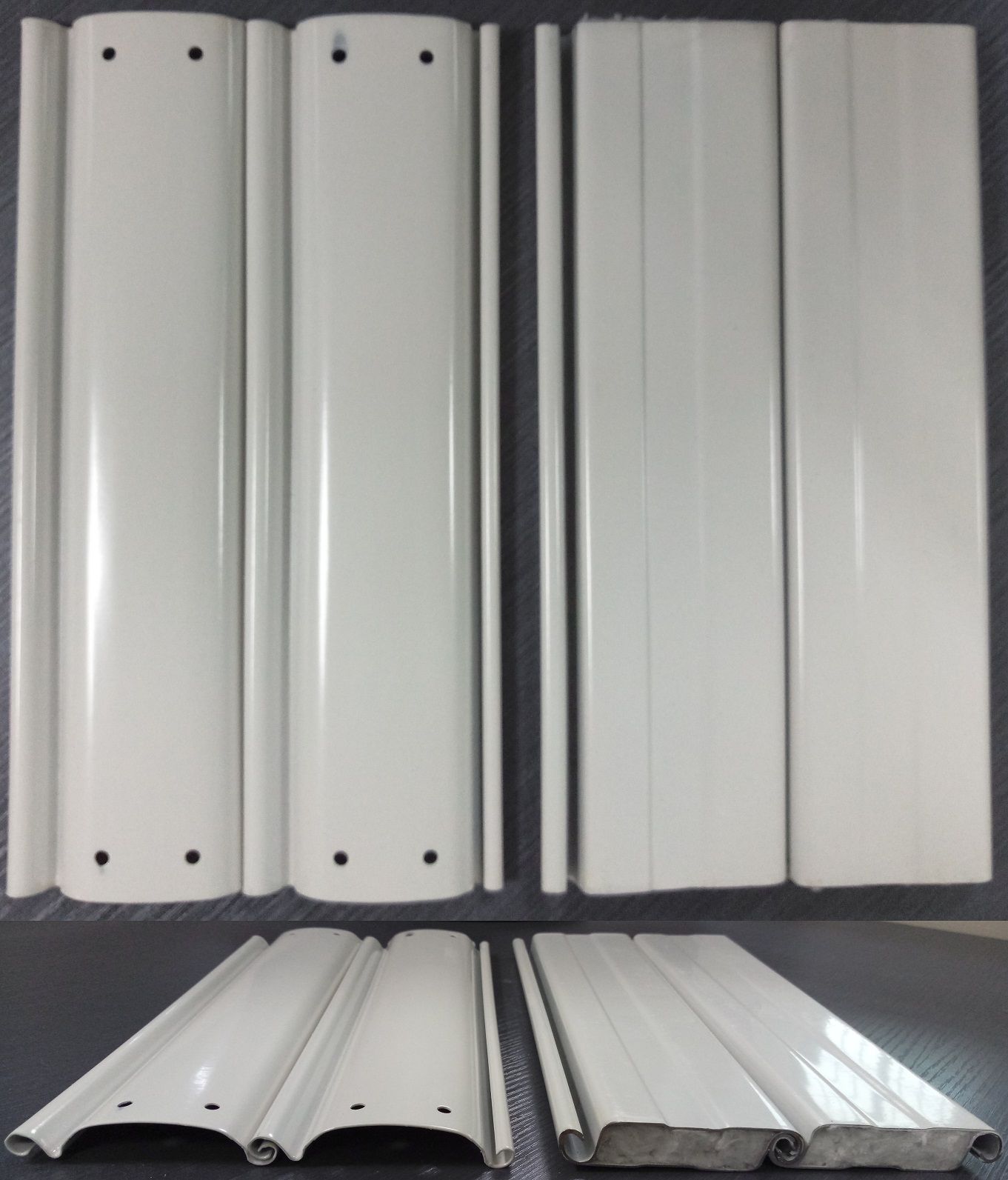

Structure of Curtain: double-layer (8mm galvanized steel sheet or stainless steel sheet + aluminum silicate fiber + 0.8mm GSS/SSS)
Filling Material: aluminum silicate fiber
Surface: treated with plastic spraying
Characteristics:
1. High performance, strong resistance against wind, high strength, anti-theft;
2. Easy to operate, either incorporated with Fire Control Center or operated independently; controlled by machine according to the smoke sensor and the temperature sensor, both manually and automatically;
3. When power cut occurs or the electric control goes wrong, it can be open or closed by pulling the chain.
4. Safe and reliable for it has a brake device to prevent the chain breaking and insure life and property security.
Dimension (customized or ref. as follow):
Width of Curtain: 86mm
Thickness of Curtain: 17mm
Dimension of Guide Rail: 120mm X 70mm X 1.5mm
Dimension of Bottom Rail: 40mm X 55mm X 1.5mm
End Bracket: Master: 530x320x4mm; auxiliary: 530x320x4mm
Service: OEM, ODMproduct details
If you have any query or advice to tell us, please remenber below contact information:
Why choose us
1. We have thousands of clients all over the world, and hundreds of projucts,
20 years export experience. We believe our cooperation will be a win-win cooperation.
You will find we are your the best supplier.
2. Our advantages:
a) More than twenty-year experience in wood door line & familiar with the requirement about quality required by the customers from all over the world.
b) 100% of the wood for our doors is imported.
c) Secondary drying on doors by our Automatic Kiln drying let moisture content suitable.
d) Step by step quality checking by our experienced QC guarantees our quality.

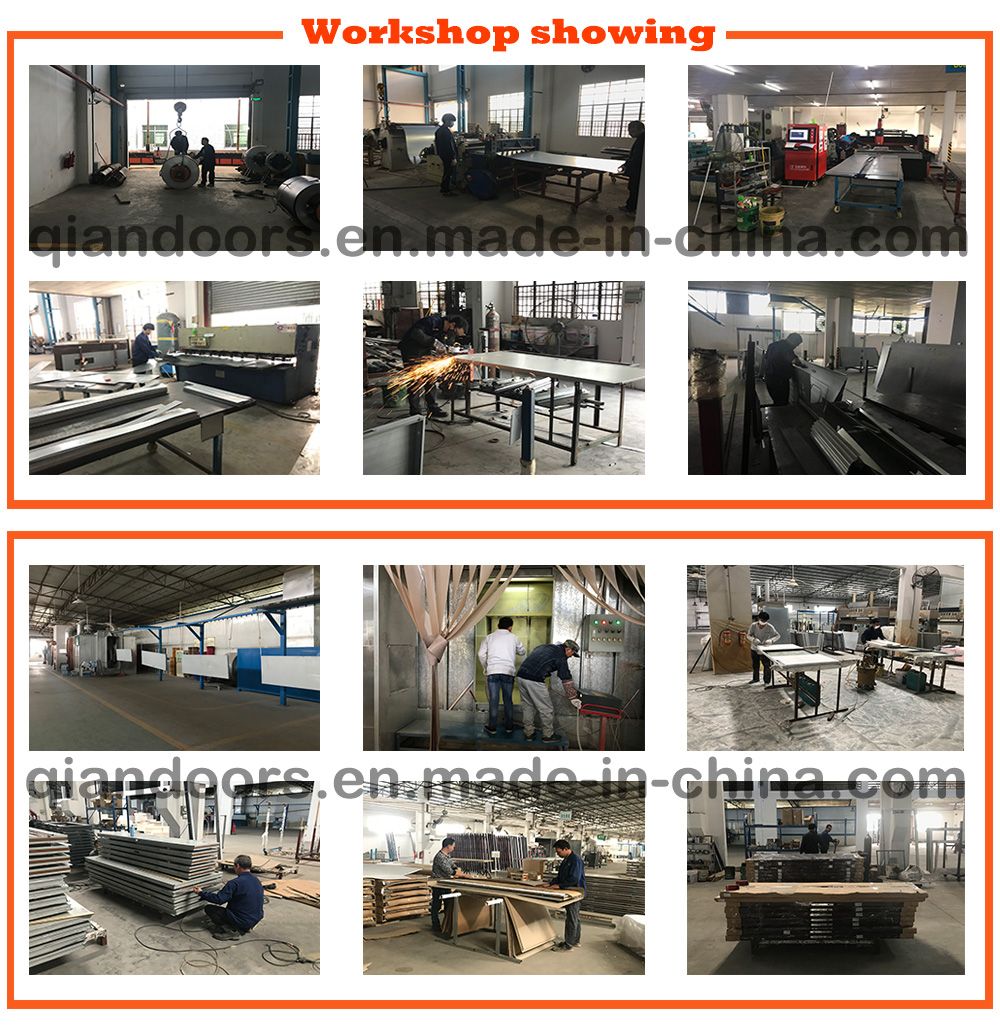

Foshan Qi'an Fireproof Shutter Doors Co., Ltd. is a reputed professional manufacturing enterprise specializing in design and production of fire doors, security door, fire roller shutters and fire windows.
The company manufactures Qi'an brand steel fire doors, wooden fire doors, fire roller shutters and fire-resistant window in strict accordance with BS 476-22 Fire Tests on Building Materials and Structures Part 22: Methods for Determination of the Fire Resistance of Non- Load Bearing Elements of Construction and BS EN 1634-1: 2008.
Since its establishment in 2005, the company has been adhering to the principle of "Customer first, Devotion to fire protection service" and the managerial concept of "Quality first, User-friendly service", and continuously forge ahead, improve management and provide safe and quality fire protection products through ISO9001: 2000 quality system's approval and maintenance. The company, with abundant technical force, modern advanced equipment and a high-caliber crew, establishes and improves a strict quality management system and efficient sales network all over China to provide a solid guarantee for users' increasing demands. It also expands its business to overseas markets including Southeast Asia, the Middle East, Europe and America. Its products are safe, reliable and good quality, winning trust and praises from domestic and foreign customers. It is endeavoring to make contribution to product innovation, progress in fire prevention industry and building an international brand.
