| Price: | US $ 9800/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | KUKI A1 |
|---|---|
| Work Method: | Round Knife Cutting |
| Classification: | Tape Cutting Machine |
| Packaging Material: | PVC |

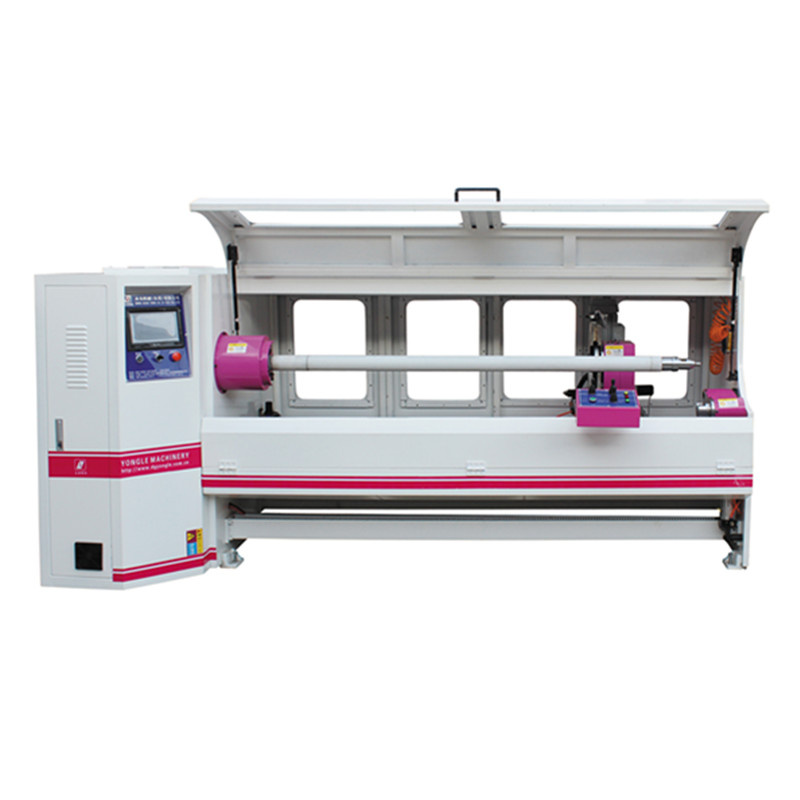

Automatic Tape Cutting Machine
Application :
Adhesive tape log roll cutting machine for cutting Tape, BOPP, OPP, Cellophane tape, 3M, Mylar, Kapton, EVA,PE, PVC, Masking tape, Double-side adhesive tape, Kraft tape , Protective film, Duct tape , film roll etc. Laminating film roll cutting machine from manufacturer
Feature:
For fully automatic roll cutting machine :
1. Machine with PLC control and color touch screen , machine fully automatic
2. Customer can set 10 differents types of cutting width and angle of cutting.
3. Cutter with servo-motor control, apply for different material roll, also machine cutter forward stablly and smoothly.
4. Cutter and the main shaft adpots AC motor. The high precision ball screw work with servo motor and the straight liner slide rail, machine running smoothly and cutting the material with high precision.
For Semi Automatic roll cutting machine :
1. With round blade, pneumatic cutter forward and return, the finished roll with smooth cutting surface.
2. Machine with digital system , the cutting width will display on it , improve the accuracy of cutting.
3. Customer can easy adjust the cutting width and cutting angle.
Technical Data:
For fully automatic roll cutting machine :
width
| 1300mm/1600mm | |
maximum cutting diameter
| 300mm( depends on the shaft number and material ) | |
minimum cutting width
| 0.3-1600mm( according customer's requirement) | |
paper core inner size
| 76.2mm ( or others ) | |
maximum cutting speed
| 34 cuts/min for one shafts cutting machine | |
| 68cuts/min for two and four shafts cutting machine | ||
voltage
| 380V/415V/220V(according customer's required ) | |
speed of turnable
| 300-1800rpm | |
main motor power
| 4 KW | |
Power of round blade
| 1.5 KW | |
option
| with Single , or double or 4 shafts , or semi-automatic cutting machine | |
| With sound cover or not |
Machine's picture :

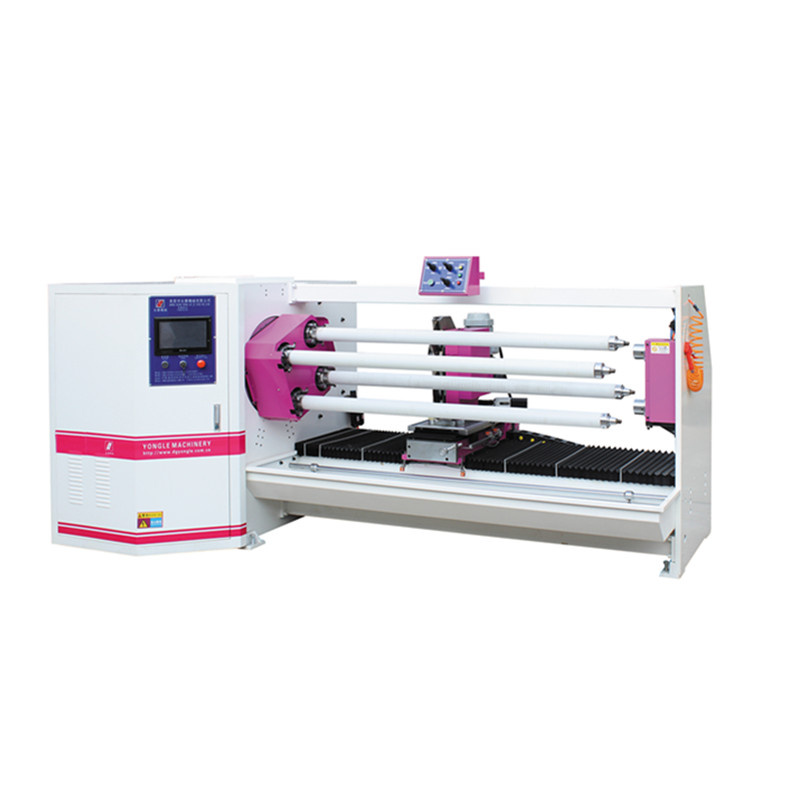

4 Shafts roll cutting machine :

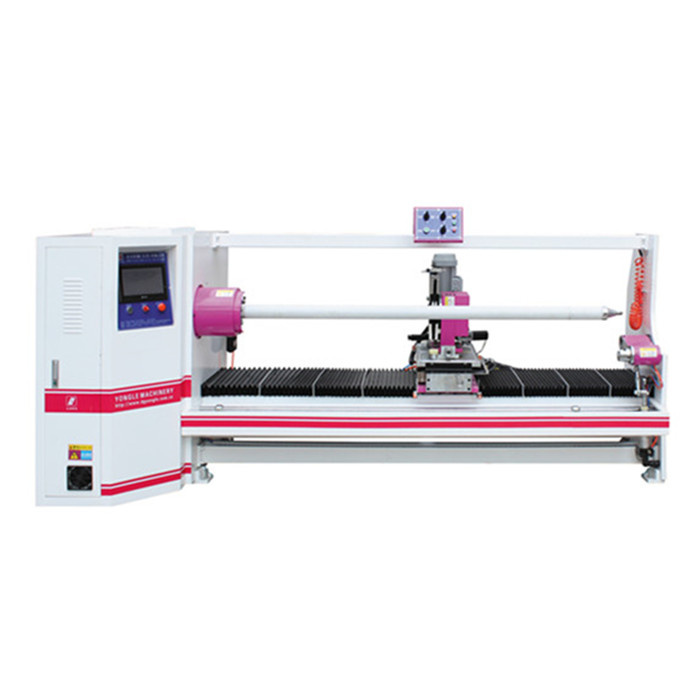

Single shaf roll cutting machine :

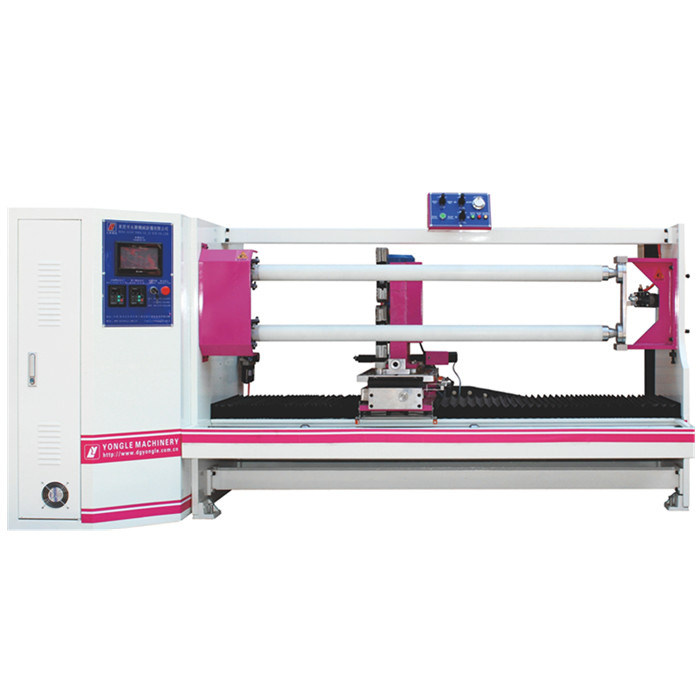

Double shafts roll cutting machine :

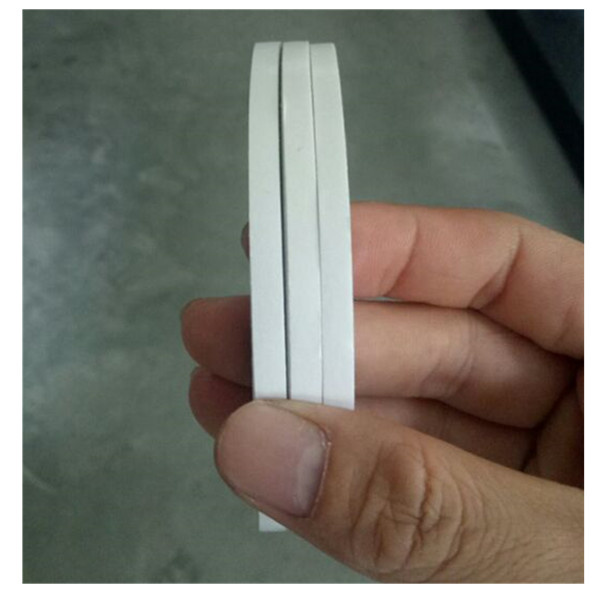

Finished Tape :
Company Information
1. Who we are? Dongguan Power Garment Machinery Co., Ltd is a professional Seamless garment machinery and Seam Tape manufacturer majoring in innovating,producing and marketing.Our brand "KUKI" machine includes seamless bonding underwear machine,heat pressing machine,hot air seam sealing machine,Hydraulic press machine,ultrasonic seamless machine.Also,our"KUKI" Brand seam tape includes Adhesive Tape.
Our products are widely applied to seamlees underwear,seamless socks, bonding shoes,swimsuit, sport shirt,ski-wears,outdoor sports wears,military functional clothing,tents, waterproof bags,waterproof gloves,raincoats,vehicle covers,medical protective clothing and other functional clothing or related products.
We always stick to the policy of excellent technology with perfect workmanship,and established a perfect service network by building up long.term and friendly relationship with customers from South Asian ,South America & Pacific regions and Middle East.In the face of the new international cooperation trends,we will focus on our core competitiveness to offer the best machines and service to customers as always.Also,we will try to become modernize enterprise in international market.
2. What certificates do we have?
3. Where we are?
NO.15 Industry rd. jiadazhou Industry park wanjinag district donguang city, China
Our Services
1. Warranty period
First half year warranty will be provided for all electrical element of new sold machines one year warranty for all mechanical parts (under warranty free replacement parts are available),on-line service will offer in 24 hours at anytime. Free spare parts will be provided for not-consumable parts, e.g. roller, or not caused by improper use, when under warranty period.
2. Maintenance
All machines must be placed indoor, and cannot be under high temperature working environment. Air-conditioned set up would be favoured.
3. Initial Machine Startup Installation
All machines are in good testing before delivery,once you got the machine,only connect the air compressor and choose language in English. Then you can set up speed and tempreture up to your requirement.
4. Machine Repairing
We can provide on-line service for machine repairing .
5. Technology Support
For any technical problem, we will discuss with customers to investigate their problem and finding solution. We can quote lowest prices separately for spare parts .
