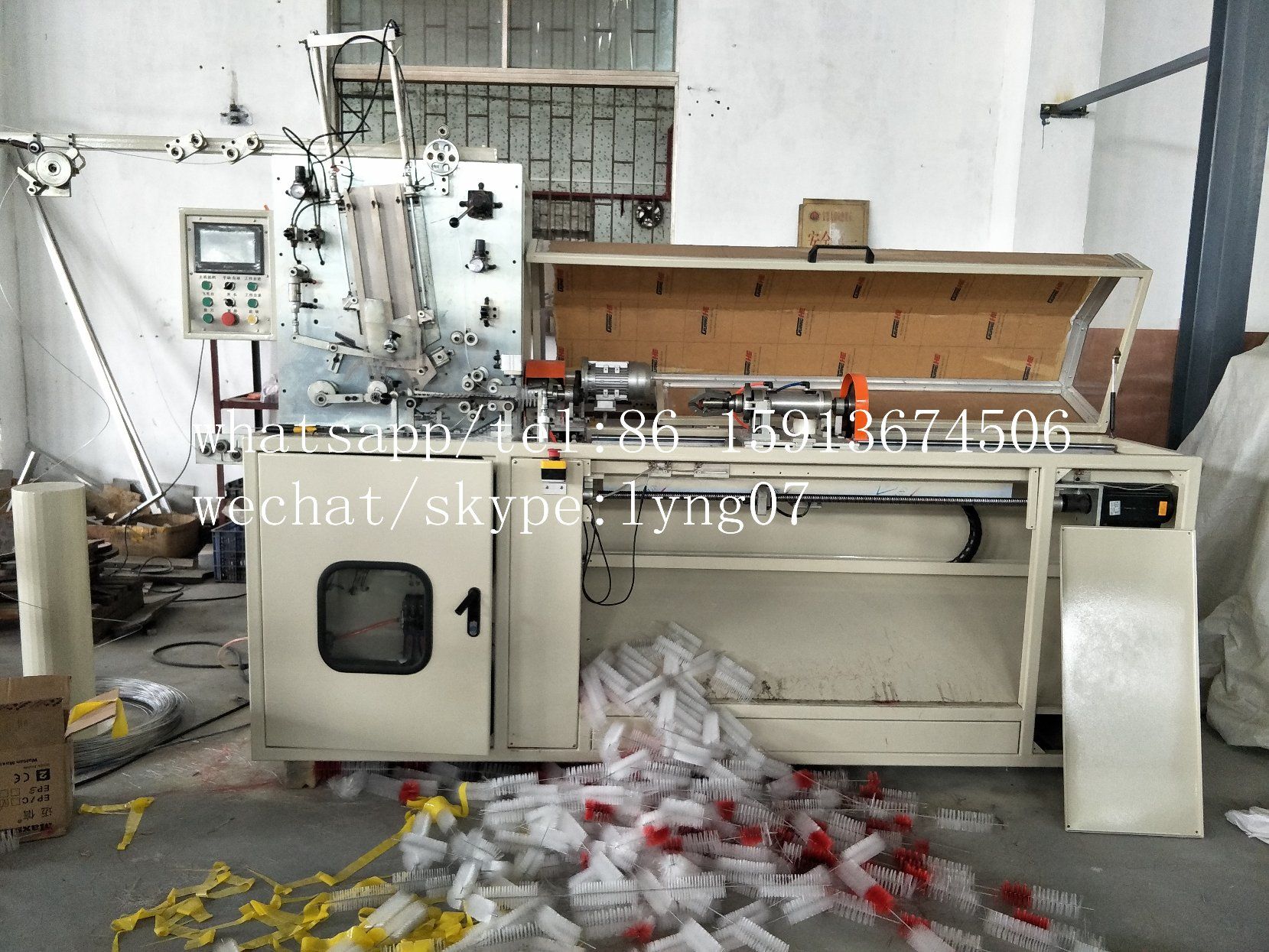

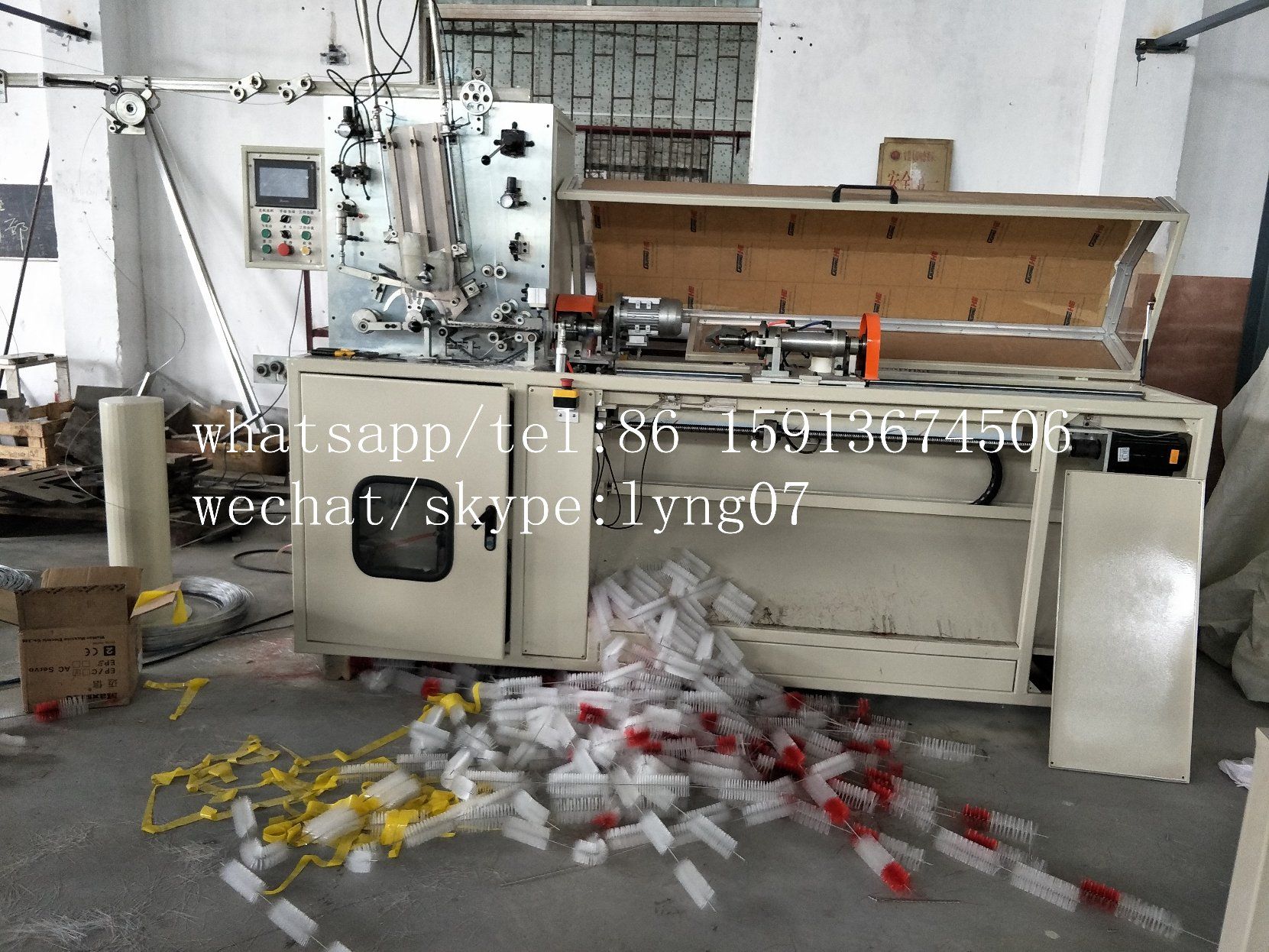

automatic CNC baby bottle brush machine
Machine paremeter| 1 | machine size | 1200*1000*1700mm(L*W*H) |
| 2 | axis | 2 axis |
| 3 | Power | about 3KW |
| 4 | Power voltage | 380VAC/220VAC |
| 5 | wire | round wire(stape nail) |
| 6 | hole diameter | 4-6mm, |
| 7 | max outside filament length | 20-50mm |
| 8 | Journey of X axis | 300mm |
| 9 | Journey of Y axis | 300mm |
| 11 | roller diameter | 70-220mm |
| 12 | Tufting speed | 3 holes/sed |
| 13 | Weight | about 900kg |
| 14 | Packing | wooden box |
| 15 | Function | Drilling and Tufting |
| 16 | Production | about 2000pcs/10 hours |
Wearing parts and spare parts are standardized designs
Machine spare parts:Italy brake motor
driving Motor: servo motor(Panasonic)
driving screw:TBI ball screw
Lubrication:TBI straight line guide rail
Japan bearing( IKO,BB15 and BB20)
Schneider low voltage electrical appliances
Stepless speed:Frequency converter using Delta inverter
PLC(ADTECH CNC Control System)
Fiber box container:two or three colours
Installing and testing:
We can make Many kinds of brushes series making machine :
Packaging & Shipping
Certificate Patent and CE
What country do we sell our brush amchine to:India,Pakistan,Turkey,Indonesia,America,Brazil,Mexico,Peru,Thailand,Korea,Yeman,Africa and so on Our Services In the warranty period(one year),we will send you one set of wear parts(for example:matching tufting needles,hair mouth,hair pulling blade,cutting wire knife)
If machine is broken,engineers is available to service overseas(but buyer has to our engineer round trip ticket fee,living and eating fee and pay our engineer daily salary)
After warranty year,the easy broke parts will be fixed for wholelife.f the wear parts are broken,we can send new for you,but you paid the wearing parts fee and shipping fee.
FAQ1.What No.you are you in this field?
We are top in this field,our boss already in this field over 20 years.he is also engineer.
He knows domestic market very well.our machine is not only popular in domestic ,but also hot sell in foreign countries.
We already sold out many machines since we start the trading business,the production increases very fast.
2.How about your service?
We will follow every our custome,when need our help,we will solve asap for you.
3,.how about our technology.
We can make kinds of brushes (flat,curved,cylindrical shape),usually is 2-5 axis,we also can design ad per your demand.
Our factory is specialized in producing 2 to 5 axis single(double) colour brush machine, CNC tufting machine, CNC tufting and drilling machine, CNC drilling and tufting combination machine, filament trimming machine, filament cutting machine. Our products mainly are widely used in all kinds of brushes, for example: Broom(plastic and wood)cleaning brush, electric toothbrush, travel toothbrush, cosmetic brush, nail Polish brsh, industry roller brush, strip brush, round disc brush, dish washing brush, comb, massage brush, wooden brush, barbecue brush and so on.
