Baby Diapper Central Drum Flexo Printing Machine
| Price: |
US $ 70000-80000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |

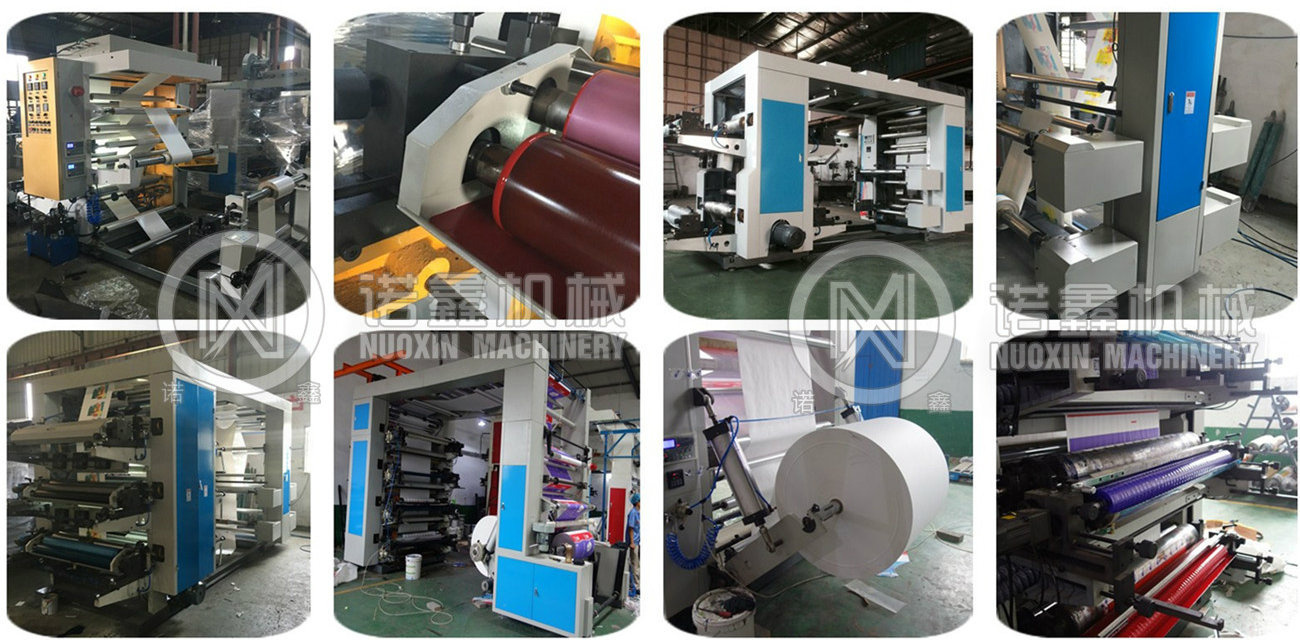

6 Colour Central Drum CI Flexo Printing Press Machine
Feature:
1. Method:Central impression for better color registration. With the central impression configuration, The material to be printed is supported by the cylinder, Greatly improving color register, Especially with extensible materials.
2. Structure:Wherever possible, parts are commonized for availability, Wear-resisting design.
3. Dryer:Hot wind dryer, automatic temperature controller, Separated heat source.
4. Doctor Blade:Chambered assembly for high-speed printing.
5. Transmission:High performance taiwan motor with digital frequency inverter and encoder buttons are placed on both control chassis and body for operators' convenience.
6. Rewind:High performance Taiwan motor with diaphragm air cylinder for stable web tension.
7.Color Registration:Push button-controlled in 4 directions.
8.Plate Mounting:Button-controlled fine-adjustment for oblique plate mountin.

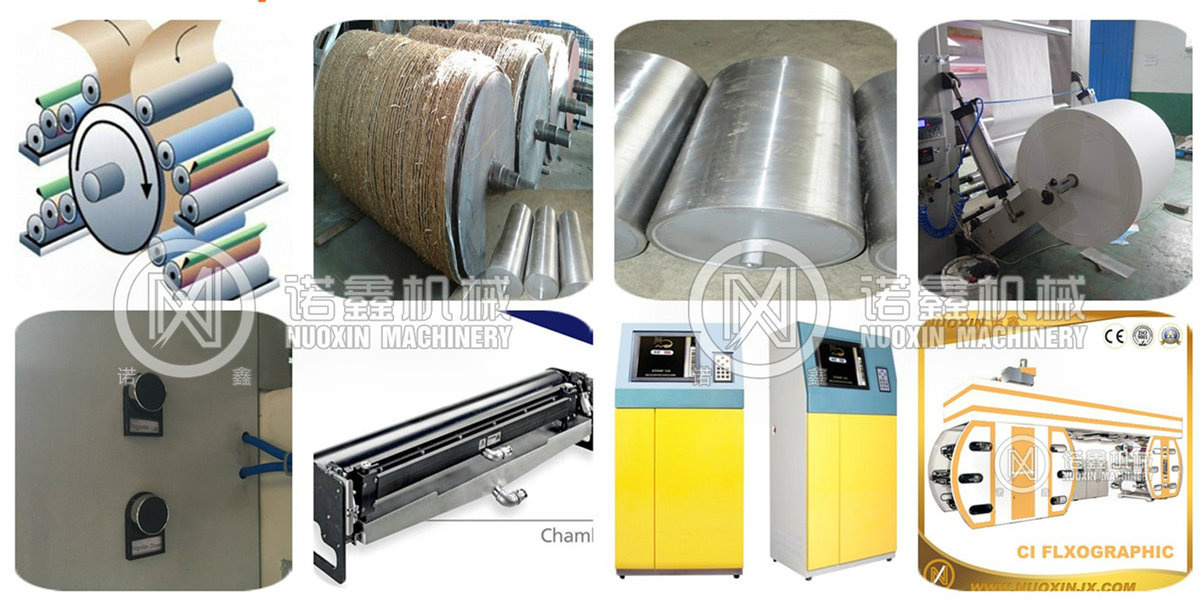

9. Gearing of Printing Cylinder:Metric, M2, Circular pitch 7.26mm, and 30-degree helical gears.Major components:Main Taiwan Motor with Driver.Un/Rewinder: with Magnetic powder and automatic tension controllerUnwind Tension Controller with Powder Brake.Rewind Tension Controller with Torque Motor.Laser-Engraved Ceramic Anilox Rollers(400 cells/Inch); One For Each Color.Chamber Doctor Blade for Each Color.Ink Circulator with Tank for Each Color.Air Shafts for Web Rollers.CI Drum with water Cooling System. (optional)Overhead Cranes for Wed Rolls. ( optional)Plate Cylinder(up to 400 mm) with Gear for Each Color.| MODEL | PRINTING WIDTH | MATERIAL WIDTH | REPEAT LENGTH | PRINTING SPEED |
| NXW-6600 | 600MM | 700MM | 300~900MM | 150M/MIN |
| NXW-6800 | 800MM | 900MM | 300~900MM | 150M/MIN |
| NXW-61000 | 1000MM | 1100MM | 300~900MM | 150M/MIN |
| NXW-61200 | 1200MM | 1300MM | 300~900MM | 150M/MIN |
| NXW-61400 | 1400MM | 1500MM | 300~900MM | 150M/MIN |
| NXW-61600 | 1600MM | 1700MM | 300~900MM | 150M/MIN |
Options:Plate Cylinders of Various Size.Unwind Web Guiding System.Rewind Web Guiding System.Ink Viscosity Regulator.Printed Graphics Inspection System.Human-Machine Interface.Ceramic Anilox Rollers. ( 400 Cells/Inch And Above)Air Compressor.Turret Un/Rewind for Non-Stop Printing.Full width Double-Sided Printing.Technicians abroad Install and Training Expense.Central drum Flexographic:
Stack Type Flexographic:
if you have any question, tell me freely. We are not the best, but will try our best for you !
Mobile: +86-13780130609
Contact: ms Elaine
| Prod Model: |
NXS |
| Plate: |
Resin or Rubber |
| Center Roller Diameter: |
1200mm |
| Ink Transfer: |
Chamber Doctor Blade |
| Chamber Blade: |
Teflon Process |
| Register Color Wau: |
Motor for up and Down |
| Register Way: |
Motor for Left and Right |
| Voltage: |
220/380V,3p |
| Machine Size: |
6.5m*2.4m*3.8m |
| Type: |
Ink Jet |
| Embossing Structure: |
Rotary Letterpress |
Ruian NuoXin machinery Co., Ltd which located in the Ruian city of zhejiang province, is a professional company specializing in the production of printing machinery.
Over the years, we have been engaged in flexo printing machine, for example: Wide width printing machine, plastic film printing machine, roll paper printing machine, non-woven fabric printing, etc. Products are widely used in all kinds of drum material printing.
Nuo xin is a manufacturer included machine design and manufacture. Now has strong engineering and technical services, with independent ability in the development of the new type flexo printing machine. In recent years, the production of high-speed synchronous belt stack type flexo printing machine, ordinary helical gear flexo printing machine, online flexo printing press and others are exported to eastern Europe, North America, South America, southeast Asia, Russia, Africa, the Middle East and other regions and countries. The market response is good, the customer is well-established.
For a long time in the design, manufacture, maintenance and other professional technology, we has accumulated rich practical experience. The product main advantage: Machine stable, simple, durable, easy maintenance. Transfer ink evenly, strong stability, long lifetime. Our Company insisit in "to the quality strives for the survival, to management for efficiency" as principle, constantly improve the product structure, to build well-known brands at home and abroad. Sincerely look forward to the broad masses of customers to visit.
